British Standard TV Aerial Socket — Coaxial Wall Socket, White PC Panel
The R16432 is a TV aerial wall socket, designed with a British standard specification for connecting aerial feeds to a professional 86×86mm wall plate and terminated via the Belling-Lee/IEC push-in coax connector, which is the universally accepted connector type for Freeview & Digital Terrestrial Television and standard aerial distribution systems, as opposed to surface-mount boxes (which project from the wall) – this PC TV Aerial Wall Socket is white, matching the profile and finish of R16 series light switches and power sockets, providing an overall visual consistency on the wall. The coax connector is positioned within the face of the plate, therefore the entry of the cable will be flush to the wall surface. The R16432 is available in four colours of imported high-transparency PC panel; White, Gold, Grey & Black, allowing it to be compatible with any specification of interior. There are also two options of middle plates; either full plastic or Steel/Plastic mix for enhanced rigidity. The R16432 is certified to IEC 60670-1:2015 and EN IEC 60670-1:2021/A11:2021 and comes with a 1-Year warranty.
We are a factory-direct manufacturer offering competitive wholesale pricing, OEM branding on any color PC panel, and a 1‑year warranty across the R16 series electronic socket range.
TV Aerial Socket vs Satellite Socket — Two Different Connectors for Two Different Signals
| Feature | R16432 TV Aerial Socket | R16165 Satellite Socket |
|---|---|---|
| Connector Type | Belling‑Lee / IEC (push‑in) | F‑type (threaded screw‑on) |
| Designed For | Terrestrial TV (Freeview, digital) | Satellite TV (Sky, Freesat) |
| Connection Security | Friction‑fit — standard for TV aerial | Threaded — secure, vibration‑resistant |
| Signal Frequency | Lower — terrestrial UHF/VHF | Higher — satellite Ku‑band |
This socket is designed to connect a TV aerial to a terrestrial television signal (Freeview and Digital Terrestrial Television), and it’s compatible with standard aerial distribution equipment. The universal connector used for this application in England, Europe and Commonwealth Nations is the Belling‑Lee/IEC push‑in type, and you can connect up to 4 of these aerial sockets in one location (UK Socket standard). You can install an R16432 terrestrial (aerial) socket next to a satellite box (R16165) when constructing a home with both types of connection, because the dimensions of both sockets are 86 (L) x 86 (W) mm in size, and they both have the R16 series finish (colour). They are perfect for multi-gang installations because they look exactly the same.
Matching the R16 Series — One Wall Aesthetic for Power, Lighting, TV & Satellite
The aerial wall plate is a member of the R16 series and has the same size (86 x 86 mm) and materials (imported high transparent polycarbonate) as the R16 Series light switches, power sockets, door bell switches, fan controller switches, and satellite sockets with four different colours. With the same colour matching and finishes of panels and surfaces you will be able to have the same look for your electrical products in a media room as what would match with your other products; e.g. a white PC TV socket mounted beside a white R16 Series light switch, power socket, and R16165 satellite socket. All of these products have the same panel profile and construction materials making them identical in colour to the other professional AV installation standards found in commercial businesses. There are two options for middle way plates: full plastic for normal residential homes/and a combination steel/plastic for increased strength. All products are certified to IEC 60670-1:2015, and EN IEC 60670-1:2021/A11:2021 standards.
SPECIFICATIONS
| Series | R16 series |
| Item Code | R16432 |
| Description | TV Aerial Wall Socket (Belling‑Lee / IEC Coaxial Connector) |
| Connector Type | Belling‑Lee / IEC (push‑in coaxial) |
| Designed For | Terrestrial TV — Freeview, digital terrestrial, aerial distribution |
| Front Panel | Imported high‑transparent, high‑strength PC |
| Base | Imported high‑transparent, high‑strength PC |
| Middle Plate Options | Full plastic / Steel‑plastic combination |
| Standards | IEC 60670‑1:2015, EN IEC 60670‑1:2021/A11:2021 |
| Warranty | 1 Year (electronic product warranty) |
| Available Colors | White / Gold / Gray / Black |
| Dimensions | H 86mm × W 86mm (British Standard back box) |
| MOQ | 2,000 pcs per item |
| Packaging | 1 pc per plastic bag | 10 pcs per inner box | 100 pcs per outer carton |
Stock This British Standard TV Aerial Socket in Four Colors at Factory Pricing
White, Gold, Gray, Black PC panel. Belling‑Lee / IEC push‑in coaxial connector. Full plastic or steel-plastic middle plate. OEM logo, custom packaging, 1‑year warranty included. Contact us for a wholesale quotation.
IEC 60670 Certified • Belling‑Lee / IEC Connector • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for British Standard TV Aerial Coaxial Wall Sockets
The R16432 TV aerial socket adds essential terrestrial TV connectivity to your R16 series catalog. Stock White for volume residential projects, Gold and Gray for premium interiors, and Black for modern media rooms and commercial AV installations — all from one factory with consistent 86×86mm dimensions. The Belling‑Lee / IEC push‑in connector is the universal standard for Freeview and digital terrestrial TV across the UK, Europe, and Commonwealth markets. Stock alongside the R16165 satellite socket to offer a complete TV connectivity range. Two middle plate options serve both standard residential and commercial applications. OEM branding on any color PC panel, custom packaging, and full IEC 60670 documentation included for wholesale distributors worldwide.
TV Socket vs Satellite Socket: Choosing the Right Wall Socket for Your Project
A practical guide to specifying the correct aerial or satellite wall socket for residential and commercial TV installations.
TV Aerial Socket vs Satellite Socket — Which One Do You Need?
The TV aerial socket R16432 is used for Freeview and other forms of digital television (terrestrial TV) , as well as standard antennas (terrestrial), and connects to your aerial via a Belling – Lee / IEC type push-in connector. The Satellite socket R16165 is used for all types of Satellite TV (Sky, Sky Q , Freesat, and for Satellite distribution ) and connects to your satellite dish via an F Type threaded screw-on connector. If your project uses a roof top aerial then the TV socket is the correct choice. If your project uses a satellite dish, then the Satellite socket is the correct choice. If your room has both types of receiving aerials you should install both sockets side by side. They will be exactly the same size and finish as they share the same 86x86mm R16 panel size and finishing colour for a perfectly matched installation.
Color Selection — White, Gold, Gray, or Black?

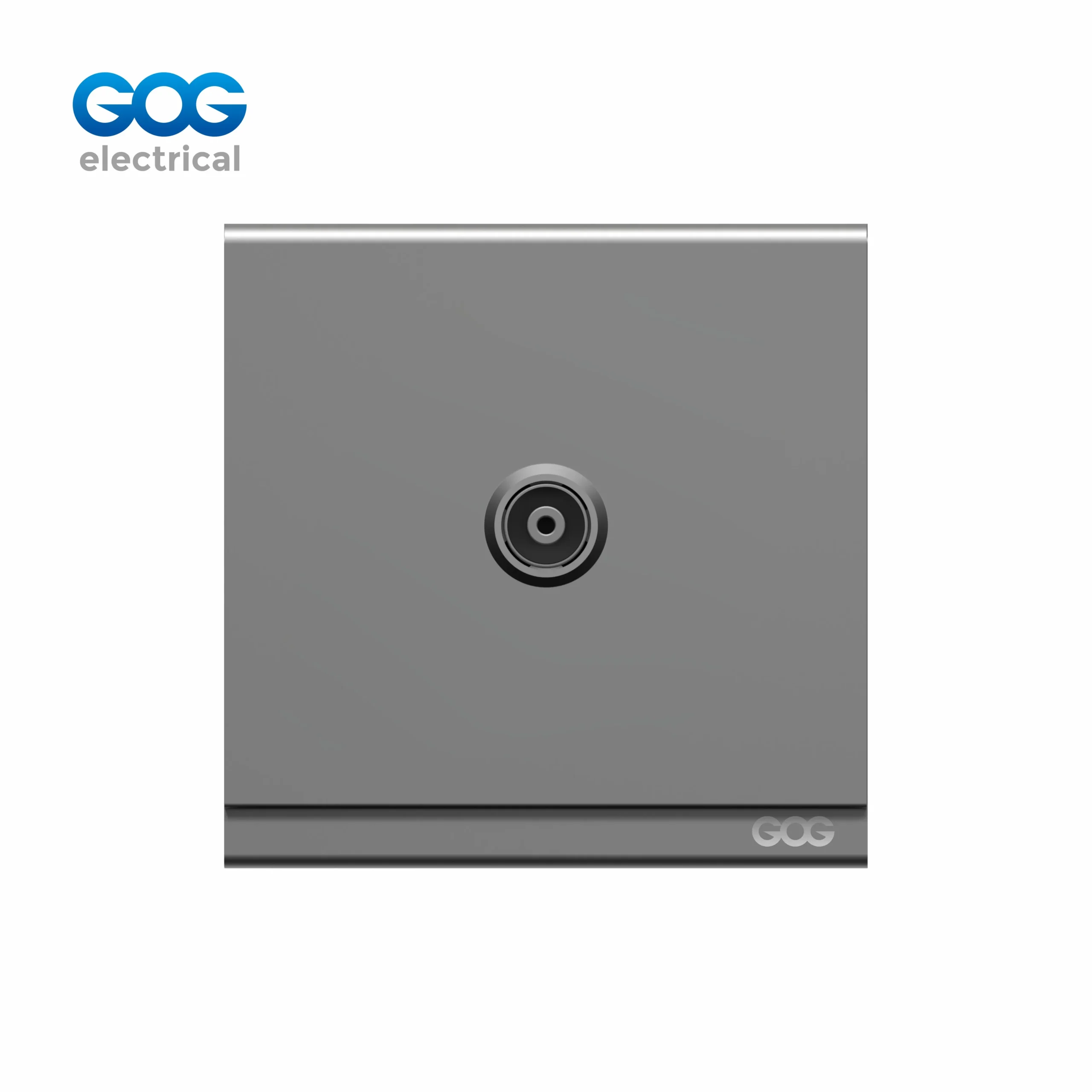

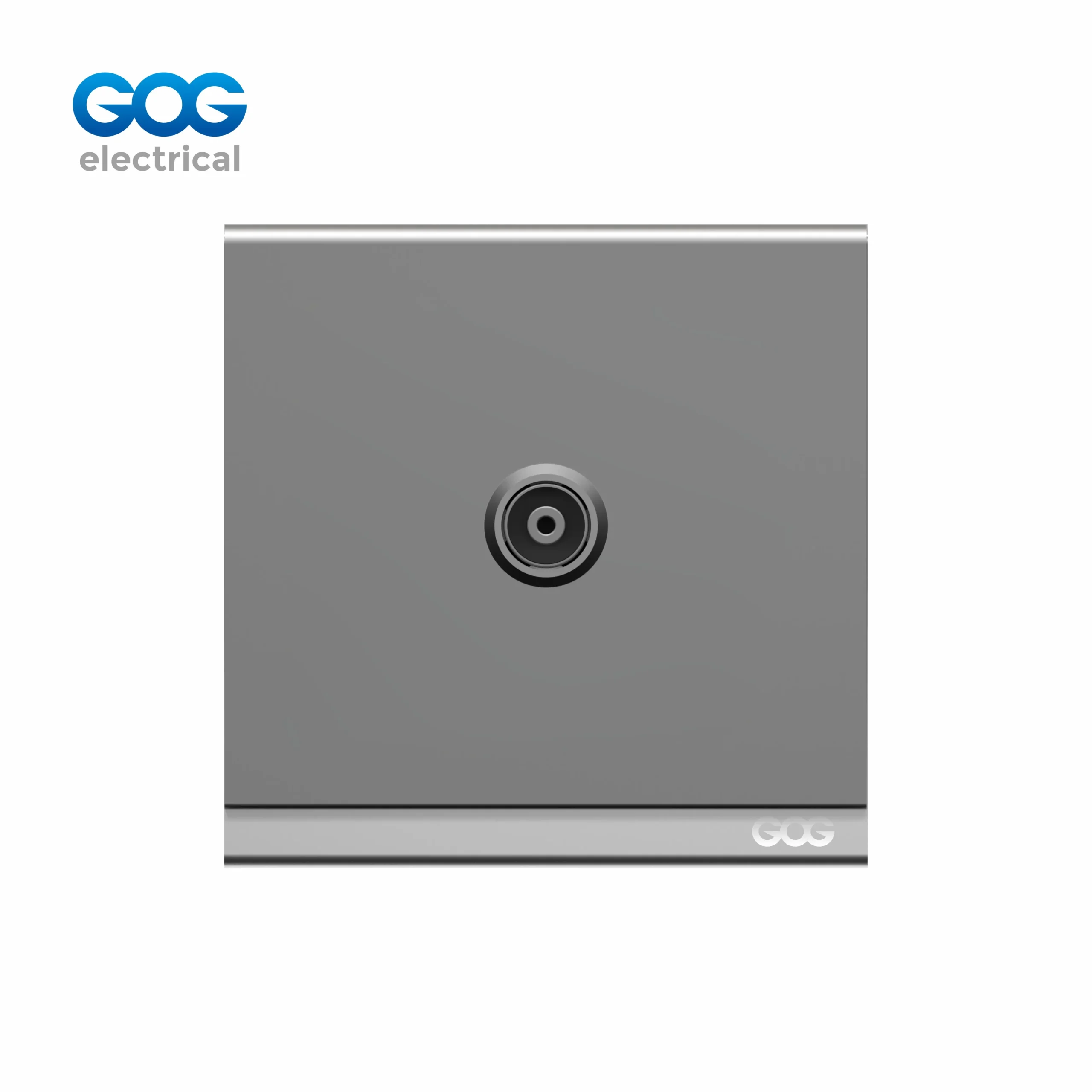

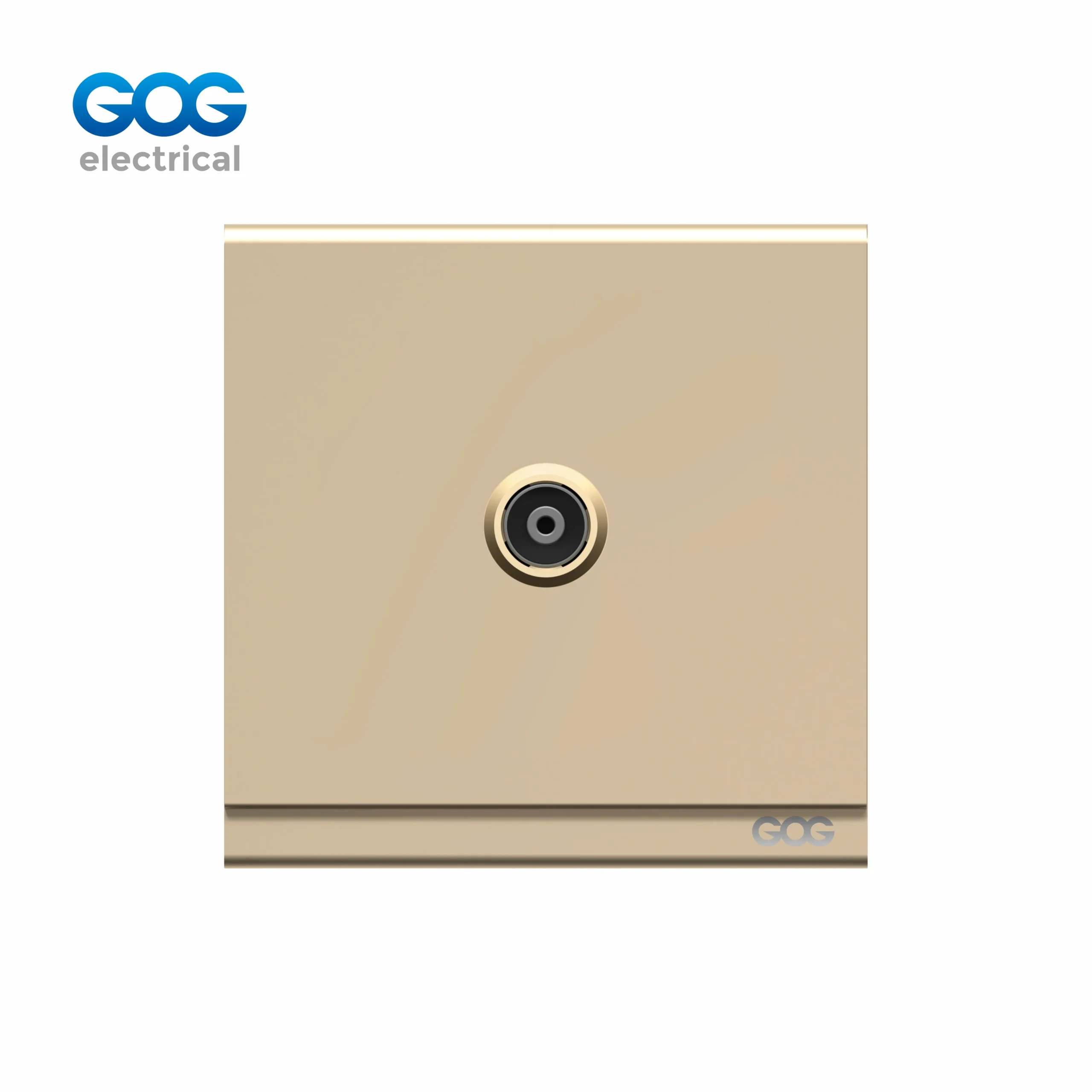

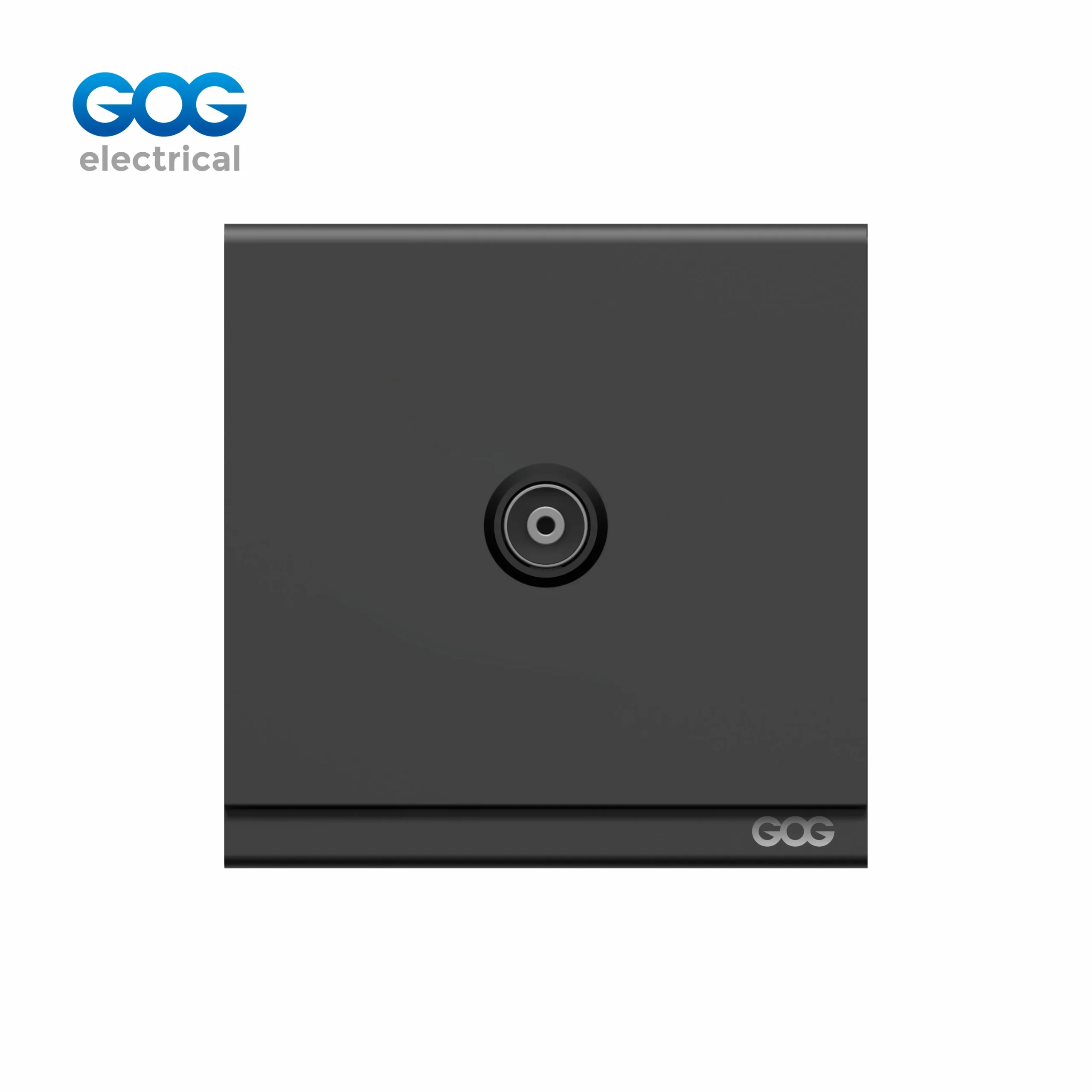

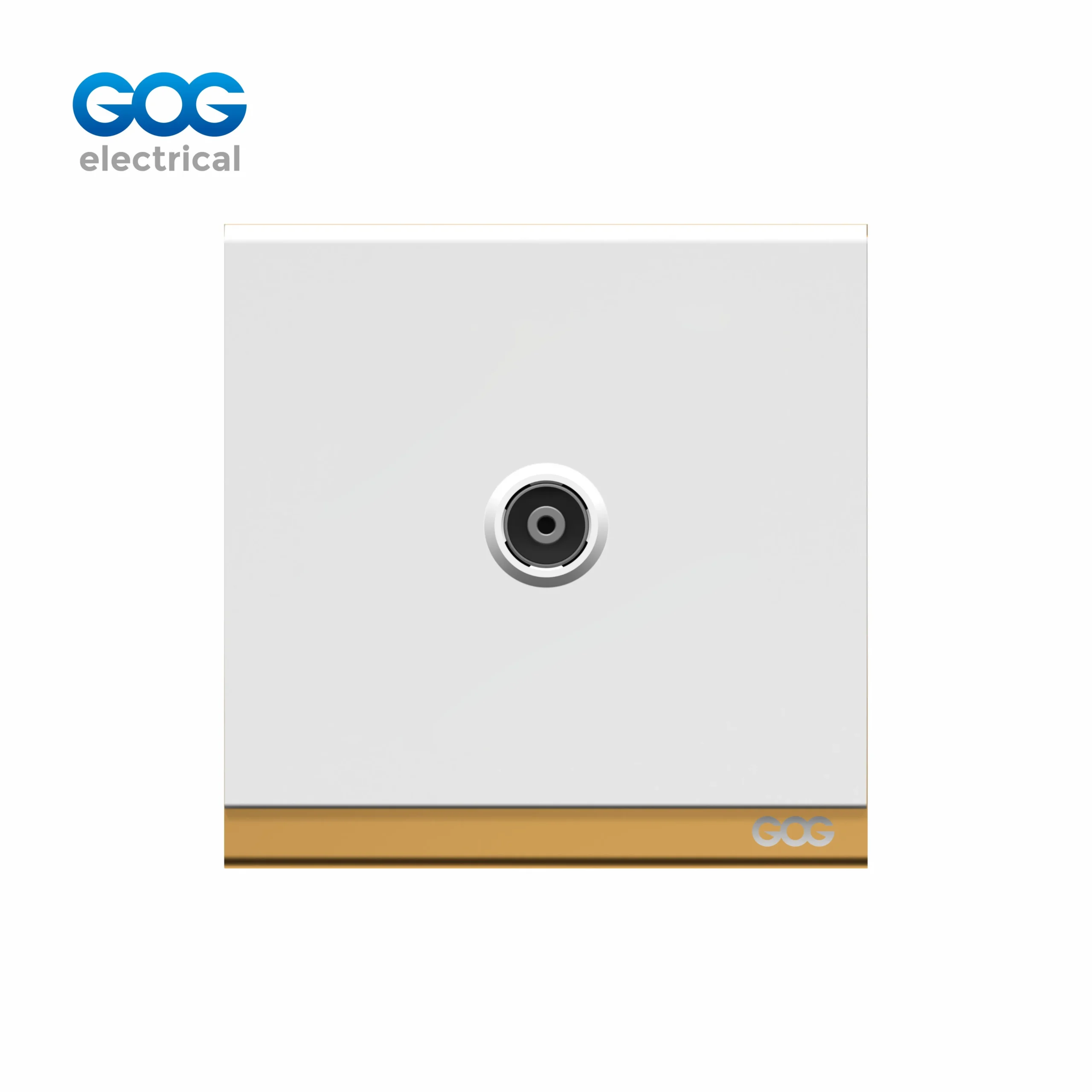

White PC panel: The traditional British standard design is appropriate for any residential living room and bedroom. Gold: Warm metallic finish intended for high-end residential and hotel audio-visual installs where the socket is exposed. Grey: Neutral colour finish suitable for new apartment, media room, and also general commercial audio-visual installations. Black: Strong contrast for dedicated home theatre rooms, dark walls, and high-end commercial audio-visual installations. All four finishes will use high transparency imported polycarbonate and will be built according to the Belling-Lee/IEC connector specifications.
Installation Note
The R16432 TV socket is intended for use with a conventional British 86mm x 86mm back box. The Belling‐Lee / IEC connector is recessed into the faceplate of the socket. A standard coaxial cable with a Belling‐Lee plug is connected to the back of the socket. When you install the socket, make sure that the bend radius of the cable behind is within limits. To avoid exceeding these limits we recommend that you install a deep back box (minimum 35mm deep) for all installations where the coaxial cable is fed from behind the socket. The socket is a passive signal passthrough and therefore does not require any electrical connections.
Frequently Asked Questions
What is a TV aerial socket used for?
The TV aerial socket is an appropriate location for connecting to terrestrial television signals, including Freeview, Digital Terrestrial Television (DTT) and Standard Aerial Distribution (SAD). The R16432 is a British standard TV aerial socket with a Belling-Lee (Top) / IEC Push-in Coaxial Connector, which allows for the termination of The Coaxial cable from the roof or loft-mounted TV aerial to a flush-mounted 86mm x 86mm wall plate.
What is the difference between a TV socket and a satellite socket?
An aerial TV socket (R16432) that uses an IEC/Belling Lee push-in connector has been designed to receive terrestrial signals (e.g., Freeview/digital terrestrial) from a rooftop aerial. A satellite socket (R16165), on the other hand, has been designed to receive satellite signals (e.g., Sky/Freesat) with the use of a threaded screw F‑type connector on a dish. Each type of socket cannot be used interchangeably because of differences in signal type, frequency, connection method and overall design.
Does this TV socket require an electrical connection?
The R16432 is a passive signal passthrough; there is no direct connection to mains power. It provides a connection point that is permanently attached (to the wall) for connecting your coaxial cable (from your TV aerial / distribution amplifier). The 86mm x 86mm size of the panel allows it to fit into a standard UK wall box with multiple functional accessories from the R16 range.
What colors is this British standard TV aerial socket available in?
Four colors, white (residential use), gold (high-quality finish), grey (moderate finish), and black (high contract), are available to purchase in addition to the R16 series TV socket. All four colors are made using high-quality, imported, high-transparency, high-strength PC material, and each color comes with a one-year warranty against electronic failure.
