British Standard 16A 2 Gang Dual Rocker Switch — 200,000 Cycles Per Gang
R16303/R16304 British Style 16amp. double rocker 2 way switch designed for dual circuit operation in very large/high turnover areas (high traffic). Unlike a mass produced plastic switch which would have many cycles before failure, this switch plate is made from white polycarbonate and contains two independent mechanisms rated for a minimum of 200,000 cycles; in the case of this switch, there are; a) 2 x Red copper bushings b) 2 x Stamped copper parts c) Copper busbar d) 3.5 mm x 0.35 mm silver alloy touch point; per switch). Comes in 4 finishes; White, Gold, Grey & Black with matching wall plates. Each side of the wall plate can be wired as 1-way for single location control and/or as 2-way for two location, switching control. The dual ganged switch fits into a standard 86 x 86 mm (3-3/8″ x 3-3/8″) British backbox. The switch is available in two middle plate styles; full plastic or steel/plastic combination to compliment the installation environment. Certified by IEC 60669 and comes with a 12 year warranty from the manufacturer.
Our factory manufactures products directly and offers OEM branding for all R16 series PC panels in any colour, Competitive wholesale pricing, and includes a 12 – year warranty with your purchase.
Two Circuit Types — 1 Way & 2 Way, Four Color Finishes
| Model | Circuit Type | Available Colors | Application |
|---|---|---|---|
| R16303 | 2 Gang 1 Way | White / Gold / Gray / Black | Two circuits, each from one location — kitchens, living rooms, commercial spaces. |
| R16304 | 2 Gang 2 Way | White / Gold / Gray / Black | Two circuits, each from two locations — staircases, hotel corridors, multi‑entrance rooms. |
The switch operates independently from the driveway-rocker. The driveway rocker can be wired one way (basic ON|OFF) in gang one and two ways (staircase control), in gang two, using one single 86mm×86mm panel. The mechanism of each rocker consists of a completely independent red copper conductor and silver made conductive touch point having a minimum operational life of 200,000 operations.The high-clearance imported polycarbonate front panel is available in white, gold, grey and black offering a consistent wall aesthetic throughout your space to match your entire R16 range.
200,000 Cycles Per Gang — Engineered for British Standard Dual‑Circuit Locations
In commercial kitchens or hotel corridors where one rocker controls the main lights and the other the task lights, a dual rocker switch may be operated as many as 30-40 times a day. A typical switch meant to last 40,000 cycles will last approximately three years in this environment. However, the R16 Standard Series 2 Gang 16A British Specification Switch has a cycle rating of over 13 years, with 200,000 cycles per gang, when used in the same heavy-duty manner as the 40,000 cycle switch. The design features of the R16 Switch have been engineered for minimal wear and tear on the switch contacts through the use of a red copper bus bar system and a Φ3.5mm×0.35mm silver alloy for the contact point, and to evaluate the design life of the rocker pivot and spring mechanism throughout the total service life of the switch. For Facility Managers in the UK and Commonwealth countries, this means that the only time they will need to install the Gold Grey Black Wall Switch Series will be the initial installation, and there will be no future requirement for replacing any dual-circuit switches from the facility’s maintenance schedule.
PC Panel & Dual Middle Plate Options — Built for Heavy Use
This white plastic switch is made from high-quality imported white polycarbonate (PC), is highly transparent, and has a very robust PC faceplate. The two middle plate options (the Standard/Mid-plate plastic only and the Steel/Mid-plate plastic) will also provide different structural support for the switch. The Standard/Mid-plate option is suitable for most residential applications or light commercial applications where there is a dual positive power circuit. The Steel/Mid-plate option provides a thin layer of steel reinforcement that extends the full length of the two rocker assemblies, and this prevents the slight amount of flexing that may occur if one of the rockers is used more frequently than the paired rocker in a dual rocker panel. Both the Standard and Steel options of this switch have the same 200,000 mechanical cycle rating, and they come with a twelve-year warranty. All four colour options (White, Gold, Grey, and Black) allow you to choose an option that will match any interior colour palette, whether it’s residential or commercial.
SPECIFICATIONS
| Series | R16 series |
| Item Codes | R16303 (1 Way) | R16304 (2 Way) |
| Description | 2 Gang 1 Way / 2 Gang 2 Way Dual Rocker Wall Switch |
| Current / Voltage | 16A / 250V~ per gang |
| Mechanical Life | Max 200,000 cycles per gang |
| Number of Gangs | 2 independent rockers |
| Front Panel | Imported high‑transparent, high‑strength PC |
| Base | Imported high‑transparent, high‑strength PC |
| Middle Plate Options | Full plastic / Steel‑plastic combination |
| Switch Internal | Red copper bush, red copper stamping part, red copper bus bar, Φ3.5mm×0.35mm silver touch point (per gang) |
| Standard | IEC 60669 (British Standard) |
| Warranty | 12 Years |
| Available Colors | White / Gold / Gray / Black |
| Dimensions | H 86mm × W 86mm (British Standard back box) |
| MOQ | 2,000 pcs per item |
| Packaging | 1 pc per plastic bag | 10 pcs per inner box | 100 pcs per outer carton |
Stock This 16A British Standard 2 Gang Switch in Four Colors at Factory Pricing
White, Gold, Gray, Black PC panel. 1 way & 2 way. Full plastic or steel-plastic middle plate. OEM logo, custom packaging, 12‑year warranty included. Contact us for a wholesale quotation.
IEC 60669 Certified • 200,000 Cycle Per Gang • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for British Standard 16A Dual Rocker Switches — Four Color Options
The R16 series 2 gang dual rocker switch brings 200,000‑cycle endurance and genuine color choice to your British standard switch catalog. Stock White for volume residential projects, Gold and Gray for premium interiors, and Black for modern commercial fit‑outs — all from one factory with consistent 86×86mm dimensions. Two middle plate options let you serve both standard and heavy‑duty applications. OEM branding on any color PC panel, custom packaging, and full IEC 60669 documentation included for wholesale distributors worldwide.
Choosing the Right 16A British Standard 2 Gang Switch: Circuits, Colors & Middle Plates
A practical guide to selecting circuit types, PC panel colors, and middle plate options for high‑endurance dual rocker installations.
1 Gang vs 2 Gang — When Two Circuits Meet at One Wall Position
A 1 Gang SwitchControls One Circuit From A Single Location. A 2 Gang British Standard Switch Controls 2 Different Circuits From The Same 86 X 86Mm Plate. Choose A 2 Gang Switch When You Have 2 Separate Groups Of Lighting; For Example, Main Ceiling Lights And Under-cabinet Task Lights In The Kitchen Or Overhead Lighting And Wall Sconces In The Living Room, That Are Positioned At One Wall Location. Therefore, One Back Box And One Installation Will Control 2 Independently.
Color Selection — White, Gold, Gray, or Black?

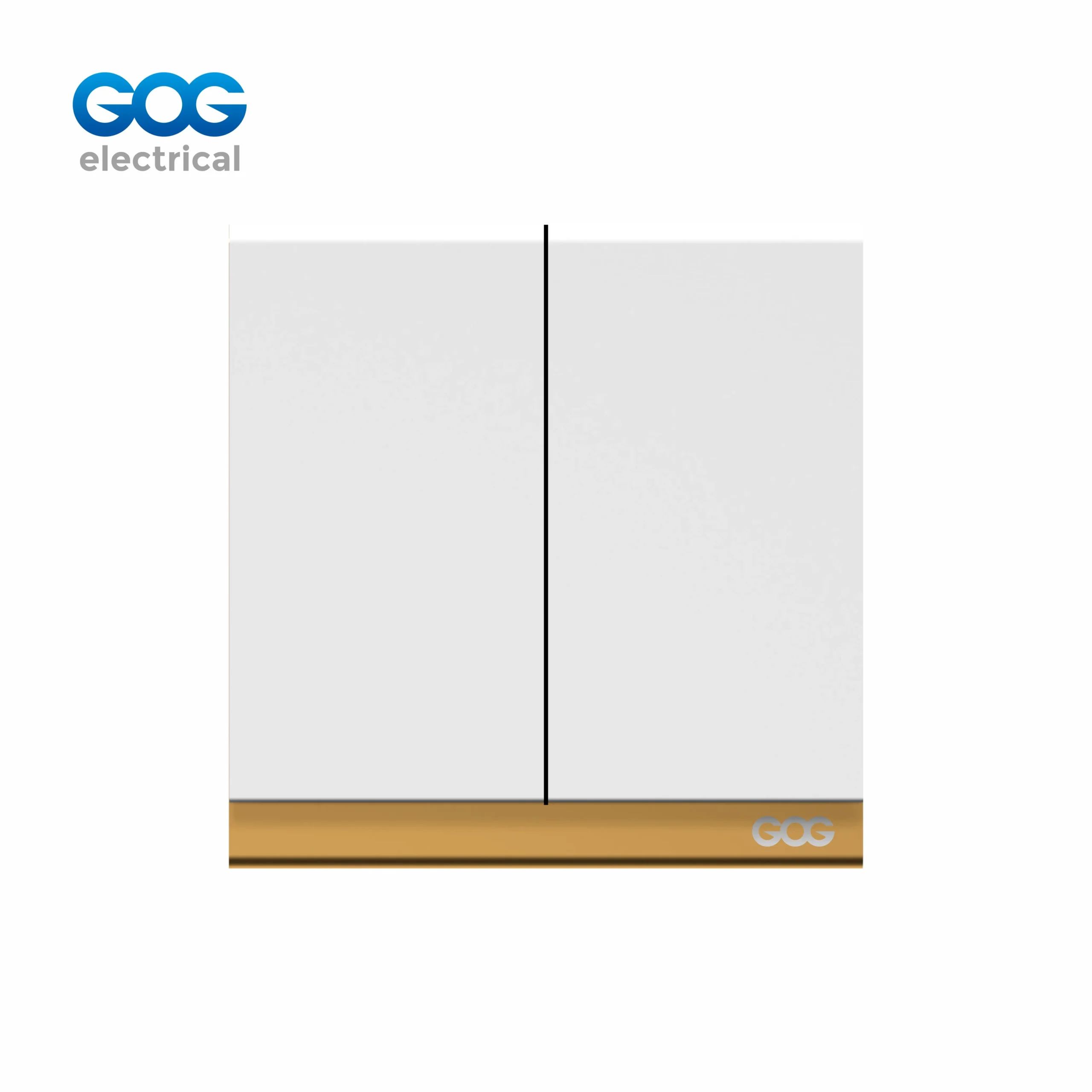

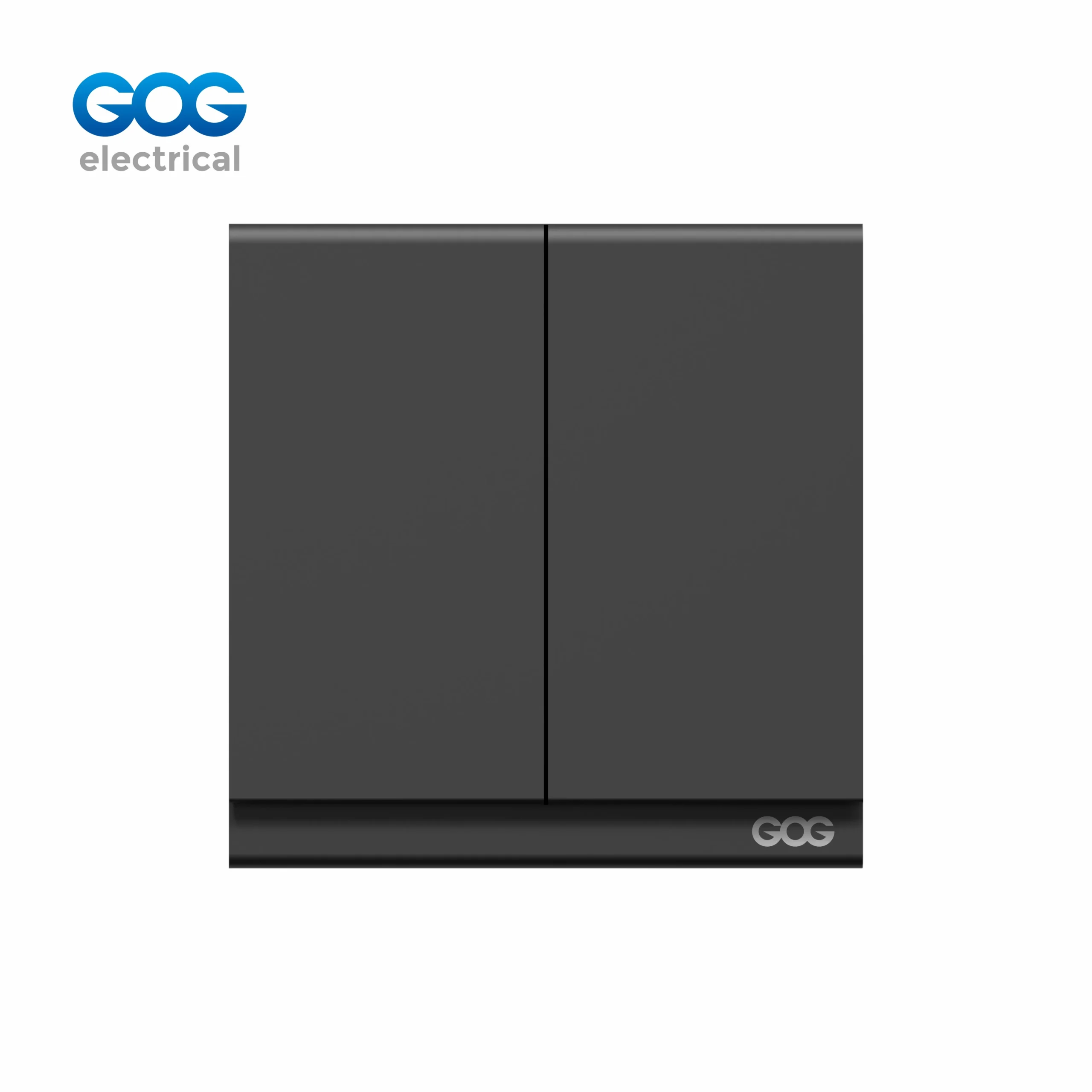

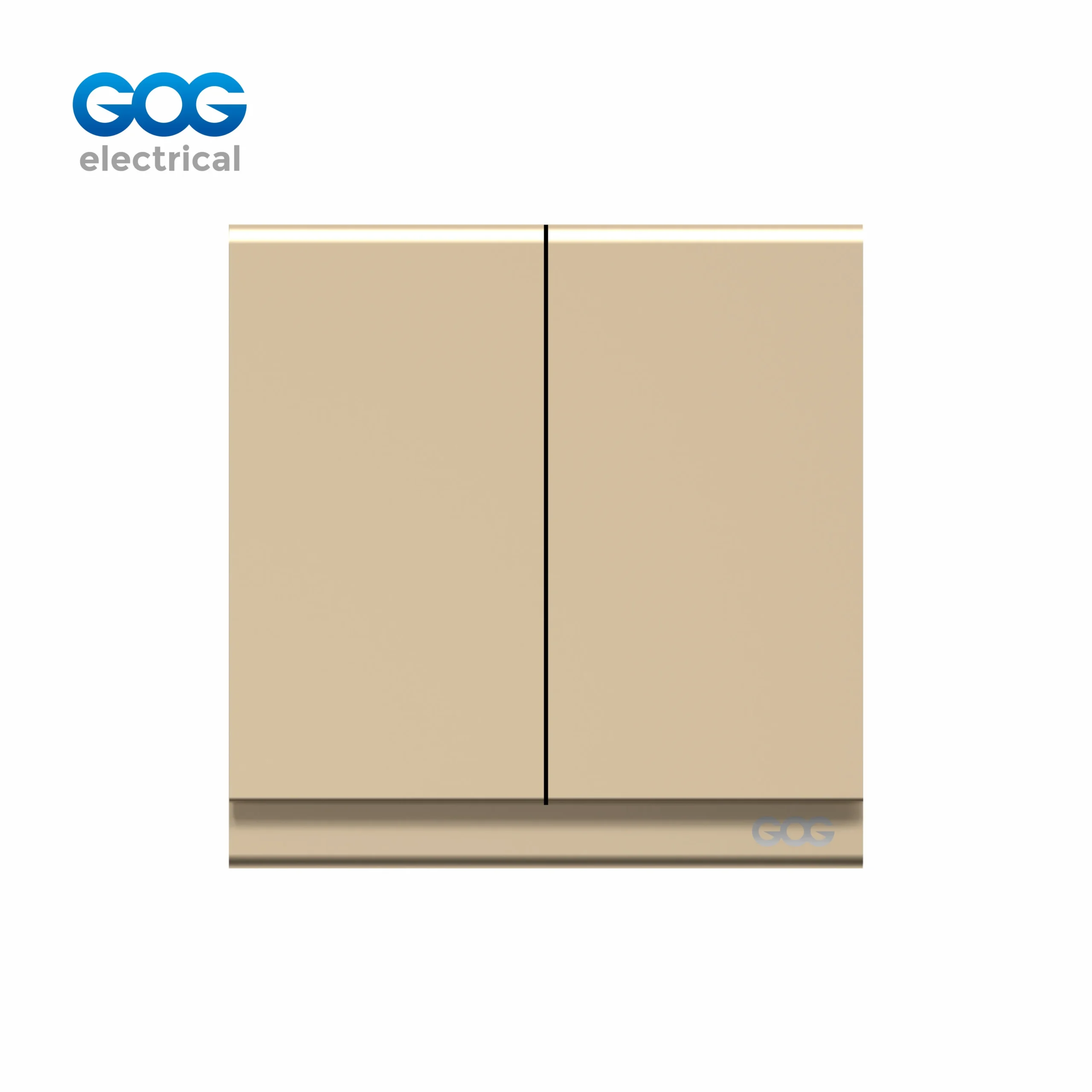

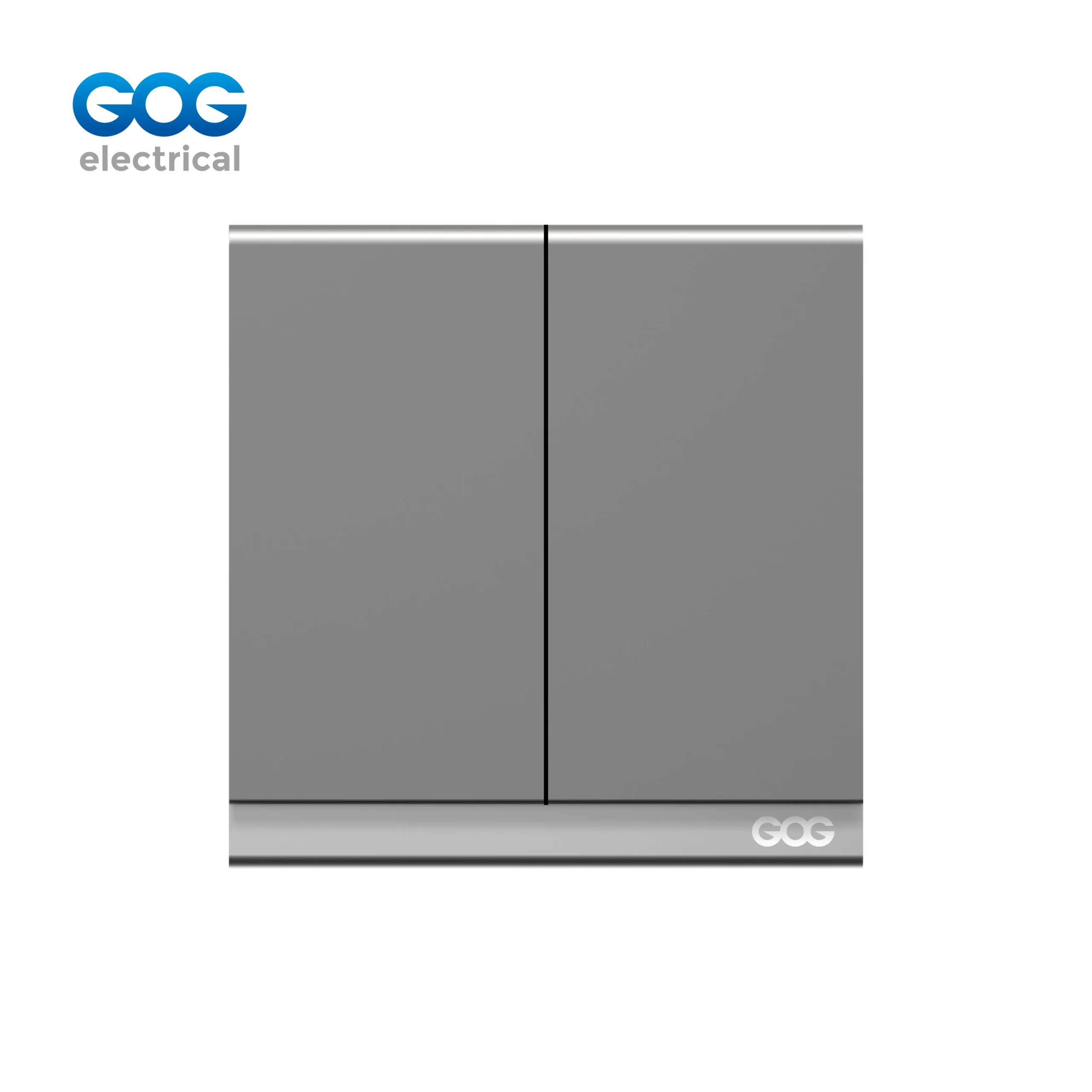

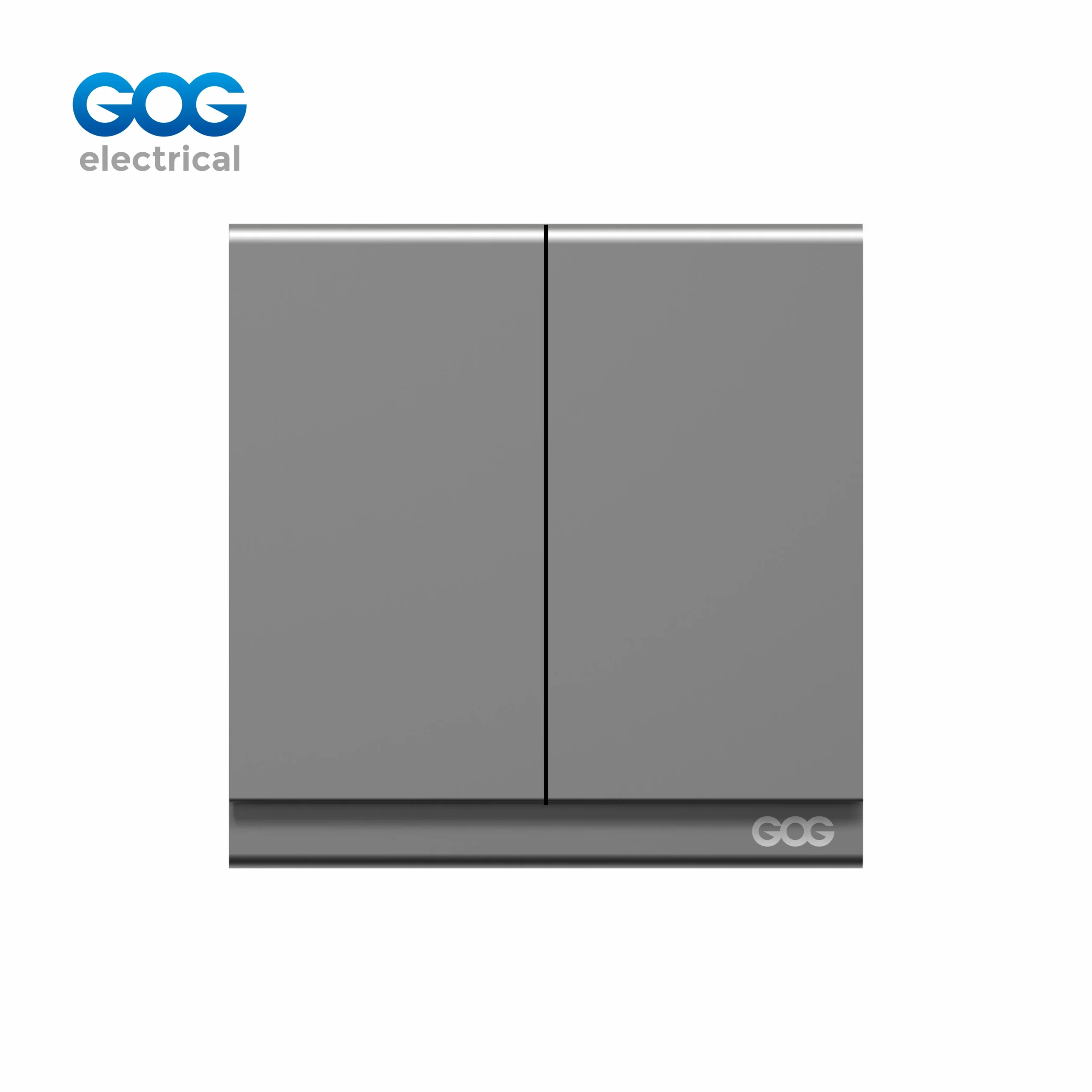

White PC panel: The traditional UK standard wall switch finish will suit all types of housing and commercial interiors. Gold Panel: Warm Metal Used on High End Residential and Hotel Projects Where The Switch is a Design Element. Grey Panel: Neutral Color Used Mostly in Modern Apartments, Offices and Industrial Styled Rooms. Black Panel: Used as a Strong Contrast Colour in Statement Walls and Dark Colour Schemes as Well as Premium Commercial Fitouts. All four colours are made from the same Imported High Transparent PC Material and have a 200,000 cycle Mechanism.
Middle Plate Selection for 16A Dual Rocker Panels
For most residential and light commercial dual-circuit installation locations, plastic only is sufficient because of the standard rigidity of the middle plate. For high traffic areas such as commercial kitchens, hotel corridors and public buildings where 2 rocker panels located on the wider case require better rocker alignment and will not flex due to the support of steel reinforcement through long-term use (16 A over decades), a Steel/Plastic Combination will need to be utilized.
Frequently Asked Questions
What is a 16A 2 gang British standard switch?
This 2 gang 16A British standard switch consists of two independent rockers mounted on one 86×86mm wall plate (each rated at 16 Amps and controlling their own independent lighting circuit). The R16303/R16304 is a 2 gang switch with 2 independent rockers, each containing its own 200,000 cycle mechanism (this includes red copper bushing, red copper stamped rivets and a silver contact point). They come in four different finishes for the PC panel: White, Gold, Grey and Black
Does each rocker have its own 200,000-cycle mechanism?
Yes. The R16 series, which includes 2 gang and 16 A switches, has rocker assemblies that are independently connected to their own red copper bus bars and red copper stamped parts inside the switch housing. Each gang has its own red copper bush and a Φ3.5mm x 0.35mm silver alloy calfskin touch point. Each gang is rated to provide-up to 200,000 operations without derating when considered together.
Can I wire one gang as 1 way and the other as 2 way?
The two switches in this device (the 2 switches on top of each other) work independently as one. If you only want to wire one switch, just connect it to (2 ways) a three-way switch and if you wish to connect both switches then use a single gang switch (3 way) at the same panel are (both switches) when you only need (86 mm by 86 mm) to make it work.
You have labeled all your common (ground), L1 (low), and L2 (high) terminals on each switch separately.
What colors is this British standard wall switch available in?
A selection of four different multi‑colored switches (white/ivory, black, grey, and gold) from the R16 Series 2 are available in each; all use high‑transparent, high‑strength imported polycarbonate and include a 12‑year guarantee.
