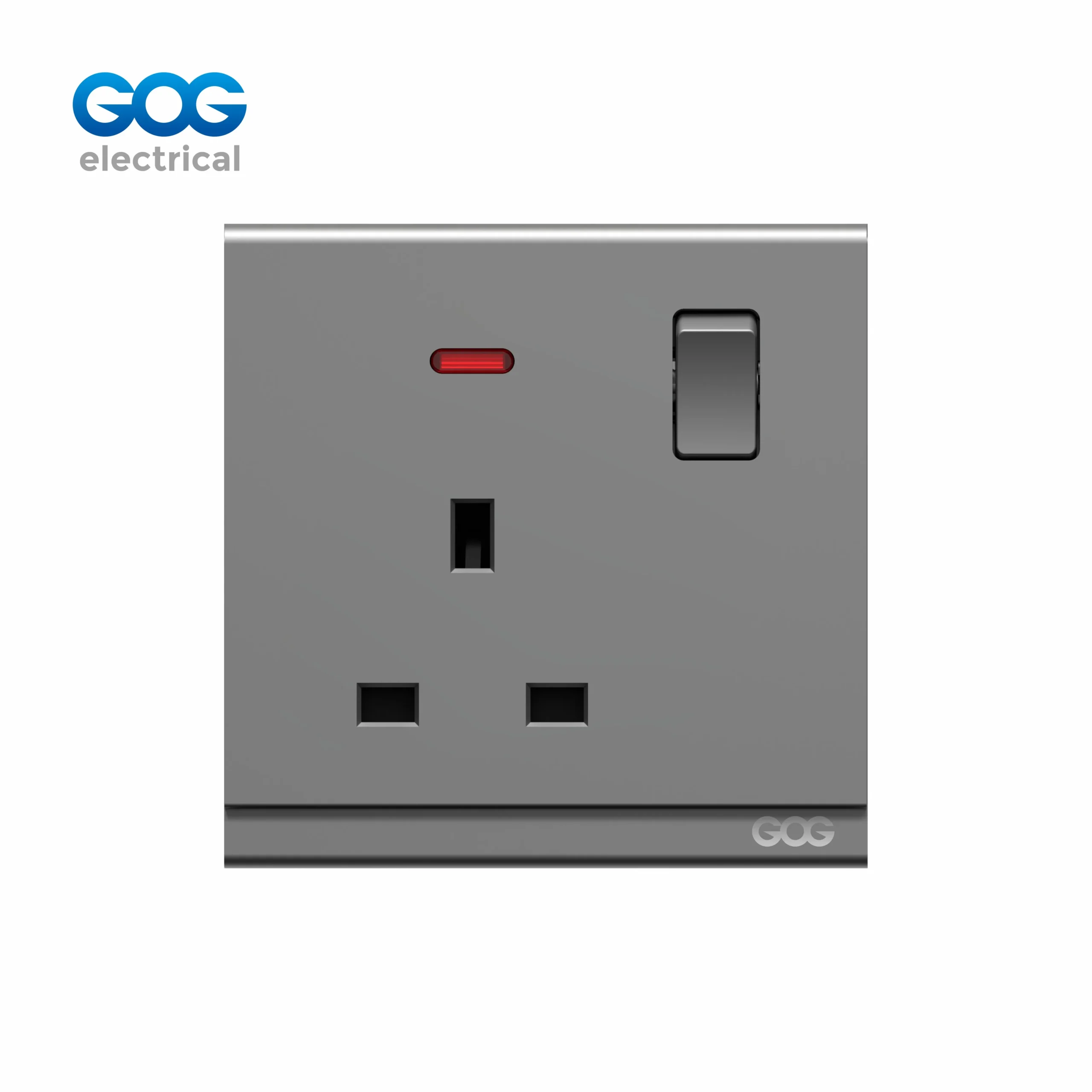

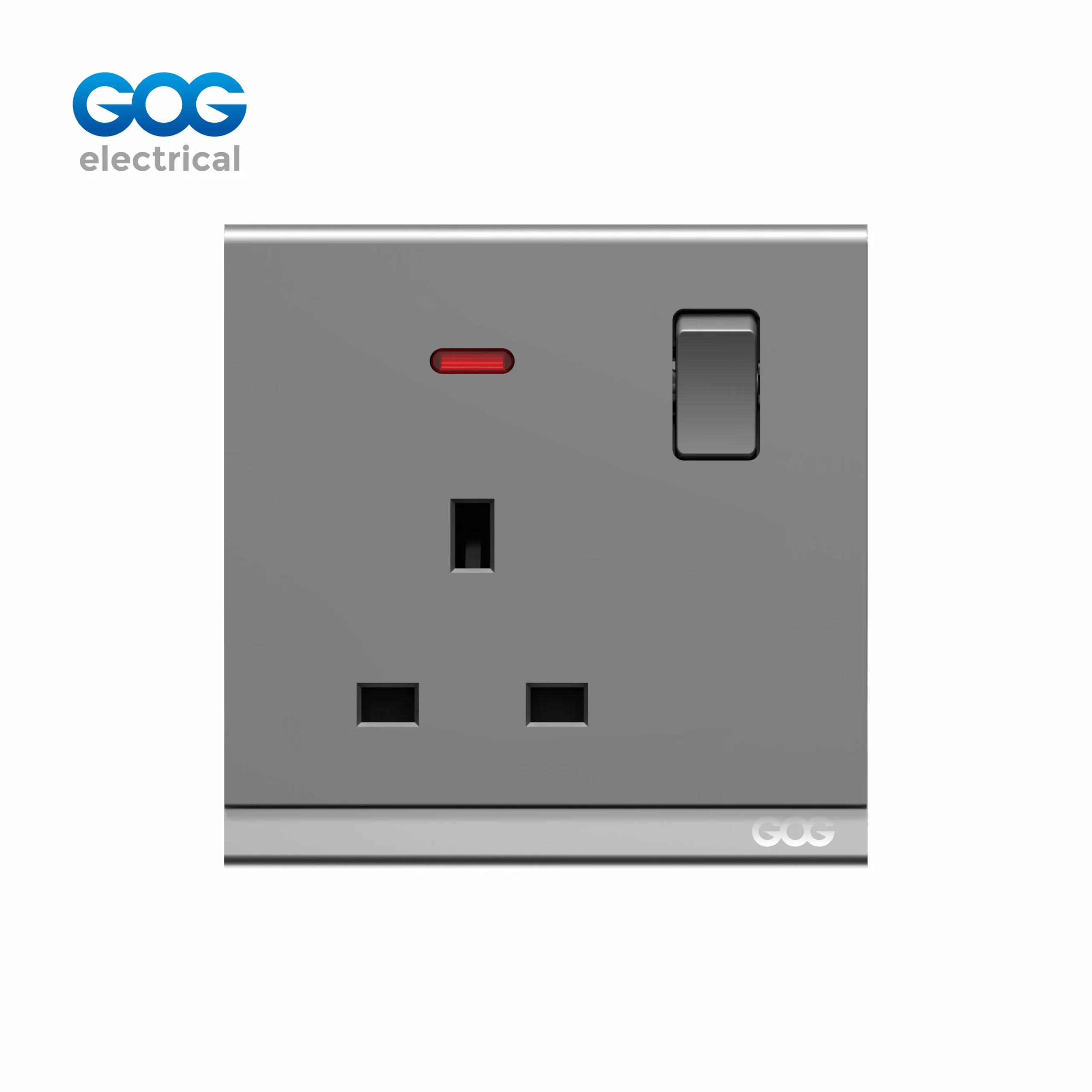

British Standard 13A Switched Socket with Neon — SP Wall Socket, White PC Panel
A BS1363 3 Pin switch socket with 1x Rocker Switch in an 86mm x 86mm wall plate (R16407) is a switched socket from a UK Standard with 13A of power outlet that can be used in the kitchen, living room, or office. The switch provides local electrical isolation without unplugging from the wall and has a neon indicator on the switch, which provides a visual indication of whether the socket is switched on or off. The R16407 switched socket is made by a manufacturer that specializes in switched sockets and the main parts of the socket and switch are manufactured from different materials. The Switched Socket and the Switch; The Switched Socket is made from 0.7mm thick High Purity 62 Brass and the switch is made from red copper with a bus bar that has a Φ3.5mm x 0.35mm silver alloy touch point; both parts of the socket and switch are designed for their specific application. Each socket and switch has a lifespan of 15,000 operations which is equivalent to more than 20 years of average use for a household. The R16407 comes in 4 imported high transparency PC panel colours; White; Gold; Grey; and Black and will match any of the R16 Series light switches or accessories. There are 2 options for the R16407’s centre plate. The Switched Socket and Switch are certified as IEC 60884 and BS1363 compliant products and have a warranty period of 12 years.
We are a factory-direct British standard socket manufacturer offering competitive wholesale pricing, OEM branding on any color PC panel, and a 12‑year warranty across the R16 series range.
SP Switch + 13A Socket — What SP Means and Why It’s the Standard
| Feature | R16407 Switched Socket | Standard Unswitched Socket |
|---|---|---|
| Switch Type | SP (Single Pole) — breaks live only | No switch — always live |
| Power Status | Neon indicator glows when live | No visual indication |
| Local Isolation | Yes — switch off at the wall | No — must unplug to isolate |
| Socket Rating | 13A / 250V~ BS1363 | 13A / 250V~ BS1363 |
The SP Switch socket is the UK’s standard plug-in socket. SP (Single Pole) means that the switch only opens the live wire which is the appropriate low cost standard for general outlets.
The neon light connected to the outlet will illuminate when the outlet is still on and plugged in, even if you switch off the power from the switch.
The neon light is powered internally by wires across the load side of the socket and indicates that the socket is live when it is powered on.
When you switch off the neon light, the power to both the neon light and whatever is plugged into the socket will be disconnected.
The contacts making up the high purity 62% brass socket that are part of the copper structure have a pin retention force, which will maintain high levels of conductivity over 15,000 insertion cycles, which is equal to plugging in and removing a device twice a day for more than 20 years.
Matching the R16 Series — One Wall Aesthetic for Switches, Sockets & Connectivity
Part of the R16 series, this white switched socket features the same overall dimensions (86x86mm), imported material (high‑transparent PC), and finish options (4 finish colour options) as every other R16 electrical accessory. The same is true for the R16407 switched socket, which can be used next to an R16303 two-gang light switch, or an R16324 DP 20-amp switch for the oven in a kitchen. All three switches will have the same panel profile, materials, and colour/finish as each other. The 62 brass socket contacts and the red copper switch mechanism are identical to the other electrical accessories of the R16 series and are covered by the same 12-year warranty. Available in White, Gold, Grey, & Black. In addition, choose between two mid-plate designs: standard residential full plastic or steel and plastic, which increases stability for high-traffic areas. Both designs are certified by IEC 60884 and BS 1363.
SPECIFICATIONS
| Series | R16 series |
| Item Code | R16407 |
| Description | 13A Switched Socket with Neon, SP |
| Socket Rating | 13A / 250V~ |
| Switch Type | SP (Single Pole) with neon indicator |
| Product Lifetime | 15,000 cycles (socket insertion) |
| Socket Standard | BS1363 (UK 3‑pin) |
| Front Panel | Imported high‑transparent, high‑strength PC |
| Base | Imported high‑transparent, high‑strength PC |
| Middle Plate Options | Full plastic / Steel‑plastic combination |
| Switch Internal | Red copper bush, red copper stamping part, red copper bus bar, Φ3.5mm×0.35mm silver touch point |
| Socket Contact | 0.7mm high purity 62 brass, integrated structure copper |
| Standards | IEC 60884 / BS1363 |
| Warranty | 12 Years |
| Available Colors | White / Gold / Gray / Black |
| Dimensions | H 86mm × W 86mm (British Standard back box) |
| MOQ | 2,000 pcs per item |
| Packaging | 1 pc per plastic bag | 10 pcs per inner box | 100 pcs per outer carton |
Stock This 13A British Standard Switched Socket in Four Colors at Factory Pricing
White, Gold, Gray, Black PC panel. SP switch with neon. 62 brass socket contacts. Full plastic or steel-plastic middle plate. OEM logo, custom packaging, 12‑year warranty included. Contact this 13A socket manufacturer for a wholesale quotation.
IEC 60884 & BS1363 Certified • 15,000 Cycle Lifespan • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for British Standard 13A SP Switched Sockets — Factory Direct
As a specialist 13A switched socket manufacturer, we produce the R16407 on our own production lines — giving your wholesale business consistent quality and direct‑from‑factory pricing on the standard UK power outlet. Stock White for volume residential projects, Gold and Gray for premium interiors, and Black for modern commercial fit‑outs — all with the same 62 brass socket contacts, red copper switch mechanism, and neon indicator. Two middle plate options serve both standard and heavy‑duty applications from one British standard socket factory. OEM branding on any color PC panel, custom packaging, and full IEC 60884 and BS1363 documentation included for wholesale distributors worldwide.
When to Choose a Switched Socket Over an Unswitched Socket: Applications, Colors & Installation
A practical guide to specifying British standard 13A switched sockets for residential and commercial power outlet installations.
Switched vs Unswitched — Which One Do You Need?
The R16407 is a switched socket outlet rated at 13 Amps that will provide local power isolation at the wall. Pressing the rocker switch will disconnect power from the device plugged into the outlet. This is the standard configuration in the UK, used in kitchens, living rooms, and general-purpose sockets. An unswitched socket outlet is permanently live and is specified for dedicated circuits where an appliance has its own switch, or in locations where it is out of sight from furniture or other things that may accidentally activate the switch. Switched sockets (for both residential and commercial) are the correct and expected specification; they allow users to conveniently control the power supply to whatever devices are plugged into them.
Color Selection — White, Gold, Gray, or Black?

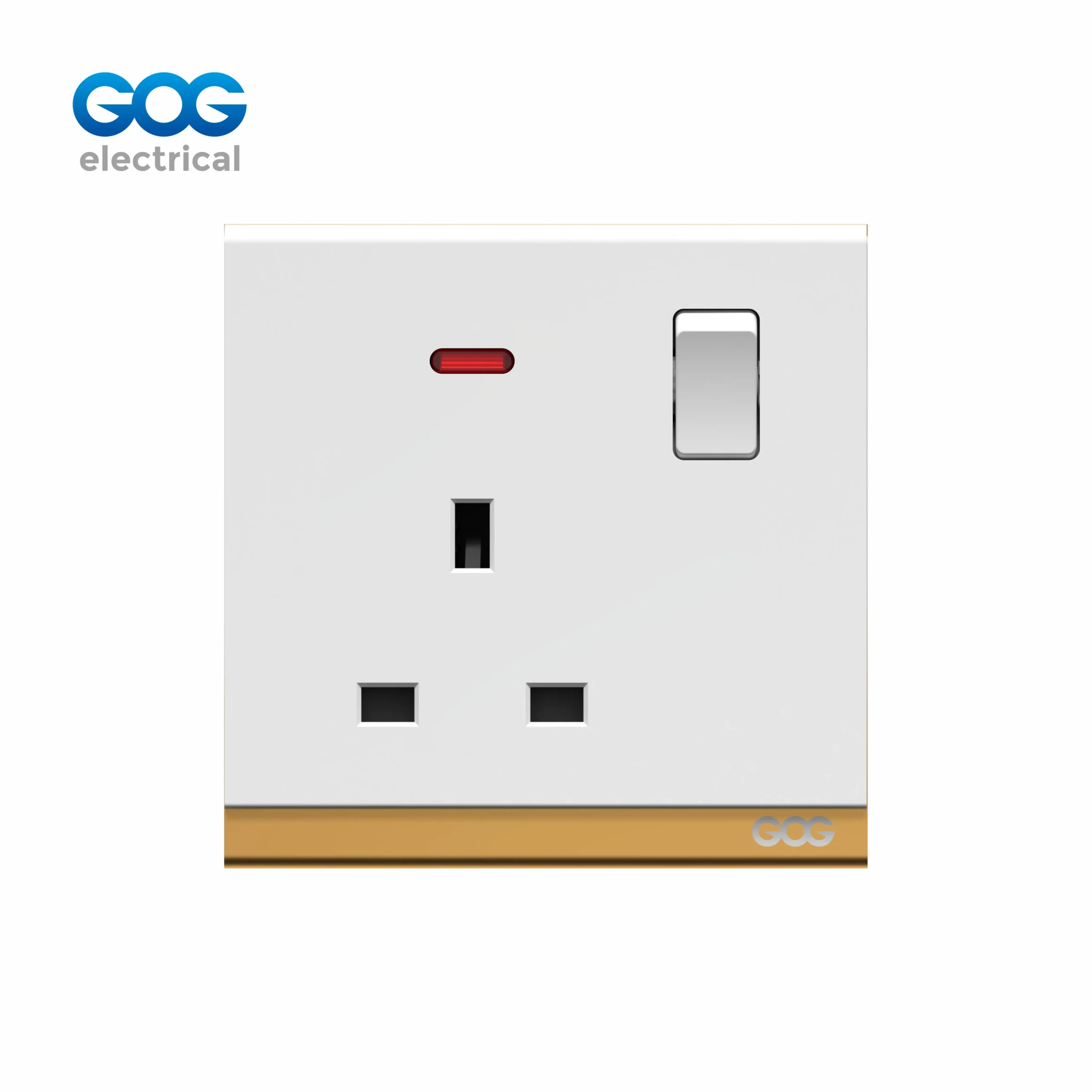

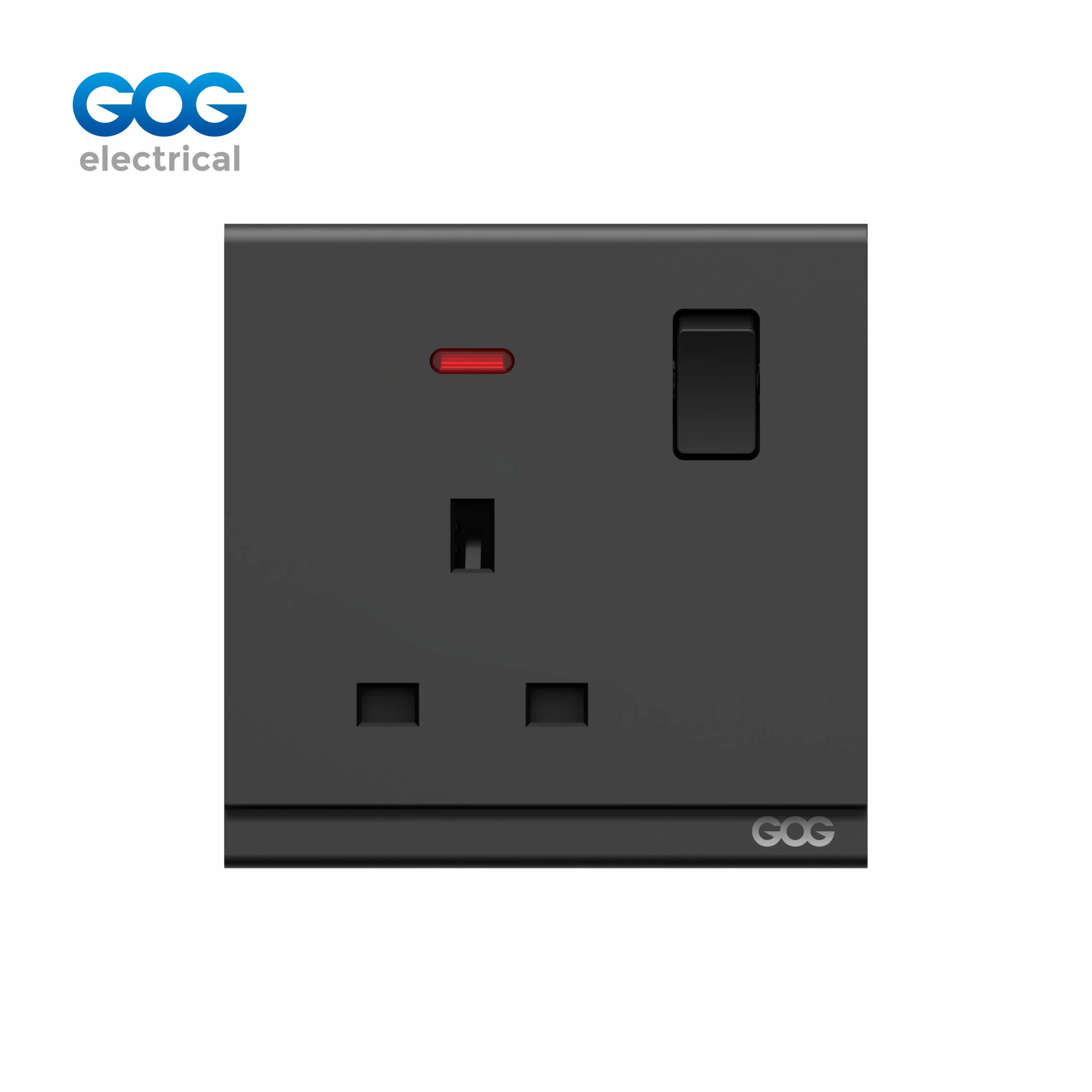

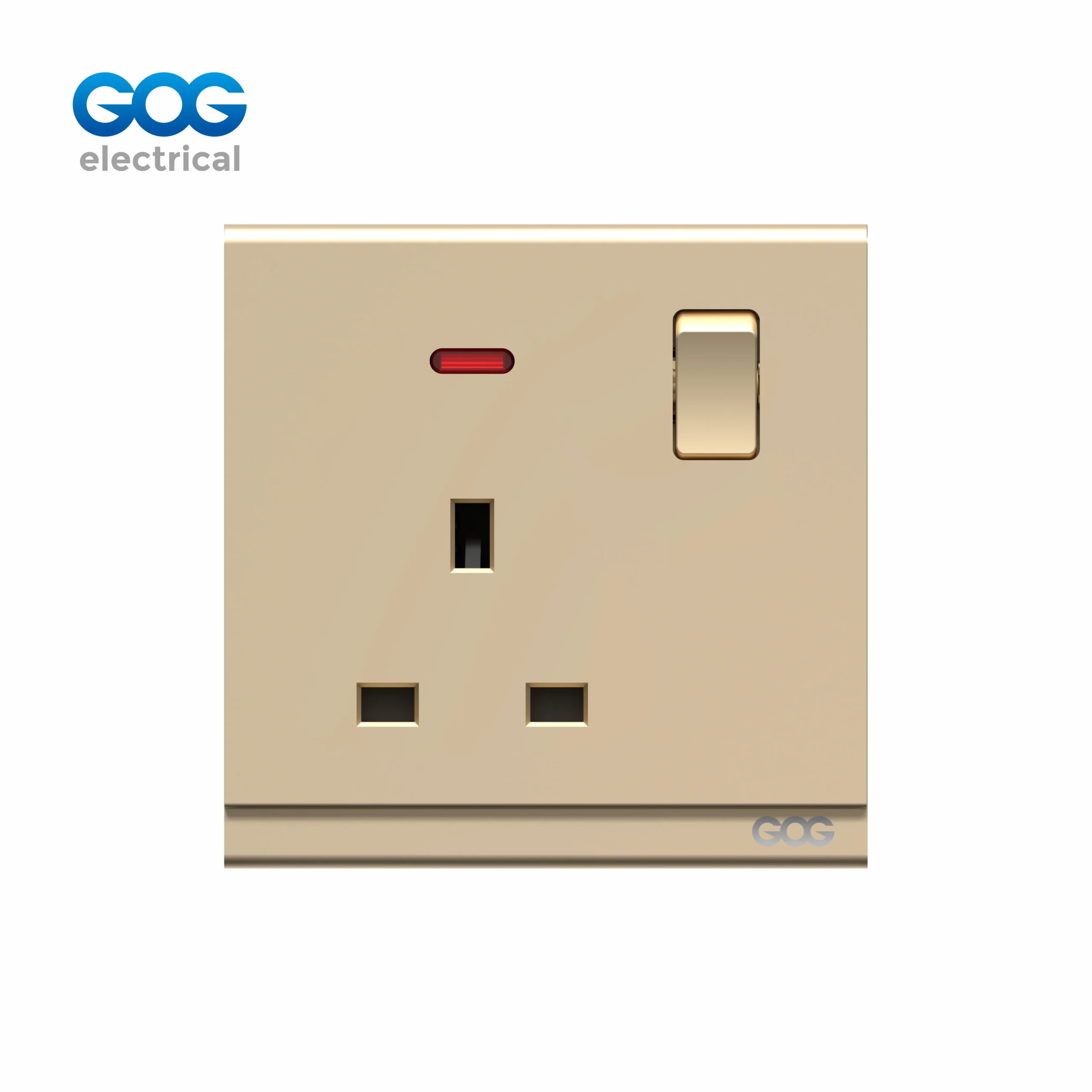

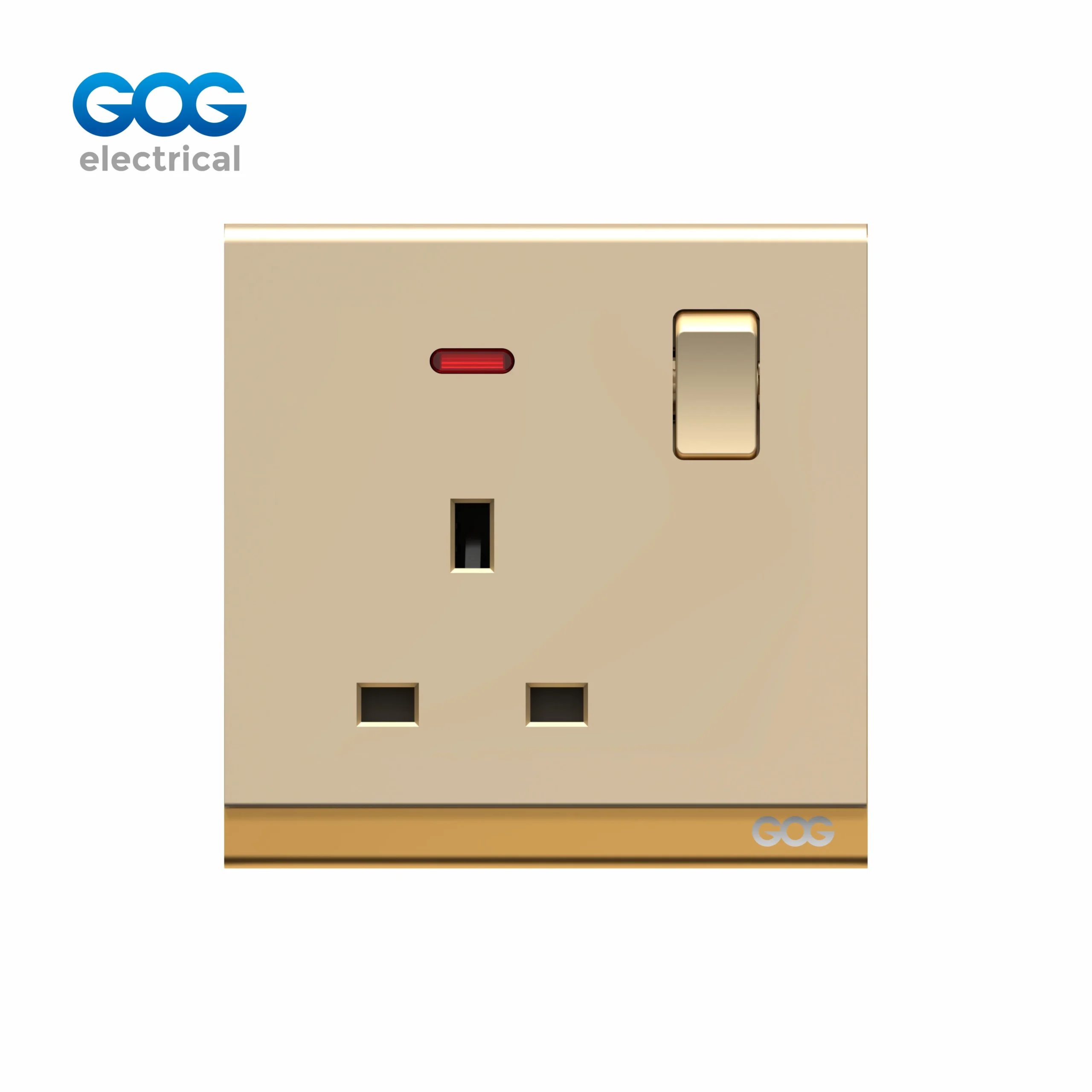

White PC panel: The standard British-style finish – is perfect for any house or flat’s kitchen, living room or place of work! Brass colored PC panel – this is a warm metallic finish designed specifically for high-class residential or hotel installations, where the socket shows as part of the overall design. Grey PC panel – neutral modern finish; ideal for contemporary apartment buildings and/or commercial spaces. Black PC panel – good bold contrast to dark interiors; premium quality commercial fit outs; Designed to complement modern residential designs. The four colour panels all use the same imported highly transparent PC material, with 62 brass socket contacts and red copper switch mechanism.
Wiring & Installation
An ordinary British 86 x 86 mm Back Box will accommodate the R16407. The wiring uses the standard BS1363 practices of connecting power supply to the common terminal and switched line from L1 to the load at socket; neutral and earth will be connected directly to the socket terminals (without going to switch). The internal wiring between the 2 wires across the load side indicator (neon switch) does not require any additional wire connections. The 62 contacts are brass and will accept any UK standard BS1363 three pin plug plus safety shutter mechanism. If you are installing multiple R16407 Sockets and R16 (light switch) and Data/TV/Satellite Sockets then you will have a complete, uniformed match wall installation.
Frequently Asked Questions
What is a 13A switched socket used for?
The UK wall outlet is basically a 13A switch socket that also has a rocker. The R16407 is the most common type of switched socket for connecting household appliances (kettle, TV, lamp, charger, kitchen appliance) to a mains supply. It gives you power isolation locally at the switch with a rocker switch so that you can turn off the power, without the need to unplug the device. The neon indicator shows when the socket is switched on.
What does SP mean on a switched socket?
Single Pole is where the switch only breaks the live wire when the switch is turned off. This is the common wiring method in the UK for sockets where you will plug in something like a lamp. The placing of live and neutral to break for many applications, (bathrooms, fixed appliance circuits) requires a DP (Double Pole) socket. R16407 is an example of an SP switched socket, which can be used in most cases for residential and commercial power outlet locations.
Is this socket compliant with British standards?
Sure, the R16407 is approved as conforming to the two major standards for 3 pin socket outlets in the UK, they are: IEC 60884 and BS1363. It has internal safety shutters on live/neutral holes, takes all BS1363 fused plugs (including standard types), rated for 13A/250v use on UK ring mains/radial/UK ring and radials in compliance with British Standard and by the British Government agencies.
What colors is this British standard switched socket available in?
The switched R16 series 13A socket comes in four PC panel color options: white (traditional residential and commercial), gold (premium warm finish ideal for use in luxury interior settings), grey (contemporary neutral finish useful in modern apartment and office environments) and black (striking quality finished product which contrasts strongly with dark walls, etc). The four colours feature identical imported high-translucent/strong PC material, 62 contacts in the same brass for sockets fitted with UK standard plug configurations, and all four will have a warranty provided by the manufacturers on anything purchased with a twelve year period of time being provided by them.
