SPECIFICATIONS
| Series | R12 series |
| Item Code | R12407 |
| Description | 13A Switched Socket with Neon, SP |
| Socket Rating | 13A / 250V~ |
| Switch Type | SP (Single Pole) with neon indicator |
| Product Lifetime | 15,000 cycles (socket insertion) |
| Socket Standard | UK 3‑pin BS1363 |
| Front Panel | Imported high‑transparent, high‑strength PC |
| Base | Imported high‑transparent, high‑strength PC |
| Middle Plate Options | Full plastic / Steel‑plastic combination |
| Switch Internal | Red copper bush, red copper stamping part, red copper bus bar, Φ3.5mm×0.35mm silver touch point |
| Socket Contact | 0.7mm high purity 62 brass, integrated structure copper |
| Standards | IEC 60884 / BS1363 |
| Warranty | 12 Years |
| Available Colors | White / Gold / Gray / Black |
| Dimensions | H 86mm × W 86mm (British Standard back box) |
| MOQ | 2,000 pcs per item |
| Packaging | 1 pc per plastic bag | 10 pcs per inner box | 100 pcs per outer carton |
Switched Socket vs Unswitched Socket — Local Power Isolation at the Wall
| Feature | R12407 Switched Socket | Unswitched Socket |
|---|---|---|
| Switch Control | SP rocker switch — breaks live conductor at the wall | No switch — always live when circuit is powered |
| Power Status | Neon indicator glows when socket is live | No visual power indication |
| Local Isolation | Yes — switch off at the wall without unplugging | No — must unplug to isolate appliance |
| Typical UK Use | Standard for kitchens, living rooms, offices | Behind furniture, dedicated appliance circuits |
PC Panel & Dual Middle Plate Options — Standard UK Switched Socket Built to R12 Quality
| Panel Color | Description |
|---|---|
| White | Classic residential — clean PC finish matching white R12 switches and sockets. |

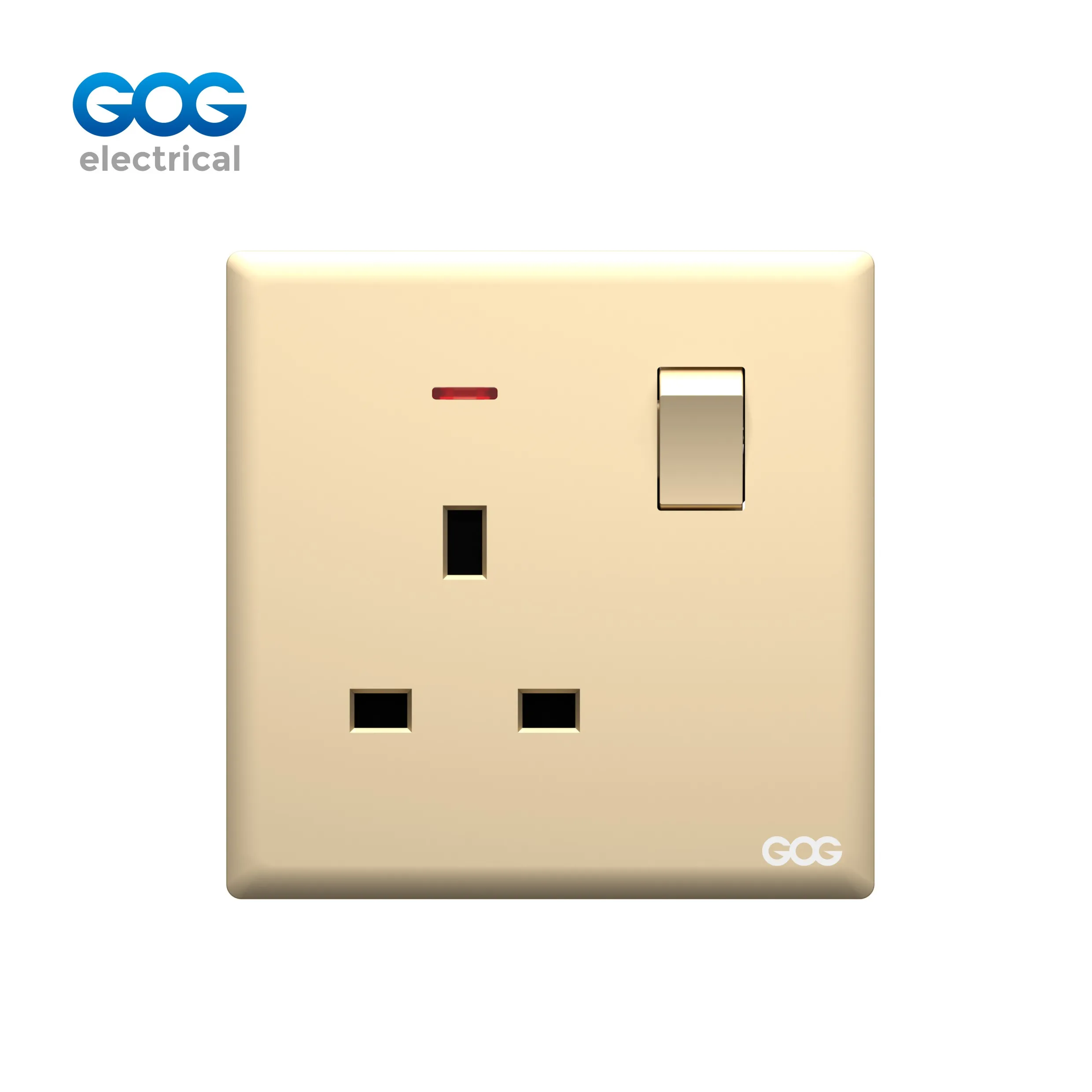

| Gold | Warm premium — distinctive metallic tone for high‑end residential and hotel installations. |

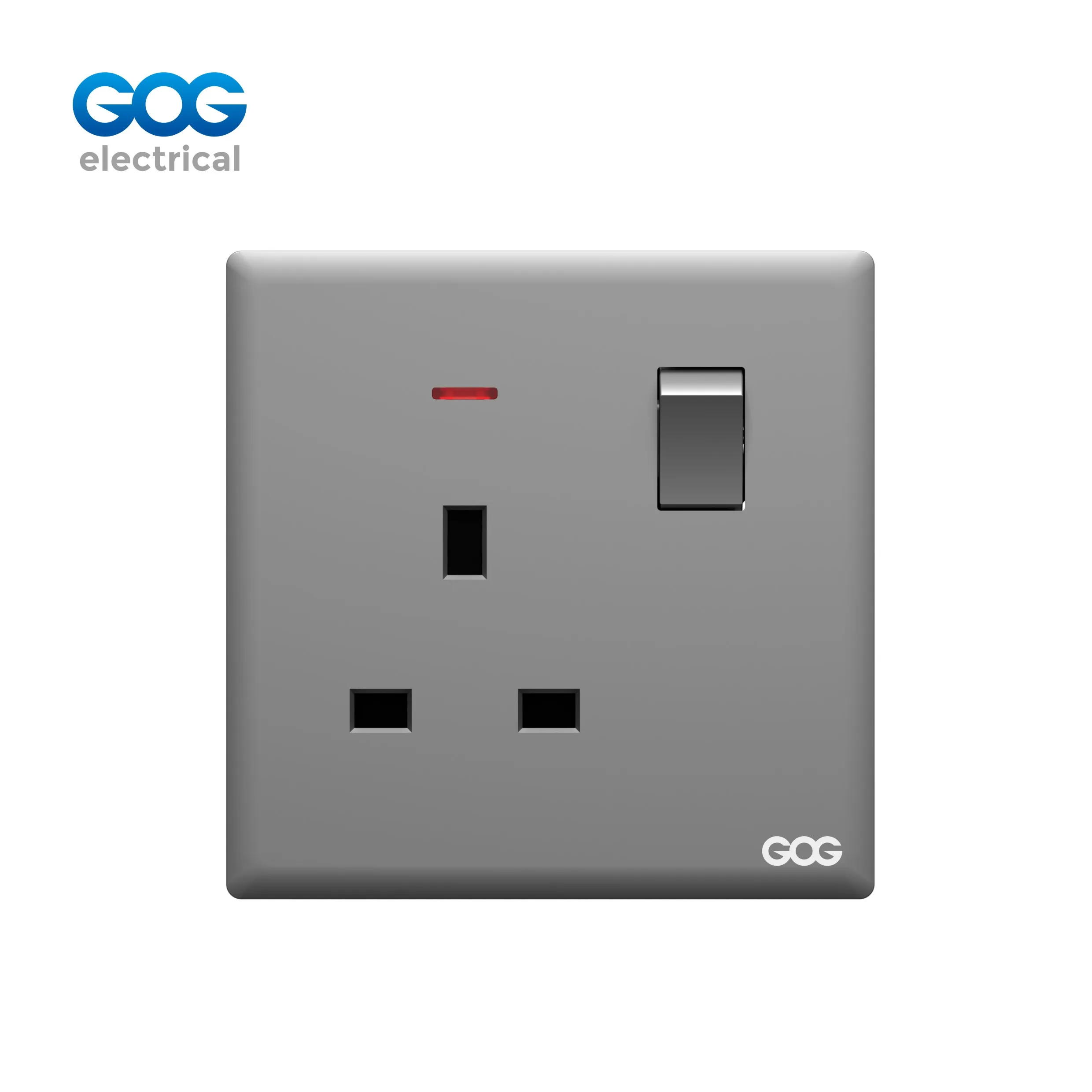

| Gray | Understated contemporary — neutral finish for modern apartments and commercial spaces. |

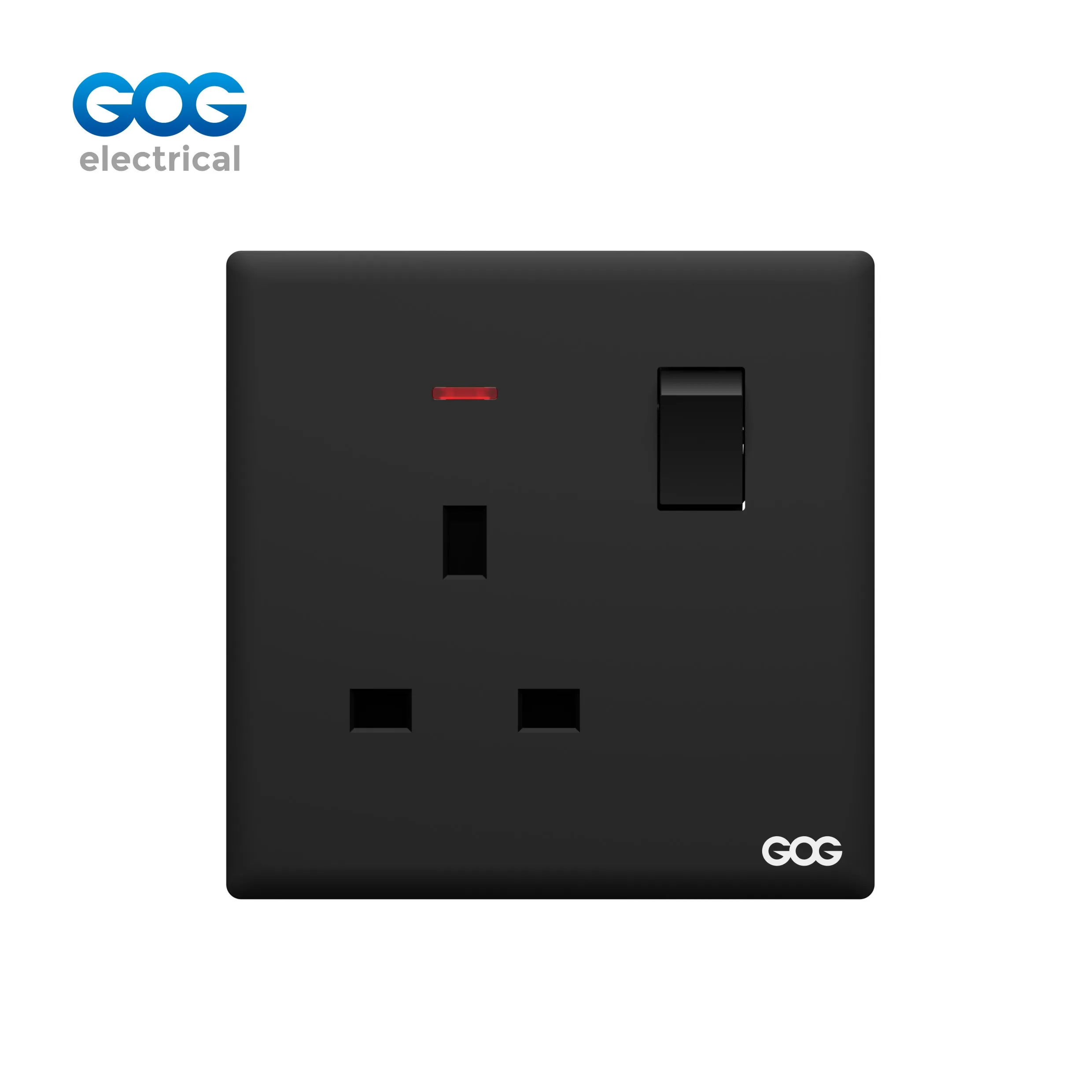

| Black | Bold statement — dramatic dark finish for premium interiors and commercial fit‑outs. |

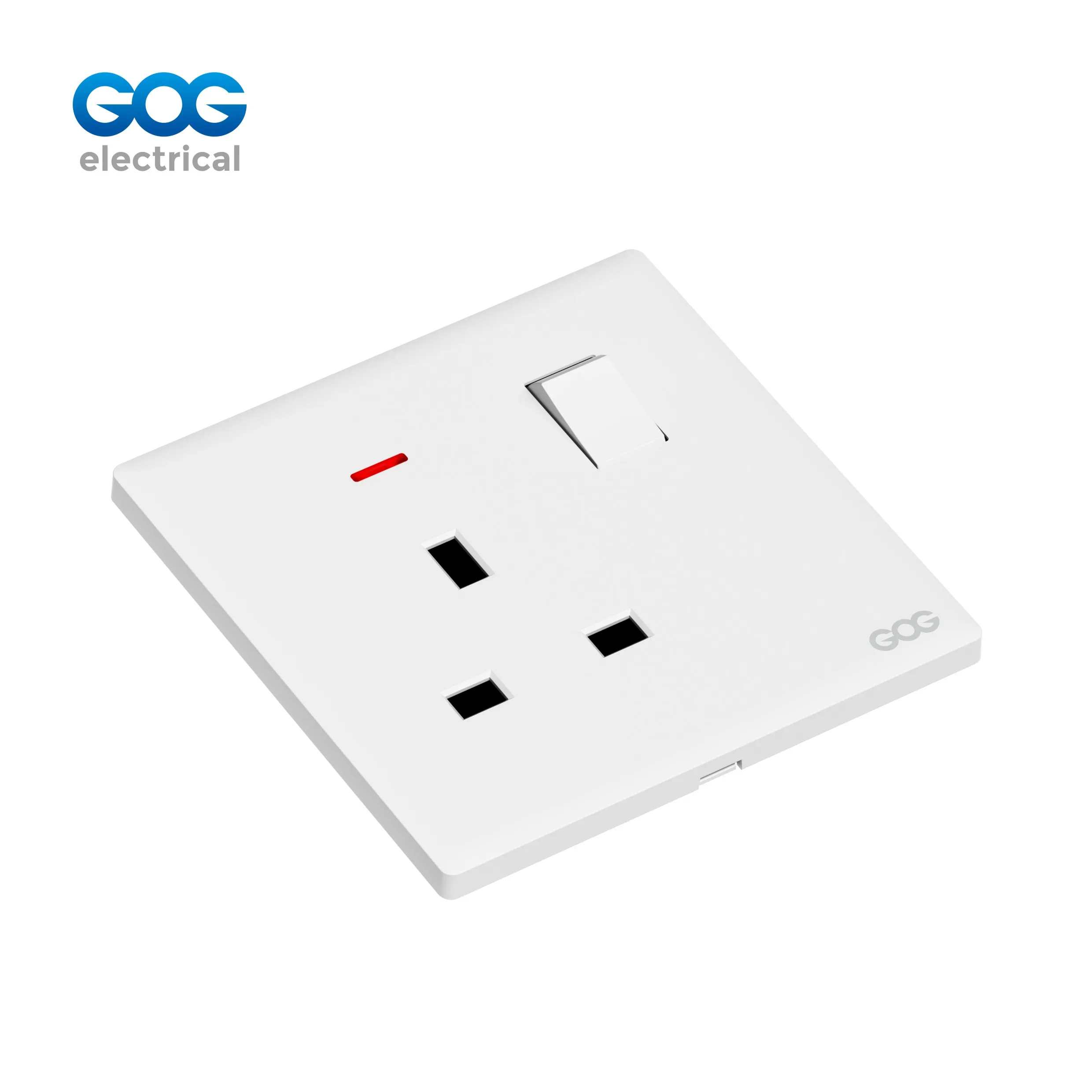

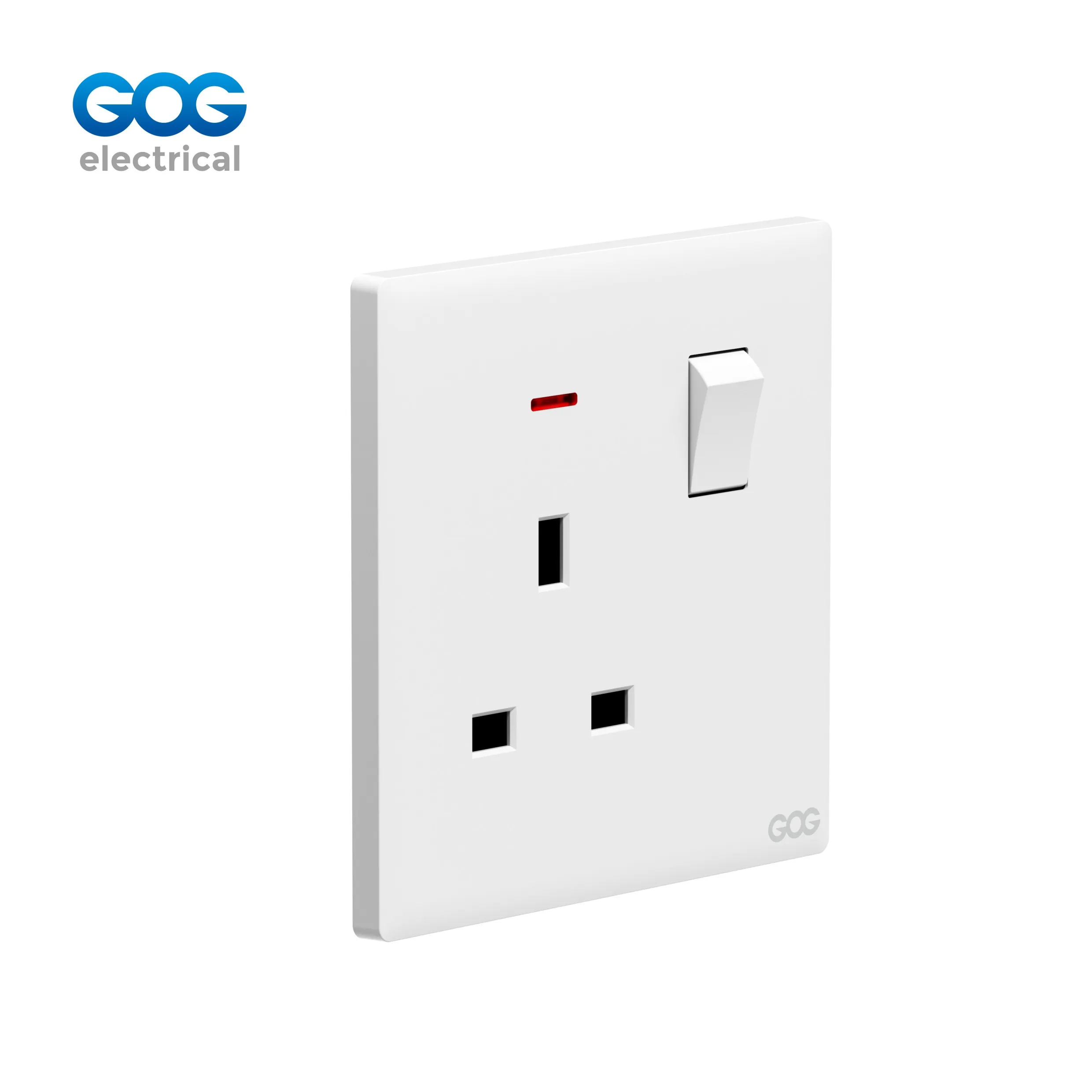

British Standard 13A SP Switched Socket with Neon — Standard UK Power Outlet with PC Panel
The R12407 is a 13A SP switched socket as per British standards — the standard BS1363 type wall outlet fitted with a 3-pin plug facility with an inbuilt rocker switch and neon light in one panel measuring 86×86mm. This SP switched socket delivers local wrapping of the power supply at the wall, and operating the rocker switch cuts off the power supply to the connected load/device without the necessity of removing the plug. The neon light comes on when the socket is live and provides the status of power consumption in a visible manner. The contacts of the socket are made of 0.7mm thick high-end 62 brass with an inset copper makeup, ensuring a decent spinning retention and good conductivity over 15,000 insertion cycles. The switching mechanism has been made by using red copper in which the contact point is none other than Φ3.5mm×0.35mm silver alloy. Various front panels available including White, Gold, Grey, and Black have been manufactured from high-translucent and strong PC material. The middle plate is available either in plastic or steel-plastic combination. Certified as per IEC 60884 and BS1363 and covered with a specific warranty against failure for a period of 12 years.
We are a manufacturer who sells directly, and we offer competitive wholesale prices, OEM branding on the PC panel, and a 12-year warranty for our R12 series product.
62 Brass Socket Contacts + Red Copper Switch — Two Materials, One Reliable Socket
This 13A switched socket employs a design in which the engineering of the switch and socket contact is separated from one another. The socket part is made of 0.7 mm high-purity brass 62 coupled with copper materials. The material mix enables it to maintain high conductivity and hold the pins of the BS1363 3-pole plugs without a hitch when inserted 15,000 times. The switch part consists of red copper washers, red copper stamping parts, red copper bus bars, and a touch point that is a silver alloy of Φ3.5mm×0.35mm. The design relies on the proven R12 switch mechanism for its effective on/off operation. The neon indicator is positioned on the load side and turns on when the socket has power. There are two types of middle plates for different purposes: plastic for home use and steel-plastic for commercial use. The socket complies with IEC 60884 and BS1363 standards.
Matching the R12 Series — Standard UK Socket in the Same High‑Endurance PC Finish
The socket R12407 is formed by the same measurements, materials, and colors as all other components of the R12 series. The R12407 switched socket can be easily installed with R12 switches since the appearance of the socket is the same as that of R12 switches. R12407 switched socket is available in White, Gold, Gray, and Black colors.
Stock This 13A British Standard SP Switched Socket in Four Colors at Factory Pricing
White, Gold, Gray, Black PC panel. SP rocker switch with neon indicator. 62 brass socket contacts. Full plastic or steel-plastic middle plate. OEM logo, custom packaging, 12‑year warranty included. Contact us for a wholesale quotation.
IEC 60884 & BS1363 Certified • 15,000 Cycle Lifespan • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for British Standard 13A SP Switched Sockets
The R12407 13A switched socket integrates the durable construction of the R12 series into the design of the standard UK electrical outlet. You can choose any of three colors available to suit your needs: Stock White for affordable home projects, Gold and Gray for premium buildings, and Black for trend-setting commercial applications — all manufactured by one and the same company using the same 86mm×86mm dimensions. The efficiency of the 62 brass contacts and the red-copper mechanism guarantees perfect performance of every unit. The customer can choose from 2 middle plate designs suited for both ordinary residential use and demanding commercial applications. The solution comes with an option for adding OEM branding into the PC panel, customized packaging, as well as all necessary documentation complying with the IEC 60884 and BS1363 standards.
SP vs DP Switched Socket: Choosing the Right Safety Level for Every Room
A practical guide to specifying British standard switched sockets with the correct switch configuration for residential and commercial installations.
SP (Single Pole) vs DP (Double Pole) — Which Switch Type Do You Need?
The R12407 SP switching socket disconnects only the live wire — this is the conventional UK socket format for use in sitting rooms, bedrooms, corridors, and sockets used for general purposes. It is the most proper and cheap option for most homes and businesses. DP (Double Pole) switched socket disconnects both live and neutral at the same time — this is the right option for kitchens, bathrooms, and other places where safety is vital due to the presence of water. The series R12 includes SP and DP socket configurations in its range.
Why Choose a Switched Socket Over Unswitched?
The switched socket is customary in the United Kingdom for a number of reasons. The built-in rocker switch allows for local power isolation. For instance, it is possible to turn off the kettle, toaster, or lamp by using the switch instead of the plug. The built-in neon indicator shows when the socket is switched on. When it comes to appliances consuming stand-by power, turning off at the wall can help save energy and extend their lifespan. Therefore, it is recommended to use this socket in kitchens and living rooms in order to make things much easier for the users and ensure their safety.
Installation & Wiring
The R12407 is compatible with 86mm × 86mm (standard British) back box. The wiring principle here follows the BS1363 standard. Live is connected to common terminal of switch, “switched” live is routed from L1 to live terminal of socket, neutral and earth wires are connected directly to socket terminals. The neon indicator is wired internally across load side and does not require any additional wires. The 62 brass contacts of socket are compatible with any standard BS1363 3‑pin plug with internal safety shutters. Certified according to IEC 60884 and BS1363 standards.
Frequently Asked Questions
What is a 13A SP switched socket?
The 13A SP socket is a common socket in the United Kingdom that has a built-in SP (Single Pole) switch. The R12407 model socket meets the British standard and operates by cutting off power through the switch. It is equipped with 62 brass sockets for firm grip of the pins and uses red copper and silver contacts in its switch mechanism.
What does SP mean on a switched socket?
SP means Single Pole – the switch interrupts the current only when turned off. This is the typical switched socket configuration used in the UK for domestic power outlets found in living rooms, bedrooms and kitchens. For those areas or circuits where both lines need to be interrupted, such as bathrooms and fixed appliance circuits, the correct specification is a DP (Double Pole) switched socket.
What are 62 brass socket contacts?
62 brass is an alloy of brass with copper content of 62% providing a good tradeoff between conductivity, stellar strength and durability for socket contacts. R12407 employs the 0.7 mm pure 62 brass having a combined copper structure ensuring high retained pins for BS1363 3-pin plugs along with conductivity for 15,000 insertion cycles which corresponds to approximately 20 years of standard domestic use.
Is this switched socket compliant with British standards?
Indeed, the R12407 conforms to the IEC 60884 and BS1363—the two important standards for 3-pin sockets in the United Kingdom. It has internal safety shutters for the live and neutral sockets, can accommodate all the standard fused BS1363 plugs, and has a rating of 13A/250V for use on UK ring main and radial circuits.
