SPECIFICATIONS
| Series | R12 series |
| Item Code | R12317 |
| Description | 16A Doorbell Switch with Neon Indicator (Momentary Bell Push) |
| Switch Action | Momentary (press to make, release to break) |
| Current / Voltage | 16A / 250V~ |
| Mechanical Life | Max 200,000 cycles |
| Indicator | Neon — always on in standby |
| Front Panel | Imported high‑transparent, high‑strength PC |
| Base | Imported high‑transparent, high‑strength PC |
| Middle Plate Options | Full plastic / Steel‑plastic combination |
| Switch Internal | Red copper bush, red copper stamping part, red copper bus bar, Φ3.5mm×0.35mm silver touch point |
| Standard | IEC 60669 |
| Warranty | 12 Years |
| Available Colors | White / Gold / Gray / Black |
| Dimensions | H 86mm × W 86mm (British Standard back box) |
| MOQ | 2,000 pcs per item |
| Packaging | 1 pc per plastic bag | 10 pcs per inner box | 100 pcs per outer carton |
Doorbell Switch vs Standard Light Switch — Don’t Wire the Wrong One
| Feature | R12317 Doorbell Switch | Standard Light Switch |
|---|---|---|
| Switch Action | Momentary — spring‑return, press to make contact, release to break | Latching — stays in position until pressed again |
| Circuit Behavior | Completes circuit only while the rocker is held down | Maintains circuit in the last selected state (on or off) |
| Typical Use | Doorbell, chime, buzzer, signaling circuit | Lighting circuit control |
| Installation Mistake | Using a latching switch in a bell circuit will leave the chime ringing continuously or silent | Using a momentary switch for lighting won’t keep the light on |
PC Panel & Dual Middle Plate Options — High Endurance Bell Push Built to R12 Standards
| Panel Color | Description |
|---|---|

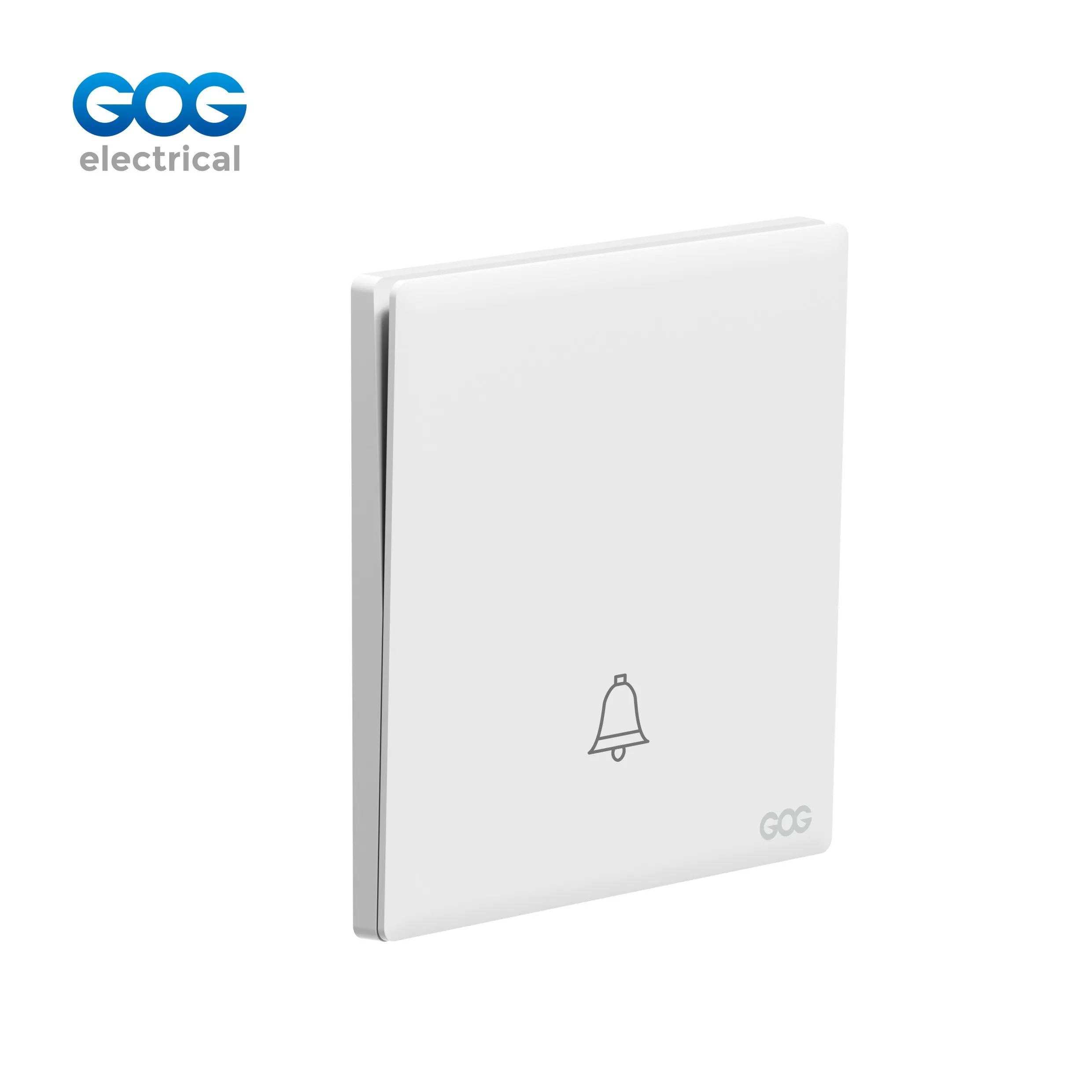

| White | Classic entrance — clean PC finish matching white R12 interior switches. |

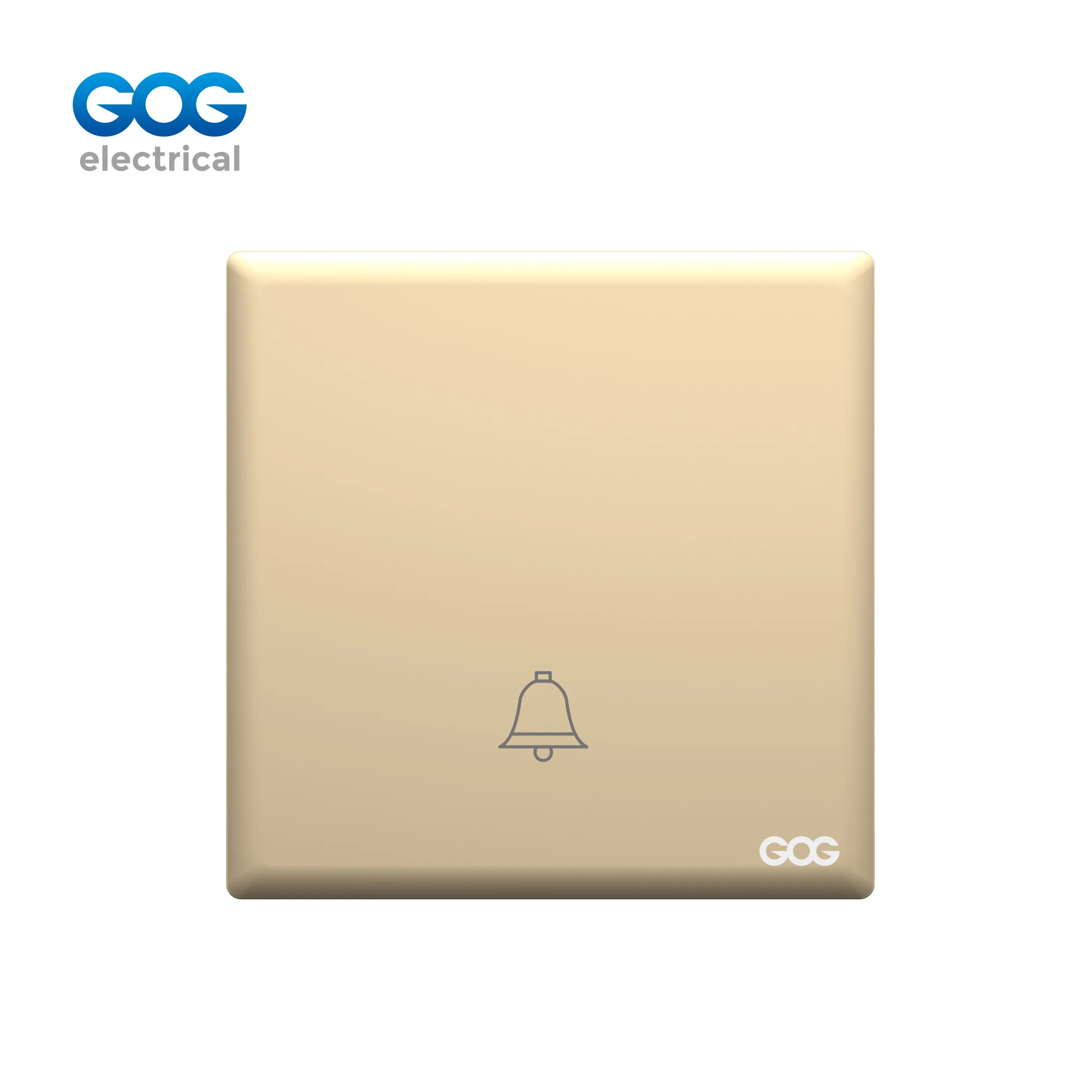

| Gold | Warm premium entrance — distinctive metallic tone for high‑end residential. |

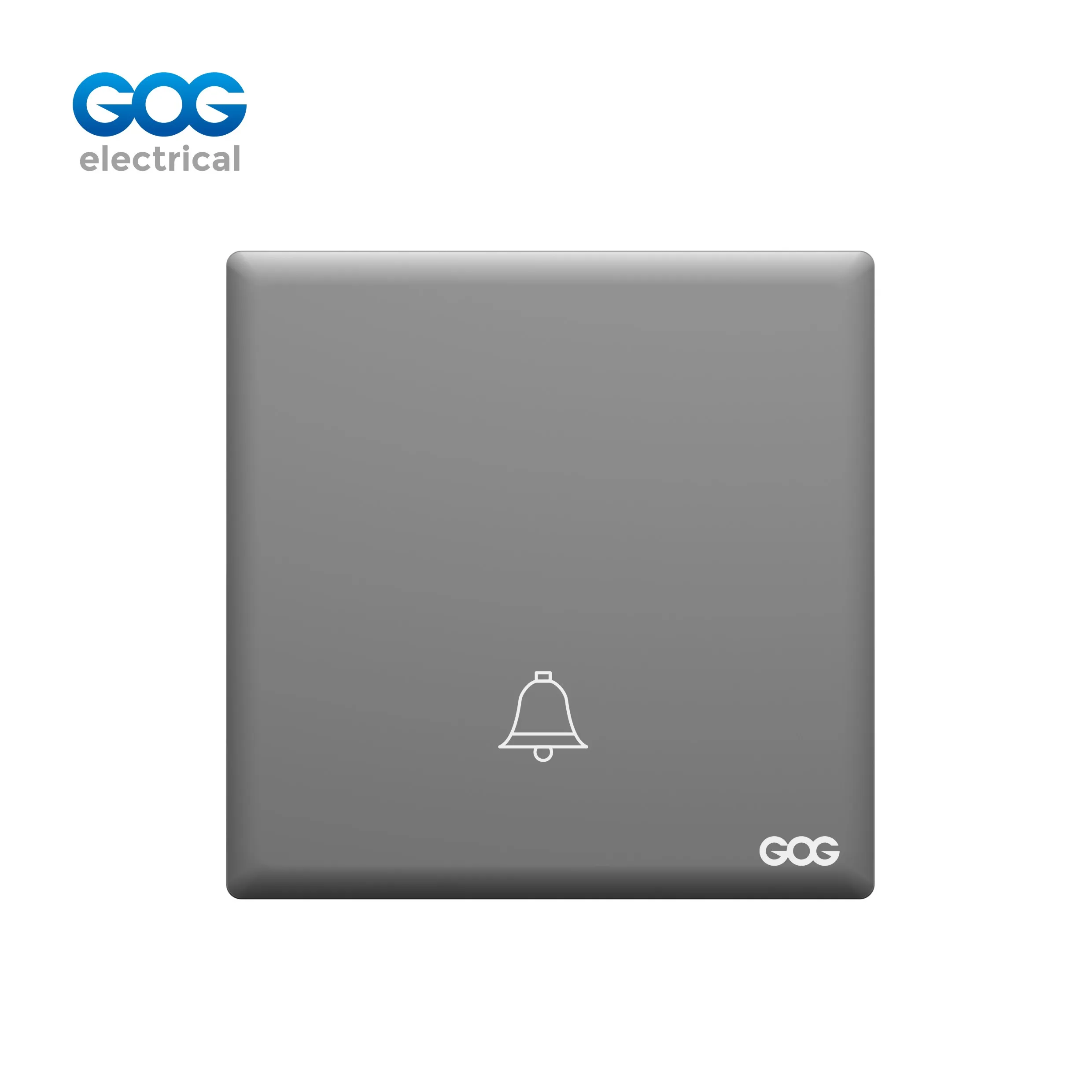

| Gray | Understated contemporary — neutral finish for modern apartments. |

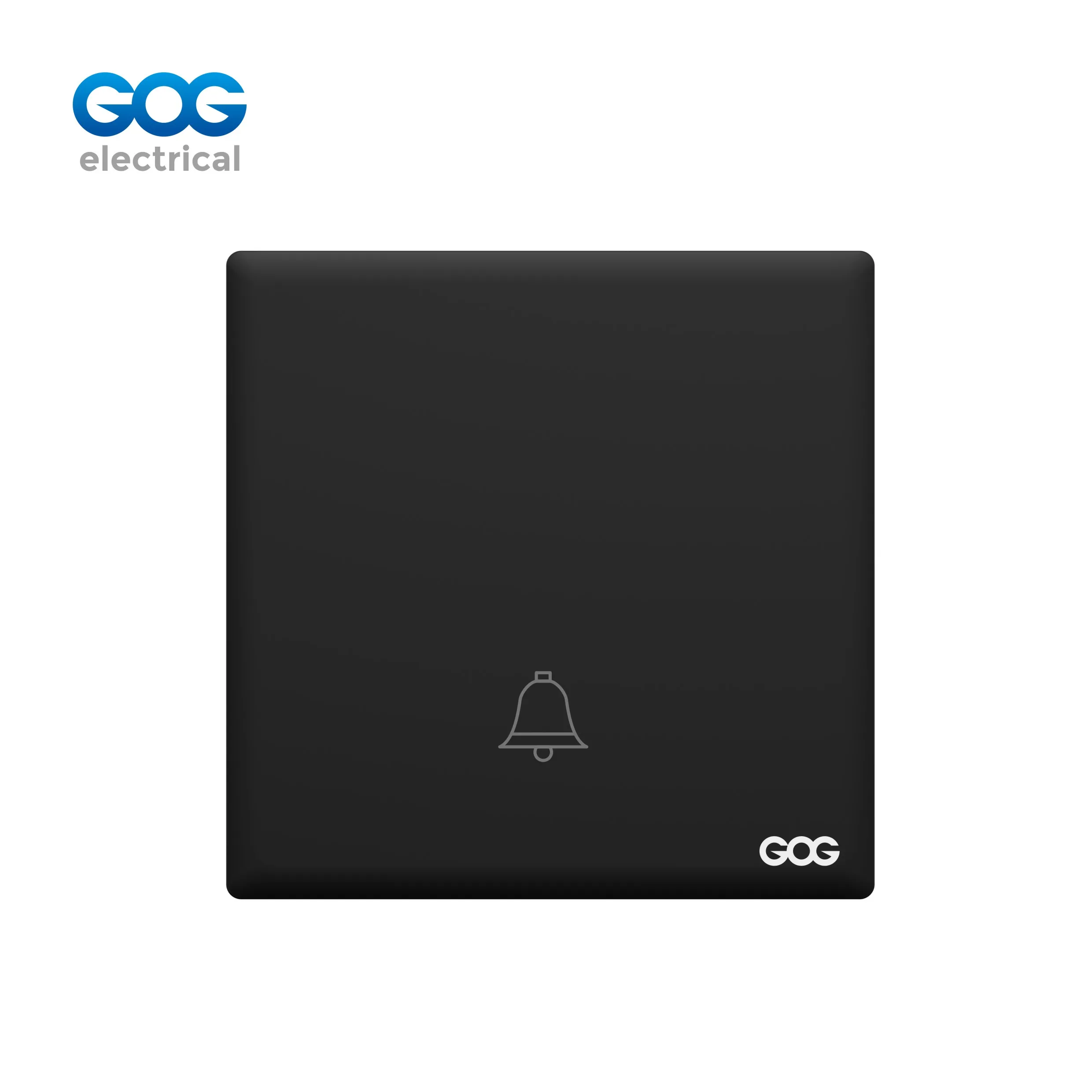

| Black | Bold statement — dramatic dark finish for premium entrances and commercial spaces. |
British Standard 16A Doorbell Switch with Neon — 200K Cycle Momentary Bell Push with PC Panel
The R12317 is renowned British standard 16A doorbell switch that lessens obsolete round plastic bell pushes with a complete 86 x 86 mm R12 series Wall plate. This switch is momentary because it utilizes a spring return mechanism – press the rocker to complete the current and ring the chime; then release it, and it travels back to open the circuit. Unlike a common light switch that remains in one position after being turned on, this doorbell switch only engages when pressurized. The built‑in neon indicator is on while in a standby mode. There are rounds of 200,000 mechanical performance that make this switch useful five times longer than the regular switch with the possibility of employing only copper metal for the switchbush, stamping parts, bus bar, and Φ3.5 x 0.35 mm silver alloy contact point. The quality of the front panel is manufactured according to its high transparency and high strength standard with colors available – white, gold, gray, and black.
We are a factory-direct producer who provides competitive prices for wholesale goods, allowable OEM branding for the PC panels, and a warranty of 12 years across the entire range of the R12 series.

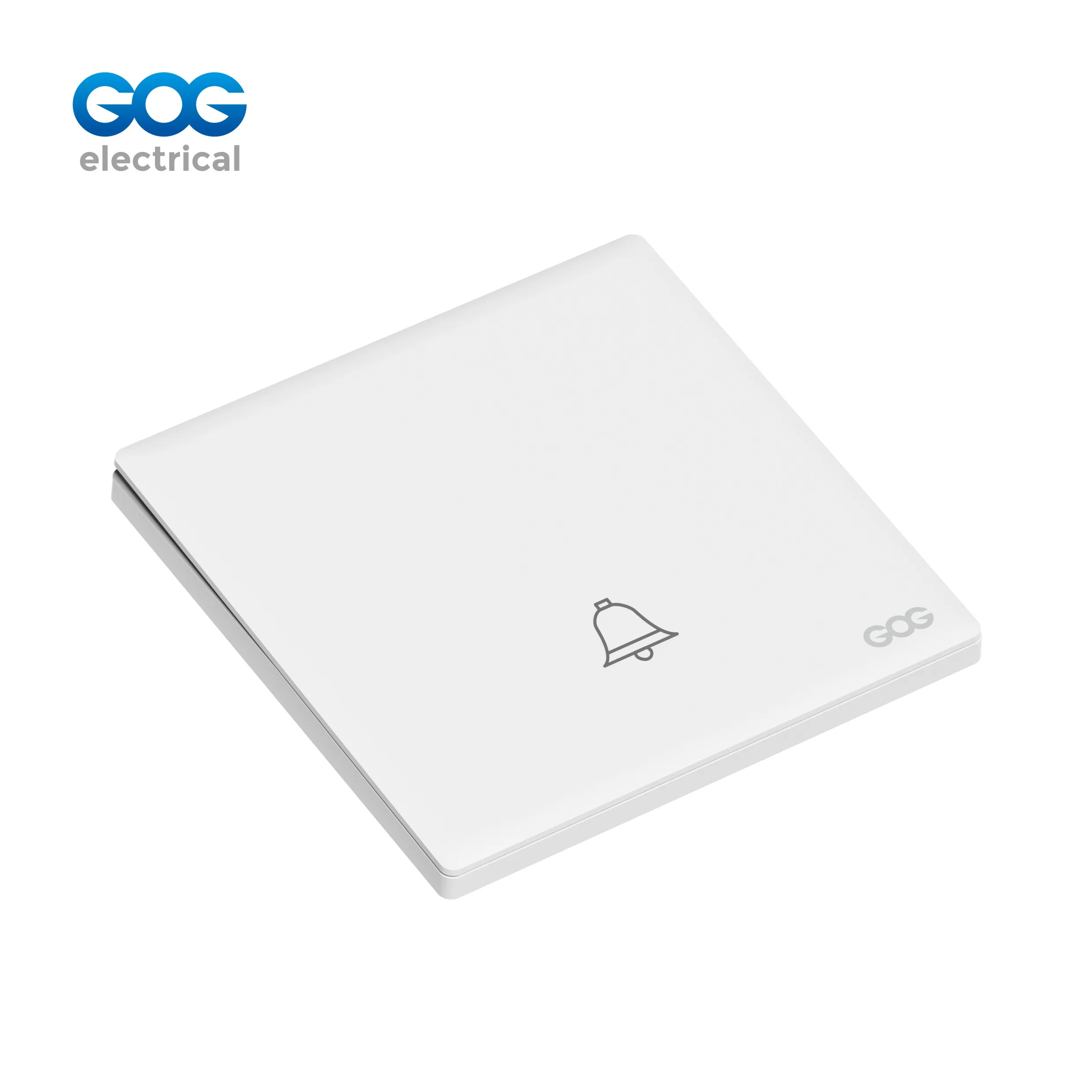

200,000 Cycle Momentary Mechanism — Why a Doorbell Needs High Endurance
The front door bell push is operated many times each day by visitors, delivery personnel and family alike — this amounts to between four thousand and five thousand uses per year. A generic forty thousand cycle switch will reach the end of its useful life in less than ten years. The R12317 200k cycle bell switch is rated for 200,000 cycles, and unless a new building is erected, it should last for the full life of the building. The red copper bus bar, red copper stamping parts and the Φ3.5mm×0.35mm silver alloy touch point are designed specifically for this repeated momentary use, controlling the arc energy of each press and release effectively and reliably. The spring-return mechanism gives a neat tactile feeling on each press, and when the bell is on, the neon light shows that the door bell is powered. There are two types of middle plate available to allow the device to be used for both the common residential applications and tougher commercial operations.
Matching the R12 Series — Doorbell Switch in the Same High‑Endurance PC Finish
This white foundation button belongs to the R12 series of electrical switches, made from high-transparent imported materials like the other electrical switches of the series. The doorbell at the entryway can now be consistent with the hall light switch in terms of dimension, materials used, and colors.
Stock This 16A British Standard 200K Cycle Doorbell Switch in Four Colors at Factory Pricing
White, Gold, Gray, Black PC panel. Momentary bell push with neon indicator. Full plastic or steel-plastic middle plate. OEM logo, custom packaging, 12‑year warranty included. Contact us for a wholesale quotation.
IEC 60669 Certified • 200,000 Cycle Lifespan • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for British Standard High‑Endurance Doorbell Switches
The R12317 bell button takes the 200,000‑cycle reliability of the R12 series to the doorstep. Available in Stock White for high-volume residential work, Gold and Gray for luxury interiors, and Black for progressive commercial projects, all in the same dimensions of 86×86mm and coming from a single manufacturing facility. All the options include two middle plates suitable for construction works for normal residential places and heavy-duty commercial premises. OEM logo is printed on the PC panel, customized packing is provided, and all necessary IEC 60669 compliance documentation is available for wholesale distributors worldwide.
Installing a 200K Cycle Doorbell Switch: Wiring, Momentary Action & Middle Plate Selection
A practical guide to specifying and wiring a high‑endurance momentary bell push for residential and commercial doorbell circuits.
Momentary vs Latching — Why the Difference Matters
A momentary doorbell switch is designed in such a way that it completes a circuit only when the rocker is pressed. Or, in other words, as soon as it is released, the internal spring breaks the connection. This means a momentary switch is quite different from a latching switch, which can be switched on and remain energized. If a standard light switch is used in the doorbell circuit, it can either keep ringing non-stop or simply not ring at all. The R12317 has been designed as a momentary bell push – its spring-return mechanism, red copper and silver contacts, and rocker geometry have been made to be used in signaling circuit, not lighting applications. The neon indicator will show that the circuit is live without even pressing the switch.
Middle Plate Selection — Full Plastic or Steel‑Plastic?
The full plastic middle plate adds a standard rigidity level to residential entry doors, which is cost effective and useful in most home installations. The steel-plastic combined middle plate provides added steel reinforcement, thus, it is recommended to use it in commercial entrances, multi apartment buildings, or wherever the door is frequently used by visitors, deliveries, and trades during the day. Both kinds of plates have a 200,000-cycle rating and supply a warranty for 12 years.
Wiring & Installation
The R12317 accommodates a conventional British back box, measuring 86×86 mm. The wiring process is done in conformity with the conventional practices of doorbell installation: connect the transformer to the common terminal and the wire to the chime to terminal L1. Since the mechanism is momentary, neutral connection is not obligatory. Neon indicator is wired internally and glows as long as the transformer supplies power. Always isolate the circuit of the transformer at the consumer unit before starting work.
Frequently Asked Questions
What is a momentary doorbell switch?
A momentary doorbell switch uses a spring‑return mechanism — press the rocker to complete the circuit and ring the chime, release and it springs back to break the circuit. The R12317 is a 16A momentary bell push switch with a neon indicator. It is fundamentally different from a latching light switch; installing a standard switch in a bell circuit will either keep the chime silent or ringing continuously.
How many cycles does this doorbell switch last?
The R12317 is rated for 200,000 operation cycles — five times the standard 40,000‑cycle switch lifespan. At a typical front‑door usage rate of 10‑15 presses per day, this equates to over 40 years of reliable service. The red copper bus bar, red copper stamping parts, and Φ3.5mm×0.35mm silver alloy touch point are engineered specifically for repeated momentary duty.
Can I use a standard light switch as a doorbell?
No. A standard light switch is a latching switch — it stays in position once pressed. Installing a latching switch in a doorbell circuit will either leave the chime ringing continuously or prevent it from working entirely. A doorbell circuit requires a momentary switch like the R12317 that only makes contact while pressed and springs back when released. The two switch types are not interchangeable.
Does the neon light stay on all the time?
Yes, the neon indicator on the R12317 doorbell switch is wired internally across the circuit and glows continuously as long as the bell transformer is supplying power. This provides a locator light in dark hallways and confirms that the bell circuit is live and ready to operate. The neon does not indicate whether the chime is ringing — it shows standby power status only.
