SPECIFICATIONS
| Series | T-D series |
| Item Code | TDM35 |
| Description | 3P Wall Socket (Ungrounded) |
| Socket Rating | 15A / 250V~ |
| Socket Type | 3P ungrounded socket |
| Product Lifetime | 15,000 cycles (socket insertion) |
| Front Panel | Imported high‑transparent, high‑strength PC |
| Base | Imported high‑transparent, high‑strength PC |
| Middle Plate | Steel middle plate |
| Socket Contact | High quality phosphor copper |
| Standards | IEC 60884 / BS1363 |
| Warranty | 12 Years |
| Available Finishes | White + Chroming Gold / Black + Chroming Gun / Gray + Chroming Silver / Gold + Chroming Gold / White / Black / Gray |
| Dimensions | H 81.5mm × W 120mm |
| MOQ | Contact sales team |
| Packaging | 1 pc per plastic bag | 10 pcs per inner box | 100 pcs per outer carton |
3P Ungrounded Socket vs Switched Socket — When You Need a Pure Power Outlet
| Feature | TDM35 3P Socket | TD11M35/TD12M35 Switched Socket |
|---|---|---|
| Switch | No — pure socket outlet | Yes — integrated rocker switch |
| Socket Type | 3P ungrounded | 3P with switch control |
| Best For | Circuit where switching is provided elsewhere | Local power isolation at the socket |
Seven Chroming Finishes — A Pure Socket That Matches Your Interior
| Finish | Description |
|---|---|

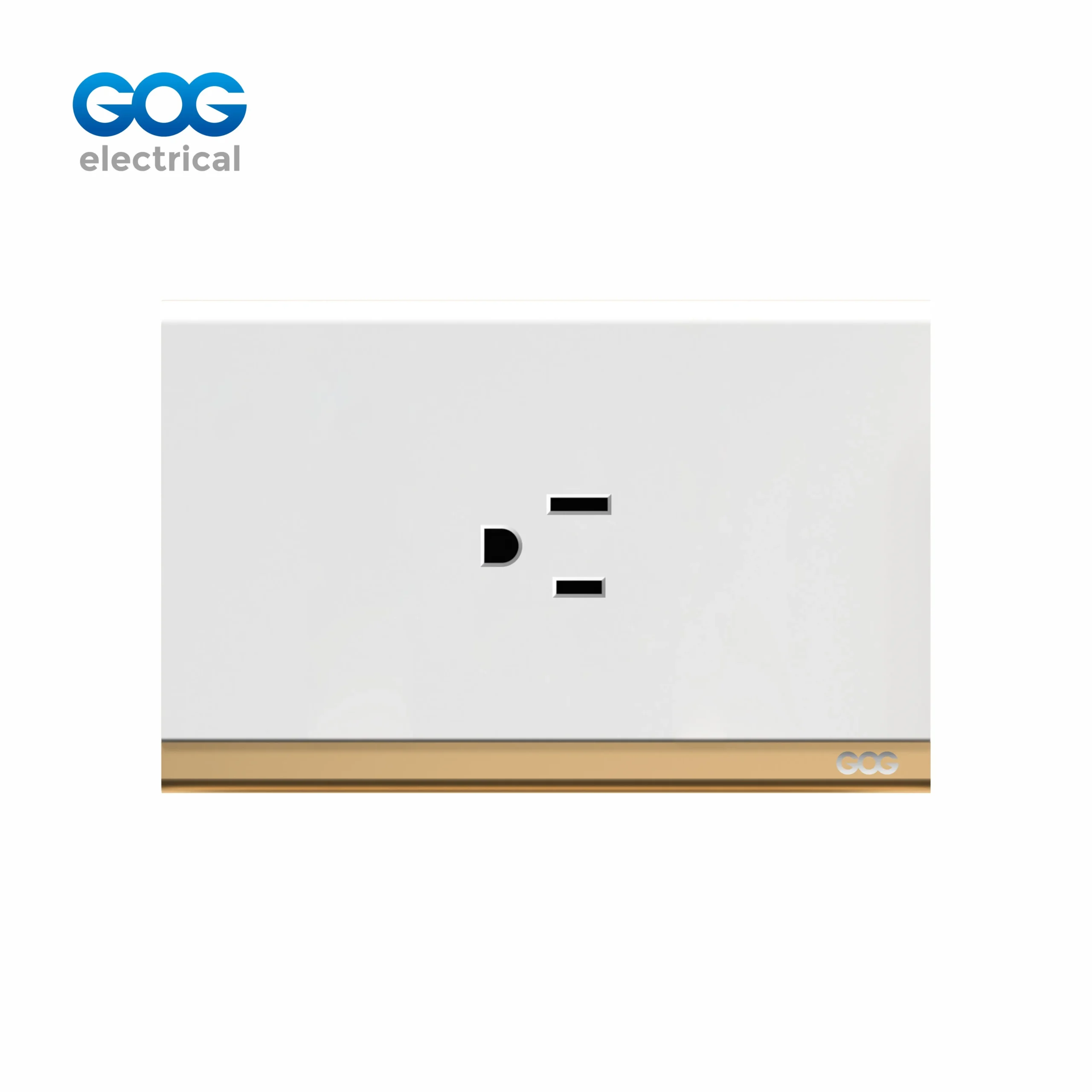

| White + Chroming Gold | Pure white panel framed with a warm gold metallic border. |

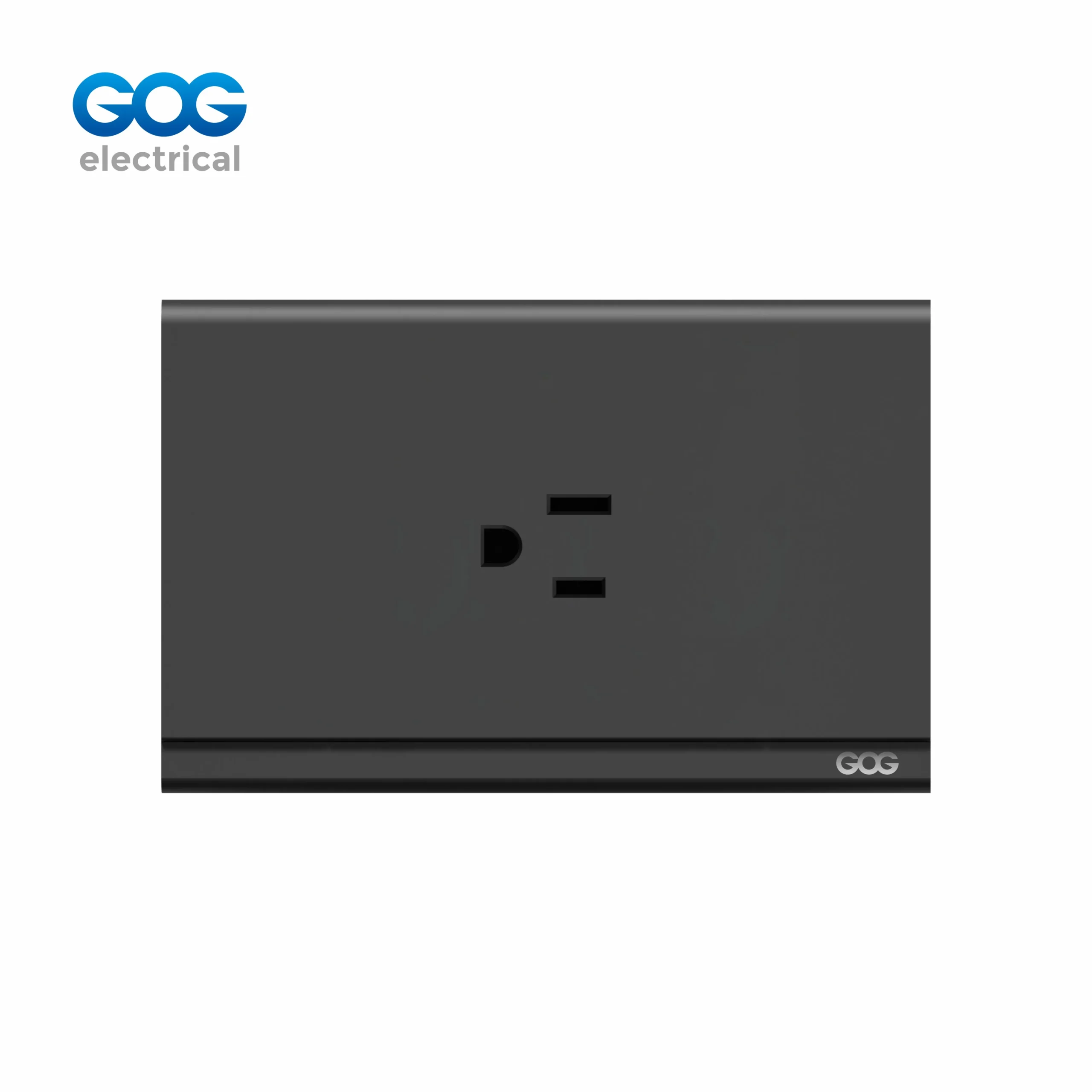

| Black + Chroming Gun | Deep black panel with a cool gunmetal metallic accent. |

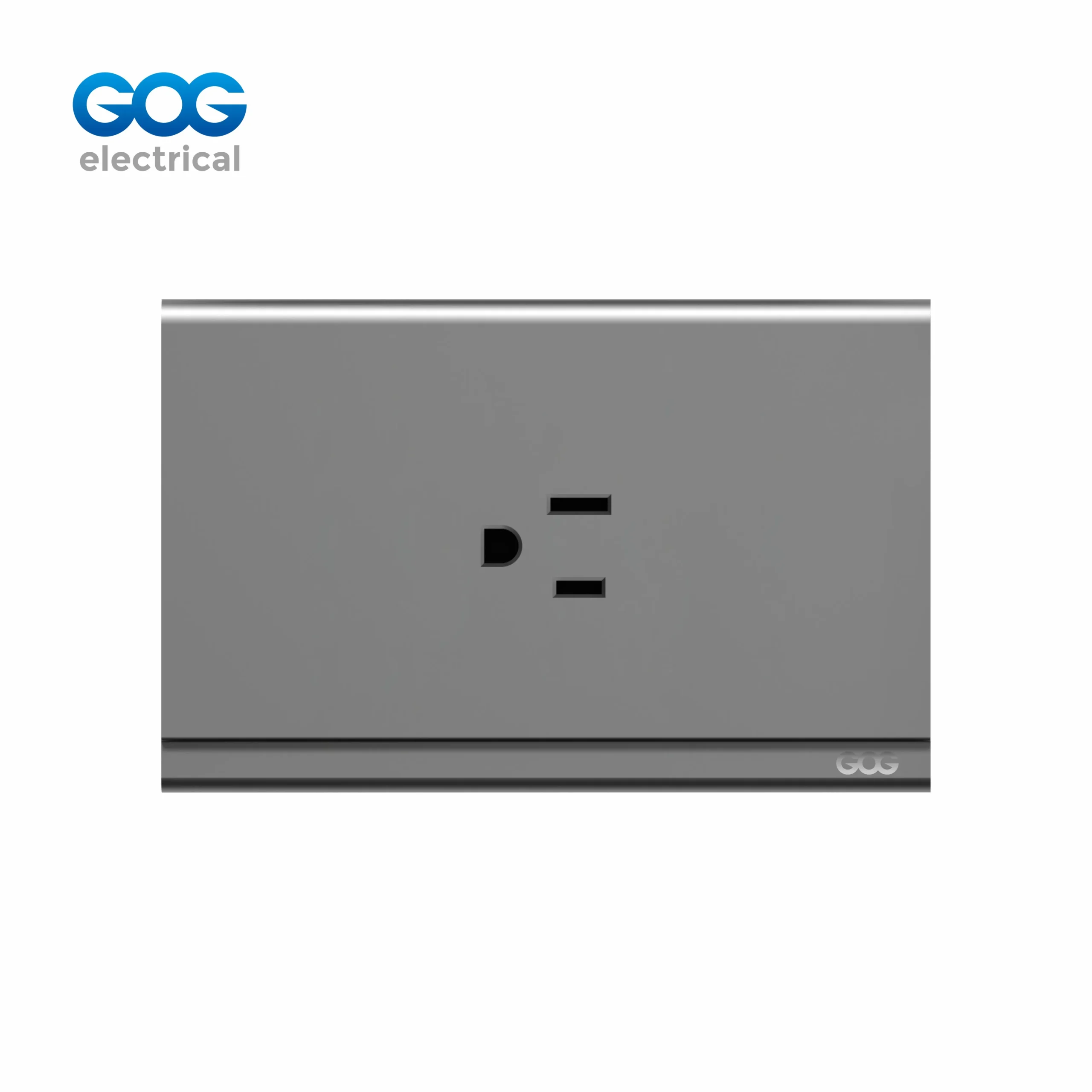

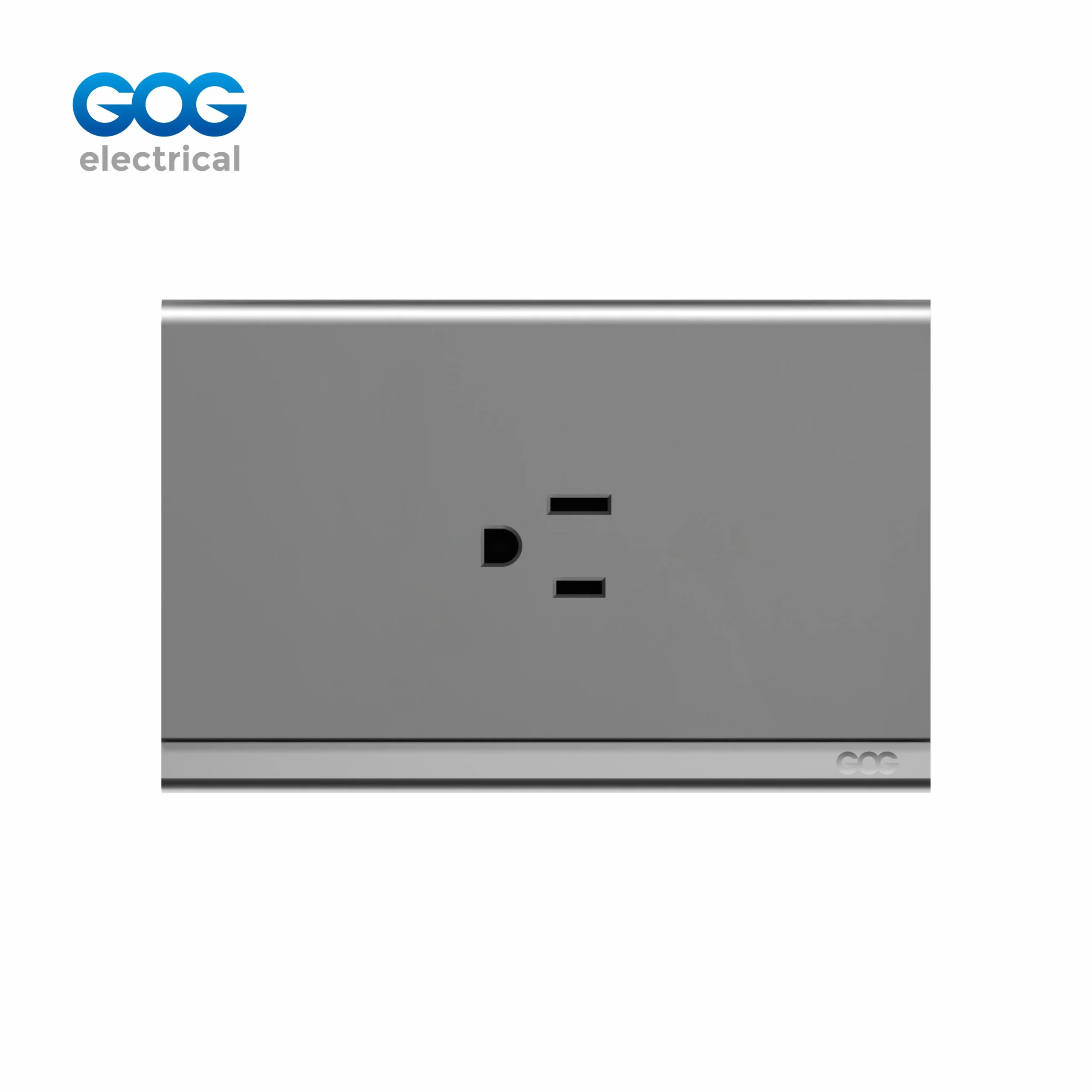

| Gray + Chroming Silver | Neutral gray panel with a subtle silver metallic border. |

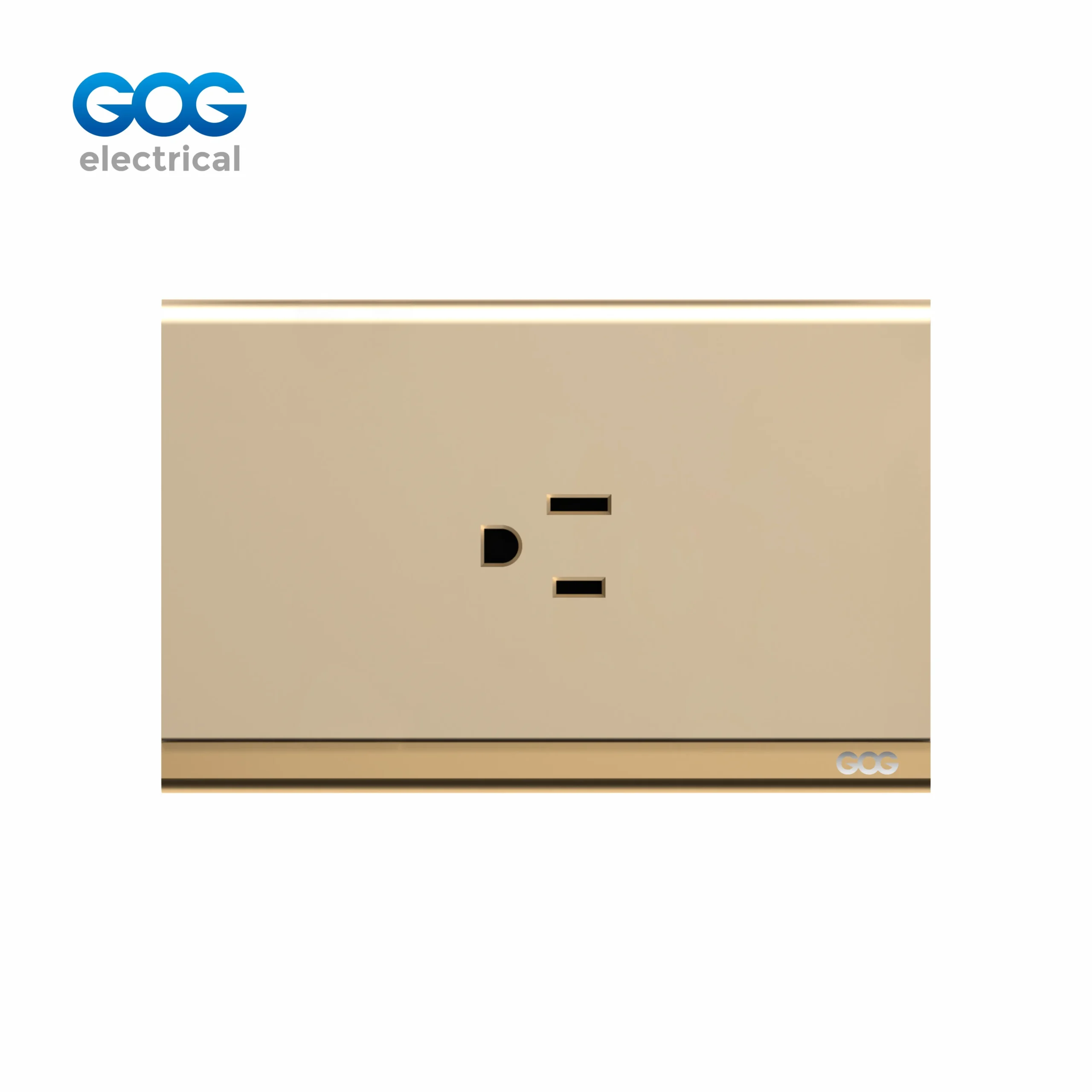

| Gold + Chroming Gold | Warm gold panel with a matching gold metallic frame. |

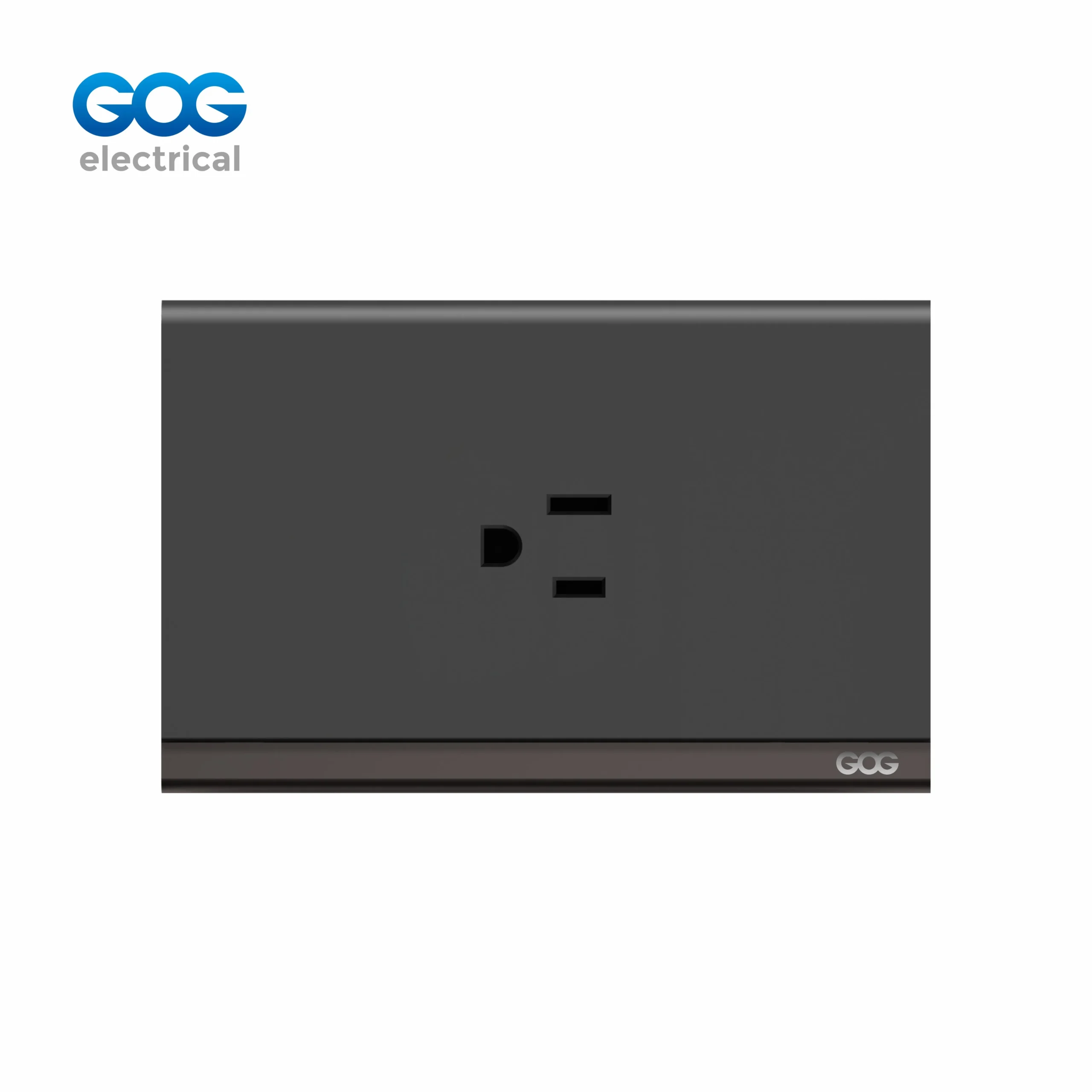

Chroming 15A 3P Power Socket
The TDM35 is a chroming 15A 3P power socket — a special ungrounded power socket designed for use in installations where switching is given in the circuit. The phosphor bronze socket is all about providing power because quality phosphor bronze contacts help the socket maintain the integrity of the power pin during its 15,000 cycles of insertion. Because there is no switch in the design of the TDM35, this socket is correct for circuits operated by a wall switch or in places where the socket is on because of the design. This socket comes with seven metallic accent colors to match the look of the T-D series from the factory. The middle plate is made of steel providing strength. Imported PC panel is high-transparent and durable. It is certified with IEC 60884 and BS1363 and comes with a 12-year warranty.
We are a factory direct manufacturer that provides competitive wholesale prices, OEM service for any color of the PC panel, and a 12-year warranty for the T-D series.
Phosphor Copper Socket Contacts — Performance‐Optimized for Power Transmission
This chroming 3P plug employs phosphor copper as the material for the plug’s contact points — this material is selected based on its superior elasticity and reliable pin retention. In a regular socket that doesn’t have a switch fixture, contact points are the only interface between the wall and the device being powered by the socket. The push force of phosphor copper enables the contacts to grip for the entire life of the socket and go through every insertion and removal cycle. Phosphor copper persists in retaining its pressure better than brass and performs this task throughout the 15,000-cycle lifecycle. The middle steel plate keeps the 81.5×120mm frame rigid, avoiding warping when inserting the plug. The imported high-clarity and strength polycarbonate front plate provides an expert-level finishing and features the same elegant chroming elements as all the T-D products. Certified according to the IEC 60884 and BS1363 quality standards.
Compatible with T-D Series — Basic Socket in High-Quality Chroming
This white colored polycarbonate 3P wall socket represents the T-D series since it belongs to the category of the T-D sockets along with its fellow members of the family that share the same size of 81.5×120mm as well as the material — PC, and the chroming detailing of the product family — there are seven chroming colors featured in the T-D range that are also applied to T-D switches and sockets with at least one switch and a double outlet. The TDM35 socket can be used in combination with any type of the sockets and switches from the T-D family sharing the same design solutions — from the technical aspect different types of T-D products feature the same panel and chroming.
Stock This Chroming 15A 3P Wall Socket at Factory Pricing
Seven chroming metallic-accent finishes. Pure 3P ungrounded socket with phosphor copper contacts. OEM logo, custom packaging, 12‑year warranty included. Contact us for a wholesale quotation.
IEC 60884 & BS1363 Certified • 15,000 Cycle Lifespan • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for Chroming 3P Wall Sockets with Phosphor Copper Contacts
The TDM35 pure 3P socket presents a brand new option for an ungrounded power outlet in our extensive T‑D series catalog. Available in seven different metallic accent finishes, including pure colors as well as chrome variations such as Gold, Gun, and Silver metallic options, we offer a complete selection of sockets for you. Hence, with this addition, you can stock yourself with different configurations of the T‑D series — pure, switched, single, and duplex — as you also get switched sockets (TD11M35/TD12M35) and duplex sockets (TD11M65/TD12M65). You can also get OEM branding done on any color, custom packaging, and documentation like IEC 60884 and BS1363 for your wholesale distributors.
Choosing the Right 3P Socket: Pure vs Switched, Finishes & Installation
A practical guide to specifying pure ungrounded sockets for residential and commercial power outlet installations.
TDM35 (Pure Socket) vs TD11M35/TD12M35 (Switched Socket) — Which One Do You Need?
The TDM35 3P wall socket is a type of wall socket that is usable at all times (it is always live) and does not have a switch. It is recommended for facilities where the socket is controlled with a switch elsewhere in the building or where the socket must continuously have power. On the other hand, the TD11M35/TD12M35 switched socket has an in-built rocker switch, which makes it suitable for places where the users need to control the power supply directly from the wall socket. Both types of sockets are the same in size with the dimensions of 81.5 x 120 mm, and they both have 7 chroming options available as well as the copper contacts made of phosphor copper.
Finish Selection — Which Chroming Color for Your Room?
White + Chroming Gold: Classic warm accent — clean white panel with gold metallic border. Black + Chroming Gun: Modern dramatic — dark panel with cool gunmetal accent. Gray + Chroming Silver: Understated contemporary — neutral base with subtle silver border. Gold + Chroming Gold: Premium statement — warm gold panel with matching gold frame. Pure White, Black, and Gray options are also available without chroming for minimalist interiors.
Installation
As for the installation of the TDM35 wall socket, it fits all types of standard back boxes (81.5×120 mm). Wiring is standard: connect live and neutral to the marked terminals. No switch wiring is required. The phosphor copper contacts accept the corresponding 3P plug standard. Always isolate the circuit at the consumer unit before working.
Frequently Asked Questions
What is a 3P wall socket?
A 3-wire plug is an electrical socket with three pins. The TDM35 complements the electrician’s 15A electrical socket, which connects machines needing electrical power through their 3-wire plug to the electrical power source. Unlike a switch plug, this device does not come with any switch, meaning that this wall plug is simply a socket designed where the switching follows.
What is the difference between a 3P socket and a switched socket?
A 3P socket (TDM35) is a basic power socket that is continuously powered unless the circuit is disconnected. In contrast, a switched socket (TD11M35/TD12M35) has an embedded switch for turning the socket on and off, providing local control without the need to unplug any device. Choose a pure socket where switching is provided elsewhere and a switched socket when convenience and easy access to the switch at the location are needed.
Does this socket require a switch to be installed separately?
It has no integrated switch; rather, the TDM35 is a true socket. It can either be connected to a circuit that gets switched on from another location (for instance; through a wall light switch that switches the whole circuit for the socket) or it can be used as an always-on socket for the appliance. If the user wishes to have local isolation at the socket, it should opt for the TD11M35/TD12M35 switching socket instead.
What chroming finishes is this 3P wall socket available in?
The TDM35 is made available in 7 finishes from the T-D series collection. These finishes include White, Black, Gray, White with Chroming Gold, Black with Chroming Gun, Gray with Chroming Silver, and Gold with Chroming Gold. For the Chroming variants, a metallic border can be used – either Gold, Gun, or Silver, giving it a distinctive design allegory in keeping with the overall design of the T-D series electric switches and switch sockets for an elegant wall look.
