SPECIFICATIONS
| Series | DN70 series |
| Item Code | DN70489C |
| Description | Single 13A Socket with Switch, Neon + USB Type-C |
| Socket Rating | 13A / 250V~ |
| Socket Configuration | Single — one 3‑pin outlet |
| Switch Type | SP (Single Pole) with neon indicator |
| USB Port | 1 × Type-C, fast charging |
| Front Panel Options | PC / Tempered Glass / Brushed Aluminum |
| Base | PC |
| Middle Plate Options | Steel / Plastic‑wrapped steel |
| Switch Internal | Red copper, Φ3.0×25mm silver alloy touch point |
| Socket Contact | 0.6mm phosphor copper with fix circle ring |
| Standard | IEC Standard (British standard countries) |
| Warranty | 12 Years |
| Available Colors | White / Gold / Gray / Black |
| Dimensions | H 88mm × W 86mm (single gang British Standard back box) |
| MOQ | 20GP container |
| Packaging | 1 pc per plastic bag | 8 pcs per inner box | 80 pcs per outer carton |

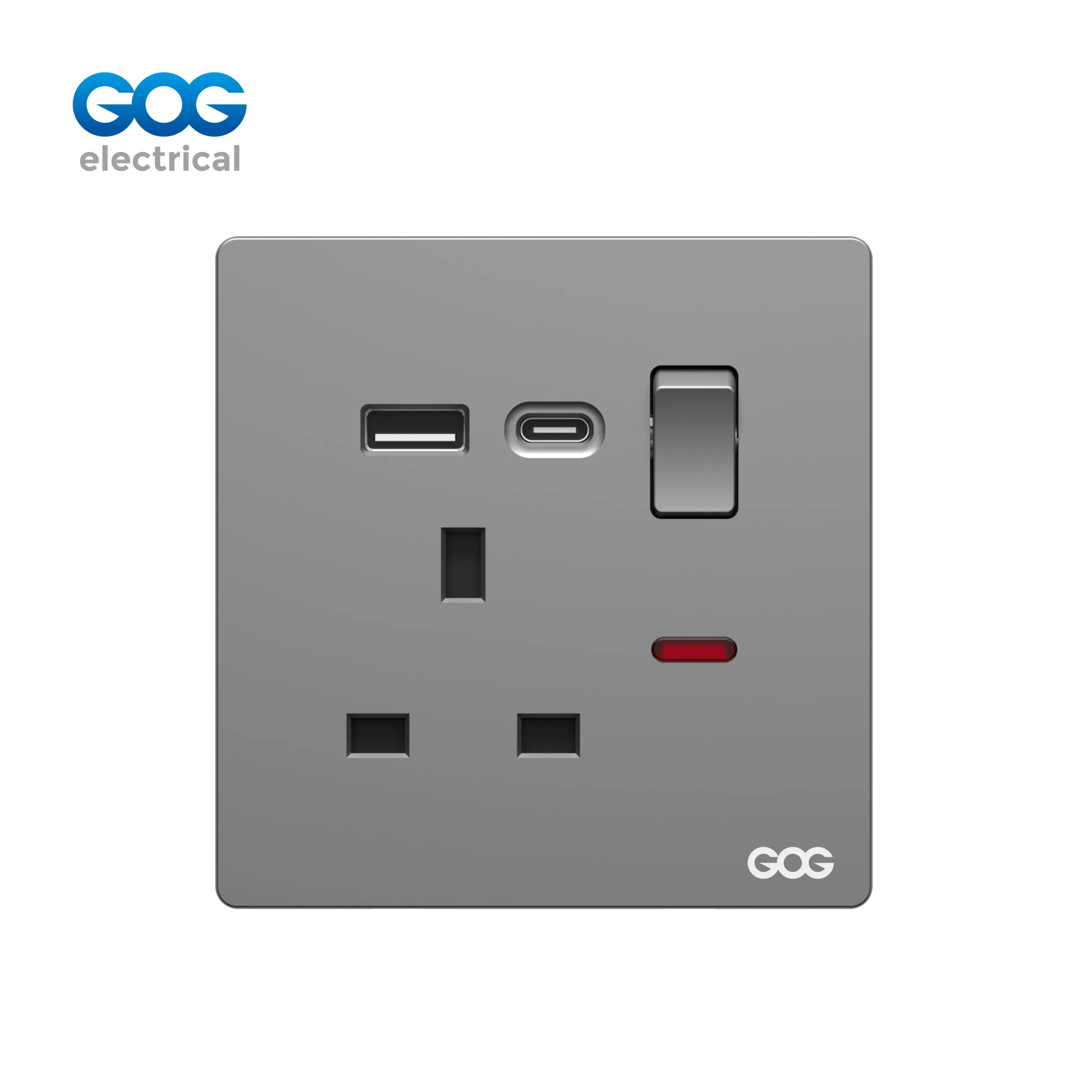

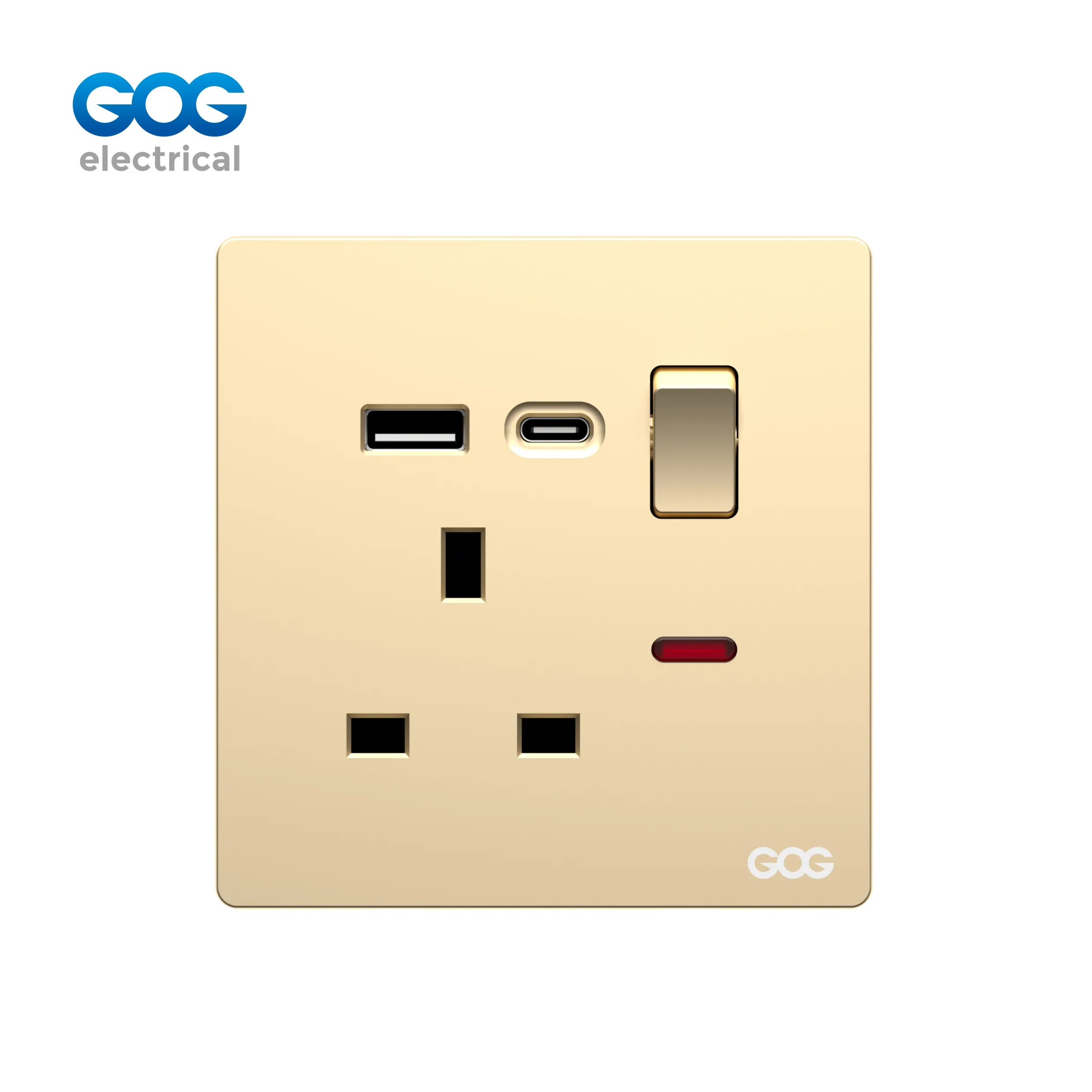

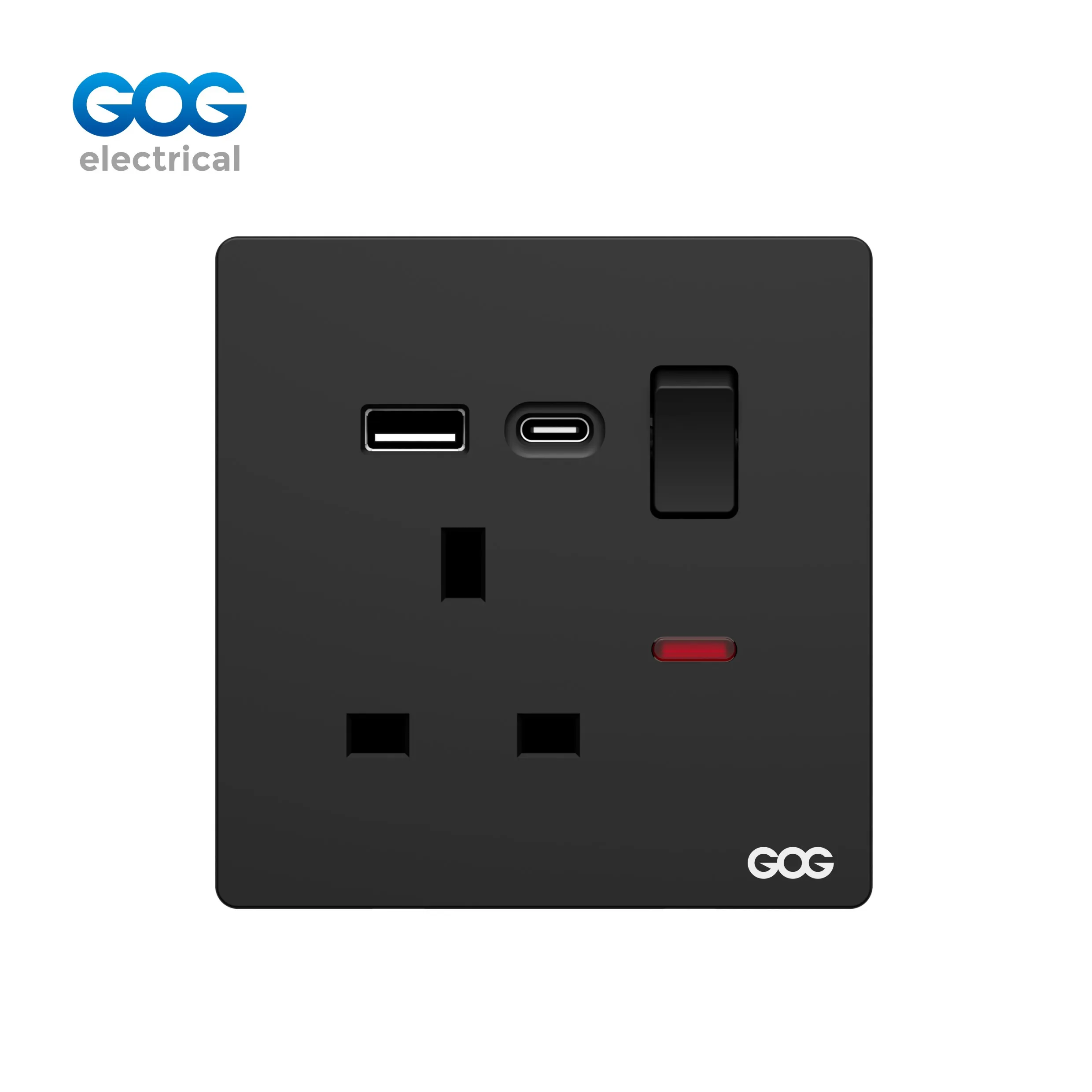

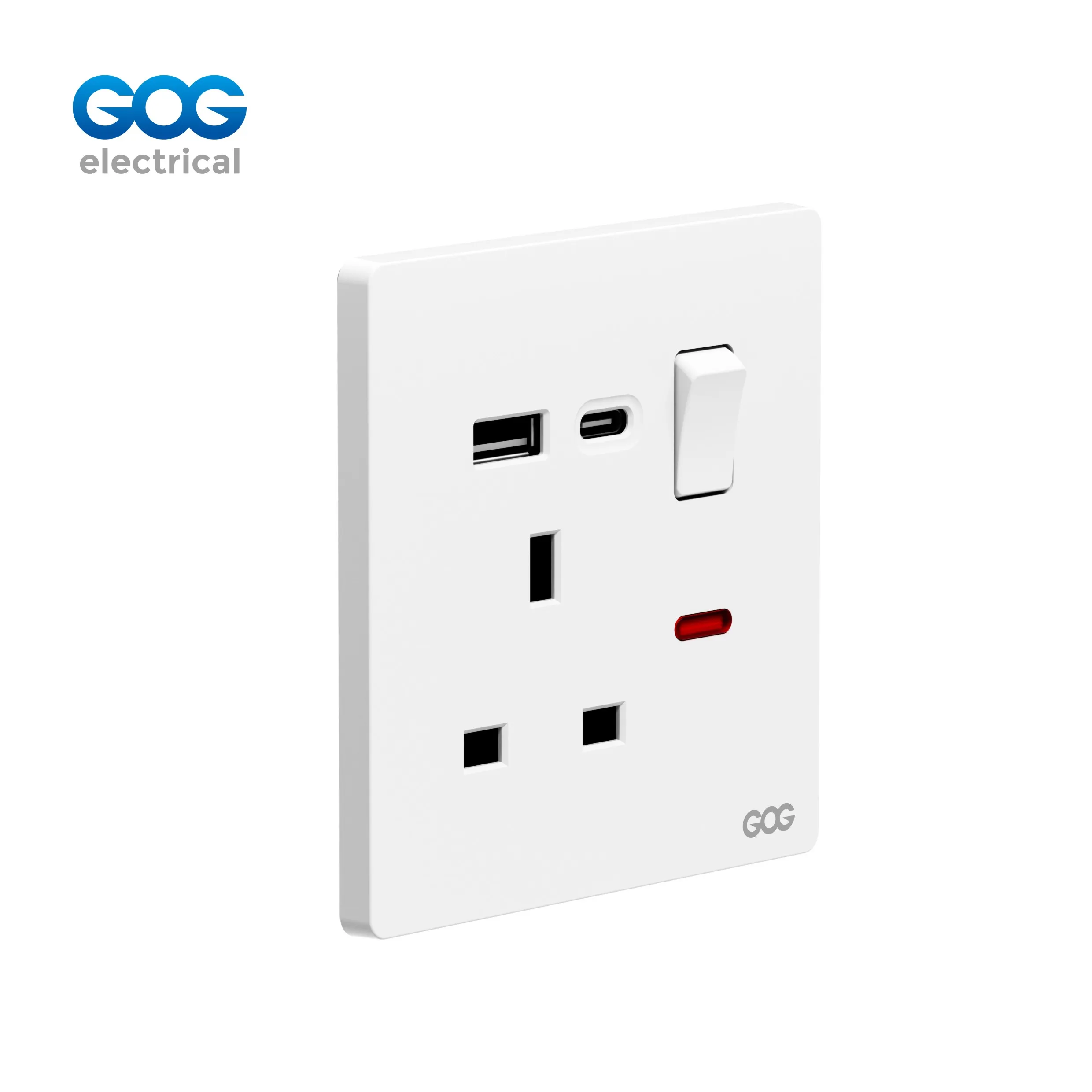

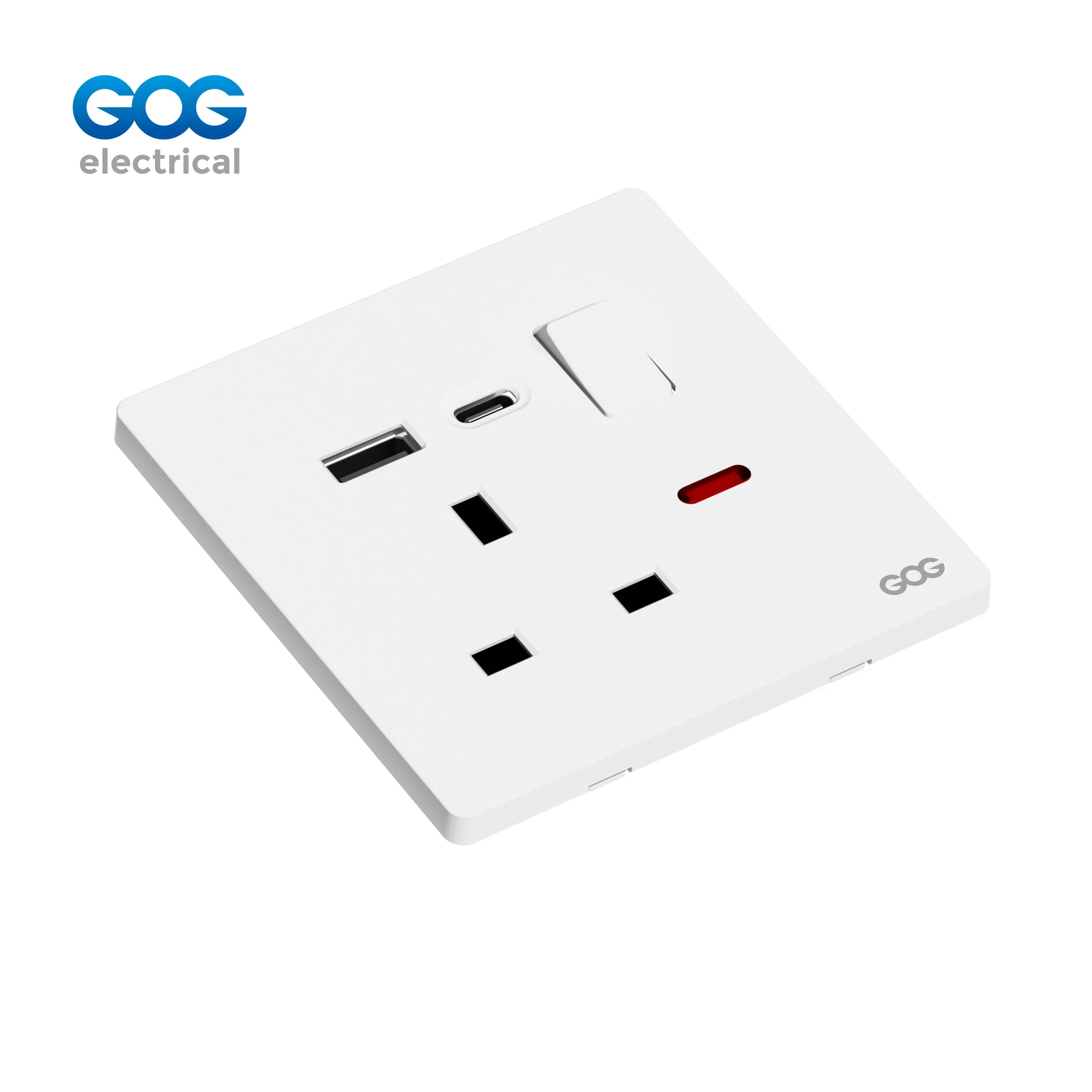

DN70489C — 13A USB Type-C Socket with Switch for British Standard Installations
The DN70489C is a single gang 13A USB Type-C outlet with a switch as well as neon indicators. It is a part of the DN70 series of outlets. With its three-pin configuration compatible with BS 1363 plugs, this outlet is suitable for use in homes and offices alike and is compatible with environments across British standards. One interesting thing about this outlet is the inbuilt USB Type-C port which allows quick charging of USB-C devices without using very much space in terms of the outlet itself. The neon indicator present indicates whether the electrical switch is on or off with the help of a bright signal.
USB Type-C Fast Charging — Modern Convenience Built In
| Feature | DN70489C Specification | Benefit for Buyers |
|---|---|---|
| USB Type-C | Fast charging (USB‑C) | Direct charging for modern devices — eliminates adapter clutter |
| Switch + Neon | SP switch with neon indicator | On/off control with visual status confirmation — enhances safety |
| USB Independence | USB works independently of socket switch | Charge devices even when the main outlet is turned off |
| Contact Material | 0.6mm phosphor copper with fix circle ring | Reliable conductivity and long‑term durability |
USB Type-C Integration — Meeting the Demands of Modern Device Charging
The widespread success of USB Type-C as the universal standard for mobile devices spurs the development of advanced features like the integration of USB-C ports into wall outlets. The DN70489C allows to directly charge the connected device. It is particularly useful for hospitality projects, where happy clients are in the need of charging facilities. The USB equipment is powered even when the outlet switch is turned off.
Three Front Panel Finishes — PC, Tempered Glass, or Brushed Aluminum
There are three separate options for the types of materials used for the front face of the DN70489C model, enabling you to create a perfect match with whichever interior design projects you have in mind, ranging from budget-friendly refurbishments to high-end hotel and leisure venues.
| Material | Finish | Ideal Applications |
|---|---|---|
| PC | High‑transparency, high‑strength | Volume residential projects, affordable housing, general commercial use |
| Tempered Glass | Glossy, scratch‑resistant, premium feel | Luxury hotels, executive offices, high‑end apartments in GCC and Malaysia |
| Brushed Aluminum | Metallic, industrial modern aesthetic | Contemporary commercial interiors, showrooms, design‑led projects |
Built for British Standard Countries — Middle East, Southeast Asia & Beyond
This 13A USB Type-C socket with switch conforms to IEC standards and is fully compatible with BS 1363 wiring systems. It is the correct specification for:
- GCC states — Kuwait, Saudi Arabia, UAE, Qatar, Bahrain, Oman
- Southeast Asia — Malaysia, Singapore, Hong Kong
- Other British standard countries — including Iraq, Yemen, Pakistan, Sri Lanka, and former Commonwealth nations
Whether your projects are in Dubai, Riyadh, or Kuala Lumpur, the DN70489C meets local electrical codes, reducing compliance risks for distributors and contractors. The integrated USB Type-C port adds a modern touch that aligns with the expectations of today’s tech-savvy residents and travelers.
DN70 Series — Consistent Slim Design Across All Configurations
The DN70489C boasts the same compact dimensions (88×86mm) and quality materials as all devices in the DN70 series, including both types of sockets, USB charging points and communication units. Hence, it has a cohesive look, regardless of whether you install it in a hotel or a residential apartment building. All devices of the DN70 series are produced in four different colors (white, gold, grey, black) and come with a 12-year warranty.
Since we are a manufacturer that directly manages production in three bases, Wenzhou (related to switches and sockets), Zhongshan (related to lights), and Jiaxing (which is for bathroom heaters), we provide complete OEM/ODM solutions such as panel branding, packaging, and a minimum order quantity of 20GP. Moreover, our engineering specialists can change the product components as per the market demands. We invite you to contact us for the wholesale pricing!
Neon Indicator — Clear Visual Status at a Glance
The switch has an in-built neon lamp for immediate visual indication of the status of the switch, which is active when the powering is switched on. This is useful in areas with dim light such as corridors, hotel rooms, and behind furniture, whereby it prevents the inadvertent leaving of electrical appliances powered on. In commercial projects, the neon indicator also provides support to the maintenance teams to find out which circuits are live thereby making the troubleshooting easier and increasing operational efficiency.
Durable Construction — 0.6mm Phosphor Copper Contacts
The DN70489C employs contacts with a thickness of 0.6 mm made from phosphor copper in a fixed circle design suitable for regular 3-pin layouts and is made of a material with good spring characteristics and resistance to corrosion to provide reliable holding power and low heat generation under long-term loads. Furthermore, with the silver alloy contact point in the switch operation, the USB socket can withstand a minimum operational life of 10,000 cycles, thus ensuring its reliability with respect to busy applications.
Stock the DN70489C 13A USB Type-C Socket with Switch — Factory Direct Pricing
Single gang, 13A rating, standard 3‑pin configuration, neon indicator, USB Type‑C fast charging. PC, tempered glass, or brushed aluminum panel. White, gold, gray, or black. British standard, IEC certified, 12‑year warranty. OEM logo, custom packaging available. Contact our sales team for a bulk quotation.
IEC Standard • British 3‑Pin • Global Shipping • MOQ 20GP
Factory‑Direct Supply for Wholesale & OEM Partners
Your Source for British Standard USB Type-C Sockets with Switch
At our 120,000m² facility in Wenzhou, we produce the DN70489C using our 120 injection molding machines and over 100 production lines. Our CNAS-certified laboratory and research and development (R&D) center ensure that our sockets meet high standards of quality. We also produce our own alloys and plastics, which gives us total control over the quality of our materials. As a result, we can provide our customers with competitive prices while ensuring that as a distributor or general contractor working in the field of British national standard, you will receive your goods in the shortest possible time. Our products in the USB Type-C category are in high demand among those who are looking for advanced electrical solutions for residential and hotel projects.
Why Choose a USB Type-C Socket with Switch for British Standard Projects?
A practical overview for importers and distributors supplying residential and commercial developments in British standard countries.
USB Type-C — The New Standard for Device Charging
USB Type-C has already become the standard option for charging smartphones, tablets, laptops, and a growing number of portable devices. The DN70489C makes it possible to get rid of messy and cumbersome plugs and have the USB-C port installed in the power socket itself, allowing the main socket to be left free for anything else. This functionality has proven to be highly beneficial in hotel rooms since guests expect to charge their devices easily without having to look for plugs. The DN70489C device was created with the idea of offering a neat solution for charging a multitude of devices in residential projects.
Switch + Neon — Practical Control and Safety
The single-pole switch, featuring a neon notification, combines comfort and safety. Users can manage their appliances more effectively by switching them on and off from the switch while using the neon light system visually to determine the status of the outlet. In the case of hotel rooms, this helps guests to turn off appliances directly from the outlet, which minimizes the use of power consumed because of the idle status of electrical devices. In cases of commercial uses, this tool enables the technical team to clearly identify the outlets that are powered up which very much saves time and efforts.
USB Independence — Convenience Without Compromise
A notable design feature of the DN70489C is its independent USB Type-C port technology. That is extremely useful in cases where devices should be charged without the need to switch on the power outlet or in rooms where no one will be using any appliances after work and would like to charge their phones overnight.
GOG’s Manufacturing Backbone — Quality You Can Trust
GOG boasts three automated production facilities, over 120 injection molding machines, and more than 100 production lines, enabling it to ensure the same high quality of the products. There is also a CNAS-accredited laboratory as well as an R&D center. You will have provided all certificates, which are necessary for your local law compliance. GOG is a vertically integrated producer with its own alloy and plastic production facilities; consequently, it can control the quality of its products. Among products manufactured according to the same strict standards as all products of the DN70 series is GOG’s USB type-C socket series.
Frequently Asked Questions
Does the USB Type-C port support fast charging?
Yes, the USB Type-C port built into the device allows for fast charging of devices such as smartphones, tablets, and other USB-C gadgets. The USB module works independently from the main power switch and continues charging even when the power outlet is turned off.
Can I charge my device while the socket switch is off?
Certainly! A major benefit of the DN70489C is its independent operation of the USB Type-C port. This allows the charging of mobile devices such as smartphones and tablets regardless of whether the main power socket is turned on or off, thus making it highly useful for both home and office applications.
Can I order the DN70489C with my own logo on the panel?
Absolutely. We provide all OEM branding services; you may have your logo laser-engraved or silk-printed on either one of the three panels (PC, glass or aluminum). We can also help with specially branded packaging. A minimum order is required; please contact our sales team for further information.
What colors are available for the DN70489C?
Available in four classic colors, this USB Type-C connector comes in White, Gold, Gray, and Black colors. The good thing is that you can get all color variants in each panel material.
Is the DN70489C certified for use in GCC countries and Malaysia?
Certainly. The DN70489C model complies with IEC 60884‑1 and is compatible with BS 1363 wiring systems, which are the national standards used in Kuwait, Saudi Arabia, UAE, Qatar, Oman, Bahrain, Malaysia, and several other British standard countries. We can provide test reports and a certificate of conformity if needed.
