DN71 Serie 13A Switched Sockets

SPECIFICATIONS

SP vs DP Switched Socket — Choose Your Safety Level

British Standard 13A Switch Socket — UK Plug Socket Featuring 3 Top-Class Finishes

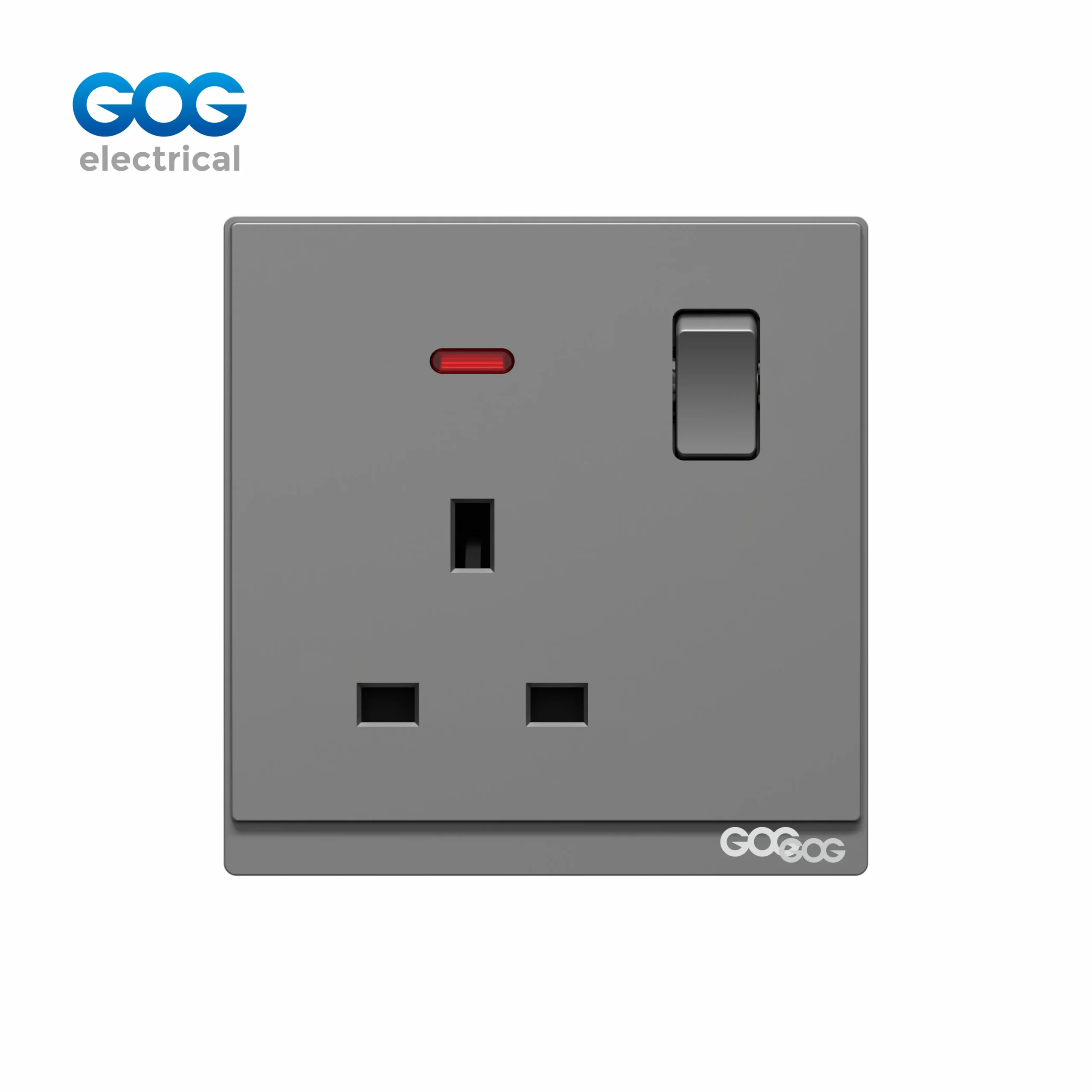

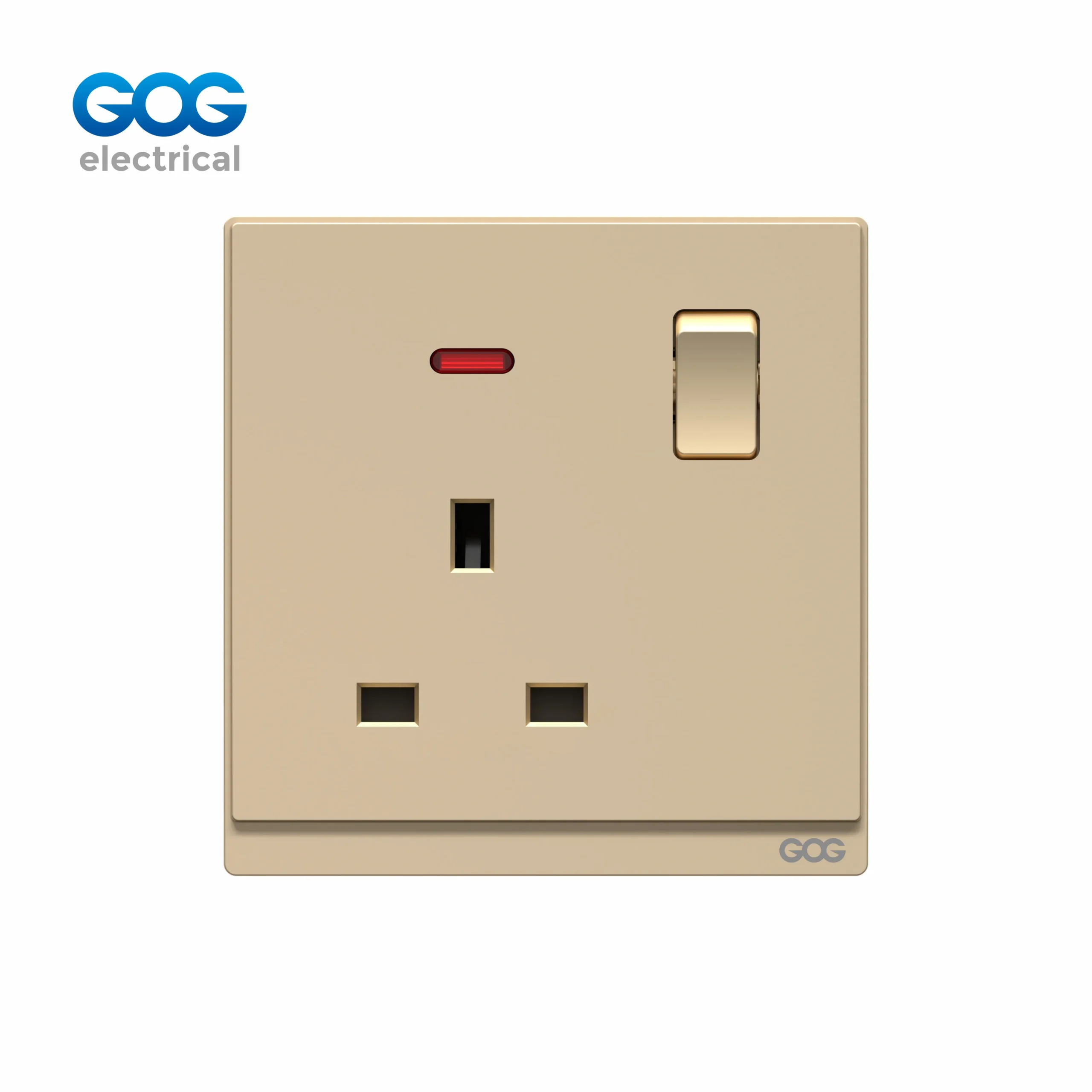

The DN71405/DN71409/DN71407/DN71411 is a British standard switched socket rated at 13A designed to integrate UK BS 3‑pin power outlet, rocker switch, and neon light indicator in an 88×86 panel. DN71 is a practical socket, also known as baby skin socket, in the DN71 range that comes in two switch types: SP (Single Pole) and DP (Double Pole) suitable for use in different safety scenarios. The rocker switch allows isolating the power locally and switching off the appliance without the need to unplug it, while the neon indicator shows that the socket is live – a common convenience feature in the UK. As for the contacts, the socket uses the 0.6mm phospor copper contact when making the fixed circle ring for better pin retention while the switch has a red copper mechanism and Φ3.0×25mm silver alloy contact. The product is available in 3 sophisticated materials – PC, tempered glass, and brushed aluminum. It meets IEC standards and comes with a warranty for 12 years.

We are a manufacturer that sells directly to the public and we offer very competitive wholesale prices as well as OEM branding to any panel material that you want, plus a warranty period of twelve years for all of our DN71 series products.

SP or DP Switch + Phosphor Copper Socket — Engineered for Daily UK Use

The power outlet type used in commercial and residential properties across the UK is referred to as a UK socket. The rocker switch, which may be SP or DP, is in direct control of the socket: switching the socket ‘off’ will separate the appliance from the power supply while leaving the plug in the socket; while switching the socket ‘on’ will connect the appliance to the power supply permanently. The neon light indicates visually that the socket is live, which is something that users in the United Kingdom expect. The 0.6mm phosphor copper pin socket contacts with fixed circle ring ensure the required pin retention for multiple uses, supplied with reliable switching performance thanks to a combination of red copper and silver alloy contacts of the switch. The use of baby skin prints makes the surface of the socket spotless and free from fingerprints even in the most active kitchen or living room. The reinforcement provided by steel and plastic, or plastic-sheathed steel intermediate plates ensures that the socket panel remains rigid in any situation relating to the plug’s insertion or removal.

Matching the DN71 Series — Switched Socket

This BS socket with a baby skin finish is from the DN71 collection, which has the same 88×86 mm dimensions, three types of panels, four color options, and baby skin finish as the DN71 range of light switches, doorbells, and isolators. In both kitchen and living rooms, you can put a DN71 switched socket beside DN71 switches, sharing the same panel design, smooth surface finish, and colors. Available in three panel materials in the colors of White, Gold, Gray, and Black that make your wall plates consistent from an aesthetic point of view.

Factory-Direct Supply for Wholesale & OEM Partners

Buyer’s Guide

SP vs DP Switched Socket: Choosing the Right UK Power Outlet for Every Room

A practical guide to specifying British standard 13A switched sockets for residential and commercial power outlet installations.

SP vs DP — Which Switch Type Do You Need?

SP (Single Pole): A standard UK socket design involves only the switching of the live wire. This is the case for sitting rooms, bedrooms, and normal outlets around the home. DP (Double Pole): where there is simultaneous switching of both live and neutral wires; this means higher safety standards and is used in places such as kitchens and bathrooms. If an installation is standard use SP; if safety is a concern you would go for DP.

Switched vs Unswitched — The UK Standard

In the United Kingdom and British standard compliant nations, switched electrical sockets have become incredibly popular due to their rocker switch. The switch gives people the opportunity to cut off power to devices without having to unplug them from the sockets. The neon light also shows the state of the socket so that it can be seen whether the socket is operational or not. The DN71 13 A socket is designed to be in line with the UK switched socket standards while having an exceptional stylish baby skin printed design that is consistent with the DN71 range.

Panel Material Selection — PC, Glass, or Aluminum?

PC with baby skin printing: Economical and with an expensive feel, the volume option for home projects. Toughened Glass with baby skin imprinting: Having a shiny and luxuriously smooth texture, it is the preferred material for upscale residences and boutique hotels. Brushed Aluminum with baby skin imprinting: With its industrial chic feel combined with a unexpectedly soft touch, it is perfect for modern commercial buildings. All three materials use the same 13A BS plug and come with 12 years warranty.

Frequently Asked Questions

What is a UK switched socket?

A switched socket in the United Kingdom, also referred to as a BS 3‑pin power outlet, has a built-in switch and a neon light. The DN71405/DN71409/DN71407/DN71411 is an example of a DN71 series switched socket with a capacity of 13A.

What is the difference between SP and DP on this switched socket?

SP (Single Pole) breakers cut the live wire when turned off, which is the traditional UK socket setup used in most rooms. DP (Double Pole) breaks both the live and neutral wires at the same time, thus providing complete isolation for better safety, which is the proper specification for kitchens and bathrooms and any other similar applications. Both configurations have the same baby skin printing panel and phosphor copper connectors.

Does the neon light stay on all the time?

The neon glow indicator of the DN71 switched socket is designed to turn on only when the switch of the socket has been turned on and the socket itself is wired. When the socket is switched off, the neon goes off — giving clear visual confirmation about the fact that the device is switched off. The neon does not indicate the USB power state or any other circuit state.

What panel materials is this 13A UK socket available in?

The 13A switched socket belonging to the DN71 series is offered in three variants in the front panel construction, all with the baby skin printing: transparent imported polycarbonate (cost-effective and durable with silk finish), toughened glass (luxurious but easy to clean), and brushed aluminum (industrial design with surprising softness in feel). All three materials have the same dimensions of 88×86mm in size, contain BS 3-pin socket, and come with a warranty of 12 years.
