SPECIFICATIONS
| Series | DN71 series |
| Item Code | DN71431 |
| Description | 15A Switched Socket with Neon |
| Socket Rating | 15A / 250V~ |
| Socket Type | 15A 3-pin (British standard compatible) |
| Switch Type | SP (Single Pole) with neon indicator |
| Front Panel Options | PC / Tempered Glass / Brushed Aluminum |
| Base / Middle Plate | PC base / Steel or Plastic‑wrapped steel middle plate |
| Switch Contact | Red copper, Φ3.0×25mm silver alloy touch point |
| Socket Contact | 0.7mm high phosphor copper (15A 3pin round socket) |
| Standard | IEC Standard (British standard countries) |
| Warranty | 12 Years |
| Available Colors | White / Gold / Gray / Black |
| Dimensions | H 88mm × W 86mm (British Standard back box) |
| MOQ | 20GP container |
| Packaging | 1 pc per plastic bag | 10 pcs per inner box | 100 pcs per outer carton |
15A vs 13A Switched Socket — When You Need Higher Current Capacity
| Feature | DN71431 15A Switched Socket | Standard 13A Switched Socket |
|---|---|---|
| Current Rating | 15A — up to ~3,600W at 240V | 13A — up to ~3,120W at 240V |
| Socket Contact | 0.7mm phosphor copper — thicker for higher current | 0.6mm phosphor copper — standard rating |
| Typical Use | Air conditioners, water heaters, kitchen equipment, industrial tools | Standard domestic appliances — TVs, lamps, chargers |
| Best For | High‑power fixed appliances and dedicated circuits | General‑purpose ring main outlets |
Three Premium Panel Finishes — Including a Stunning Glass 15 Amp Socket
| Finish | Description |
|---|---|
| Tempered Glass | Glossy, fingerprint‑resistant — a premium glass 15A switched socket for luxury interiors. |
| Brushed Aluminum | Metallic industrial finish — scratch‑resistant and distinctive. |
| PC | High‑strength cost‑effective — the volume choice for residential projects. |

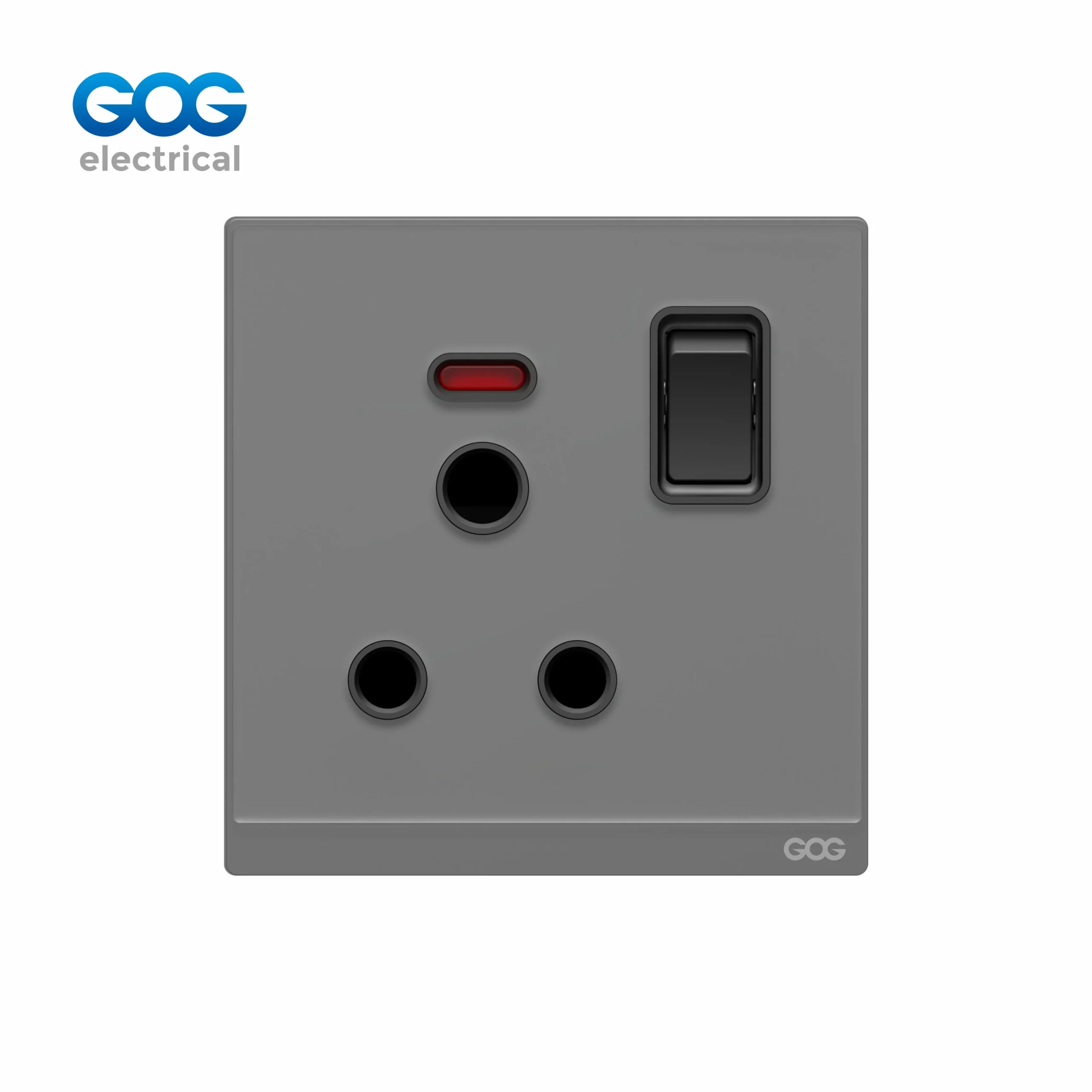

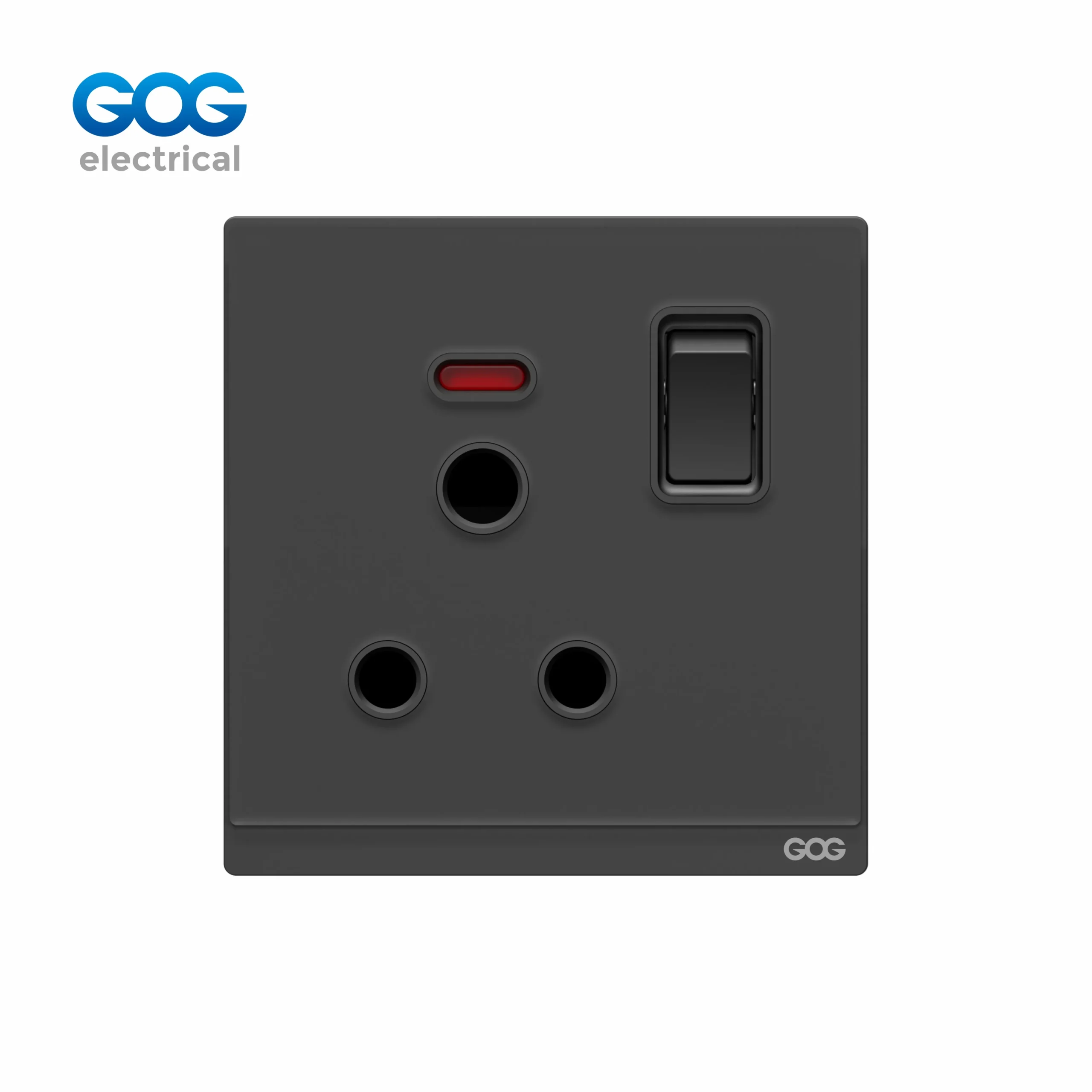

British Standard 15A Switched Socket with Neon — Glass High Current Wall Socket
DN71431 is a socket for 15A of UK standard with a neon light that is specifically designed for circuits which require more current. This is a socket that is to be used for appliances that are fixed such as a water heater, air conditioning, appliances in the kitchen, and machines in industries. This means that a specially dedicated circuit of 15A will be needed for operation. Advanced phosphor copper contacts of 0.7mm are used in design for better conductivity when dealing with loads of high current. Switch mechanism is made of copper and is designed to give an assurance of reliable switching of appliances. In addition, a neon light is built into the socket for better visibility. The socket is available in three types.
We are a manufacturing company that sells directly to consumers and offers high-quality products at wholesale prices, branding options for your products, and up to 12-years of warranty with the purchase of the DN71 series of products.
15A Capacity with Upgraded Phosphor Copper Contacts — Built for Sustained High Current
The 15AMP switched glass socket has much more to it than just its name. This socket has been fitted with a heat-resistant copper contact having a wire gauge of 0.7mm which is thicker than the regular copper wire of 0.6mm used in regular 13AMP sockets to allow 15 AMP load connections continuously with lower resistance and overheating. It is this contact enhancement that makes it a reliable choice for heavy-duty appliances like an air conditioner running on just below rated load for long durations. In addition, the red copper switch assembly has an innovative Φ 3.0×25mm silver alloy touch point making it a low-arc switch. The power-on neon light gives clear visibility of the power supply status of the socket. The socket is IEC certified and is backed with a 12 years warranty provided by the manufacturer.
Matching the DN71 Series — Glass 15 Amp Socket in the Same Slim Profile
This particular white PC 15A switched socket belongs to the DN71 line of sockets. Just like the other most notable features of the DN71 series, this product has the same characteristics such as its dimensions measuring 88×86mm, and three different finishes of the socket. Depending on the intended use of the socket, one might choose to have a glass panel instead for luxurious home settings, brushed panels for commercial purposes, or PC for cheap installation. When installed as part of a larger system composed of other types of DN71 screws, its unique features are preserved thus preserving the sitting of the wall.
Stock This Glass 15A British Standard Switched Socket in Four Colors at Factory Pricing
Tempered glass, aluminum, or PC panel. 15A high current socket with neon indicator. OEM branding, custom packaging, 12‑year warranty included. Contact us for a wholesale quotation.
IEC Certified • 20GP Container Supply • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for Glass 15A High Current Switched Sockets
Being an expert in the fields of switched socket manufacturing, we manufacture the DN71431 at our own factories and provide your wholesale industry with this premium socket for British standards applications that is compatible with 15A ratings. Our products include a combination of stock tempered glass for luxury projects and brushed aluminum for commercial purposes besides standard PC material for regular builds. All materials and colors in one container-20GP minimum amount.
Choosing the Right 15A Socket: 15A vs 13A, Glass vs PC, Dedicated Circuits Explained
A practical guide to specifying 15A high current switched sockets for British standard residential and commercial installations.
When Do You Need a 15A Socket Instead of a 13A Socket?
The DN71431 15A switched socket is used on circuits delivering fixed appliances that consume over 13A or are required by local regulations to be connected via a dedicated 15A circuit. Air conditioning units: Most split-system AC types need a dedicated 15A circuit breaking unit. Water heaters and immersion heaters draw continuous high current thanks to its upgraded 0.7mm phosphor copper contacts. Commercial kitchens: Industrial mixers, grills, fryers require a 15A circuit breaking unit. Workshop tools: Heavy-duty saws, compressors, and welding equipment.
15A Socket with 0.7mm Phosphor Copper — The Contact Upgrade That Matters
With DN71431, instead of 0.6mm connection contacts of a regular 13A socket, you shall find a connection made of 0.7mm phosphor copper. When the input current is stable at 15A, the resistance of connection contacts creates heating. The greater thickness of phosphor copper guarantees a lower resistance and increased efficiency of heat discharge to retain constant conductivity of the contacts and pin retention after thousands of insertion cycles.
Glass vs Aluminum vs PC — Which Panel Material for Your 15A Installation?
Tempered glass: Top quality finish for luxury residential and hotel AC circuits High-grade brushed aluminum: Commercially made for industrial kitchens and workshops PC model: Economical choice for housing construction. All three have the same 15A feature with phosphor copper contacts at 0.7 mm as well as 12-year warranty.
Frequently Asked Questions
What is a 15A switched socket used for?
The 15A switched socket is intended for applications where the electrical load is greater than that handled by the 13A socket. Such equipment may include items like water heaters, air conditioning units, commercial kitchen equipment, and many industrial tools. DN71431 is a British standard socket that supports up to 15A of electricity and it features a neon light. The 15A rating means it can handle equipment that uses as much as 3,600W of electricity at 240V. The improved 0.7mm phosphor copper contacts are capable of handling a high load for a long period, while having a lower resistance.
What is the difference between a 15A and 13A socket?
The important distinctions include the current rating as well as the thickness of the internal contact. A 15A socket uses 0.7mm phosphor copper contacts, allowing it to take loads of up to 3,600W due to lower resistance upon continuous current operation of the device. The 13A socket can manage loads of 3,120W but typically utilizes 0.6mm contacts. The application of a 15A socket is suitable for dedicated circuits designed for fixed high power appliances, whereas the application of a 13A socket is suitable for general-purpose ring main outlets.
Can I replace a 13A socket with a 15A socket?
A 15A socket can only be installed if the circuit has been rated and protected suitably with 15A. The circuit breaker must be operated at 15A and also the cable size must match. A case in point is if a person replaces a 13A socket with a 15A without confirming whether the protection of the circuit is adequate, it may cause a hazard.
What panel materials are available for this 15A glass socket?
The DN71431 15A switched socket unit comes in two different finishes, which are rear glass and brushed aluminum metal finish. Regardless of the finish, the units offer the same benefits with each having a 15A rating. To provide an added feature to the products, all the units also come with a neon indicator and a 12-year warranty.
