SPECIFICATIONS
| Series | R12 series |
| Item Code | R12477 |
| Description | 13A 5 Pin MF Switched Socket with Neon (Phosphor Copper Contacts) |
| Socket Rating | 13A / 250V~ |
| Socket Type | MF (Multi-Function) 5-pin — multi-standard |
| Pin Configuration | 5 pin — compatible with UK 3-pin & European 2-pin plugs |
| Switch Type | SP (Single Pole) with neon indicator |
| Product Lifetime | 15,000 cycles (socket insertion) |
| Socket Standard | UK 3‑pin (BS1363 compatible) + European 2-pin |
| Front Panel | Imported high‑transparent, high‑strength PC |
| Base | Imported high‑transparent, high‑strength PC |
| Middle Plate Options | Full plastic / Steel‑plastic combination |
| Switch Internal | Red copper bush, red copper stamping part, red copper bus bar, Φ3.5mm×0.35mm silver touch point |
| Socket Contact | 0.7mm high phosphor copper, integrated structure copper |
| Standard | IEC 60884 |
| Warranty | 12 Years |
| Available Colors | White / Gold / Gray / Black |
| Dimensions | H 86mm × W 86mm (British Standard back box) |
| MOQ | 2,000 pcs per item |
| Packaging | 1 pc per plastic bag | 10 pcs per inner box | 100 pcs per outer carton |
5 Pin MF vs 3 Pin MF — When You Need the Widest Compatibility
| Feature | R12477 (5 Pin MF) | R12407M (3 Pin MF) |
|---|---|---|
| Pin Configuration | 5 pin — maximum universal compatibility | 3 pin — broad universal compatibility |
| Plug Types Accepted | UK 3-pin + European 2-pin + additional configurations | UK 3-pin + European 2-pin |
| Best For | International hotels, GCC, African markets — maximum diversity | Standard mixed‑standard locations |
5 Pin Multi-Standard — Built for the Most Diverse Plug Environments
| Feature | R12477 5 Pin MF | Standard BS1363 Socket |
|---|---|---|
| Plug Compatibility | UK 3-pin + European 2-pin + more — widest compatibility | BS1363 UK 3-pin only |
| Socket Contact | 0.7mm phosphor copper — superior elasticity | 0.7mm 62 brass — standard material |
| Typical Market | Dubai, GCC, Nigeria, international hotels | UK domestic — where all appliances are BS1363 |
Four Premium Color Finishes — Including a Stunning White PC 5 Pin MF Socket
| Finish | Description |
|---|---|

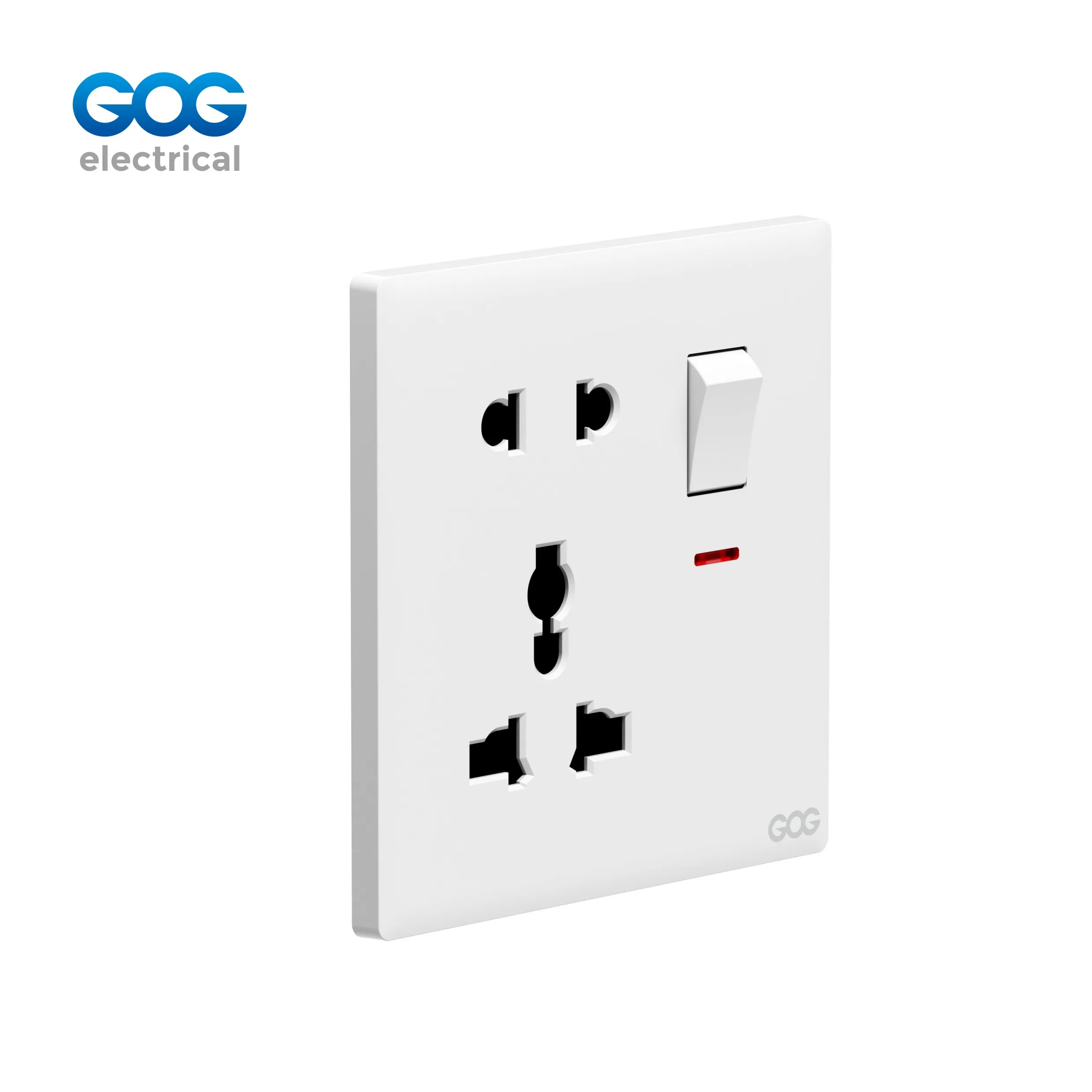

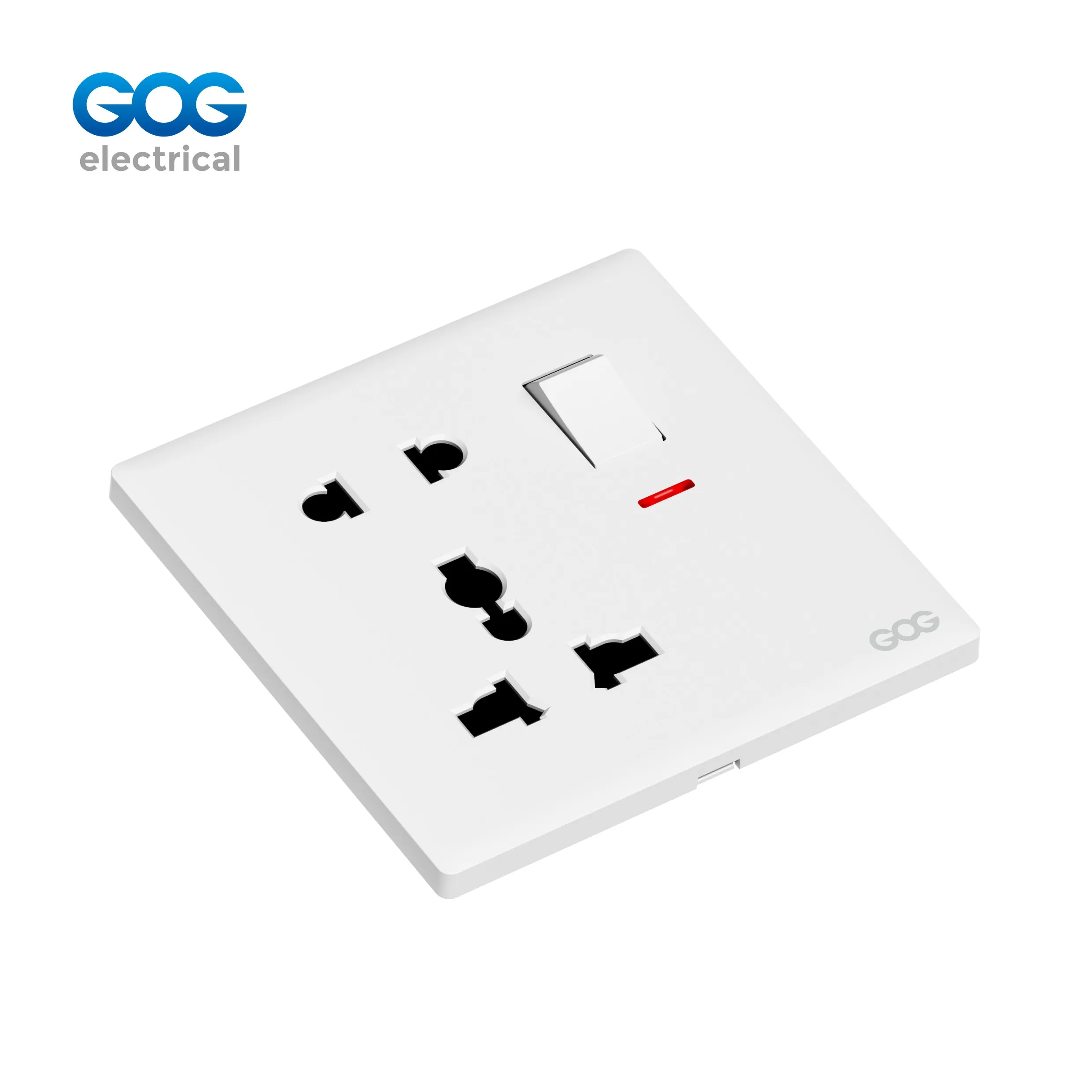

| White PC | Classic British standard — suits all residential and commercial interiors. |

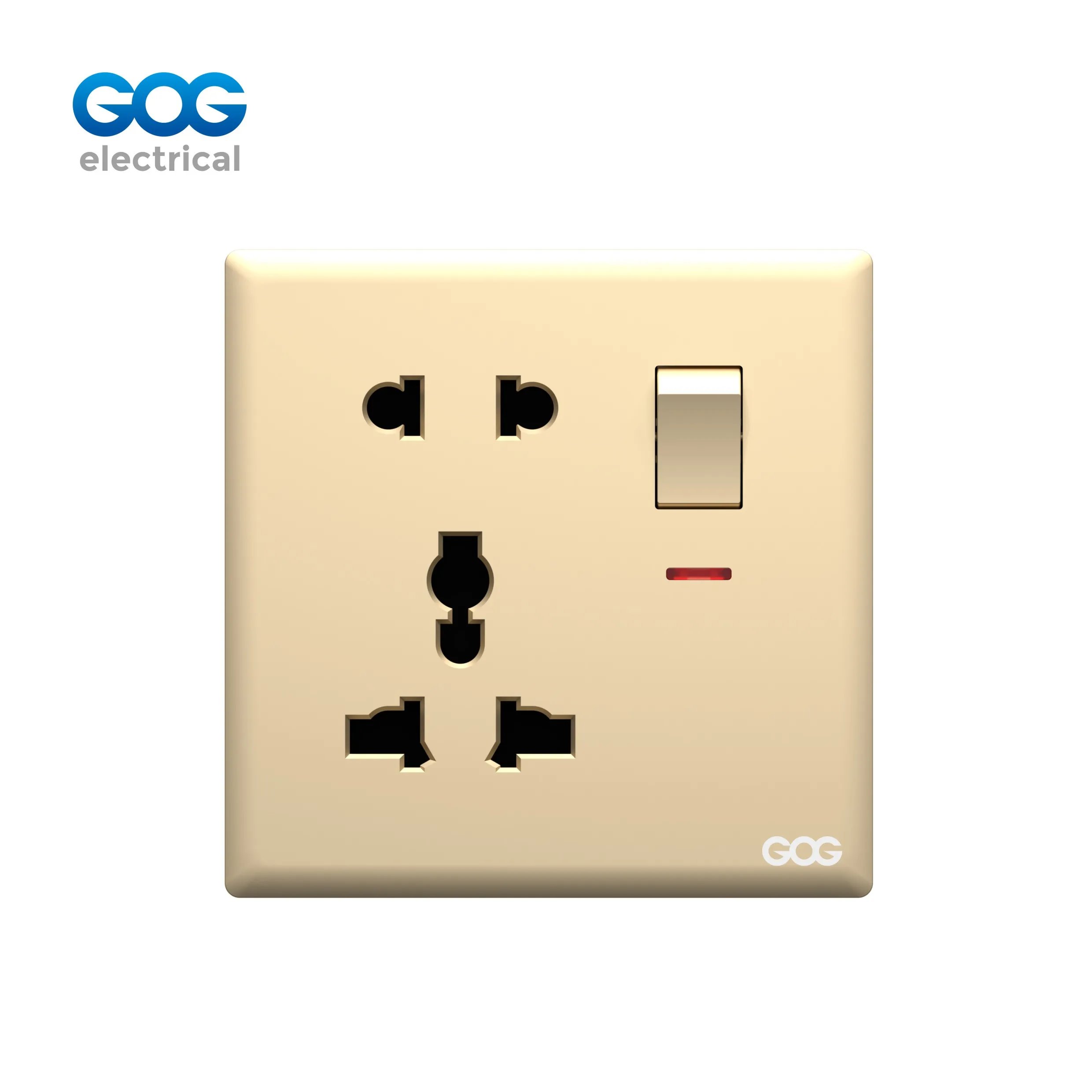

| Gold PC | Warm metallic tone for high‑end residential and hotel projects. |

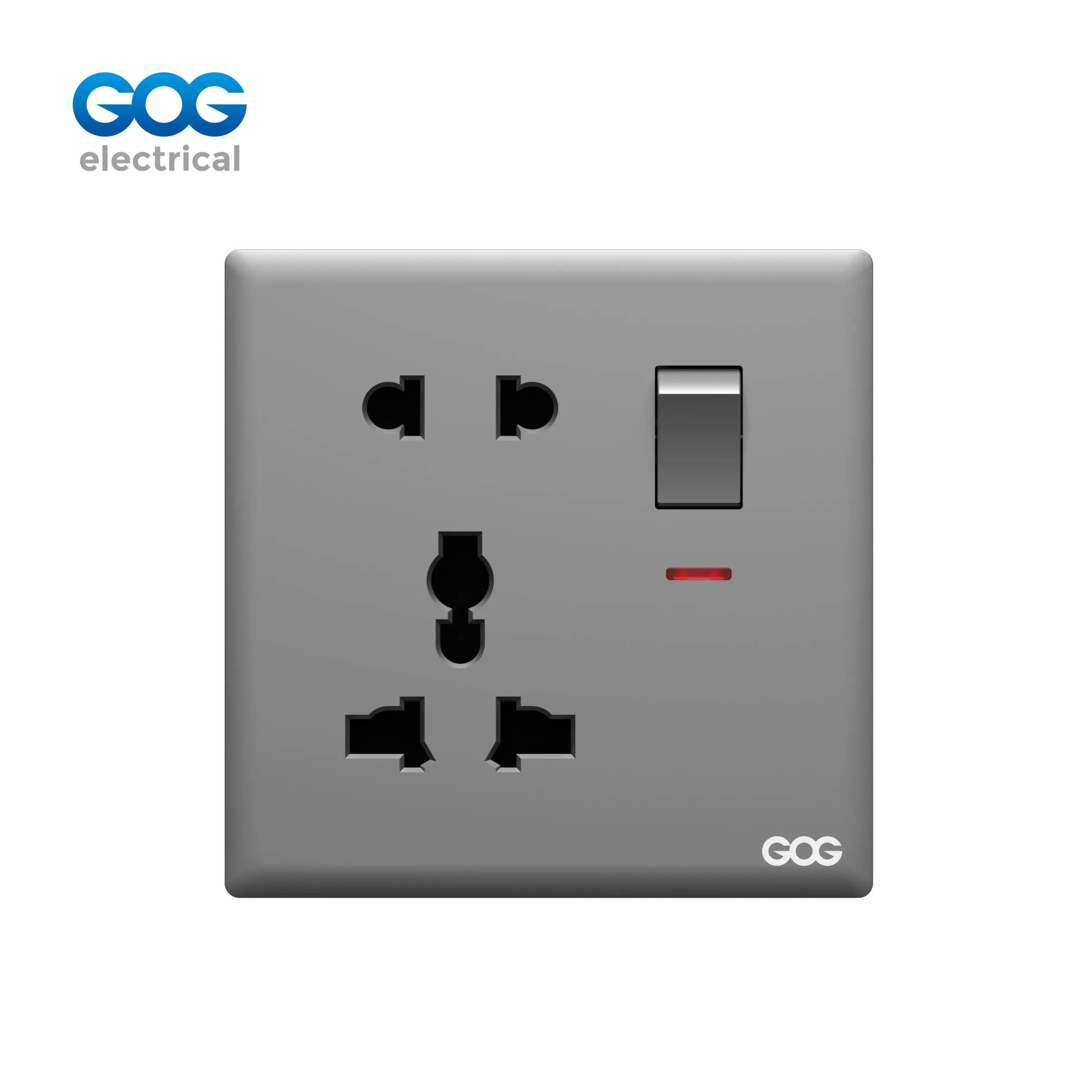

| Gray PC | Neutral contemporary finish for modern apartments and offices. |

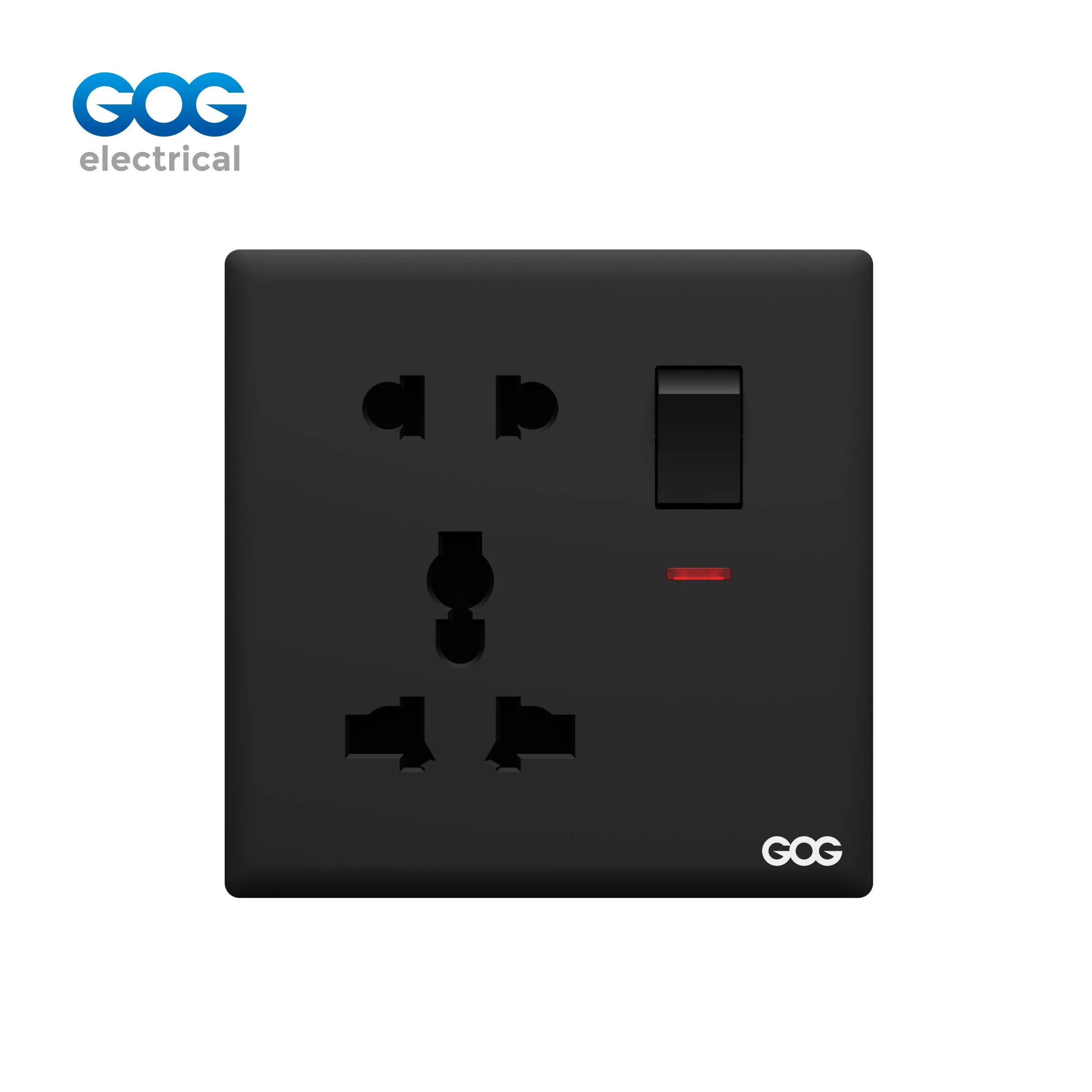

| Black PC | Bold contrast for dark interiors and premium commercial fit‑outs. |
British Standard 13A 5 Pin MF Switched Socket with Neon – Phosphor Copper Wall Sockets of Multiple Standards
The R12477 is a 5-pin switched socket type MF according to British Standard 13A and is designed for applications where maximum compatibility with the type of plug is crucial and it is possible to accommodate all compatible plugs in just one wall box. This special type of wall socket allows the usage of a variety of plug types such as British B.S.1363 3-pin rectangular plugs, European 2-pin plugs and any other relevant international plugs as this 5-pin wall socket is designed for maximum compatibility in terms of connectivity. This plug type configuration allows the use of a large number of different plugs from several continents which makes it applicable for a wide range of usages, including hotels, GCC and Middle Eastern markets, African countries with various appliances, etc. With a SP type action switch and pilot light to indicate the power presence. The contacts of the socket were made from pure copper phosphor material of 0.7mm thickness, which guarantees excellent quality of contacts. SP switch is with red copper internal mechanism and silver alloy contact having Φ3.5mm×0.35mm size. The socket has two options for the front: all plastic and plastic-steel. Different colors are available for this socket (White, Gold, Grey, and Black). надлежащей ИЕC 60884 сертификации.
We are a factory-direct producer providing affordable wholesale rates, OEM branding on any colored PC panel, and 12-year coverage for all of the products under the R12 series name.
5 Pin Design — One Socket for the World’s Plugs
The five pin universal socket has the capability to handle the most frustrating plug situation where appliances are from the UK, Europe, China, Middle East and Africa. The R12477’s 5 pin MF configuration is able to accept BS1363 UK plugs, Euro 2 pin plugs and other generally used plugs. This is the socket specification that is expected in hotel rooms in Dubai, in housing projects in Nigeria and in commercial developments in the GCC, where British type wiring is used. Manufacturers mentioned that copper contacts can hold on to all types of pins in socket contact as the elasticity of copper is very useful in 5 pin multi-purpose sockets.
Matching the R12 Series — 5 Pin MF Socket in the Same Build Quality
This white PC 5 pin MF socket is a component of the R12 series, having same 86×86 mm dimensions, imported high‑transparent PC panel material, and the same four finishes just like the R12 switches, 3-pin MF sockets, 2 gang MF sockets, and USB charging sockets. The R12477 can be put together with the R12407M 3-pin MF sockets and R12408M 2 gang MF sockets — same profile, same material, same four colors and the 5-pin configuration makes it the most compatible. Available in White, Gold, Gray, and Black with two middle plate options. IEC 60884 certified with a 12‑year warranty.
Stock This 13A 5 Pin MF Phosphor Copper Switched Socket in Four Colors at Factory Pricing
White, Gold, Gray, Black PC panel. Multi-standard 5 pin MF socket with neon indicator. 0.7mm phosphor copper contacts. OEM branding, custom packaging, 12‑year warranty included. Contact us for a wholesale quotation.
IEC 60884 Certified • Phosphor Copper Contacts • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for British Standard 5 Pin MF Phosphor Copper Multi-Standard Switched Sockets
As a 5-pin MF switched socket manufacturing expert, we strive to provide our production facility with the R12477, ensuring that your wholesale business benefits from a unique multi-standard socket that provides the highest versatility in terms of plug compatibility across variants in the R12 series. Choose the Stock White color for residential and hospitality projects in huge volumes, Stock Gold and Gray colors for luxury interiors, or Stock Black for modern commercial projects, as all options follow the same 5 pin MF configuration and have the same SP rocker switch, neon indicator, and phosphor copper contacts of 0.7 mm in size. The R12407M (3-pin MF) and the R12477 (5 pin MF) can be combined in order to develop the entire MF compatibility tier at one production site. Any color of PC panel can be supplied with an original OEM brand label; we assume control over packaging and design in accordance with the requirements of IEC 60884.
R12477 vs R12407M: 5 Pin vs 3 Pin MF — Choosing the Right Universal Socket for Your Market
A practical guide to selecting between 5-pin and 3-pin MF universal sockets for international hotels, GCC, African, and mixed‑standard residential installations.
5 Pin vs 3 Pin MF — Which Universal Socket Configuration Do You Need?
The MF socket R12477 has the highest compatibility of all sockets in the R12 range, as it works with UK plugs (3 pins), European plugs (2 pins), and others. Use this socket for hotels in Dubai and the GCC, projects in Nigeria and Africa and everywhere where the kinds of plugs needed by appliances are the most various. The MF socket R12407M accepts both UK plugs (3 pins) and European plugs (2 pins), which makes it perfect for mixed-standard situations. Both rely on similar 0.7mm phosphor copper contacts and SP switch with the neon light.
Where 5 Pin Sockets Are the Standard Specification
In terms of socket specifications, Dubai and the UAE mostly use 5-pin universal sockets. However, the variances in appliance type used in Nigeria and the rest of Africa dictate the need for universal sockets compatible with all types of devices. Moreover, while wiring in the GCC countries is mostly British wiring, appliances from other regions are also used in the GCC, including those from Europe, China, and the UK. Fortunately, the R12477 solution features such sockets and adds more durability thanks to the phosphor copper contacts.
Installation
This R12477 insert fits a 86 x 86 mm standard UK single gang back box. The wiring is done in a standard SP fashion where the live connects to the common of the switch, and switched live is taken from L1 to the live input of the socket. The neutral and earth cables go directly to the socket terminals. The neon is connected inside. The phosphor copper socket contacts are compatible with UK BS1363 plugs and European 2-pin plugs. The type is IEC 60884 certified.
Frequently Asked Questions
What is a 5 pin MF switched socket?
The MF switched socket with 5 pins is made with the latest technology providing a 5-pin multi-standard socket allowing to use various plug types. From 3-pin English plugs to 2-pin European ones and many other common types of plugs. Its design is complete with the incorporation of an SP rocker switch and a neon light within the same wall plate. R12477 is a 5-pin MF switched socket as per British specifications made from phosphor copper contacts and it is the most versatile socket of the R12 series.
What is the difference between 5 pin and 3 pin MF sockets?
5 pin MF socket (R12477) provides the highest number of plug types being compatible thanks to its configuration having five contacts. This is more than the 3 pin MF socket (R12407M). 5-pin sockets are the standard specification adopted in Dubai and in the GCC as well as the African markets where the widest diversity of plugs can be found. Both sockets have 0.7mm phosphor copper contacts with SP switches and neon indicators.
Can this 5 pin socket accept UK plugs?
Indeed, the R12477 5-pin MF switched socket has been created to accommodate the UK BS1363 standard 3-pin fused plugs, as well as European 2-pin round plugs and other plug shapes. The 5-pin socket consists of three rectangular slots for UK plugs and some more openings for other types of plugs, all within a single 86×86mm wall plate. The contacts made of phosphor copper ensure that the same force is secured for all types of plugs.
What colors is this British standard 5 pin MF socket available in?
The 5-pin MF switched socket of the R12 series comes in four colors of PC panel: white — the classic choice for home and hotel, gold — in warm elite finish for expensive interiors, grey — the neutral one for modern flats and offices, and black — that contrasts strongly with dark interiors and luxurious commercial interiors. All four colors are made of the same imported high-strength PC material and have the same 12-year warranty provided by the factory.
