SPECIFICATIONS
| Series | R12 series |
| Item Code | R1255 |
| Description | 500W Fan Regulator / Rotary Fan Speed Controller |
| Control Type | Rotary step-type electronic speed regulator |
| Load Capacity | 500W |
| Voltage | 250V~ |
| Designed For | Ceiling fans, wall fans, ventilation fans |
| Front Panel | Imported high‑transparent, high‑strength PC |
| Base | Imported high‑transparent, high‑strength PC |
| Middle Plate Options | Full plastic / Steel‑plastic combination |
| Standards | BS EN 60669‑2‑1, BS 55014‑1, BS 55014‑2 |
| Warranty | 1 Year (electronic product warranty) |
| Available Colors | White / Gold / Gray / Black |
| Dimensions | H 86mm × W 86mm (British Standard back box) |
| MOQ | 2,000 pcs per item |
| Packaging | 1 pc per plastic bag | 10 pcs per inner box | 100 pcs per outer carton |
Fan Regulator vs Light Dimmer — Don’t Confuse the Two
| Feature | R1255 Fan Regulator | Light Dimmer Switch |
|---|---|---|
| Designed For | Inductive motor loads — ceiling fans, wall fans | Resistive / LED lighting loads — bulbs, downlights |
| Internal Mechanism | Electronic step‑type fan speed regulator | Phase‑cut dimmer circuit |
| Wrong Application Risk | Using a light dimmer on a fan can damage both the dimmer and the fan motor | Using a fan regulator on lights may cause flickering or no dimming |
| Certification | BS EN 60669‑2‑1, BS 55014‑1, BS 55014‑2 | Typically BS EN 60669‑2‑1 only |
Electronic Step-Type vs Old Resistive Regulators — Silent, Cool, Efficient
| Feature | R1255 Electronic Regulator | Old Resistive Wire‑Wound Regulator |
|---|---|---|
| Energy Efficiency | Efficient — minimal energy wasted as heat | Inefficient — lowest speeds waste most energy as heat |
| Noise Level | Silent electronic operation — no humming or buzzing | Often produces audible hum at lower speed settings |
| Heat Generation | Minimal — stays cool during operation | Can become warm or hot — fire risk at sustained use |
| Panel Profile | Flush 86×86mm slim design — matches R12 switches | Often bulky surface‑mount box with visible heat sink |
Four Premium Color Finishes — Including a Stunning White PC Fan Regulator
| Finish | Description |
|---|---|
| White PC | Classic British standard — suits all residential bedrooms and living rooms. |

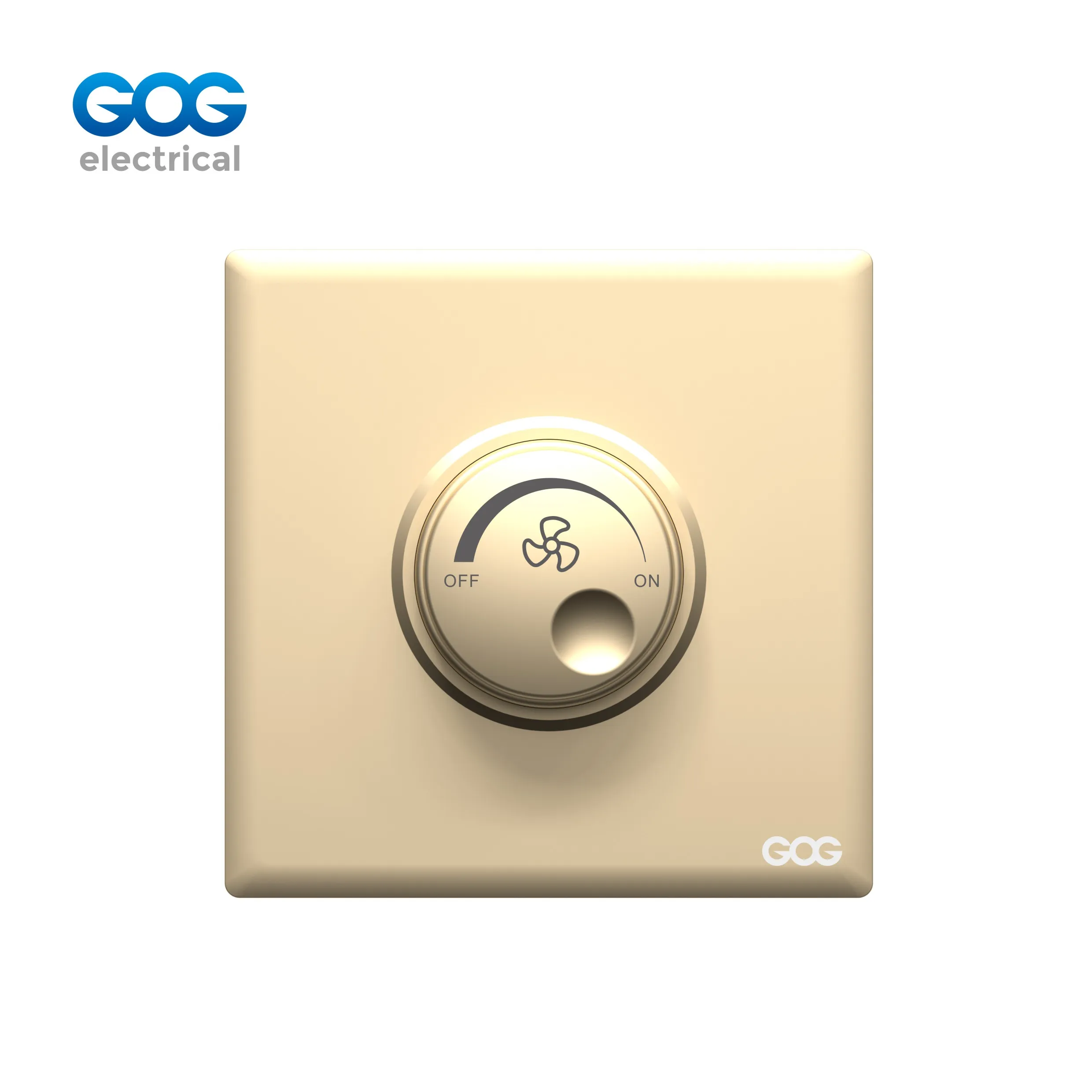

| Gold PC | Warm metallic tone for high‑end residential and hotel projects. |

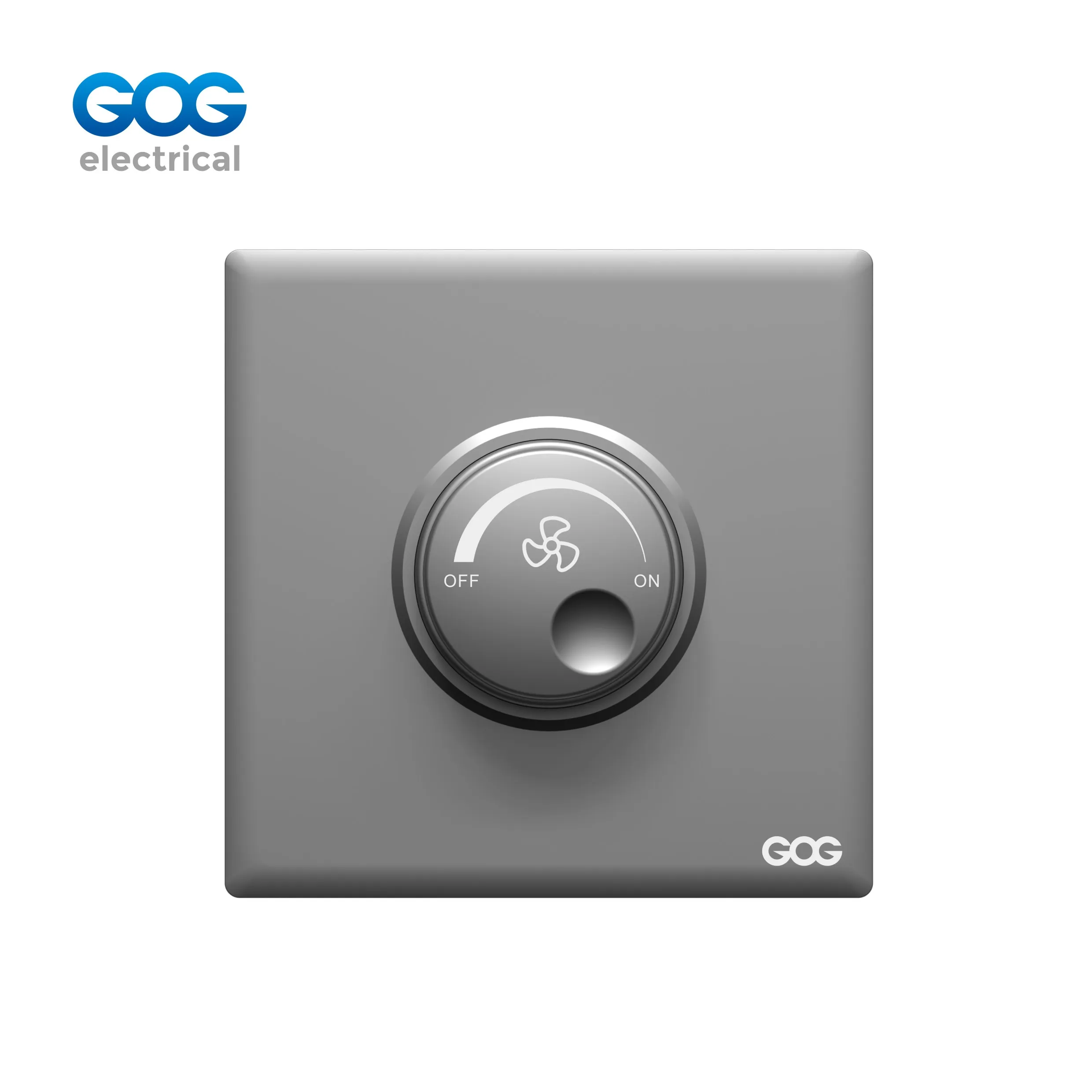

| Gray PC | Neutral contemporary finish for modern apartments and offices. |

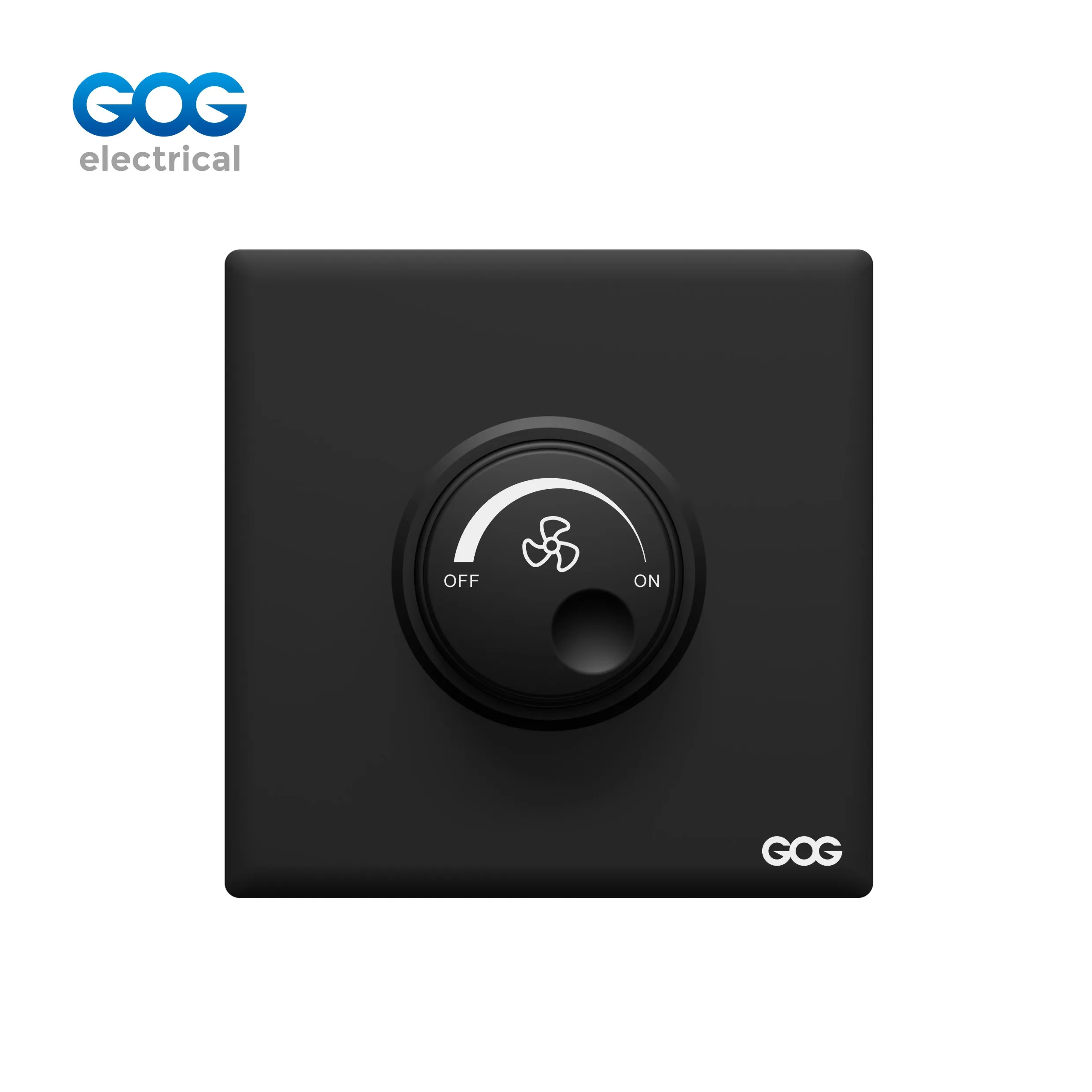

| Black PC | Bold contrast for dark interiors and premium commercial fit‑outs. |

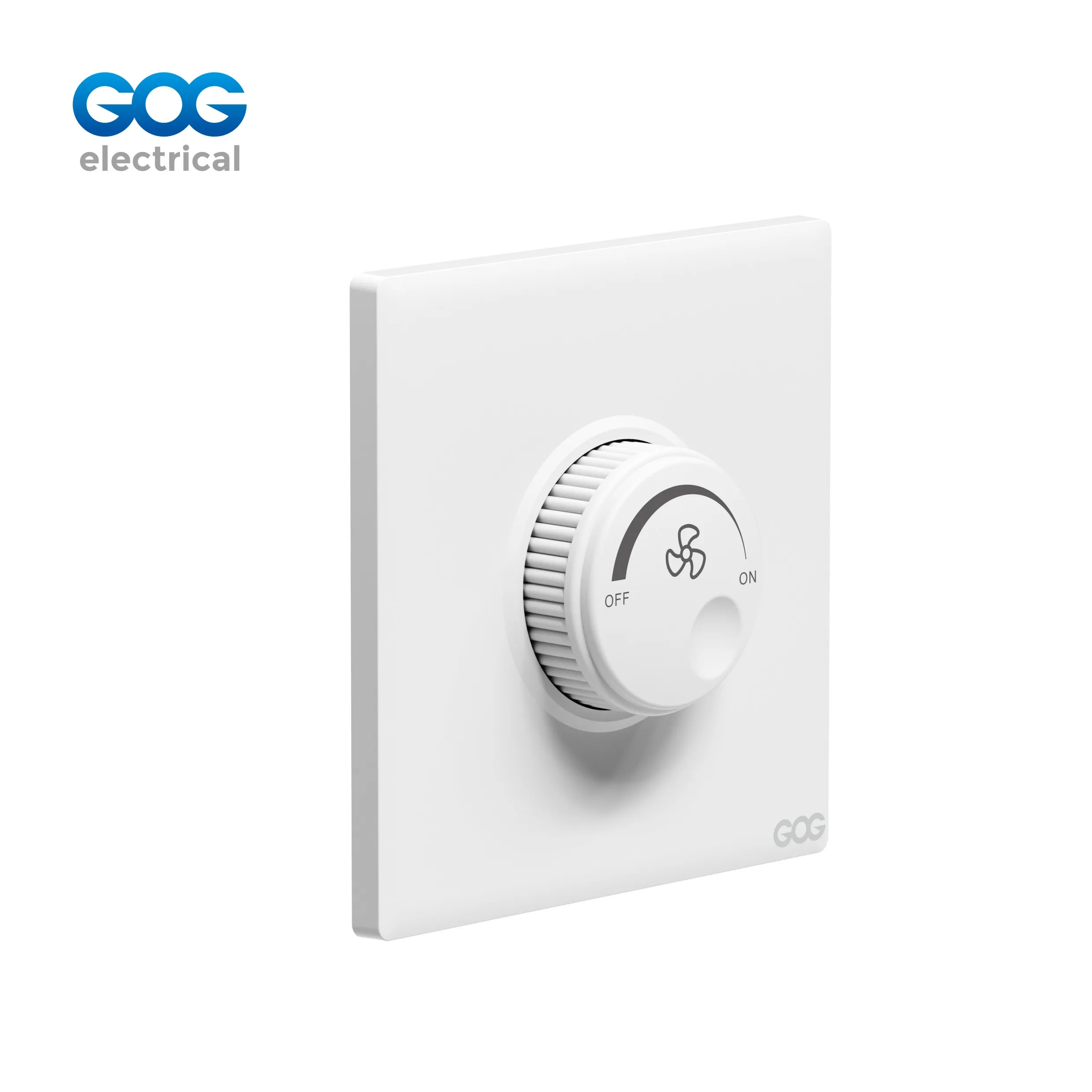

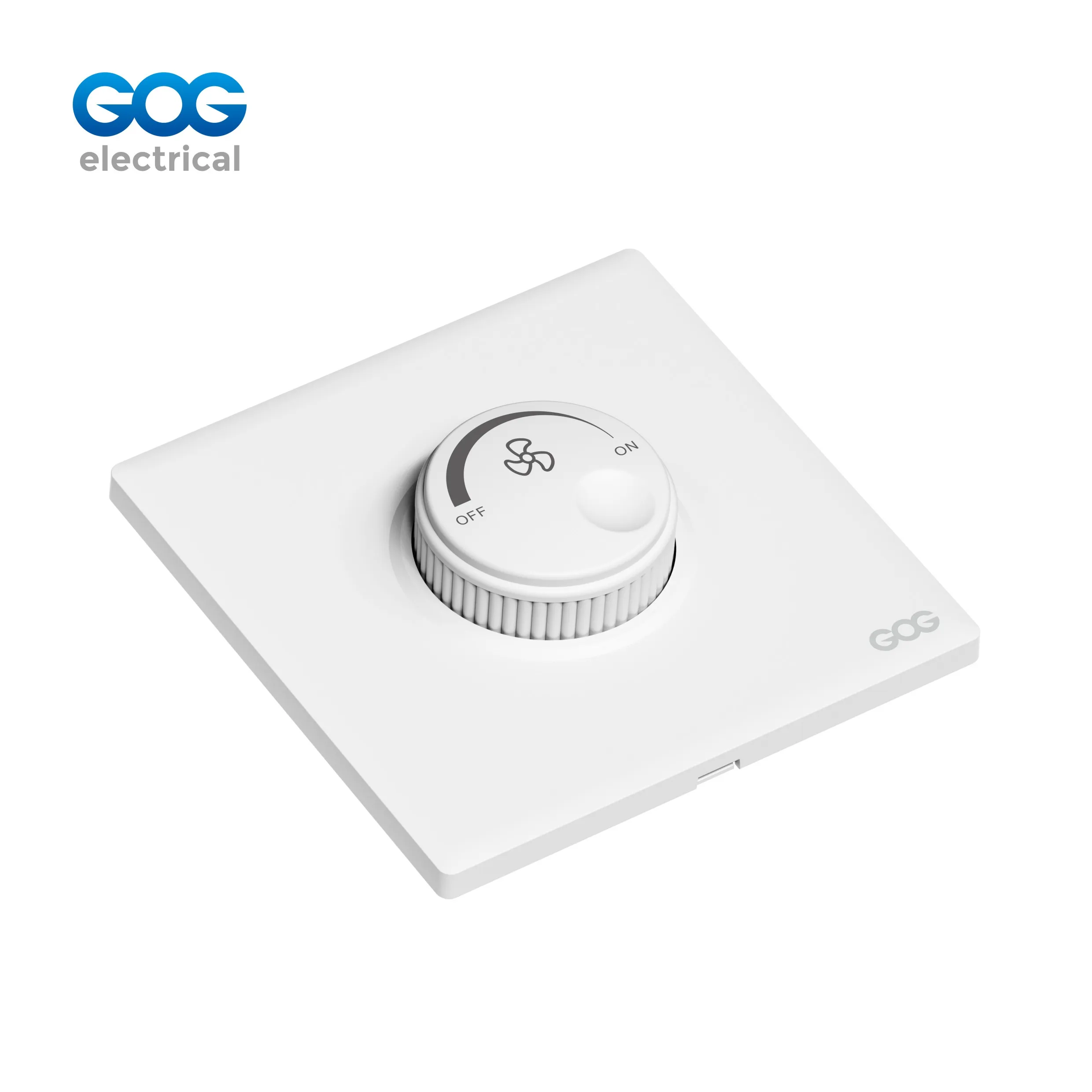

British Standard 500W Fan Regulator — Rotary Fan Speed Controller
The R1255 is an innovative modern British standard 500W fan controller made as a substitute for heavy resistive type fan controllers and cumbersome surface-mount devices. The design of this rotating fan controller is of step type regulation known for bringing about smooth alterations of speeds of ceiling or wall fan at any position and from off to maximum. While the previously used wire-wound type regulators were involved in creation of heat and wastage of energy, the new fan electronic regulator allows for the fan speed effectiveness. The control knob is perfectly designed to fit the entire R12 series, adjoining the imported highly transmitted and strong plastic panel. The design is available in steel or plastic-coated versions and is in compliance with the UK regulations of BS EN 60669-2-1, BS 55014-1, BS 55014-2. There are four types of color which can be used to match any switch and socket in the R12 series.
As the creator and distributor of our products, we bring you the benefits of low wholesale rates, custom branding for your PC panels coming in any color range, and a one-year warranty available on all electronic devices in the R12 series.
500W Electronic Step-Type Regulation — Efficient, Silent Fan Speed Control
This device is an innovative fan speed controller that eliminates the old-fashioned resistive regulators. The rotary knob on the device has several positions; each one corresponds to one specific speed of the fan. No humming or buzzing sounds coming from the fan while it is working. The load of the device can handle different types of fans; the load capacity is around 500W and can accommodate ordinary ceiling fans, wall-mounted fans, and ventilation fans, which consume around 60-100W of electric power. The rotary knob is very easy to operate and has firm resistance that is felt at each stepping position of the knob. The mechanical device is compact and can be fitted into the 86x86mm back box. The steel middle plate has protective wrapping that makes the whole product solid during operating. The product complies with British standards and comes with a one-year warranty.
Matching the R12 Series — Fan Regulator in the Same Build Quality
This white colored fan speed regulator is a component of R12 series which has the equivalent measurements of 86×86mm, transparent panel material of the same kind and the four colors of R12 switches, outlets, MF outlet boxes and USB socket. In a living room or bedroom, you can combine this fan speed controller and R12 light switches and R12 power socket with a single panel lock design and construction made from the same material as well as four colors of the R12 series. The design of the fan speed controller retains the identical proportions to the rotary switch design without looking as if it is an additional device. It provides its users with such options as white, gold, gray and black colors as well as two types of inner plate.
Stock This 500W British Standard Fan Regulator in Four Colors at Factory Pricing
White, Gold, Gray, Black PC panel. Rotary fan speed controller for ceiling fans. Electronic step-type regulation. OEM branding, custom packaging, 1‑year warranty included. Contact us for a wholesale quotation.
BS EN 60669-2-1 Certified • 500W Capacity • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for British Standard Electronic Fan Speed Controllers
As the manufacturer of fans, we produce the R1255 with our machinery. It gives suppliers a 500W fan speed regulator that has the same style as the R12 series. You can choose either the White color for big non-commercial buildings, Gold/Gray for luxurious interiors, or the Black one for modern businesses because the rotary control mechanism and BS EN certificate is the same in all cases. Switching to electronic control allows avoiding obsolete resistive controllers while regulating speed. You may sell R12 controls, sockets, and MF sockets along with the R1255 to provide a full range of wiring products, all having the same size of 86×86 mm. Custom branding of the panels, customized packing, and documentation included in the sale price for wholesale retailers.
Fan Regulator vs Light Dimmer: Choosing the Right Speed Controller for Every Room
A practical guide to specifying fan speed controllers for residential and commercial ceiling fan installations.
Fan Regulator vs Light Dimmer — Why You Can’t Use One for the Other
An appliance that operates a ceiling or wall fan is called a fan regulator or fan speed regulator. An appliance meant to operate lights is referred to as a light dimmer. Fan speed regulators and light dimmers work developed in different ways. If a light dimmer is used on a fan, it will cause the fan to stop working properly or fail altogether. Also, using a fan speed regulator on lights will cause them to flicker or not work at all. The VS1255 is a fan speed regulator designed in compliance with BS EN 60669-2-1, BS 55014-1, and BS 55014-2.
Electronic Step‑Type vs Old Resistive Regulators
Traditional resistive fan controllers operate by increasing the resistance in the presented circuit. This means that its slowest speed setting uses most of the energy for heat generation. Sometimes controllers even become hot to the touch. In contrast, the R1255 makes use of the electronic step regulation method which allows controlling the fan without producing heat, thereby guaranteeing noiseless operation even at maximum speed, eliminating humming and buzzing sounds and making overheating impossible.
Can This Fan Regulator Control a Fan with a Light Kit?
The R1255 only regulates fan speed. In case your ceiling fan includes a light kit, an additional switch is necessary to control the lighting circuit. A widespread practice is to use a 2-gang back box with one gang containing the R1255 fan control for regulating the fan speed, while the second gang for the light switch of the fan. Both the regulators are available in the R12 series, making for a uniform appearance.
Frequently Asked Questions
What is a fan regulator used for?
Fan control is an electrical device which can be used to control the speed of a ceiling fan or a wall fan with the help of controlling the power supplied to the fan motor. R1255 is an adapted device to the requirement of British Standard with its fan control rating of 500 Watts; it provides the advanced fan control version replacing obsolete resistive fan speed controllers and cumbersome surface mount designs with its modern flush mounted device of 86×86 mm. It is provided with a rotary knob which provides various speed options starting from OFF position to MAX position.
What is the difference between a fan regulator and a light dimmer?
A fan regulator is specifically used for motor load equipment – ceiling and wall fans. The purpose of the dimmer is to regulate resistive or LED electric fans. Since both types of equipment have different mechanisms, they will not work interchangeably. If a dimmer is used on a fan, damage may be caused to the dimmer as well as the fan motor, resulting in humming, improper functioning, and overheating. Always use a fan speed controller when working with fans.
Can this fan regulator control a fan with a light kit?
Fan speed is controlled by the R1255. If the ceiling fan has a light kit that is part of it, it will require a different switch for controlling the lights. A common arrangement could entail a two-gang back box, where one gang would contain an R1255 fan speed controller, and the other gang having an R12 light switch. Both devices should match the R12 finishes.
Why is the warranty 1 year instead of 12 years?
An electronic regulation circuit, which controls the speed of the fan, is fitted into R1255. This means that this product has different durability properties than purely mechanical contacts made from copper. The standard one-year warranty is related to this electronic classification of the device according to BS EN 60669-2-1, BS 55014-1, and BS 55014-2. The item has mechanical parts (PC panel, steel middle plate, rotary knob) made according to R12 series qualities, just like every device from this R12 wiring accessory series.
What colors is this fan regulator available in?
The R1255 fan speed controller comes in four types of PC color available, which correspond to the R12 series: White (conventional for residential rooms and living areas), Gold (luxurious attractive addition for stylish interiors), Grey (unobtrusive design idea for contemporary high rise apartments and offices), and Black (radical combination for dark interiors and sophisticated commercial applications). Four colors use the same imported high light-transmitting and high-strength PC material and share the same year warranty on electronic equipment.
