SPECIFICATIONS
| Series | R13 series |
| Item Codes | R13301 (1 Way) | R13302 (2 Way) | R13313 (Intermediate) |
| Description | 1 Gang 1 Way / 1 Gang 2 Way / 1 Gang Intermediate Wall Switch |
| Current / Voltage | 16A / 250V~ |
| Mechanical Life | Max 200,000 cycles |
| Front Panel | Imported high‑transparent, high‑strength PC |
| Base | Imported high‑transparent, high‑strength PC |
| Middle Plate Options | Full plastic / Steel‑plastic combination |
| Switch Internal | Red copper bush, red copper stamping part, red copper bus bar, Φ3.5mm×0.35mm silver touch point |
| Standard | IEC 60669 |
| Warranty | 12 Years |
| Available Colors | White / Gold / Gray / Black |
| Dimensions | H 86mm × W 86mm (British Standard back box) |
| MOQ | 2,000 pcs per item |
| Packaging | 1 pc per plastic bag | 10 pcs per inner box | 100 pcs per outer carton |
Three Circuit Types — 1 Way, 2 Way & Intermediate
| Model | Circuit Type | Application |
|---|---|---|
| R13301 | 1 Gang 1 Way | One circuit controlled from one location — bedrooms, bathrooms, utility rooms. |
| R13302 | 1 Gang 2 Way | One circuit controlled from two locations — staircases, hallways. |
| R13313 | 1 Gang Intermediate | One circuit controlled from three or more locations — long corridors, open-plan areas. |
200,000 Cycles vs Standard 40,000 Cycles — Five Times the Lifespan
| Feature | R13 Series (200,000 Cycles) | Standard Switch (40,000 Cycles) |
|---|---|---|
| Mechanical Lifespan | 200,000 operations — five times standard rating | 40,000 operations — industry standard |
| Years of Service (20 ops/day) | Over 27 years | Approximately 5.5 years |
| Contact Material | Red copper bus bar + Φ3.5mm silver alloy touch point | Typically brass or copper with standard contacts |
| Best For | Hotels, offices, public buildings — high‑traffic locations | Residential — bedrooms, living rooms |

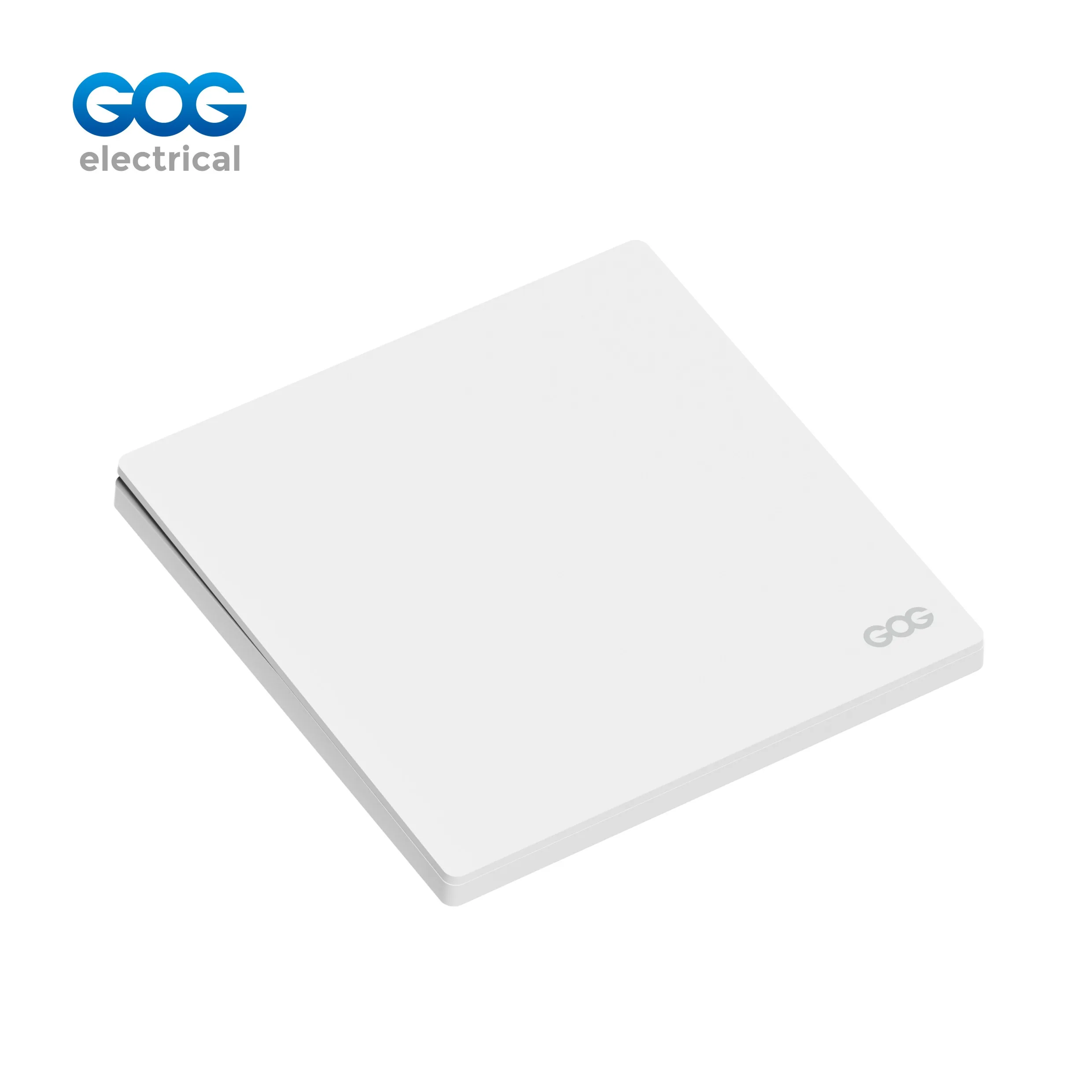

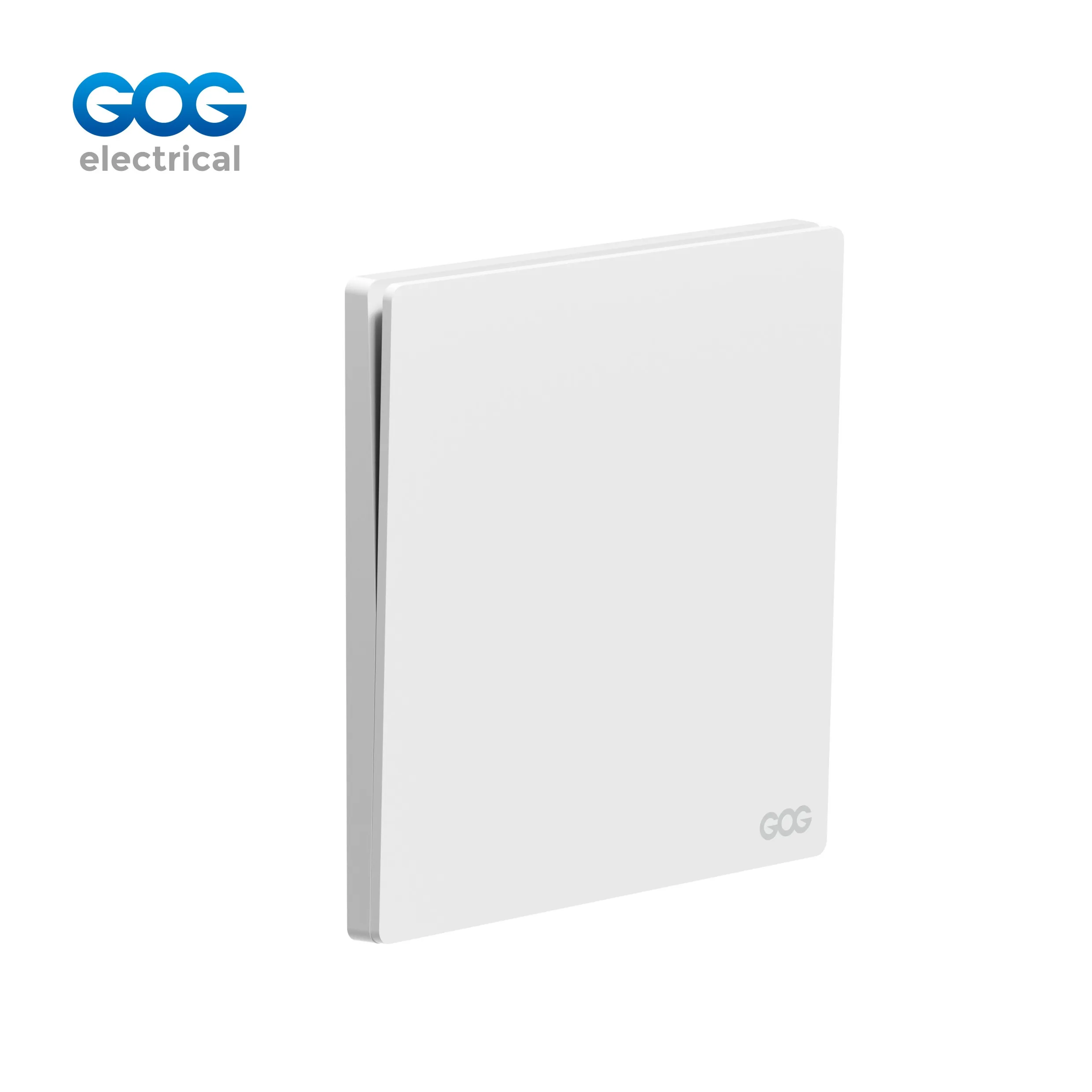

British Standard 16A 1 Gang Wall Switch — 1 Way, 2 Way & Intermediate with 200,000 Cycle Lifespan
The R13301/R13302/R13313 is a 16A 1 gang wall switch complying with the British standard. Circuits come in three essential configurations. The switch has a mechanical lifespan of 200,000 cycles which is considerably higher than the conventional 40,000 cycles. Thus, the switch can be used in earnest in busy commercial and public spaces. The mechanism inside the switch includes copper bricks, parts for stamping made of red copper, and the bus bar made of red copper, not to mention the silver alloy contact which is φ3.5×0.35 mm. It is claimed that the switch results in minimum resistance of contacts and there are no arcs even when the switch lives its whole life. The panel of the switch is 86×86 mm, made of a transparent and very durable type of plastic and produced in four colors. There are two options regarding the material of the frame plate of the switch.
As a factory-direct manufacturer, we offer wholesale prices that are among the best available and OEM branding on any color PC panel, plus the R13 series comes with a 12-year warranty.
Red Copper & Silver Internals — Built Where It Counts
This 16A wall switch comprises a complete independent switching mechanism with red copper components and stamps as well as a red copper busbar. Furthermore, its touch point serves as the core contact interface and the use of silver results in good conductivity. The devices feature precision-matched rocker pivot and spring mechanisms to ensure that the same level of comfort is maintained during the device’s working life cycle. The switch has a high-strength PC plate and base that gives the product a quality appearance. The middle plate is made of steel or plastic-coated steel for reinforcement. The product is certified according to the standard IEC 60669 and is provided with a warranty for 12 years by the manufacturer of the R13301.
Matching the R13 Series — 1 Gang Switch in a Complete Wiring Accessory Range
The white 1 gang switch of PC made part of the R13 series sharing the same dimension of 86×86mm, getting its high transparent PC panel from imported material with the same color combinations as that of power sockets, data sockets, TV sockets, satellite sockets, and fan regulators.
You can find the R13301 in your house sitting next to R13 power sockets with exactly the same panel profile, material, and any of the four color choices as the one used in power sockets.
Stock This 16A 1 Gang British Standard Switch in Four Colors at Factory Pricing
White, Gold, Gray, Black PC panel. 1 way, 2 way & intermediate configurations. 200,000 cycle lifespan. OEM branding, custom packaging, 12‑year warranty included. Contact us for a wholesale quotation.
IEC 60669 Certified • 200,000 Cycle Lifespan • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for British Standard 1 Gang Switches — 200,000 Cycle Rated
The R13 series gang switch boasts a 200,000-cycle lifespan with the fundamental 1-way, 2-way, and intermediate features. It comes in Stock White for commercial projects and interiors in Gold and Gray. Black is available for contemporary commercial companies — all types come with the same red copper and silver contact mechanism. Two types of plates fit for normal and heavy duty purposes are available. OEM branding can be done on any colored PC panels and custom packaging service can be offered with full IEC 60669 documentation for resellers across the globe.
1 Gang Switch Selection: 1 Way vs 2 Way vs Intermediate — Which Circuit Type Do You Need?
A practical guide to selecting the correct 1 gang switch configuration for British standard lighting installations.
R13301 (1 Way) vs R13302 (2 Way) vs R13313 (Intermediate)
The R13301 (one-way) is utilized for controlling one circuit from one location. This is the basic application needed in the case of bedrooms, bathrooms, or rooms with one entry point. The R13302 (two-way) consists of two components forming a pair that is responsible for controlling one circuit from two different locations. This is necessary for areas like staircases and corridors. The R13313 (intermediate) works together with two R13302 switches enabling it to control one circuit from three or more locations. This feature is perfect for long hallways, big open spaces (places without walls dividing them in different rooms), and hotel corridors.
200,000 Cycles — When Does the Lifespan Matter?
With a typical 40,000-cycle switch being operated for about 20 times a day, the lifespan ends in roughly 5.5 years. However, with a switch from the R13 series having 200,000 cycles capacity can last for more than 27 years in the same operational conditions. Thus, the strong feature of the switches of the R13 series from NEMA, makes them the ideal solution for the hotels, offices, public buildings, and any other installation where the switches are under high operational load and access for the maintenance is not easy or might be complicated.
Middle Plate Selection & Installation
For the majority of home and light-duty commercial uses, the fully plastic middle plate works effectively. Meanwhile, for areas that see heavy use in commercial and industrial locations where the switch will undergo tougher or more regular use, the steel and plastic middle plate should be used. The 86 x 86 mm faceplate fits a standard British single gang back box. The wiring is also standard: connecting live to common or load to L1. In the case of a 2-way system, the traveler wire is added to L2.
Frequently Asked Questions
What is a 1 gang wall switch?
The 1 gang wall switch features just one rocker on one wall plate so that it can control one lighting circuit. The R13301/R13302/R13313 16A 1 gang wall switch, conforming to British standards, is available in multiple designs. The switch is compatible with the 86×86mm standard British back box and has an operating life of 200,000 cycles with internal contacts made of red copper and silver.
What is an intermediate switch used for?
An intermediate switch (R13313) can be fitted in line with the two-way switches, allowing for the control of one lighting circuit from several locations. This is necessary in lengthy hallways, extensive open-plan environments or in hotel floors where various entry and exit points need switches. However, unlike the two-way switch, the intermediate does not operate alone.
Can I use a 2 way switch as a 1 way switch?
Indeed, the R13302 2 way switch can be used as a 1 way switch with the common and L1 terminals only being used and L2 terminals being left inactive. This enables you to make uniform use of the R13302 in all of your projects and wire the device according to the specific circuit requirements in every location.
What is the difference between 16A and 10A switches?
A 16A rated switch, such as the R13 range, is designed for current circuits with greater loads that should be used for lighting circuits, as well as controlling several fittings with one switch. While a 10A switch is commonly employed for simple lighting in open spaces, the switch that has a 16A rated current enables greater load opportunities in business and mixed setting.
What colors is this British standard 1 gang switch available in?

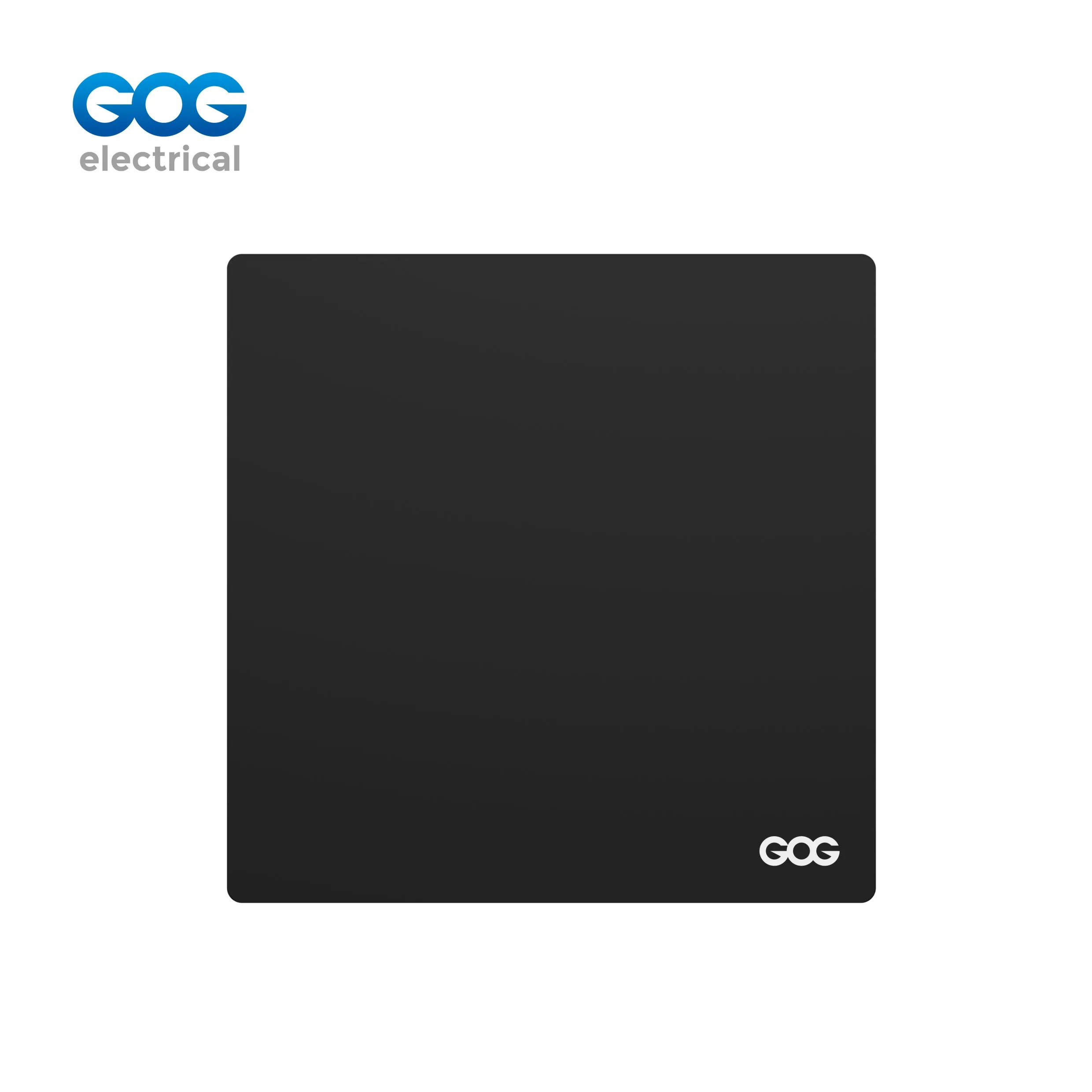

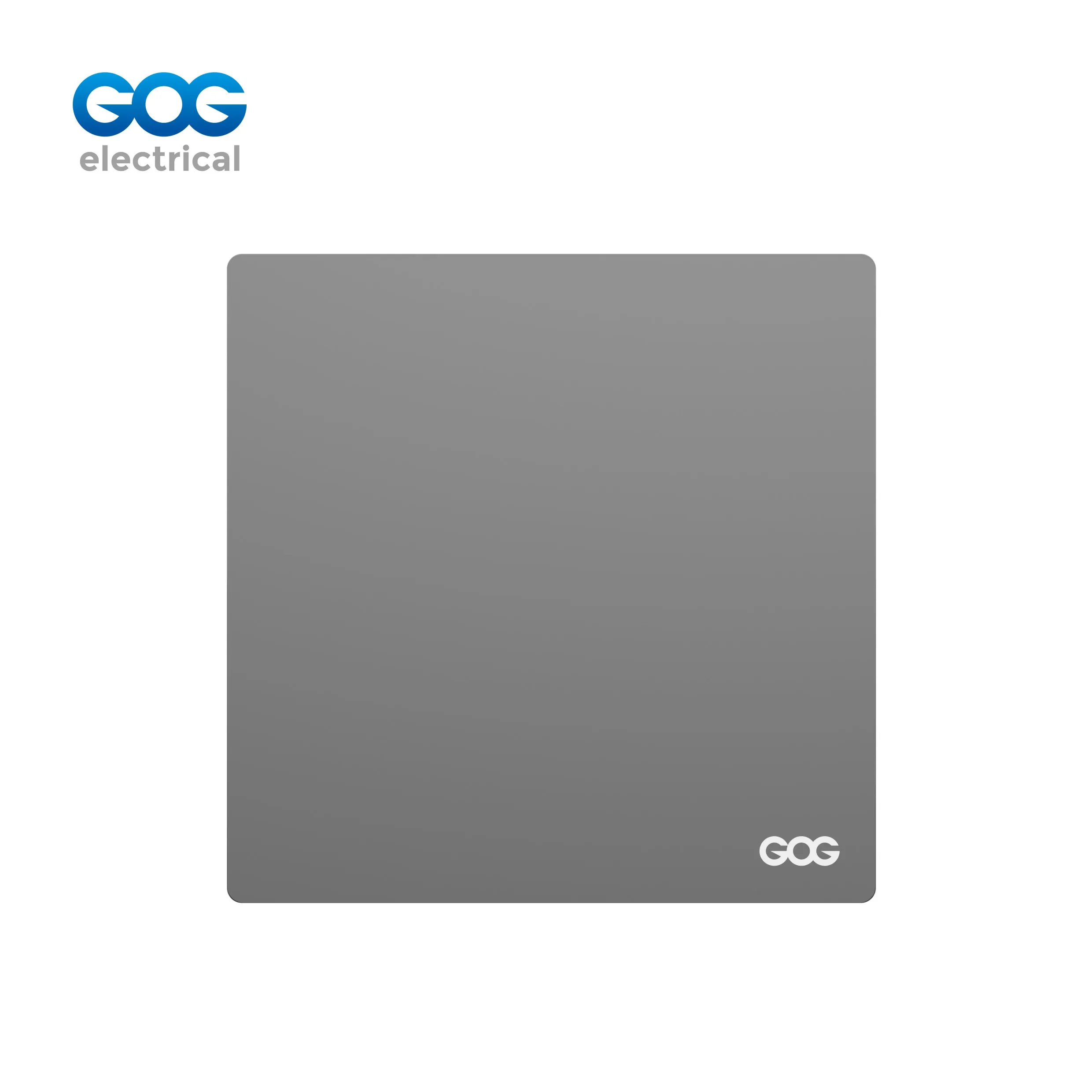

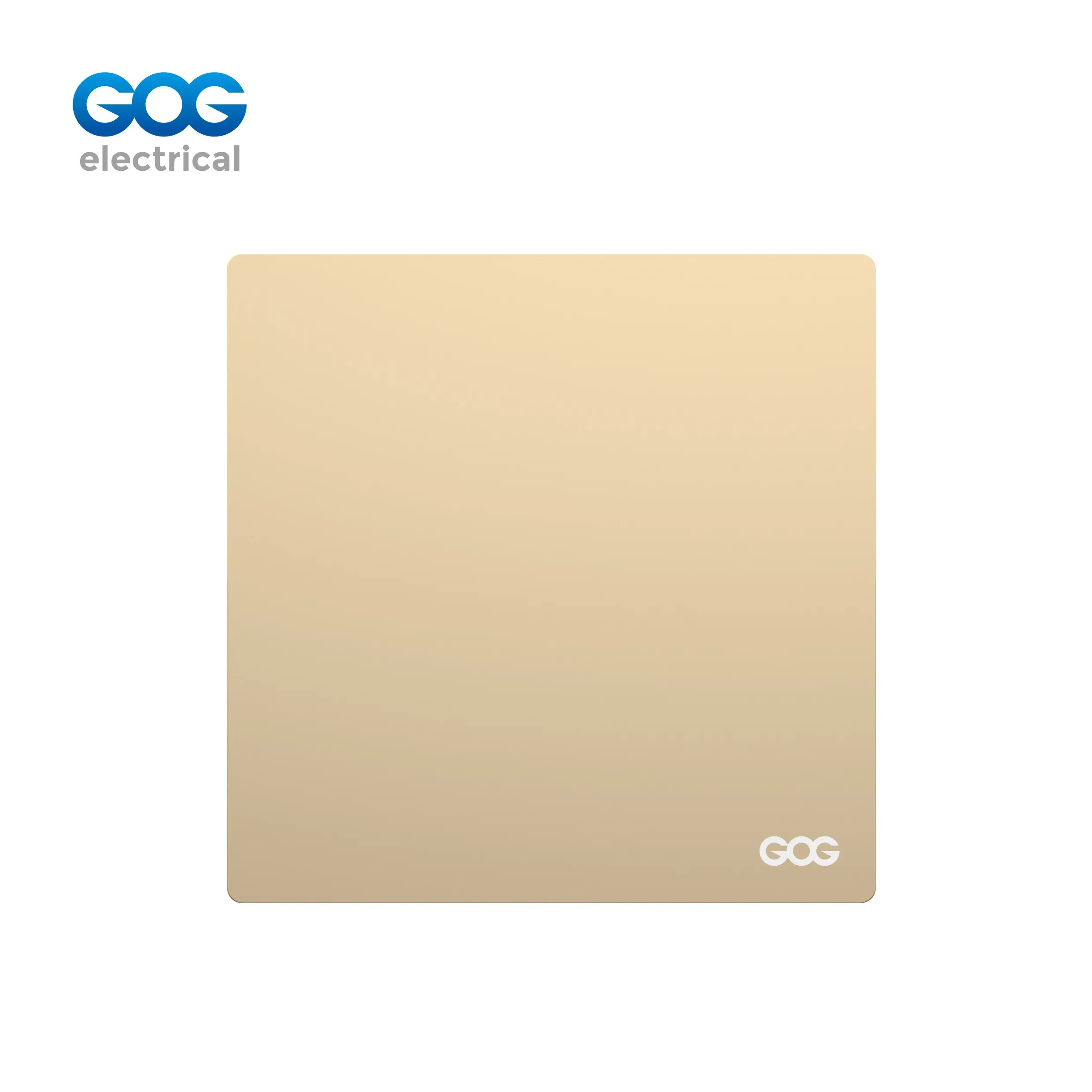

Four colors of the R13 series 1 gang switch made of polycarbonate; they are White (traditional); Gold (classy upscale); Gray (current); and Black (strong). All colors are constructed from high-quality polycarbonate and have 12 years of warranty from the manufacturer.
