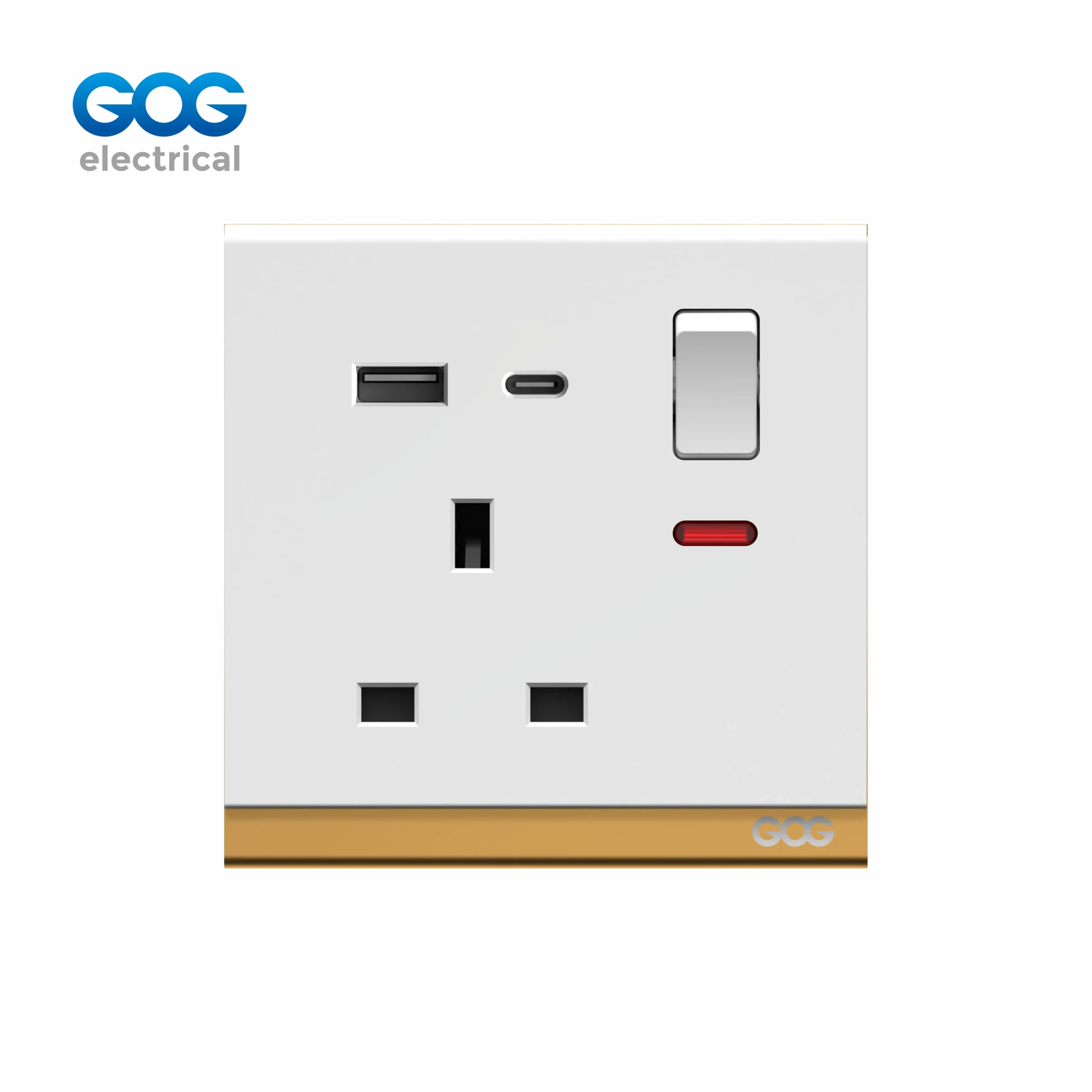

British Standard 13A DP Switched Socket with USB-C & USB-A — 2.1A Charging, White PC Panel
This is a 13A BS1363 double pole (DP) switched electrical socket with two USB charging ports (1 x USB-A and 1 x Type-C) integrated into the wall plate adjacent to the full 13A BS1363 power outlet. The R16491C eliminates the necessity of a plug‑in USB adapter that would take up the power outlet and stick out from the wall. The DP rocker switch disconnects both live and neutral conductors for additional safety and includes a neon indicator to show the socket is powered on. The USB module has a total output of 2.1A, enabling the charging of mobile phones, tablets, and accessories, and operates independently of the socket switch, so you can continue to charge devices via the USB outlets even if the 13A outlet has been turned off. This is a quality product manufactured by a leading manufacturer of USB sockets. The R16491C incorporates 0.7mm high-purity 62 brass contacts in the socket, a red copper DP switching mechanism with silver alloy contacts Φ3.5mm×0.35mm, and has triple certification: IEC 60884, BS1363, and IEC 62680. It is available in four imported PC panel colours — White, Gold, Grey, and Black — and has two midway plate options and has a 12 year warranty.
We are a factory-direct British standard USB socket manufacturer offering competitive wholesale pricing, OEM branding on any color PC panel, and a 12‑year warranty across the R16 series range.
DP Switch + USB Charging — What Sets This Socket Apart
| Feature | R16491C USB Switched Socket | Standard SP Switched Socket |
|---|---|---|
| Switch Type | DP (Double Pole) — breaks both live & neutral | SP (Single Pole) — breaks live only |
| USB Charging | USB‑A + Type‑C, 2.1A total | No USB ports |
| USB Independent | Charges even when socket switch is off | N/A |
| Certifications | IEC 60884, BS1363, IEC 62680 | IEC 60884, BS1363 |
Three improvements over a conventional switched socket can be gained with the R16491C DP switched socket with USB-C. First, the DP switch gives an enhanced level of safety by isolating the live and neutral conductors. This is the required specification for use in a kitchen/bathroom or any other location where full disconnection of an appliance is beneficial. Second, the two USB-A and USB Type-C charging ports are rated at 2.1A each and can provide charging directly from the wall, thus leaving the 13A outlet free for an appliance and making the wall clean by not having bulky adapters attached. Third, the USB chargers work independently of the socket switch, you may charge your phone or tablet while the 13A outlet is switched off. It is triple-certified (IEC 60884) and compliant with the British Standard (BS1363).
USB-A + Type-C, 2.1A Output — Charge Two Devices Without Losing Your Power Outlet
The dual universal serial bus (USB) switched socket (dual switched) is an independent unit that has over-current and short circuit protection built into it, as well as an over-voltage protective device. It includes a USB-A port for use with previous versions of electronic products, as well as a USB Type-C port for use with present and future electronic devices. Because of the ability to charge two devices from the same socket at the traditional rate of one device at a time, it is ideal for use in places where multiple devices will require either daytime or overnight charging without occupying the 13A outlet at that location. The USB module is independently tested and certified to IEC 62680 for safety with regards to charging electronic devices.
Matching the R16 Series — DP USB Socket Within the Same Aesthetic
This white USB adapter (part of the R16 series) has the same dimensions (86 x 86mm), comes with the same high-transparency PC panel material and four color finishes as the other R16 wiring devices. An R16491C switched socket can be placed in the kitchen to charge mobile devices while using a 13A outlet with an appliance (such as kettle). You can place one of the sockets on each side of the bed in a hotel room, allowing the guest to have two USB ports and a regular outlet from one single wall plate. Each R16491C USB socket is supplied in White, Gold, Grey, and Black finishes; is available with two middle plate options (plastic only for standard install or steel/plastic combined for added rigidity), and is certified by internationally recognized testing agencies (TRSA, EN 60601, C22.2 NO. 106) with an extended manufacturer’s warranty of 12 years.
SPECIFICATIONS
| Series | R16 series |
| Item Code | R16491C |
| Description | 13A DP Switched Socket with USB-A + Type-C, Neon, 2.1A |
| Socket Rating | 13A / 250V~ |
| Switch Type | DP (Double Pole) with neon indicator |
| USB Ports | 1 × USB‑A + 1 × Type‑C, 2.1A total output |
| Product Lifetime | 15,000 cycles (socket insertion) |
| Socket Standard | UK 3‑pin BS1363 |
| Front Panel | Imported high‑transparent, high‑strength PC |
| Base | Imported high‑transparent, high‑strength PC |
| Middle Plate Options | Full plastic / Steel‑plastic combination |
| Switch Internal | Red copper bush, red copper stamping part, red copper bus bar, Φ3.5mm×0.35mm silver touch point |
| Socket Contact | 0.7mm high purity 62 brass, integrated structure copper |
| USB Protection | Over‑current, over‑voltage, short‑circuit protection built in |
| Standards | IEC 60884 / BS1363 / IEC 62680 |
| Warranty | 12 Years |
| Available Colors | White / Gold / Gray / Black |
| Dimensions | H 86mm × W 86mm (British Standard back box) |
| MOQ | 2,000 pcs per item |
| Packaging | 1 pc per plastic bag | 10 pcs per inner box | 100 pcs per outer carton |
Stock This 13A British Standard DP USB Switched Socket in Four Colors at Factory Pricing
White, Gold, Gray, Black PC panel. DP switch with neon. USB-A + Type-C, 2.1A. Full plastic or steel-plastic middle plate. OEM logo, custom packaging, 12‑year warranty included. Contact this USB socket manufacturer for a wholesale quotation.
IEC 60884, BS1363 & IEC 62680 Certified • USB-A + Type-C • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for British Standard 13A DP USB Switched Sockets — Factory Direct
As a specialist USB switched socket manufacturer, we produce the R16491C on our own production lines — giving your wholesale business a premium DP socket with integrated USB‑A and Type‑C charging. Stock White for volume residential and hotel projects, Gold and Gray for premium interiors, and Black for modern commercial fit‑outs — all with the same 62 brass socket contacts, red copper DP switch mechanism, and 2.1A USB module. Triple‑certified to IEC 60884, BS1363, and IEC 62680 — the three key standards covering the socket, the British Standard format, and the USB charging module independently. Two middle plate options serve both standard and heavy‑duty applications from one British standard USB socket factory. OEM branding on any color PC panel, custom packaging, and full compliance documentation included for wholesale distributors worldwide.
Choosing the Right USB Switched Socket: DP vs SP, USB-A+Type-C vs Standard, Colors & Installation
A practical guide to specifying USB charging wall sockets for residential, hotel, and commercial installations.
R16491C (DP + USB) vs R16407 (SP, No USB) — Which One for Your Project?
The R16491C is an ideal option for applications where both USB charging convenience and high electrical safety are necessary. The DP switch allows for complete isolation of both live and neutral wires, making it suitable for kitchens, bathrooms, and other applications where any socket might supply power to an appliance that requires total isolation. The USB-A + Type-C ports feature a 2.1A output to charge cellular phones & tablets directly from the wall outlet, without the need for an adapter. The R16407 (SP, no USB) is the standard plug socket for everyday use. For use in hotels, install R16491C USB sockets on bedside tables so guests can charge their electronics overnight. When installing in residential kitchens, combine R16491C USB with standard R16407 to provide a combination of USB equipped and standard power sources.
Color Selection — White, Gold, Gray, or Black?
White PC panel: The traditional British standard finish is used to furnish any type of home kitchen or sleeping space (i.e., residence) and also for hospitality (i.e., hotel) accommodation. Gold panel – warm metallic finish for high quality residential and boutique hotel installations where USB socket is an obvious feature ; Gray panel – Neutral contemporary styled finish for contemporary residential apartments or commercial properties ; Black panel – Strong contrast to darker communities or premium commercial fit out’s , All four colors use the same imported high quality transpiration,2 brass socket contacts & 2.1A USB modules.
Installation & Wiring
The R16491C is designed to fit a standard UK Backbox at 86 mm x 86 mm. The Live wires connect to the Common Terminal on the DP switch, The switched live wire is used for the 13A socket, and the Neutral wires connect to the Neutral Terminal on the DP switch and to the 13A socket’s Neutral Terminal. The USB connection requires a separate Neutral connection and will work independently of the 13A socket. It will continue to charge through the USB connection, regardless of the 13A socket being switched off. The Neon indicator connected to the USB module is used to indicate the status of the 13A Socket only. Approved by IEC 60884, BS1363, and IEC 62680 for Triple Certification.
Frequently Asked Questions
Does the USB still charge when the socket switch is off?
The USB-A and USB-C ports on the R16491C operate independently of the DP socket switch. The USB module is powered from the mains and continues to charge devices when the 13A outlet is switched off. The neon indicator will show the status of the socket only, but it will not provide any information about USB power, as USB power is always available whenever the circuit in the consumer unit is live.
What is the difference between DP and SP on a switched socket?
When turned off, an SP (single-pole) breaker will only break the live conductor in an off position while the DP (double-pole) will break both the live and neutral conductors simultaneously to allow for complete isolation of the device so as to be safer. The R16491C has an DP switched fuse with an inbuilt USB port — specifically suitable for a maximum of 1 hour per day total usage — this is therefore the correct application for kitchens/bathrooms/any other location where disconnection from supply is fully required or desired for the connected appliance.
Does the USB module support fast charging?
The R16491C USB module provides a total of 2.1A total output through both the USB-A and USB-C ports, which is ideal for standard charging of phones, tablets, e-readers, and other small USB-powered devices. Although this is not a Qualcomm Quick Charge or USB Power Delivery fast charging module, it will offer reliable charging for your everyday needs at a standard speed, which will also help keep battery health in good condition during multiple charge cycles.
What colors is this British standard USB switched socket available in?
There are four different types of panel color options for the DP Series R16 series USB switched socket, and the colorways are as follows: White, (the classic residential or hotel setting) Gold (warm premium finish for high-end finishes) Gray (neutral contemporary finishes for modern apartment or office) and Black (bold contrasts to suit dark interiors, premium commercial fit-out). All panel color options incorporate the same imported high transparency high strength polycarbonate (PC) material, with a 12-year factory warranty also valid.
