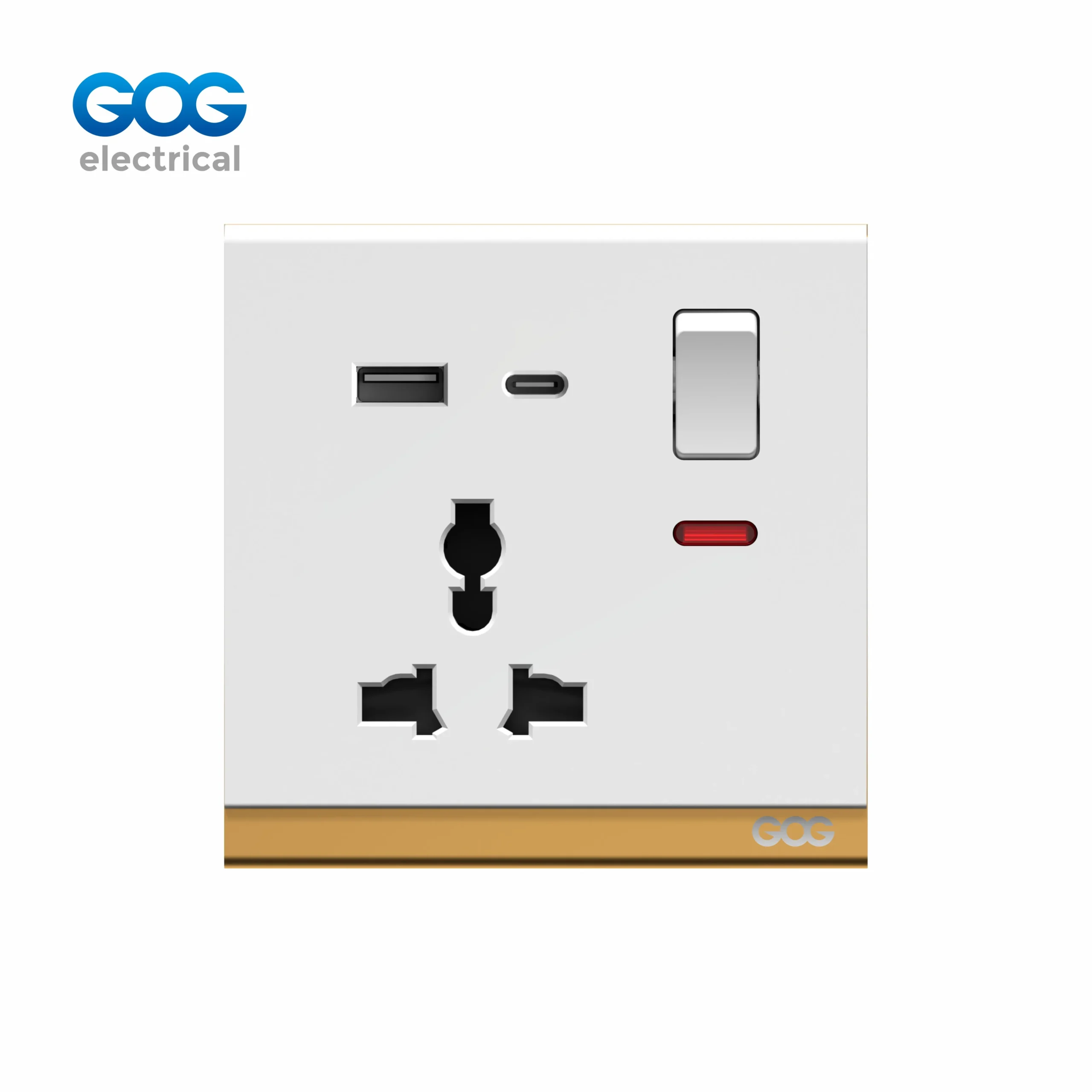

British Standard 13A MF Switched Socket with USB-C & USB-A — Phosphor Copper, 2.1A Charging, White PC Panel
The R16587C is a British Standard 13A Multiple Functions (MF) switched socket outlet that incorporates a range of power and charging solutions into a single, compact unit. It provides an 86mm x 86mm wall plate with one AC power outlet, one rocker switch, one neon indicator and two USB ports (USB-A and USB-C) supporting a total of 2.1A output.
The R16587C socket is manufactured using phosphor bronze copper for the socket contacts — this means that compared to standard brass, it has better spring characteristics — and better long-term pin retention.
As indicated by its MF designation, the integrated design of the R16587C combines three core functions (power outlet, rocker switch and neon indicator) into one compact panel. The R16587C also has a USB module that is powered by the same AC supply but operates independently of the switch for the 13A power outlet. This means that if the 13A power outlet is switched off, the USB ports will continue to provide power.
The R16587C was manufactured by a specialist company that supplies phosphor bronze copper sockets. It has red copper (type 99.9%) terminals with Φ3.5mm x 0.35mm silver alloy contact point and incorporates over-current and short-circuit protection on both USB ports. The R16587C is certified to both IEC60684 and IEC62680.
The R16587C is available in four imported, high-translucence PC panel (window) colors: white, gold, grey and black. There are two available middle plate options and it comes with a 12-year warranty.
We are a factory-direct British standard MF socket manufacturer offering competitive wholesale pricing, OEM branding on any color PC panel, and a 12‑year warranty across the R16 series range.
MF Socket Design — Multi-Function Integration with Phosphor Copper Contacts
| Feature | R16587C MF Switched Socket | R16491C DP Switched Socket |
|---|---|---|
| Socket Type | MF (Multi-Function) — integrated design | DP (Double Pole) — enhanced isolation |
| Socket Contact Material | 0.7mm phosphor copper | 0.7mm 62 brass |
| USB Charging | USB‑A + Type‑C, 2.1A | USB‑A + Type‑C, 2.1A |
| Key Advantage | Phosphor copper elasticity for high‑use | DP isolation for enhanced safety |
The R16587C MF-switched socket with USB-C takes an entirely fresh path compared to DP-switch R16491C. MF focuses on the fact that this is an integrated socket – it has everything in one: power, switch, neon (not quite a point of) indicator and USB charging…the list goes on. The phosphor copper contacts are made to hold pin grip significantly better than conventional brass for thousands more insertion cycles than your standard brass contact – hence the suitability of a multi-function switched socket for hotel rooms, workstations in offices and kitchens – places where USB charging will be needed along with constant plugging/unplugging. The USB module is independently certified to IEC 62680 with built-in over-current, over-voltage and short-circuit protection.
USB-A + Type-C, 2.1A OUTPUT, PHOSPHOR COPPER SOCKET – A SPEC BUILT FOR DAILY USAGE
The USB Module on this dual USB switched socket gives a 2.1A total output shared by both ports (USB-A for older devices and standard USB cables; Type-C for modern devices such as mobile phones and tablets). The USB ports can continue to provide power while the switch for the 13A socket is turned off. The phosphor copper socket contacts are .7mm thick with a built-in copper structure which provides the mechanical spring quality that will be needed with high usage… when you plug in and out each time there is consistent grip force applied which provides reliable electrical contact for 18,000 cycles rated for the outlet. The socket is also IEC 60884 certified and the USB charging module is IEC 62680 certified.
FORM MATCHING THE R16 SERIES – MF PHOSPHOR COPPER USB SOCKETS WITHIN THE SAME AESTHETICS
The white PC MF socket belongs to the overall R16 Series, therefore it shares the same 86 × 86 mm dimensions and high transparent PC finish as all other R16 accessories. A phosphor copper MF socket (R16587C) can be installed in conjunction with R16407 and R16491C-dependant switches – all exhibiting the same panel profile and color match, with different internal parameters intending to cover various application methodologies. Available in White, Gold, Gray, and Black. Two middle plate options: full plastic for standard mounting procedures, or steel-plastic combination for greater rigidity. Two independent warranties on the R16587C phosphor copper socket from the manufacturer with a 12-year warranty for both.
SPECIFICATIONS
| Series | R16 series |
| Item Code | R16587C |
| Description | 13A MF Switched Socket with USB-A + Type-C, Neon, 2.1A (Phosphor Copper Contacts) |
| Socket Rating | 13A / 250V~ |
| Socket Type | MF (Multi-Function) with rocker switch & neon indicator |
| USB Ports | 1 × USB‑A + 1 × Type‑C, 2.1A total output |
| Product Lifetime | 15,000 cycles (socket insertion) |
| Socket Standard | UK 3‑pin (BS1363 compatible) |
| Front Panel | Imported high‑transparent, high‑strength PC |
| Base | Imported high‑transparent, high‑strength PC |
| Middle Plate Options | Full plastic / Steel‑plastic combination |
| Switch Internal | Red copper bush, red copper stamping part, red copper bus bar, Φ3.5mm×0.35mm silver touch point |
| Socket Contact | 0.7mm high phosphor copper, integrated structure copper |
| USB Protection | Over‑current, over‑voltage, short‑circuit protection built in |
| Standards | IEC 60884 / IEC 62680 |
| Warranty | 12 Years |
| Available Colors | White / Gold / Gray / Black |
| Dimensions | H 86mm × W 86mm (British Standard back box) |
| MOQ | 2,000 pcs per item |
| Packaging | 1 pc per plastic bag | 10 pcs per inner box | 100 pcs per outer carton |
Stock This 13A British Standard MF Phosphor Copper USB Switched Socket in Four Colors at Factory Pricing
White, Gold, Gray, Black PC panel. MF socket with neon. USB-A + Type-C, 2.1A. 0.7mm phosphor copper contacts. Full plastic or steel-plastic middle plate. OEM logo, custom packaging, 12‑year warranty included. Contact this phosphor copper socket manufacturer for a wholesale quotation.
IEC 60884 & IEC 62680 Certified • Phosphor Copper Contacts • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for British Standard 13A MF Phosphor Copper USB Switched Sockets — Factory Direct
As a specialist phosphor copper USB switched socket manufacturer, we produce the R16587C on our own production lines — giving your wholesale business an MF socket option with upgraded phosphor copper contacts and integrated USB-A + Type-C charging. Stock White for volume residential and hotel projects, Gold and Gray for premium interiors, and Black for modern commercial fit‑outs — all with the same 0.7mm phosphor copper socket contacts, red copper switch mechanism, and 2.1A USB module. Stock alongside the R16407 (SP, 62 brass), R16407M (SP, phosphor copper), and R16491C (DP, 62 brass with USB) to offer a complete multi‑tier socket range from one British standard MF socket factory. OEM branding on any color PC panel, custom packaging, and full IEC 60884 and IEC 62680 documentation included for wholesale distributors worldwide.
R16587C vs R16491C vs R16407M: Choosing the Right 13A USB Switched Socket — MF, DP, or SP?
A practical guide to selecting the correct USB switched socket for different use environments, comparing MF, DP, and SP configurations.
R16587C vs R16491C: What Should You Choose For Your Project
Your choice will be based on what is more important: Durability of the material, or Safety of the switch. The R16587C MF switched socket was designed with the intention of being used in highly trafficked areas. Places like Hotel Rooms, Office Desks and in high traffic Kitchens will see plugs plugged/unplugged on a daily basis and therefore the R16587C MF switched socket is made with phosphor copper contacts. The phosphor copper contacts will maintain more of their spring tension and grip force than other types of brass based construction due to the elasticity of the phosphor copper material compared to 62 brass. The switched socket contains an integrated switch, socket, neon, and USB Ports into a single unit to provide a seamless finished product. The R16491C DP switched socket provides safety through its Double-Pole switch that isolates both Live and Neutral as part of the appropriate specifications for Bathrooms, Kitchens and any place where full disconnection is required. Both Switched Sockets offer same 2.1Amp charging via USB-A and Type-C. If your project requires an enhanced level of safety and exceptional contact durability, consider stocking both SKUs and specifying them by the type of room.
Phosphor Copper vs 62 Brass: The Advantage of Phosphor Copper
In terms of real life usage, phosphor copper will provide better long term contact between the socket and plug when compared to a brass contact. When used in a hotel room for example, where guests will be plugging and unplugging chargers several times per week, the phosphor copper contact will continue to provide a consistent electrical connection longer than a brass contact. In a residence, where appliances may remain plugged in for several months, the performance of the brass and phosphor copper will be relatively equal. Both the R16587C and R16407M switched sockets use phosphor copper contact, while both R16407 and R16491C switched sockets utilize 62 brass contact. In order to provide your customers with an obvious upgrade possibility, stock both options available to you.
Color Choices: Which One Should I Choose? White, Gold, Grey or Black?
White PC panel: The classic British standard finish. Gold PC panel: A richer warm metallic finish that will meet the desires of high end interiors. Gray PC panel: Contemporary style ideal for modern apartments and offices. Black PC panel: Bold contrast for use in contemporary dark interiors. Although they represent different finishes/appearance, all four Color options share the same imported High Transparency PC, Phosphor Copper Contacts and 12 year warranty.
Frequently Asked Questions
What does MF mean on a switched socket?
The Multi-Function socket (MF), is a type of electrical outlet designed to merge several electrical devices together in one compact unit, known as an integrated unit. The R16587C is a British standard 3 Pin 13A Multi-Function switched socket including a power outlet, rocker switch, neon indicator and dual USB charging sockets (USB-A and Type-C) all contained in one single 86×86mm faceplate.
The “MF” designation refers to the fact that all the other electrical devices contained within the socket work together as an integrated (composite) design.
What is the difference between MF and DP switched sockets?
The terms MF (Multi-Function) and DP (Double Pole), reflect different design priorities. The MF switched socket R16587C with USB-C focuses on an integrated multi-function design feature; using Phosor Copper contacts; designed for durability for high usage. The DP switched socket R16491C separates both Live and Neutral Conductors with an additional switch; giving Enhanced Safety. Both products have the capability of charging via USB-A + Type-C 2.1A. Choose MF where high usage locations require maximum durability of the contacts; choose DP where maximum electrical isolation is the most important.
Does the USB still charge when the socket switch is off?
The USB-A and Type-C ports on the R16587C have no relationship to way that the socket will switch on or off. The USB module receives its power directly from the mains and will still charge devices regardless the status of the socket outlet (e.g. 13AMP switched off / on). The neon indicator mounted on the socket will only show the status of the socket outlet, not when power is supplied to the USB ports. Power to both ports is always available whenever the circuit has power at the consumer unit.
What colors is this British standard MF USB switched socket available in?
R16 series switched MF sockets (with phosphor copper contacts) can be purchased in all four different PC colours: White (classic, residential/hotel), Gold (warm, high-end interior design), Grey (neutral colours for contemporary apartments/offices), and Black (contrasting with dark interiors/premium commercial fit-out). All switches have been manufactured from the same imported, high transparent, high strength PC material and offer a 12-year warranty (our factory).
