SPECIFICATIONS
| Series | R30 series |
| Item Code | R30407MB |
| Description | 13A MF Switched Socket with Neon, Big Button (Phosphor Copper Contacts) |
| Socket Rating | 13A / 250V~ |
| Socket Type | MF (Multi-Function) with big button switch & neon indicator |
| Switch Type | SP (Single Pole) with big button rocker |
| Product Lifetime | 30,000 cycles (socket insertion) |
| Socket Standard | UK 3‑pin (BS1363 compatible) |
| Front Panel | Imported high‑transparent, high‑strength PC |
| Base | Imported high‑transparent, high‑strength PC |
| Middle Plate | Iron middle plate |
| Switch Internal | Red copper bush, red copper stamping part, red copper bus bar, Φ3.5mm×0.35mm silver touch point |
| Socket Contact | 0.7mm high phosphor copper, integrated structure copper |
| Standard | IEC 60884 |
| Warranty | 12 Years |
| Available Colors | White / Gold / Gray / Black |
| Dimensions | H 86mm × W 86mm (British Standard back box) |
| MOQ | 2,000 pcs per item |
| Packaging | 1 pc per plastic bag | 10 pcs per inner box | 100 pcs per outer carton |
R30407MB vs R30411B — Two Big Button Sockets, Two Internal Material Choices
| Feature | R30407MB (MF Phosphor Copper) | R30411B (62 Brass) |
|---|---|---|
| Socket Type | MF (Multi-Function) — integrated design | Standard SP switched socket |
| Socket Contact Material | 0.7mm phosphor copper | 0.7mm 62 brass |
| Product Lifetime | 30,000 cycles | 15,000 cycles |
| Switch Design | Enlarged big button — accessible | Enlarged big button — accessible |
| Certification | IEC 60884 | IEC 60884 / BS1363 |

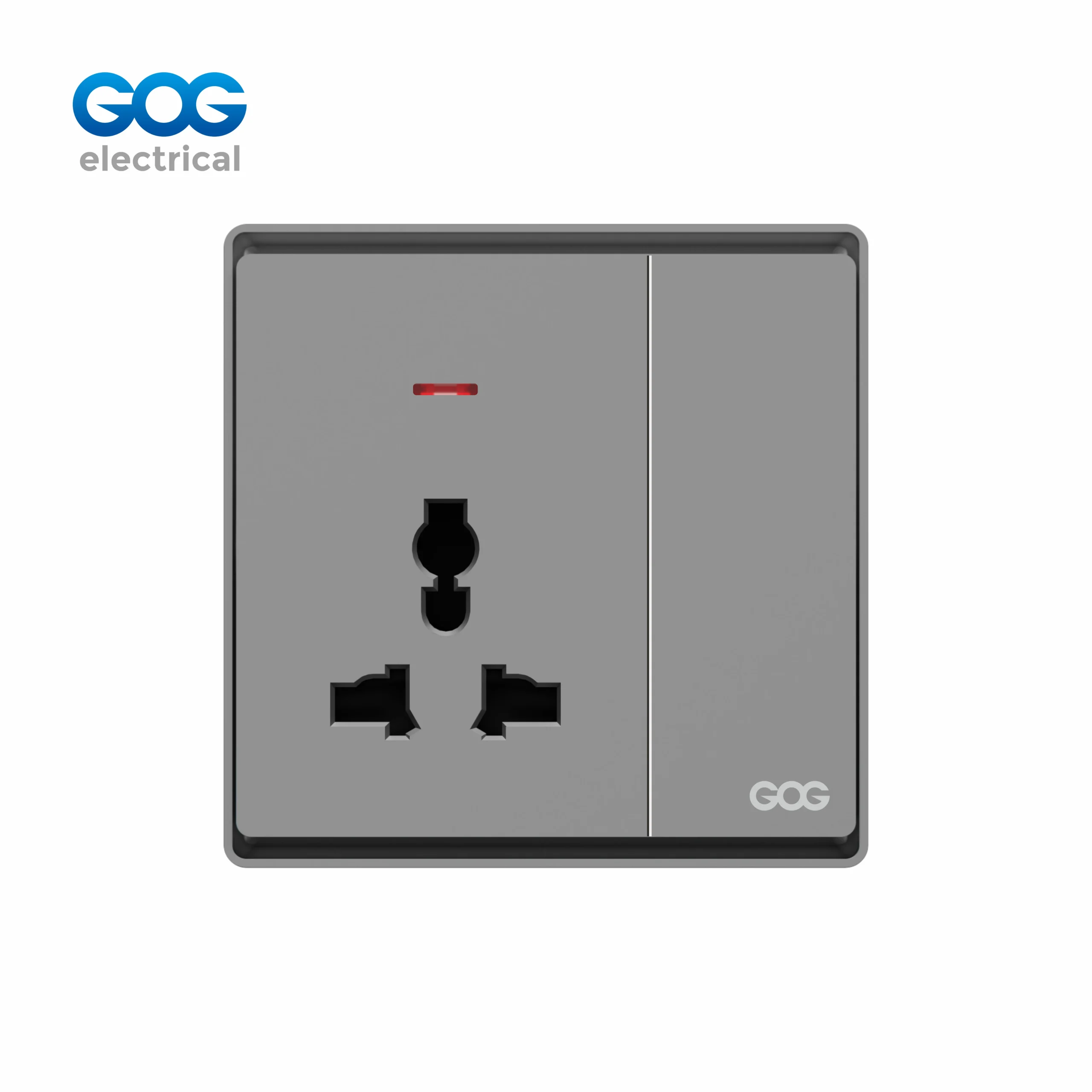

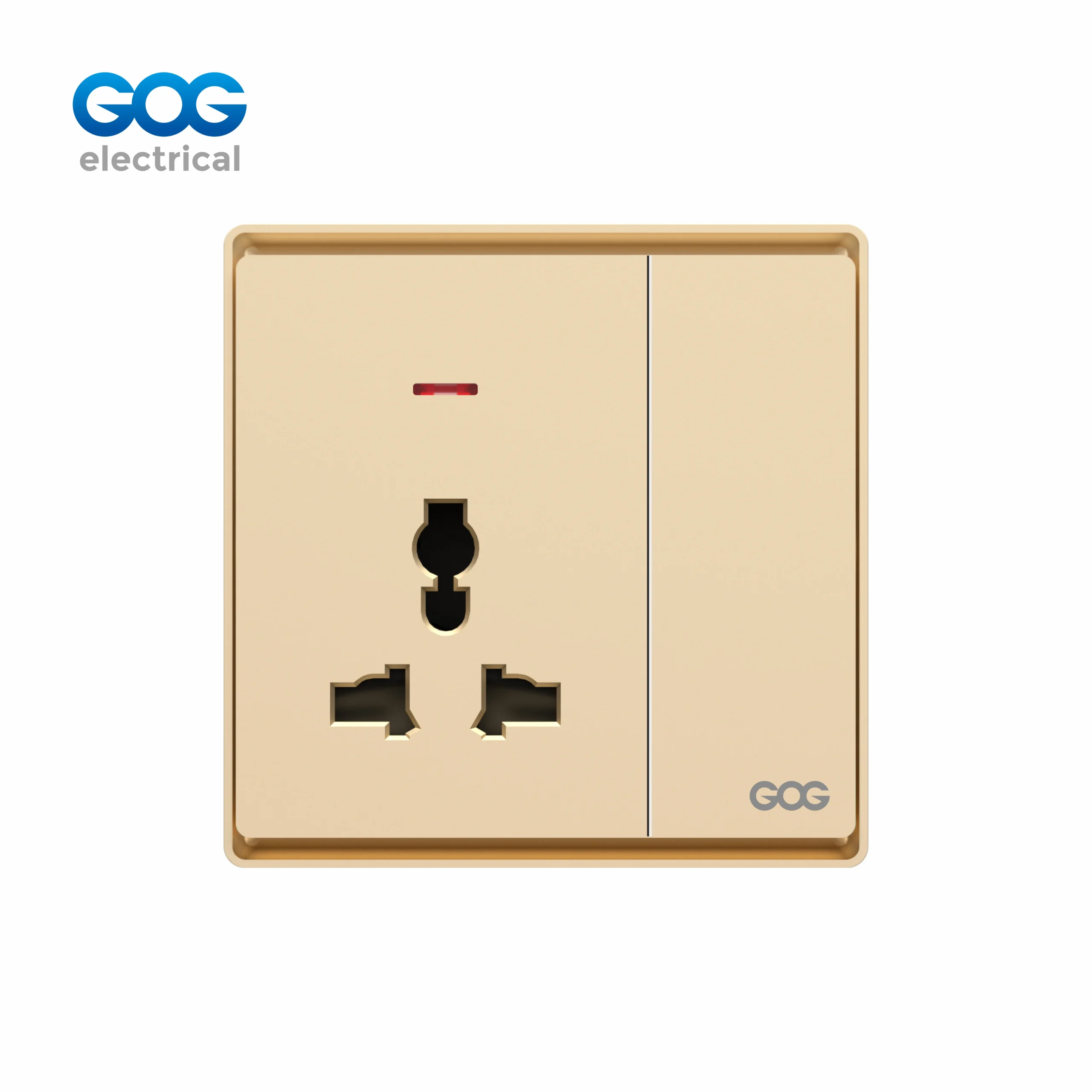

R30 Series Phosphor Copper MF Switched Socket with Large Button – 13A, 30,000-Cycles
R30407MB is a British standard 13A MF switched socket that blends three key features: the extra-large button rocker, MF integrated design for smooth looks, and 0.7mm high phosphor copper contacts for better durability. The phosphor copper button socket is the right specification for installations with high usage levels — care homes, social housing, retirement housing, and active kitchens where ease of use and durability are both taken seriously. The extended rocker has a broader point to reach for. Phosphor copper contacts are able to keep the spring constant and grips the pin through 30,000 insertions, which is twice the default of 15,000.
We are direct factory producers providing cost effective wholesale pricing, OEM branding on various colored PC panels, and 12-year warranty for the range of R30 series products.
Phosphor Copper + Big Button + MF Design — Accessibility Meets Material Quality
The MF accessible socket solves two issues at once. First, the big button means the socket is easy to use, with its greater rocker surface being easy to spot visually, as well as being less precise in operation because of the large size of the button. Secondly, the 0.7mm phosphor copper contacts mean that durability over time is secured, which is achieved thanks to the elastic properties of phosphor copper that are far superior to brass. Therefore, this socket design combined with the materials used yields advantages that could be easily seen in a care facility with daily usage of sockets by the elderly.
Matching the R30 Series — MF Big Button Socket in the Same Classic Aesthetic
This big white PC rocker outlet belongs to the R30 collection, and it has the same dimensions, namely 86x86mm, same imported transparent PC aluminum casing and four color variations available in all R30 series appliances. The new R30407MB designs are therefore compatible with R30411B brass switched socket because they are externally identical, but the practical use of different materials brings serious advantage for the end user. Options: White, Gold, Gray and Black. IEC 60884 compliant and 12-year warranty from R30407MB MF switched outlet provider.
Stock This 13A British Standard MF Phosphor Copper Big Button Switched Socket in Four Colors at Factory Pricing
White, Gold, Gray, Black PC panel. MF socket with big button and neon. 0.7mm phosphor copper contacts. 30,000-cycle lifespan. OEM logo, custom packaging, 12‑year warranty included. Contact this phosphor copper accessible socket manufacturer for a wholesale quotation.
IEC 60884 Certified • Phosphor Copper + Big Button • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for R30 Series MF Phosphor Copper Big Button Switched Sockets
R30407MB, which is what we call our accessible socket range, is manufactured by ourselves as a phosphor copper based accessible socket manufacturer. The primary aim of this socket is to provide customers with large button design combined with the benefits of phosphor copper contacts. The product is available in White for large orders and care homes, Gold and Gray for luxury villas, and Black for high hotspot projects. All these colors have the same rocking mechanism, which is the 0.7mm phosphor copper contact mounted with a red copper switch. In short, you could also take R30411B (which is big button, 62 brass) from us to give your customers a distinction between their products in the accessible socket range.
R30407MB vs R30411B: Choosing the Right Big Button Socket — Phosphor Copper or 62 Brass?
A practical guide to selecting the correct accessible switched socket for high‑use care home, social housing, and residential installations.
R30407MB (Phosphor Copper + 30K Cycles) or R30411B (62 Brass + 15K Cycles) — Which Material to Choose for Your Project?
The decision is made based on how you expect to use them. The R30407MB phosphor copper connection has better elasticity than brass, as it keeps spring tension and grip through twice as much insertion. Use the MF phosphor copper big-button socket in locations with a high need for plug insertion and removal, including nursing homes, retirement buildings, and family kitchens — as it has an extended capacity of 30,000 cycles, reducing costs of repairs and maintenance along the way. The R30411B brass provides decent conductivity at a lower price and is suitable for installations requiring the big-button socket feature, where socket usage isn’t too demanding. Both sockets have a big rocker construction and an 86×86 mm R30 format.
Why Phosphor Copper for High‑Use Accessible Locations?
Phosphor copper enables pin connectors to perform far better and endure more plugging and unplugging operations than brass due to its superior elasticity. In an assisted living facility where patients regularly plug or unplug their personal devices or in a kitchen where devices are frequently connected and disconnected, phosphor copper contacts deliver consistent electrical connection for a much longer. The 30,000 operational cycles mean that the socket outlasts renovation cycle – fewer replacements and less inconvenience for the sufferers.
Finish Selection — Which Color for Your Installation?
White: Traditionally applied finish for nursing homes and accessibility projects. Gold: Luxurious warm finish used for high-end assisted living. Gray: Neutral sophisticated finish used for new apartments. Black: Effective finish utilized for exclusive commercial installations.
Frequently Asked Questions
What is an MF big button switched socket?
A socket in a MF big button version is a combination of an MF (Multi-Function) integrated design with a larger-sized, rock-shaped switch. The particular design referred to as R30407MB is a British standard 13A MF switched socket with a big button and neon indicator, whereby the MF indicates the integration of a power outlet, a larger rocker switch, and a neon indicator within a single panel measuring 86×86mm. Phosphor copper contacts ensure excellent long-term performance with an impressive service life of 30,000 cycles.
What is the difference between this phosphor copper big button socket and the brass version?
This R30407MB model has socket contacts made from 0.7mm high-grade phosphor copper, giving it a lifetime of 30,000 cycles. By comparison, the R30411B uses 0.7mm of 62 brass with a limit of only 15,000 cycles. The reason for using phosphor copper is that it has better elasticity, meaning that it can hold onto spring tension and pin grip for twice as long. These two models have the same oversized big-button rocker design and also share the same 86×86mm R30 panel design. Phosphor copper can be used in high-traffic locations such as nursing homes, while brass can be used in typical residences where the emphasis is on ease of access provided by big buttons.
Is the big button socket suitable for elderly users?
Yes, the R30407MB has been specifically designed for maximum usability. The enlarged rocker switch has a larger visible target as well as a larger surface for pressing which makes it easier for people suffering from poor dexterity, arthritis, or visual impairment. The neon indicator makes it easy to identify the device with power‑on status during the day regardless of the lighting condition. The phosphor copper contacts with a lifespan of 30,000 cycles also help to keep the device in working condition for a long time, especially in care homes where it will frequently be used every day.
What colors is this British standard MF big button socket available in?
The R30 series MF large button switching range is available in four different colors of PC panels: White (a classic for care homes and accessibility projects), Gold (specifying premium finish for upscale assisted living), Grey (neutral style for any modern apartments), and Black (a strong contrast for luxury commercial fit-outs). All the four colors come from the same factory wherein they are essentially made of same high transparent and strong PC material, and all include 12 years warranty.
