SPECIFICATIONS
| Series | R30 series |
| Item Code | R30588C |
| Description | 13A 2 Gang MF Switched Socket with USB-A + Type-C, Neon, 20W (Phosphor Copper Contacts) |
| Socket Rating | 13A / 250V~ per socket |
| Socket Configuration | 2 gang MF — two independent BS1363 outlets |
| Switch Type | SP (Single Pole) with neon indicator per socket |
| USB Ports | 1 × USB‑A + 1 × Type‑C, 20W total output |
| Product Lifetime | 15,000 cycles per socket |
| Socket Standard | UK 3‑pin (BS1363 compatible) |
| Front Panel | Imported high‑transparent, high‑strength PC |
| Base | Imported high‑transparent, high‑strength PC |
| Middle Plate | Iron middle plate |
| Switch Internal | Red copper bush, red copper stamping part, red copper bus bar, Φ3.5mm×0.35mm silver touch point (per gang) |
| Socket Contact | 0.7mm high phosphor copper, integrated structure copper |
| USB Protection | Over‑current, over‑voltage, short‑circuit protection built in |
| Standards | IEC 60884 / IEC 62680 |
| Warranty | 12 Years |
| Available Colors | White / Gold / Gray / Black |
| Dimensions | H 86mm × W 146mm (double gang British Standard back box) |
| MOQ | 2,000 pcs per item |
| Packaging | 1 pc per plastic bag | 5 pcs per inner box | 50 pcs per outer carton |
R30588C vs R30492C vs R30408M — Three R30 2 Gang Sockets, Three Different Combinations
| Feature | R30588C (MF + 20W USB) | R30492C (DP + 20W USB) | R30408M (MF + No USB) |
|---|---|---|---|
| Socket Contact | 0.7mm phosphor copper | 0.7mm 62 brass | 0.7mm phosphor copper |
| Switch Type | SP (Single Pole) per socket | DP (Double Pole) per socket | SP (Single Pole) per socket |
| USB Charging | USB‑A + Type‑C, 20W fast charge | USB‑A + Type‑C, 20W fast charge | No USB ports |
| Product Lifetime | 15,000 cycles per socket | 30,000 cycles per socket | 30,000 cycles per socket |
| Key Advantage | Phosphor copper durability + 20W USB convenience | DP safety + 20W USB + extended lifespan | Phosphor copper durability + extended lifespan |

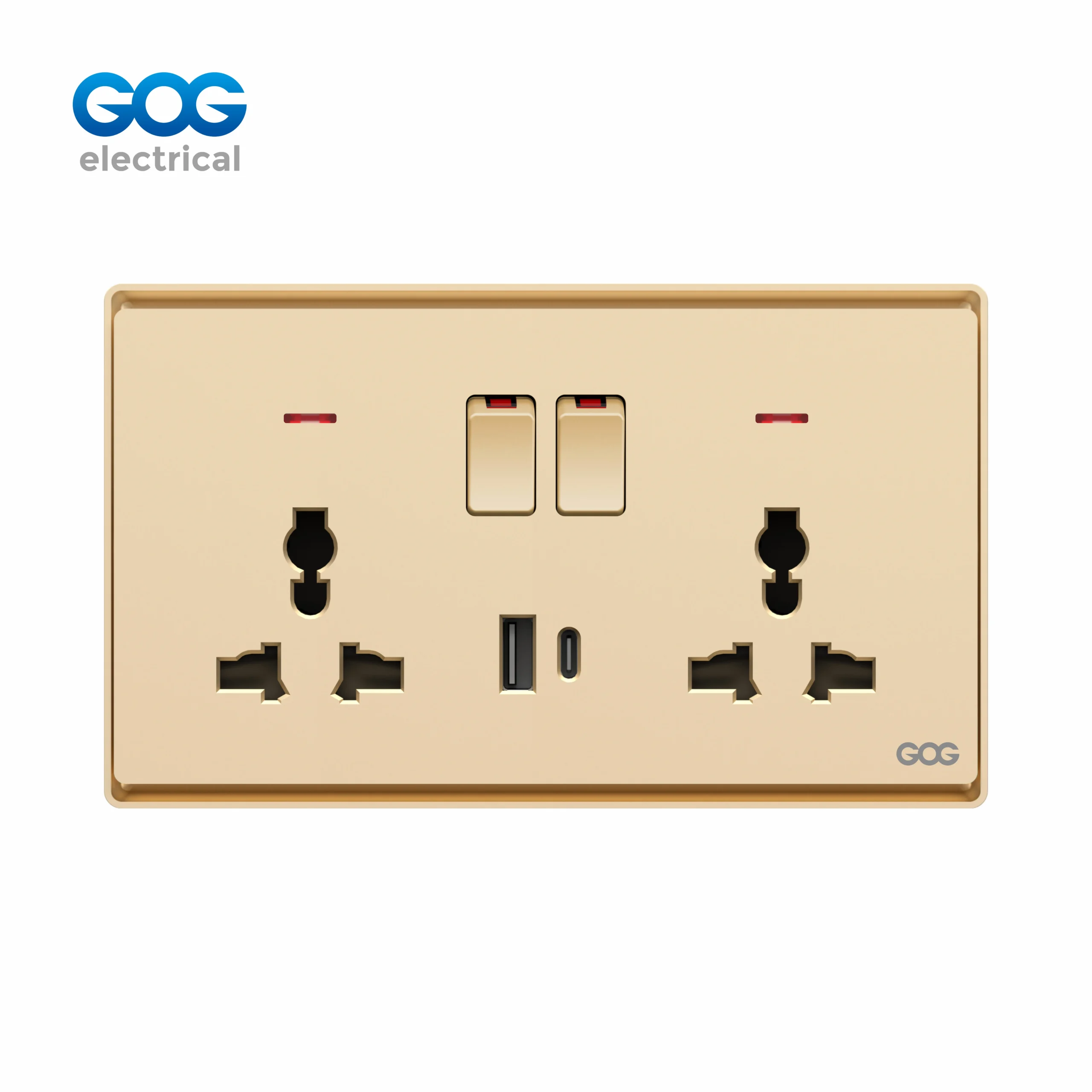

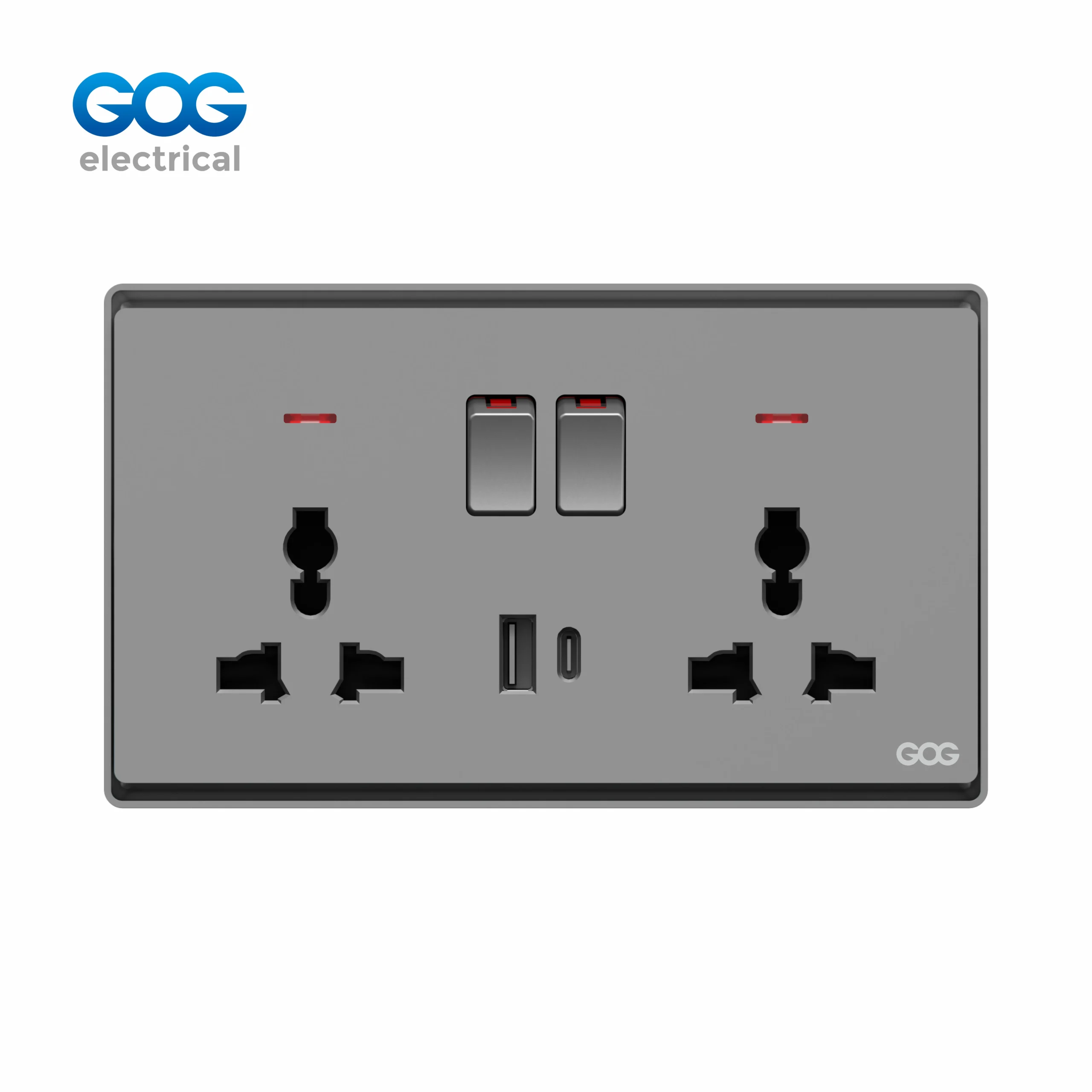

Phosphor Copper 20W USB-A and USB-C switched Twin Socket (R30 series)
With the R30588C socket, you can switch on two power sockets with the help of phosphor copper socket contacts. It is a switched socket that has a USB charging module. This simple and sophisticated product allows users to charge modern devices quickly and easily. Being a multi-functional product means that it has been carefully designed; the wall plate consists of two sockets, two switches, two neon lights and two USB ports, which means that the new product offers many features in one plate. Moreover, with socket contacts being thick (0.7 mm) and reliable, you will be able to use this socket for a long time.
We are a factory direct manufacturer who provides competitive wholesale pricing, OEM branding on any color PC panel, as well as a 12-year warranty for the whole R30 series lineup.
Phosphor Copper Sockets + 20W USB Charging — Durability Meets Fast Charging
The 20W MF USB dual socket is a perfect choice in situations of heavy use and fast recharge needs. Thanks to its 0.7mm phosphor copper contacts, the socket is able to restore to its previous position after it had been used 15,000 times. This is exactly the advantage needed in hotels and receptions where plugs are frequently put in and removed. Moreover, the USB module uses Type-C technology, which allows it to deliver an output of the standard Apple charger of 20W. It is also compatible with older generation USB-A devices. Thus, despite the fact that the 230V socket is off, the USB sockets are still operational.
Matching the R30 Series — 2 Gang MF USB Socket Within the Same Classic Aesthetic
This double MF white USB socket is a part of R30 series and utilizes same imported translucent PC panel materials which can be seen in the other products of R30 range. The size of the electrical equipment is 86 mm × 146 mm making it fit for other 2 gang types of electrical equipment made by R30.
Stock This 13A British Standard 2 Gang MF 20W USB Switched Socket in Four Colors at Factory Pricing
White, Gold, Gray, Black PC panel. Two independent 13A outlets with neons. Phosphor copper contacts. 20W USB-A + Type-C fast charging. OEM logo, custom packaging, 12‑year warranty included. Contact this phosphor copper USB socket manufacturer for a wholesale quotation.
IEC 60884 & IEC 62680 Certified • Phosphor Copper + 20W USB • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for R30 Series 2 Gang MF Phosphor Copper 20W USB Double Switched Sockets
Being a professional phosphor copper USB switched socket manufacturer, we are producing R30588C ourselves. It allows you to get 2 gang socket with the durability of phosphor copper and at the same time to enjoy 20W USB fast charging. Choose between Stock White color for general residential and hotel projects, Gold and Gray for premium interiors, and Black for modern commercial fit-outs. All colors contain 0.7 mm phosphor copper contacts, red copper switches, independent neon indicators, and the 20W USB module. R30408M model, which is two gang MF phosphor copper without USB, R30492C model – two gang DP brass with USB, and R30408 model – two gang SP brass standard, are among our other products this way allowing us to make a tiered range of two gang products made of different materials and switches and with possibility for providing all customers with charging solutions from one British standard double MF USB socket production site. OEM branding on any color PC panel, custom packaging, and full IEC 60884 and IEC 62680 documentation is available for wholesale distributors all over the world.
R30588C vs R30492C vs R30408M: Choosing the Right 2 Gang Socket — Phosphor Copper + 20W USB, DP + 20W USB, or MF No USB?
A practical guide to selecting the optimal 2 gang socket configuration for different use environments and priorities.
R30588C (Phosphor Copper + 20W USB) vs R30492C (DP Brass + 20W USB) — Durability or Safety?
If you need uncompromising durability of contact materials in your charging socket system, the phosphor copper fast charger R30588C will fit your needs perfectly. It is ideal for hotels, offices, and other settings with heavy plug insertions and removals often. The DP double USB socket R30492C, thanks to its double-pole switch and the lifespan of 30,000 cycles, is confident proof of commitment to electrical safety. This device can be used in kitchens, bathrooms, and any other areas where the full isolation of the live and neutral system is mandatory. Both sockets feature the same fast charging capabilities of 20W USB-A + USB-C ports, in addition to two independent 13A power outlets.
R30588C (Phosphor Copper + 20W USB) vs R30408M (Phosphor Copper, No USB) — 20W USB or No USB?
Both variants of the socket feature contacts made of 0.7 mm phosphor copper which ensure long-lasting durability of the devices. The USB-C included in the R30588C MF twin socket provides the capabilities of fast charging with 20W of power, making it a great choice for places where appliances require charging of smartphones and tablets simultaneously. The R30408M model is the one to use when no USB charging is needed or there are other alternatives to get the job done. In fact, the upgrade in phosphor copper contact could be bought with or without 20W of USB fast charging.
Finish Selection — Which Color for Your Installation?
White: Gold finish gives a warm feel to hotels and luxury homes. Gray finish looks neutral and modern, suitable for urban apartments and commercial buildings. Black finish gives a striking contrast and makes it good for classy interiors.
Frequently Asked Questions
What is a 2 gang MF USB switched socket?
A switched socket with two MF USB gang sockets comprises two 13A power connections and USB charging ports all of which are situated in one wall plate, featuring the MF design that combines sockets, switches, neon indicators, and USB ports in a single modular panel. Specifically, the model R30588C, the two gang MF switched socket that follows the British electrical norms features USB-C and USB-A each of which has its own switch and indicator lights, the two sockets are made up of 0.7mm thickness copper connectors, and the 20 W USB device can charge a smartphone and tablet simultaneously without utilizing the two power outlets.
What is the difference between phosphor copper and brass socket contacts?
Compared to 62 brass, phosphor copper possesses greater elasticity—its spring tension and pin grip persist through far more insertion cycles without sustaining gradual relaxation affected brass contacts. For socket outlets, R30588C employs 0.7mm high phosphor copper—making it fit for high traffic applications such as hotel rooms, office desks, and busy kitchens. Meanwhile, R30492C employs 62 brass contacts fitted with DP switches, indicating a different combination of priorities.
Does the USB still charge when both socket switches are off?
Indeed, the USB-A and USB Type-C ports are independent of both SP switch sockets. The USB module draws power directly from the supply. Thus, devices can continue charging, even with both 13A sockets switched off. The two neon indicators display status only with regard to the sockets as they do not indicate USB power, which is present as long as the power circuit is switched on at the consumer unit.
What colors is this British standard 2 gang MF phosphor copper USB socket available in?
The R30 Series Double Gang MF Switch Socket with phosphor bronze contacts and 20W USB is presented in four colors of the PC panel. The first color is White, which is a universal color for homes and industries; the second color is Gold, which is perfect for hotel suites and luxury interiors; the third color is Gray, which is the color for contemporary homes and offices; and the last color is Black, which is for industrial applications. All the colors of the products are made of the same high‑quality material and have the same warranty of 12 years from the manufacturer.
