SPECIFICATIONS
| Series | T-D series |
| Item Codes | TD11M35 (1 Way) | TD12M35 (2 Way) |
| Description | 1 Gang Switch with 3P Socket / Switched Socket Combo |
| Socket Rating | 15A / 250V~ |
| Socket Type | 3P socket with rocker switch |
| Switch Type | 1 Way (TD11M35) or 2 Way (TD12M35) |
| Switch Lifespan | 100,000 cycles |
| Socket Lifespan | 15,000 cycles (socket insertion) |
| Front Panel | Imported high‑transparent, high‑strength PC |
| Base | Imported high‑transparent, high‑strength PC |
| Middle Plate | Steel middle plate |
| Switch Contact | High quality copper, silver touch point |
| Socket Contact | High quality phosphor copper |
| Standards | IEC 60884 / BS1363 |
| Warranty | 12 Years |
| Available Finishes | White + Chroming Gold / Black + Chroming Gun / Gray + Chroming Silver / Gold + Chroming Gold / White / Black / Gray |
| Dimensions | H 81.5mm × W 120mm |
| MOQ | Contact sales team |
| Packaging | 1 pc per plastic bag | 10 pcs per inner box | 100 pcs per outer carton |
1 Way vs 2 Way Switch Socket — Two Control Options for Different Room Layouts
| Feature | TD11M35 (1 Way) | TD12M35 (2 Way) |
|---|---|---|
| Switch Function | Controls socket from one location only | Controls socket from two separate locations |
| Typical Room | Bedroom, living room, kitchen — standard single‑point control | Large room with two entrances, corridor, stairway |
| Wiring | Live to common, switched live to socket from L1 | Two traveler wires between L1 and L2 on both paired switches |
Seven Chroming Finishes — A Switch Socket That Matches Your Interior
| Finish | Description |
|---|---|

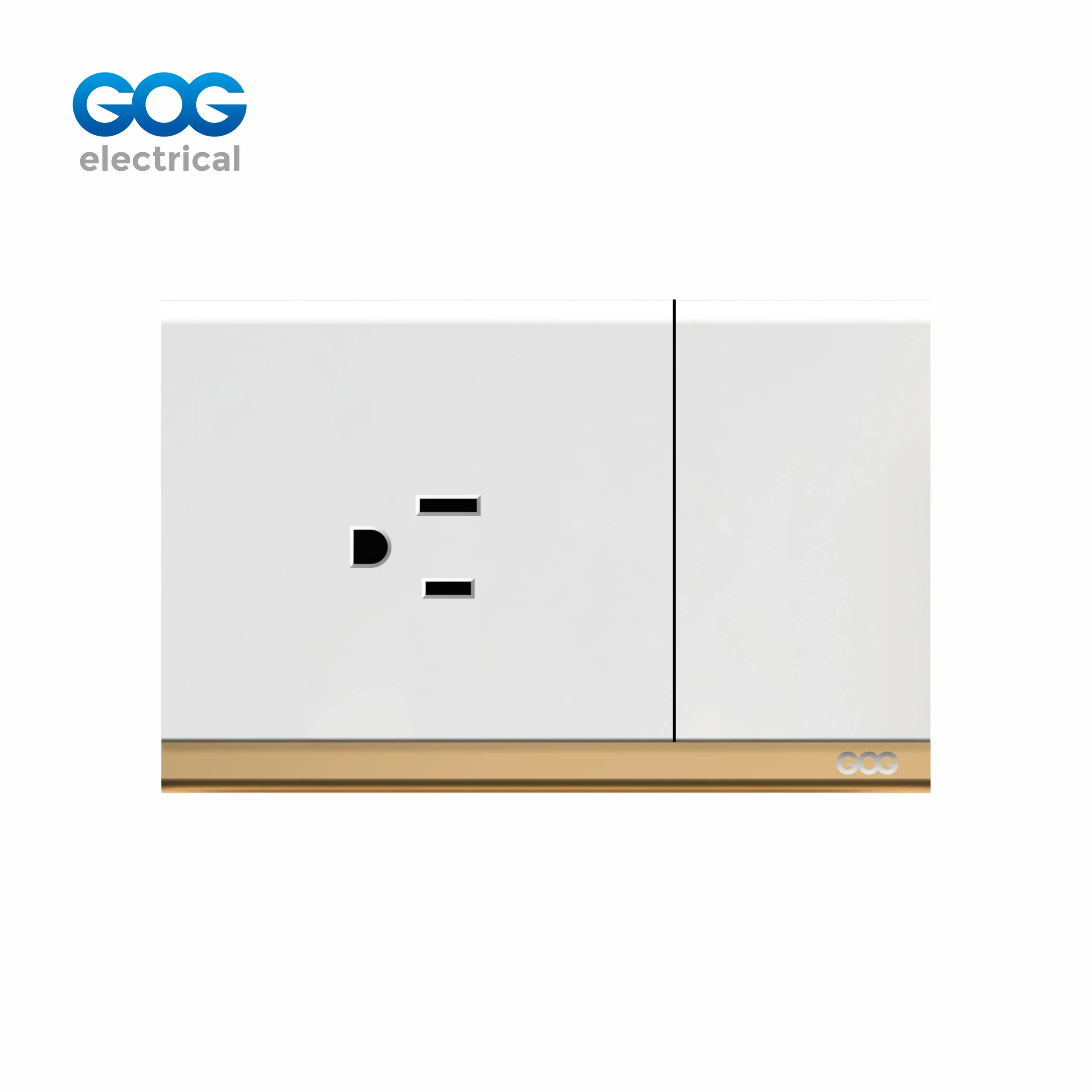

| White + Chroming Gold | Pure white panel framed with a warm gold metallic border. |
| Black + Chroming Gun | Deep black panel with a cool gunmetal metallic accent. |
| Gray + Chroming Silver | Neutral gray panel with a subtle silver metallic border. |
| Gold + Chroming Gold | Warm gold panel with a matching gold metallic frame. |
Chroming 15A Switched Socket with 3P Socket — Switch & Socket Combo

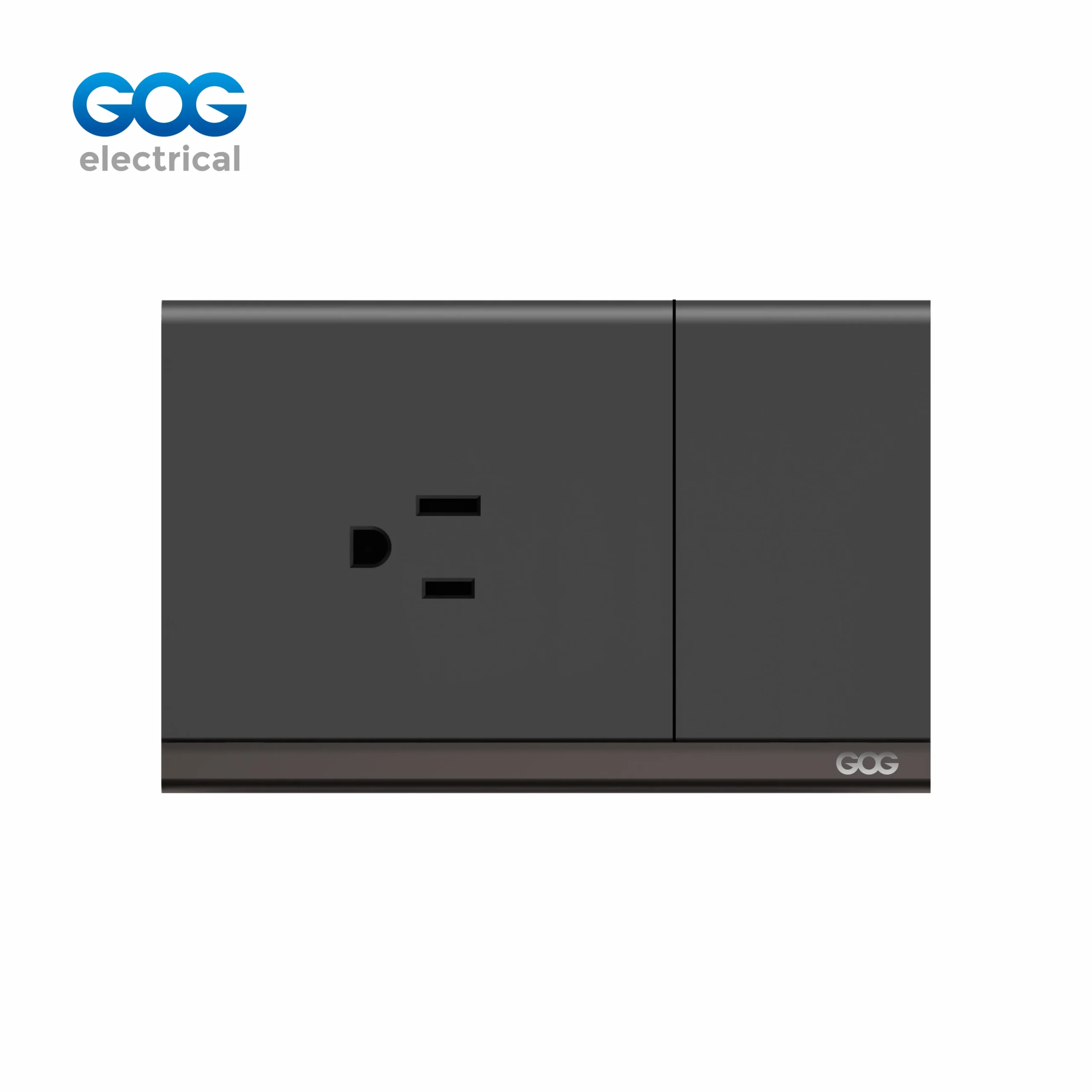

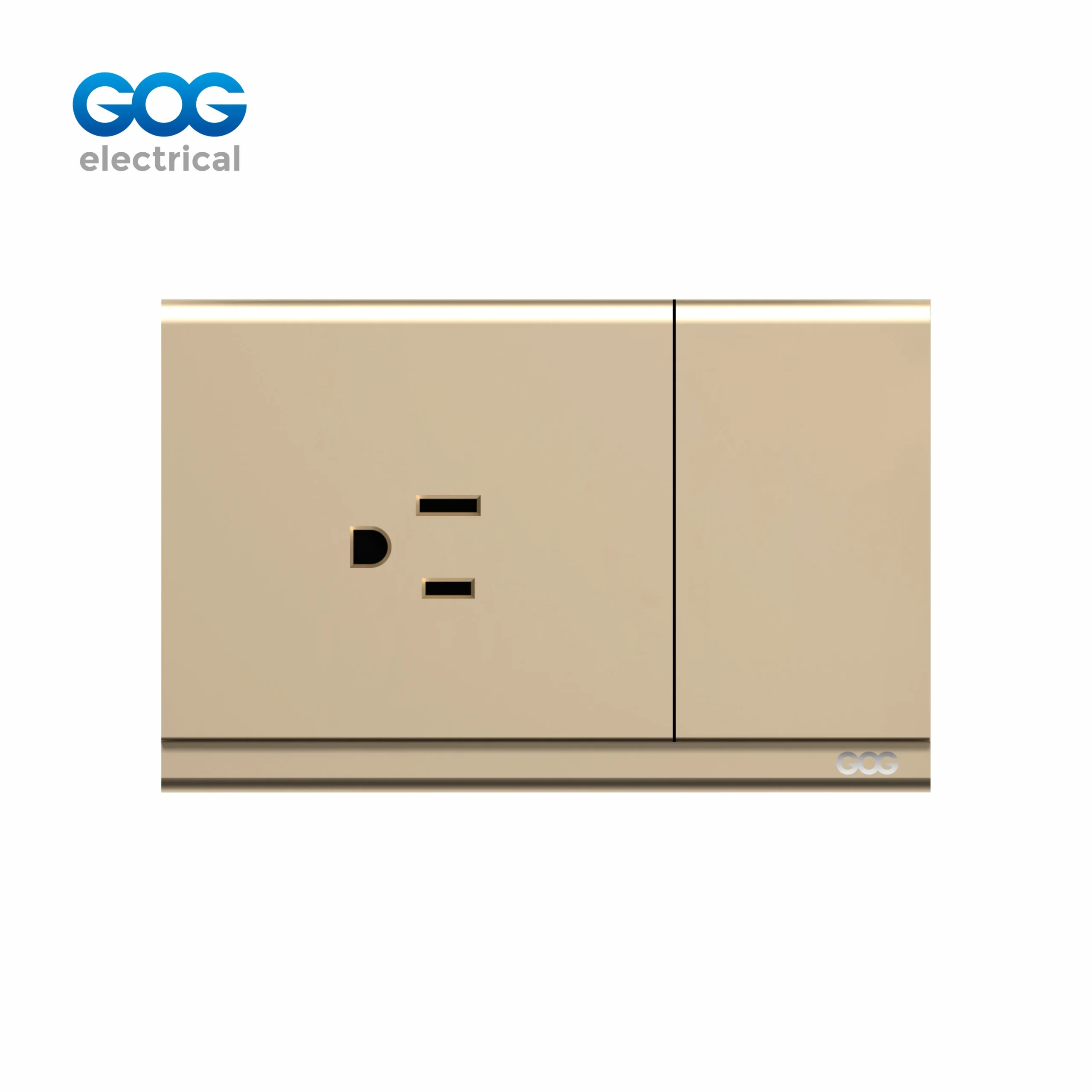

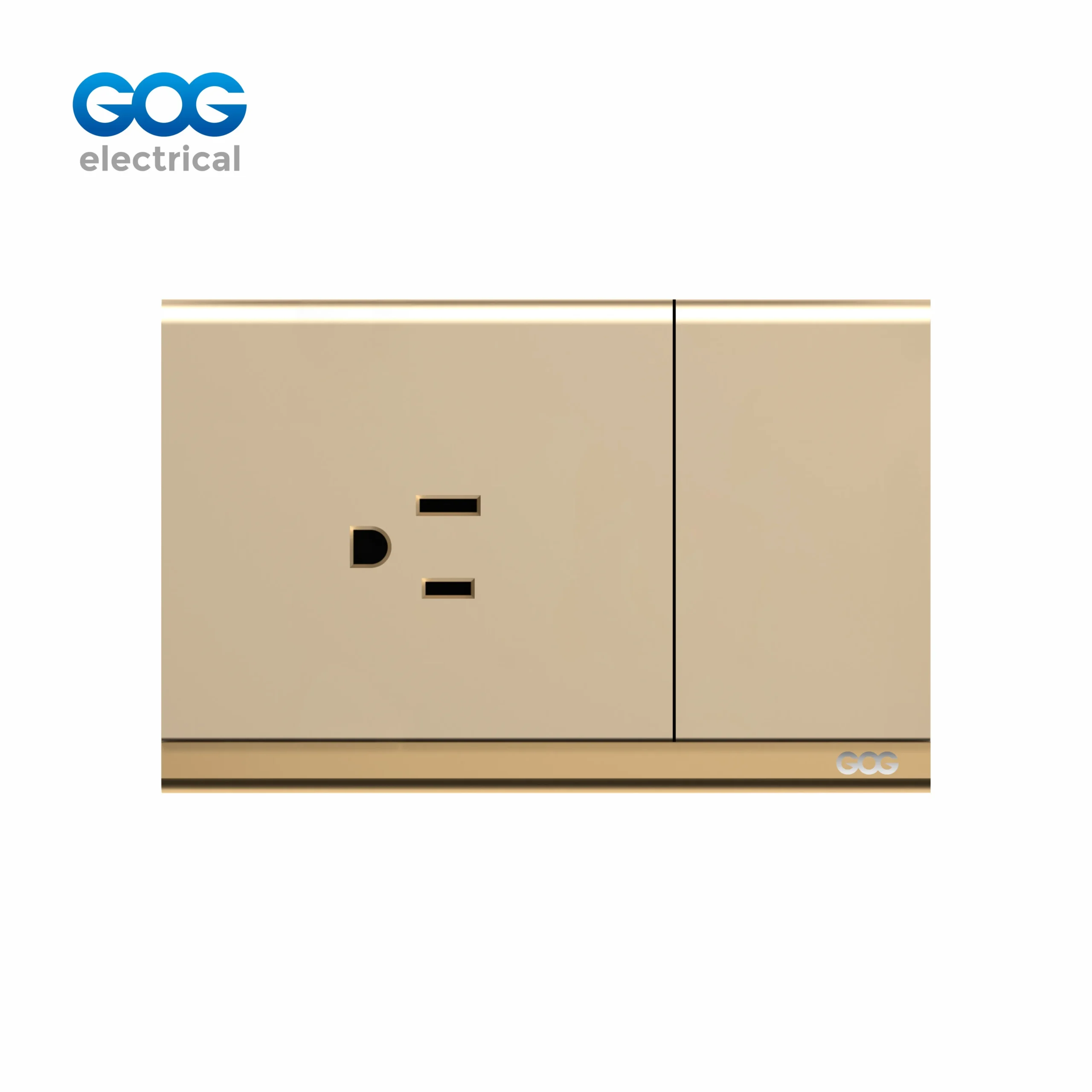

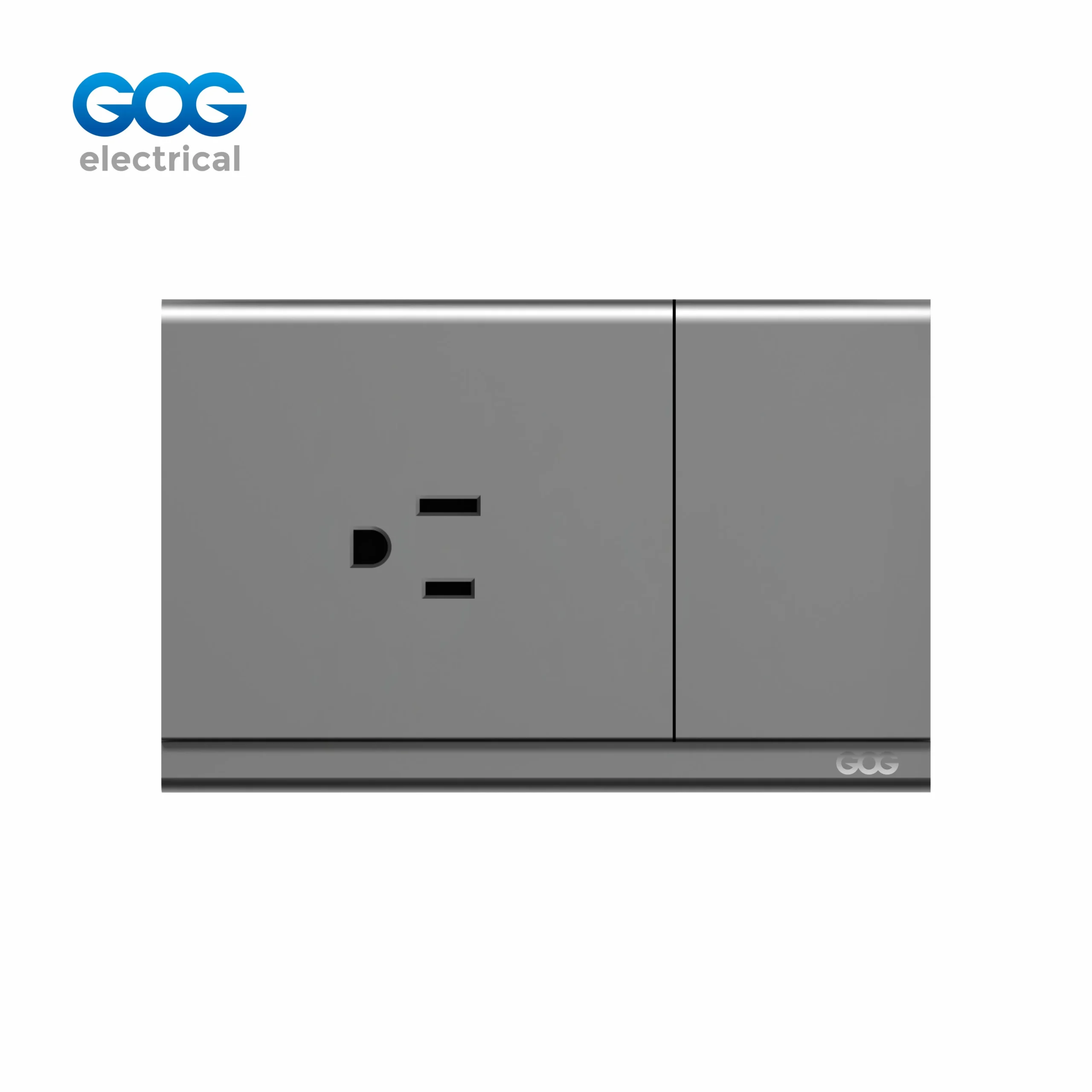

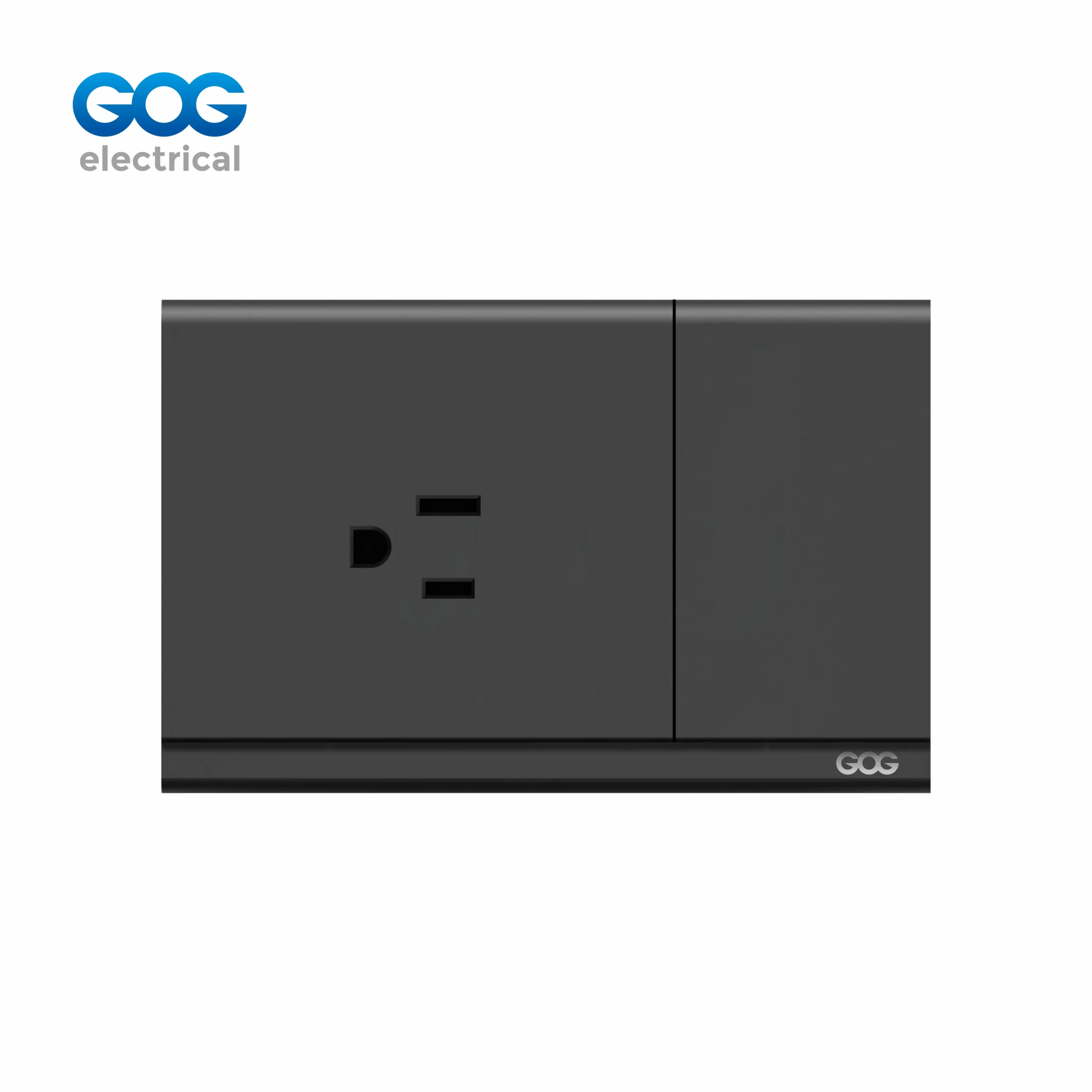

Manufactured by T-D, the TD11M35/TD12M35 is a switchable 15A chromed socket with an integrated 3-pole power plug layout with vertical switch incorporated on a wall plate measuring 81.5mm by 120mm. The combination switch saves the need for separate power switch and socket back boxes as this single device does dual functions at once. The rocker switch turns on and off the socket directly so that there is no need to unplug the device. The device comes in two models providing a single switch for an installation at a single site or two-way switch for controlling functions from two locations. The switch mechanism is composed of copper and silver contacts, which give service for more than 100,000 operations while the socket connects with the use of high quality phosphor copper tape ensuring strong contacts with pin retention ability after connecting more than 15,000 times. This socket comes in seven distinct chrome metallic appearance versions that coordinate with T-D designs. The central plate is made of steel.
Our factory makes us a direct manufacturer that offers wholesale prices that are competitive, OEM branding for any color of the PC panel, and comes with a warranty of 12 years for all the T-D series of products.
100,000 Cycle Switch + 15,000 Cycle Socket — Two Independent Lifespan Ratings
The chrome switch socket is assigned with two different lifespan ratings as both the switch and the socket are designed separately from each other. The switch has a rocker mechanism that has been given a rating of 100,000 operating cycles because of its premium copper and silver points. The contacts of the socket which are made from phosphor copper have been rated for 15,000 insertions. The steel middle plate strengthens the 81.5×120 mm enclosure by ensuring that it remains aligned and does not flex when the switch is turned on or the socket is plugged in. The high-strength and high-transparent PC panel has provided a high-quality finish on top of the chrome details reminiscent of other panels of the series. It conforms to IEC 60884 and BS1363 standards.
Matching the T-D Series — Switch Socket in the Same Chroming Finish
The white plastic PC socket featuring chrome accents belongs to the T-D series, which shares the same dimensions of 81.5 × 120 mm, imported high-transparency PC panel material, and the same seven chromatic finishes with T-D family switches. The socket and switch can be installed together in the same room, i.e., having identical panel profile, materials, and chromatic accents.
Stock This Chroming 15A Switched Socket at Factory Pricing
Seven chroming metallic-accent finishes. 1 way & 2 way switch with 3P socket. Phosphor copper socket contacts. OEM logo, custom packaging, 12‑year warranty included. Contact us for a wholesale quotation.
IEC 60884 & BS1363 Certified • 100,000 Switch Cycles • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for Chroming Switch Socket Combos with 3P Socket
The TD11M35/TD12M35 switched socket incorporates the upgraded chroming switch socket combination choice into your T-D catalogue of products. The product offers the T-D colour palette of seven attractive metallic finishes, that is to say pure colours and chromed colours with Gold, Gun and Silver finishes. A single way and a double way switch configuration can be offered to clients of the TD series. Items should be sold alongside switches of the T-D series to offer clients a full matching range of sockets and switches. The OEM branding is available in any colour combination with custom-made packaging.
Choosing the Right Chroming Switched Socket: 1 Way vs 2 Way, Finishes & Installation
A practical guide to specifying and wiring a switch socket combo for residential and commercial power outlet installations.
1 Way vs 2 Way — Which Switch Type Do You Need?
The TD11M35 (one-way) operates a socket from a single point, which is the typical arrangement for bedrooms, living rooms, and other areas of a house. But with the TD12M35 (two-way), the same socket can be controlled from two different positions, which is a great option in a large room with two doors or in corridors or staircases where it’s necessary to use the socket from either side. However, for standard installations in most single rooms, the one-way option is the right choice.
Finish Selection — Which Chroming Color for Your Room?
White + Chroming Gold: Traditional warm tones – white panel with metallic gold rim. Black + Chrome: modern look – dark panel with cool gunmetal detail. Color combination: gray + chrome silver – an understated style – neutral background with brownish color rim. Gold + Chrome – a luxurious look with warm gold accents for the panel and frame to match.
Wiring & Installation
The TD11M35/TD12M35 is compatible with a 81.5×120mm back box. When making the 1 way connections in the switch, the live wire should be connected to the common terminal of the switch, while the switched live wire should be connected from L1 to the socket. To connect the 2 way wires, connect the traveler wires from L1 and L2 on both TD12M35 units. The socket contacts made with phosphor bronze are compatible with the plug type 3P.
Frequently Asked Questions
What is a switched socket with a 3P socket?
The 3P socket switch has both a rocker switch and 3-pin power outlet, combined in one wall plate. The TD11M35/TD12M35 is an electrical switching socket which gives the user ease of controlling the 3P socket and the electrical appliance remotely without unplugging it.
What is the difference between 1 way and 2 way on this switch socket?
A 1-way switch (TD11M35) is designed to operate a socket from a single point, which is the usual arrangement for most rooms. A 2-way switch (TD12M35) allows control of the socket from two different switch positions, making it suitable for big rooms with two doors or corridors. Both designs have a rating of 15A, use phosphor bronze contacts, and feature a chromium plated finish.
Does the switch control the socket completely?
Indeed, the rocker switch located on the TD11M35/TD12M35 model guarantees complete power isolation for the three-phase outlet. Therefore, with the rocker switch turned off, the outlet is completely isolated from the power supply. Whereas when switched on, the outlet acts as a regular power outlet. The switch mechanism is durable and can last for at least 100,000 cycles.
What chroming finishes is this switch socket available in?
The TD11M35/TD12M35 has seven unique finishes to match the T‑D series color palette: White, Black, Gray, White + Chroming Gold, Black + Chroming Gun, Gray + Chroming Silver, and Chroming Gold. The chroming finishes have a metal edge, which may be Gold, Gun, or Silver.
