SPECIFICATIONS
| Series | T-D series |
| Item Code | TDDSF5 |
| Description | TV + Telephone Combo Wall Socket |
| TV Connector | Belling-Lee / IEC (push-in coaxial) |
| Telephone Connector | RJ11 (telephone/data) |
| Front Panel | Imported high‑transparent, high‑strength PC |
| Base | Imported high‑transparent, high‑strength PC |
| Middle Plate | Steel middle plate |
| Standards | IEC 60670‑1:2015, EN IEC 60670‑1:2021/A11:2021 |
| Warranty | 1 Year (electronic product warranty) |
| Available Finishes | White + Chroming Gold / Black + Chroming Gun / Gray + Chroming Silver / Gold + Chroming Gold / White / Black / Gray |
| Dimensions | H 81.5mm × W 120mm |
| MOQ | Contact sales team |
| Packaging | 1 pc per plastic bag | 10 pcs per inner box | 100 pcs per outer carton |
TV + Tel Combo vs Separate TV and Telephone Sockets — One Panel, Two Connections
| Feature | TDDSF5 TV + Tel Combo | Separate TV + Telephone Sockets |
|---|---|---|
| Wall Space | One 81.5×120mm panel — cleaner aesthetic | Two separate 81.5×120mm panels — more wall clutter |
| Back Boxes | One single gang back box | Two single gang back boxes, or one double gang box |
| Installation | One panel to fit — faster, less cable management | Two panels to align — takes longer |
| Best For | Living rooms, studies — TV + phone from one wall position | Locations where TV and phone are separated |
Seven Chroming Finishes — A TV + Tel Combo Socket That Matches Your Interior
| Finish | Description |
|---|---|

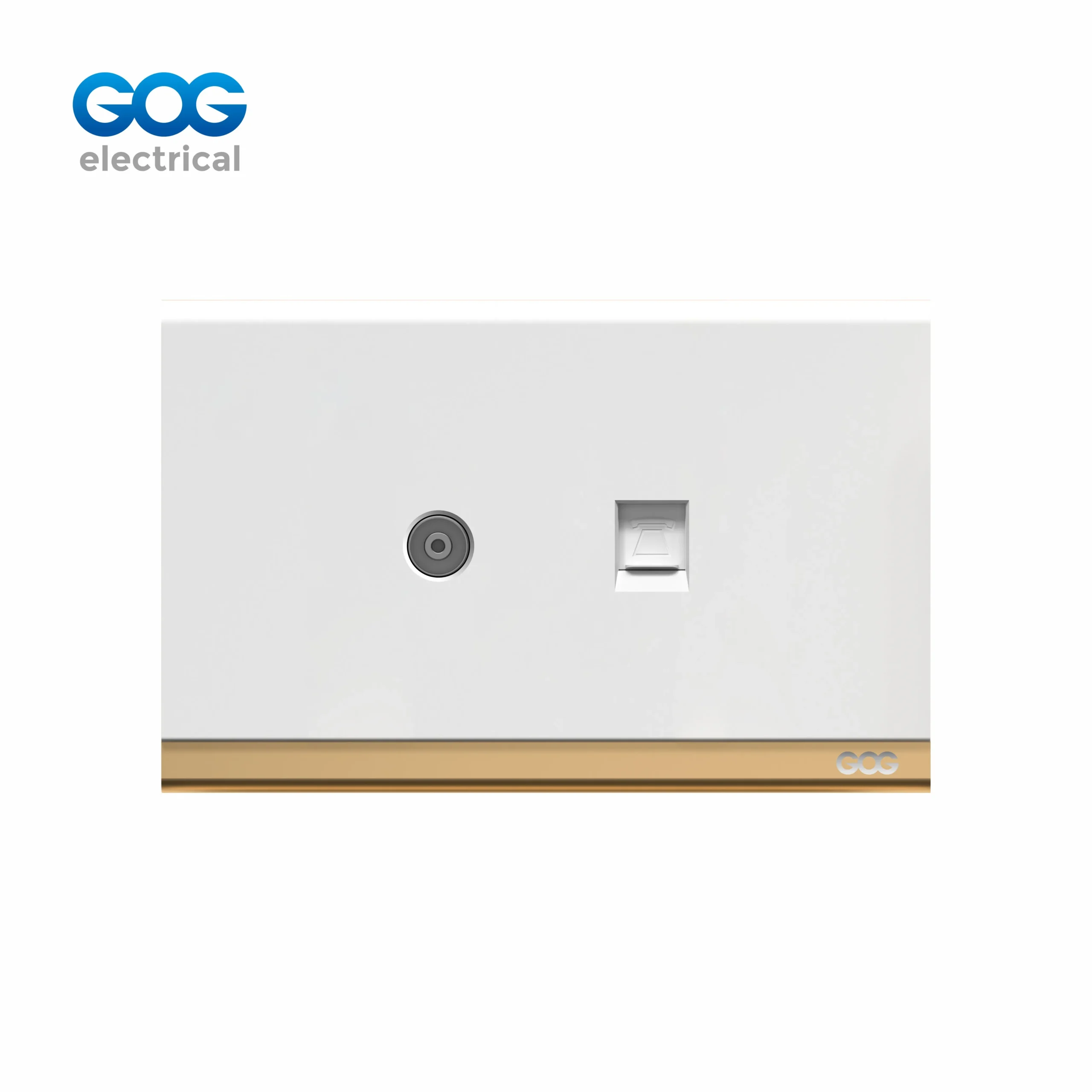

| White + Chroming Gold | Pure white panel framed with a warm gold metallic border. |

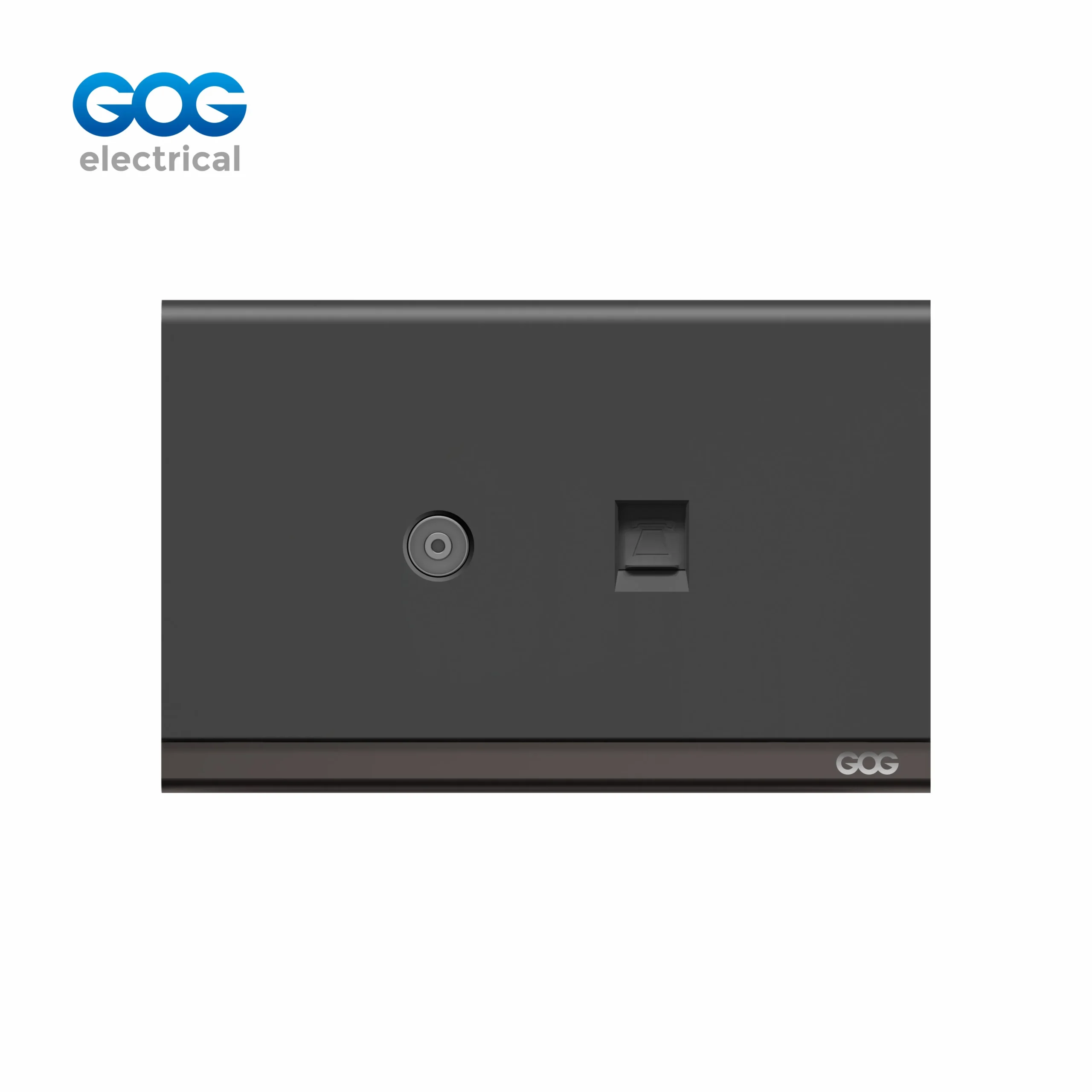

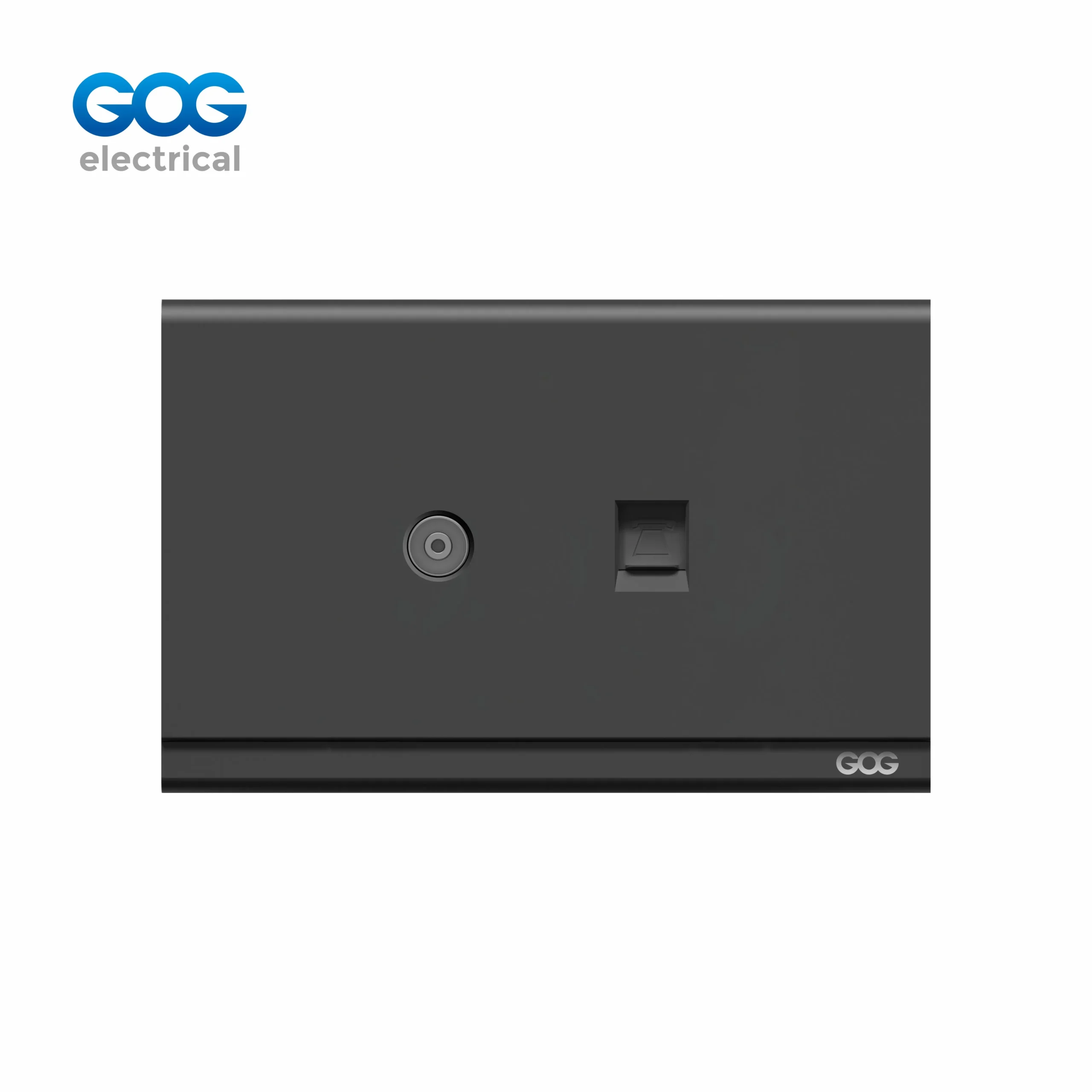

| Black + Chroming Gun | Deep black panel with a cool gunmetal metallic accent. |

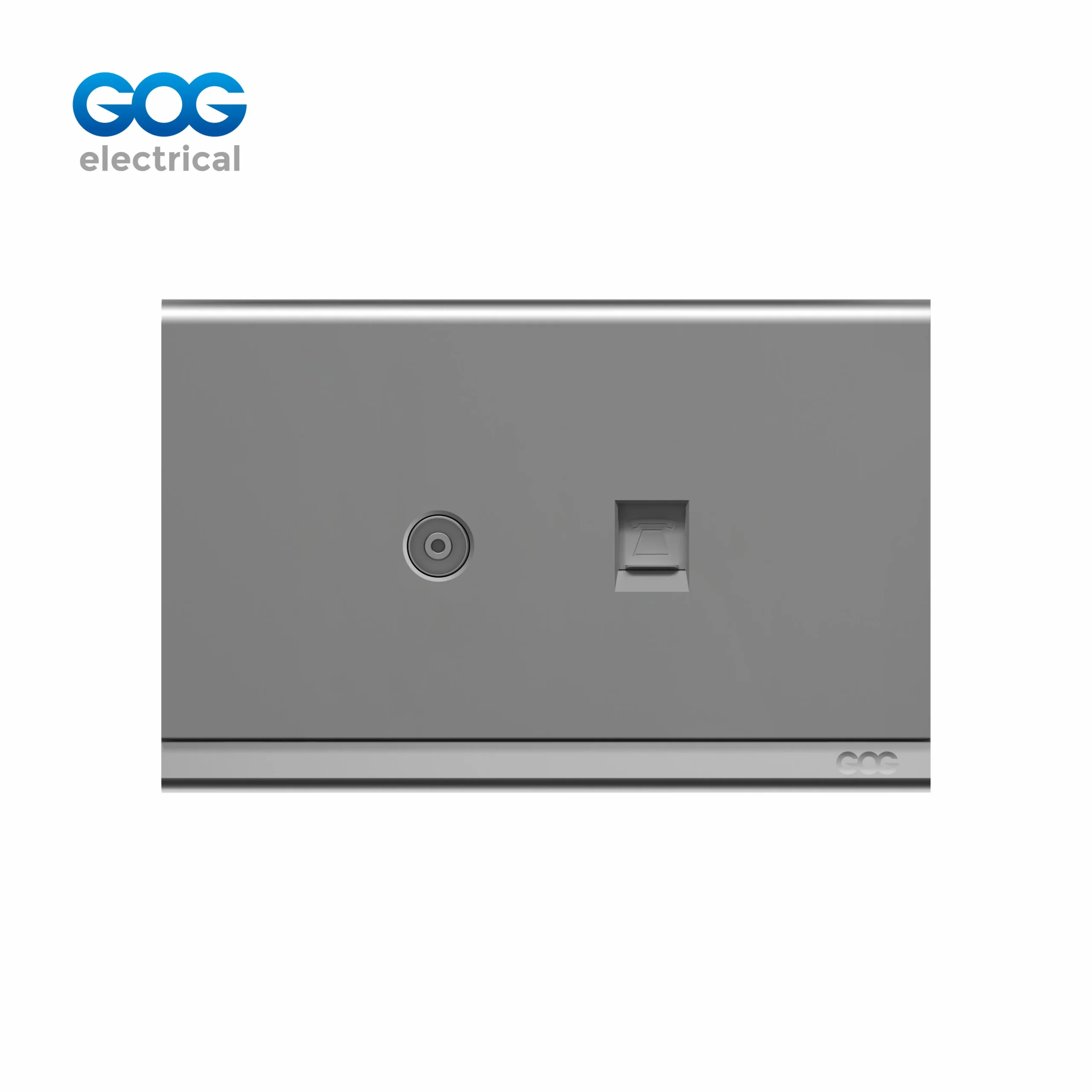

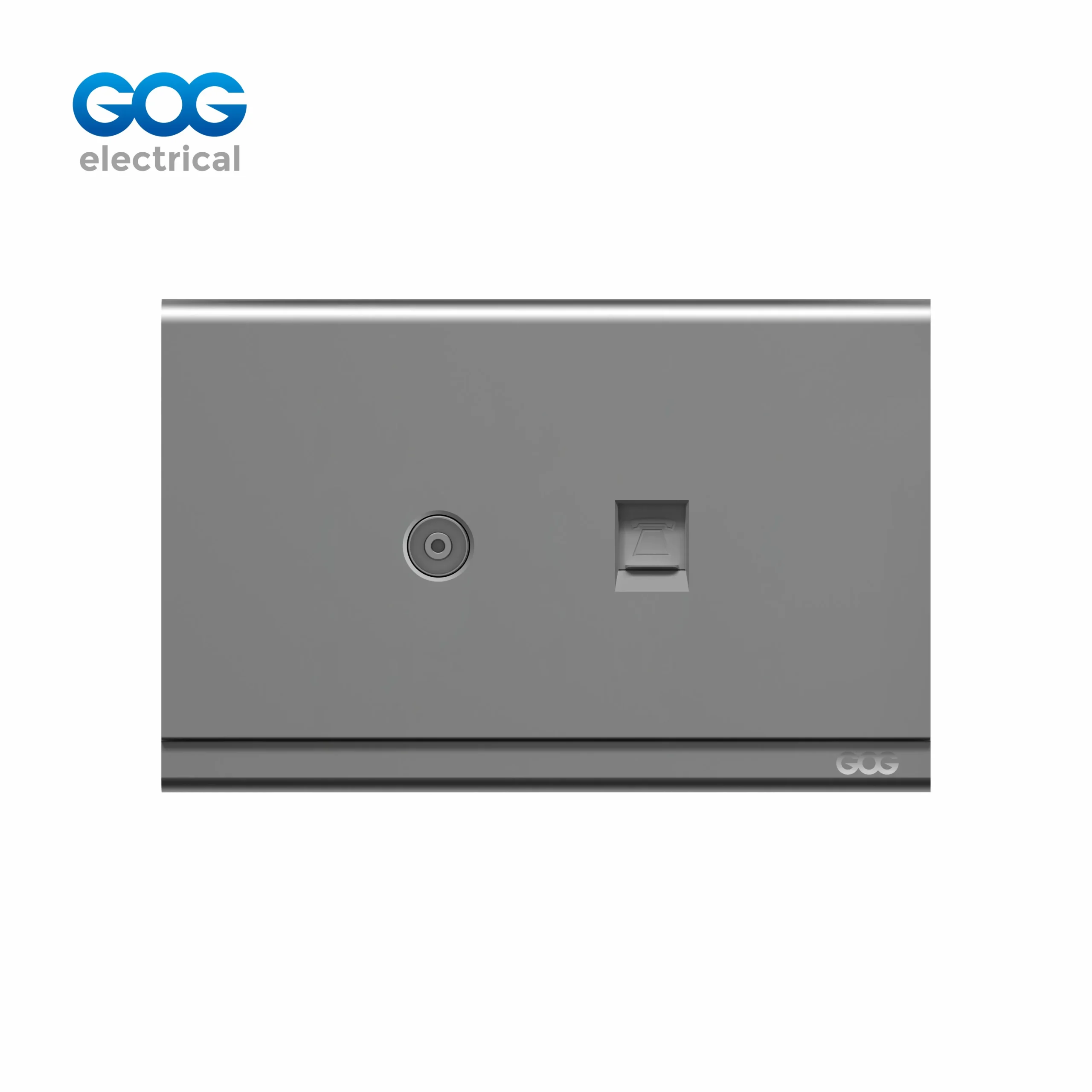

| Gray + Chroming Silver | Neutral gray panel with a subtle silver metallic border. |

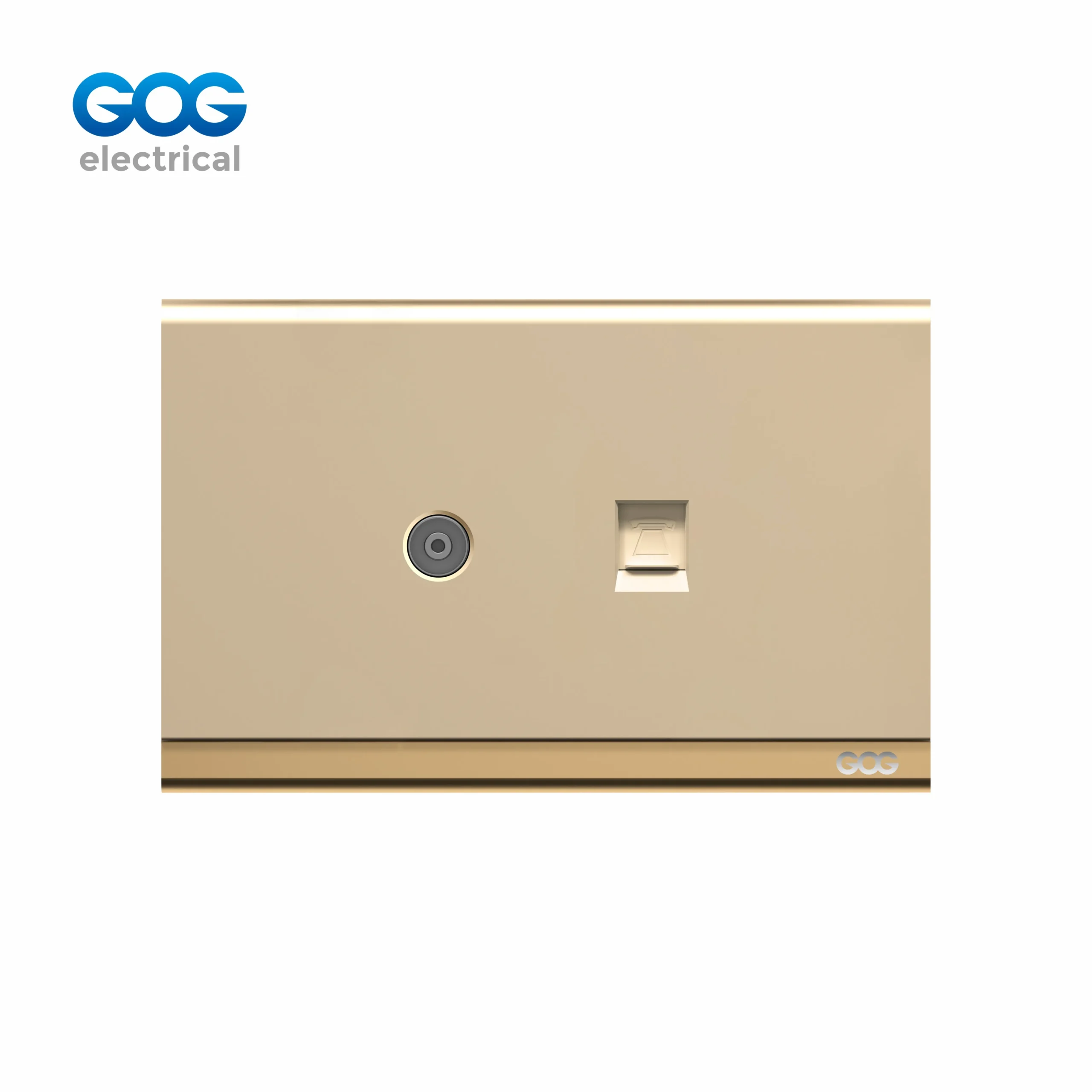

| Gold + Chroming Gold | Warm gold panel with a matching gold metallic frame. |
Chroming TV + Telephone Combo Socket — Dual Belling-Lee & RJ11 Wall Socket
TDDSF5 is a Television and Telephone socket which integrates Belling-Lee/IEC Television aerial socket and RJ11 telephone socket in one compact 81.5 x 120 mm wall plate. The TDDSF5 provides a combined solution for both devices and saves on needing two separate wall plates, one socket for back box, and one installation for both devices. The Television socket allows for connection of Standard coaxial aerial cables for Freeview and digital terrestrial television. The RJ11 telephone socket acts as a telephone and broadband socket. The Television and telephone sockets are recessed in the panel allowing cables to not protrude out of the wall or stand out. The product is made available in seven different finishes in the metallic category.
As a premier manufacturer, we provide factory-direct items at the best prices and also offer OEM branding for any color of the PC panels and a warranty for one year on all products from the T-D series.
TV Aerial + Telephone — The Two Most Common Communication Connections in One Panel
The chromed connection point solves a common problem in living rooms and offices. Usually, both the TV connection and telephone line have to finish at the same location on the wall, behind the TV or table. The double coaxial additional connection ceramic combines the two connection points into one panel. The Belling-Lee and IEC connection types receive the terrestrial signals, while the RJ-1 U connection receives the regular phone and ADSL signals. All the connections are passive and need no mains connection. The middle steel panel strengthens the connection during installation. It is covered by IEC 60670-1:2015 and EN IEC 60670-1:2021/A11:2021.
Matching the T-D Series — TV + Tel Combo Socket in the Same Chroming Finish
This socket is white, has a TV outlet and is the same size as any other T-D series sockets, meaning it measures exactly 81.5 x 120 mm and is made of the same transparent PC material that was imported and used in other sockets. There are seven colors used for chroming these sockets. The socket has to be mounted with other T-D series products in the same room as everything has the same panel profile, design, materials and chroming colors as this socket. When using the socket for media purposes, there is a possibility to use it with other power sockets to achieve the effect of an integrated media wall on your flat.
Stock This Chroming TV + Tel Combo Wall Socket at Factory Pricing
Seven chroming metallic-accent finishes. Belling-Lee TV aerial + RJ11 telephone connector in one panel. OEM logo, custom packaging, 1‑year warranty included. Contact us for a wholesale quotation.
IEC 60670 Certified • TV + Tel Combo • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for Chroming TV + Telephone Combo Wall Sockets
The TDDSF5 TV + telephone combo socket adds a new combination to the existing T-D series range. One can choose from seven metallic color finishes to get complete T-D range from pure colors to chromatic finishes that are available in Gold, Gun and Silver colors. With the help of the Belling-Lee / IEC TV terminal and RJ11 telephone connector, the two most widely used termination units for domestic and industrial use are now available. So, together with the TDDS5 socket (TV only), T-D socket and T-D switched sockets why not stock a complete range of wiring accessories manufactured in the same factory coming with consistent size of 81.5x120mm. Don’t forget that OEM branding is possible for touches such as colored PC panel, branded packing and required IEC 60670 marking.
TV + Tel Combo vs Separate Sockets: Choosing the Right Communication Wall Plate
A practical guide to specifying TV, telephone, and combo wall sockets for residential and commercial communication installations.
TDDSF5 (TV + Tel Combo) vs TDDS5 (TV Only) — Combo or Single Function?
The TDDSF5 TV afnd telephone combo socket combines a Belling-Lee/IEC TV aerial socket with an RJ11 phone socket in one panel, being suitable for those locations where both services can be used. However, the TDDS5 is a better alternative for areas where there is only a need for a TV aerial point. The combo socket saves one back box and results in the wall being neater by having two sockets instead of a combination of several sockets. Both sockets come in the same dimensions of 81.5×120 mm and in the same seven finishes.
Finish Selection — Which Chroming Color for Your Media Room?
White + Chroming Gold: Classic warm level – white surface with gold metallic edge. Black + Chrome Gun: Funky modern look – black surface with cool gunmetal detail, perfect for cinema rooms. Gray + Chrome Silver: Understated modern style – neutral background with discreet silver frame. Gold + Chrome Gold: Top-notch impression – golden surface with matching gold frame. Pure White, Black and Grey models are also available without chroming for those who value minimalist design.
Installation
The TDDSF5 can be installed in a regular single gang back box of 81.5×120mm dimension, where the two inputs (television and telephone) share the same box. A coaxial cable with Belling‑Lee connector should be used for television connection and standard telephone cable (with RJ11 connector) for telephone connection. Make sure that the minimum bend radius of the cables is respected by using the proper type of back box.
Frequently Asked Questions
What is a TV + telephone combo wall socket?
A wall socket that is both a TV and a phone socket combines a TV aerial and RJ11 phone socket in one wall socket. The TDDSF5 is a combination of TV and phone socket available in chrome finish. This means that the user can get a wall socket for TV Aerial and the phone connection from one panel measuring 81.5×120 mm, removing the need for two different sockets in the same location.
Does the RJ11 connector work for broadband?
The RJ11 port of the TDDSF5 is configured for normal phone connections and ADSL/VDSL broadband services. It accommodates the standard RJ11 jacks which are typically used for phones and broadband filters. For Ethernet connections however an RJ45 data port is necessary as RJ11 and RJ45 connectors are different physically and therefore incompatible.
Do the TV and telephone connectors require separate wiring?
It is right that the connectors for TV and telephone are separate from each other. The coaxial cable from the TV antenna or distribution amplifier ends with TV connection. Meanwhile, the telephone wire is connected to the master socket or telephone distribution box. Both wires are fed into the same back box that measures 81.5×120mm but connect through different terminals at the socket.
What chroming finishes is this TV + tel combo wall socket available in?
The TDDSF5 comes in seven finishes that correspond to the palette of the T-D series: White, Black, Gray, White + Chroming Gold, Black + Chroming Gun, Gray + Chroming Silver, and Gold + Chroming Gold. In the chroming versions, there is a metal frame in Gold, Gun, or Silver which becomes a significant design feature providing the same appearance on the wall as the devices of T-D series.
