SPECIFICATIONS
| Series | DN70 series |
| Item Code | DN70492C |
| Description | Double 13A DP Switched Socket with USB-A + Type-C, Neon, Fast Charging |
| Socket Rating | 13A / 250V~ per socket |
| Socket Configuration | Double — two independent 3 pin outlets |
| Switch Type | DP (Double Pole) with neon indicator per socket |
| USB Ports | 1 × USB‑A + 1 × Type‑C, fast charging |
| Target Markets | Kuwait, GCC, Saudi Arabia, Malaysia, British standard countries |
| Front Panel Options | PC / Tempered Glass / Brushed Aluminum |
| Base | PC |
| Middle Plate Options | Steel / Plastic‑wrapped steel |
| Switch Internal | Red copper, Φ3.0×25mm silver alloy touch point |
| Socket Contact | 0.6mm phosphor copper with fix circle ring |
| Standard | IEC Standard (British standard countries) |
| Warranty | 12 Years |

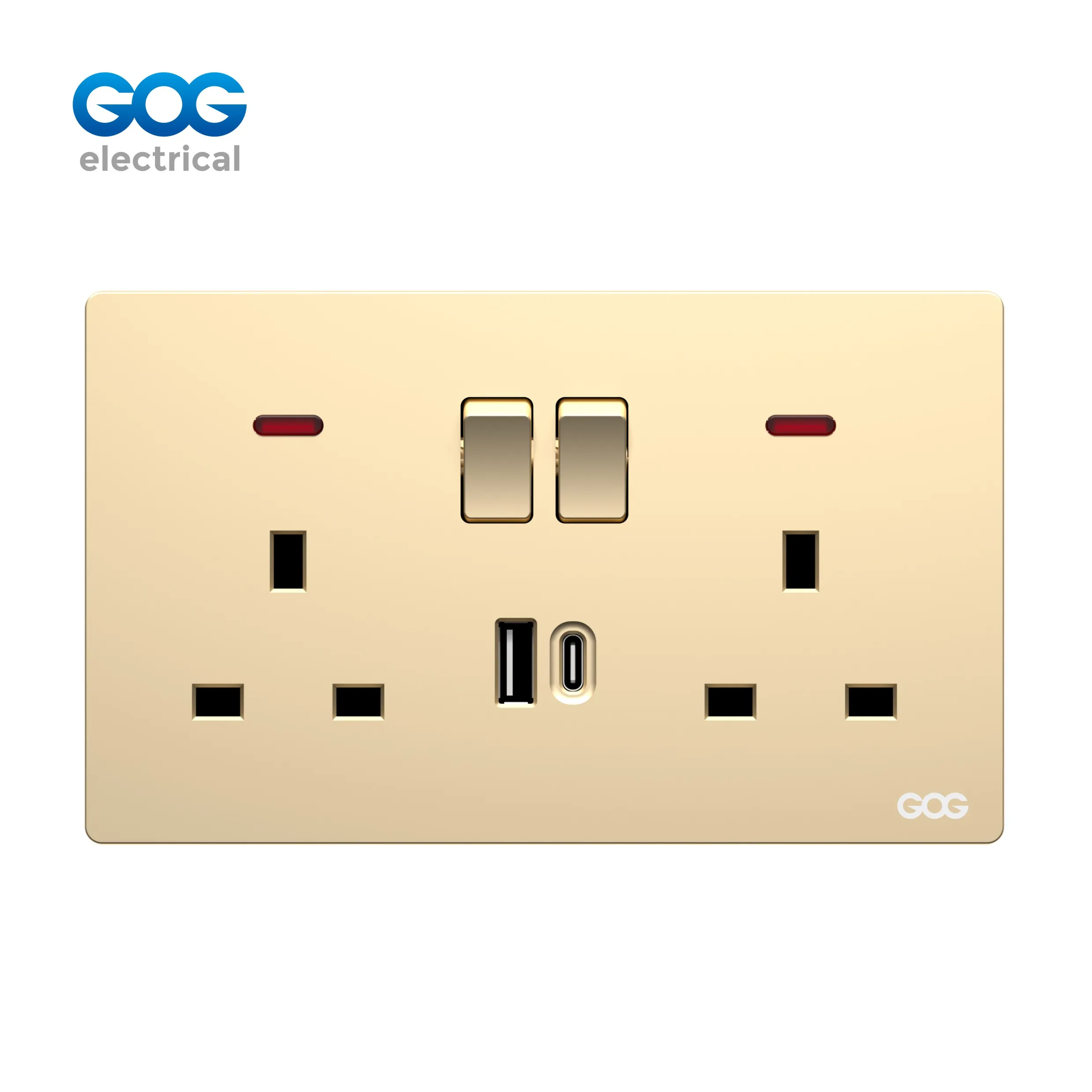

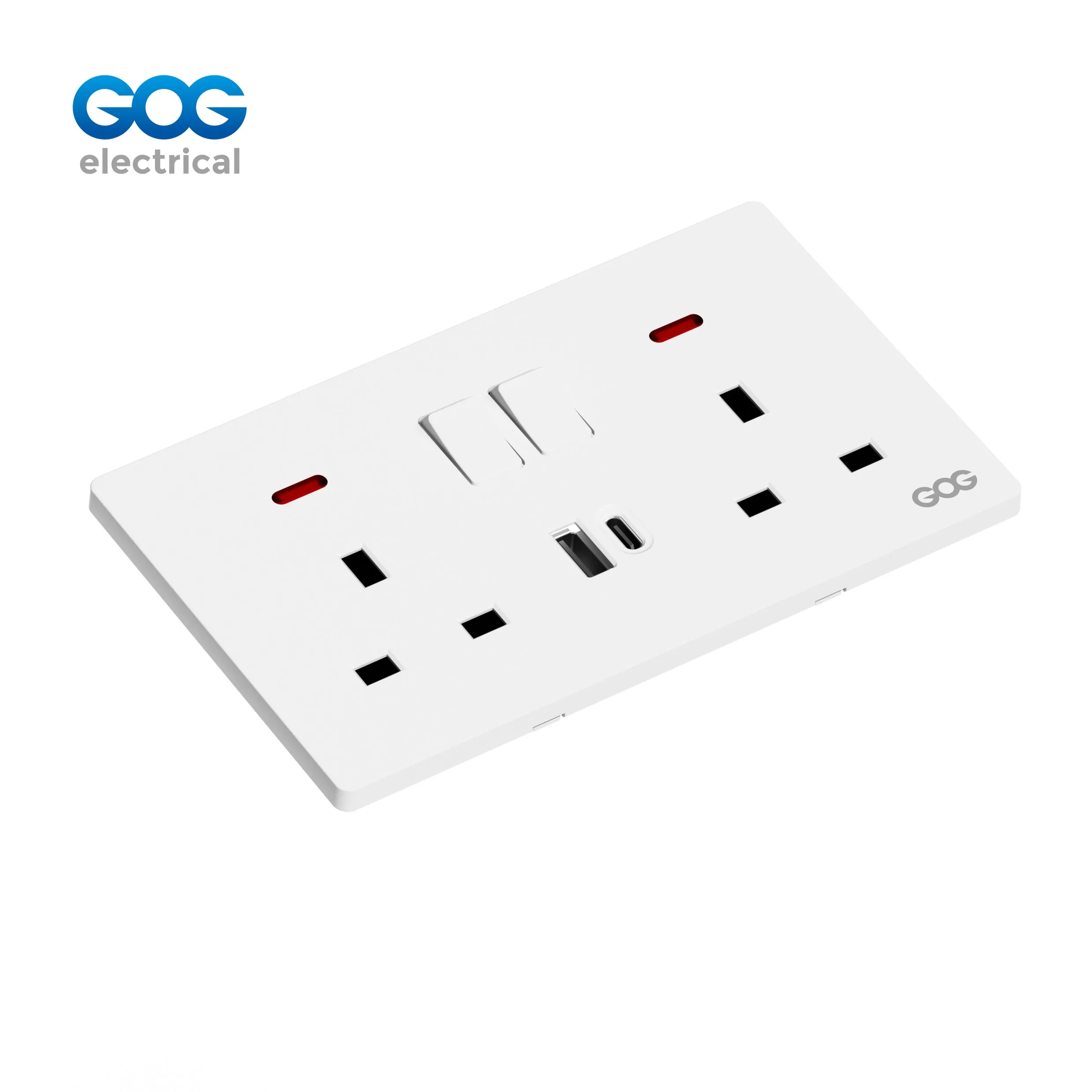

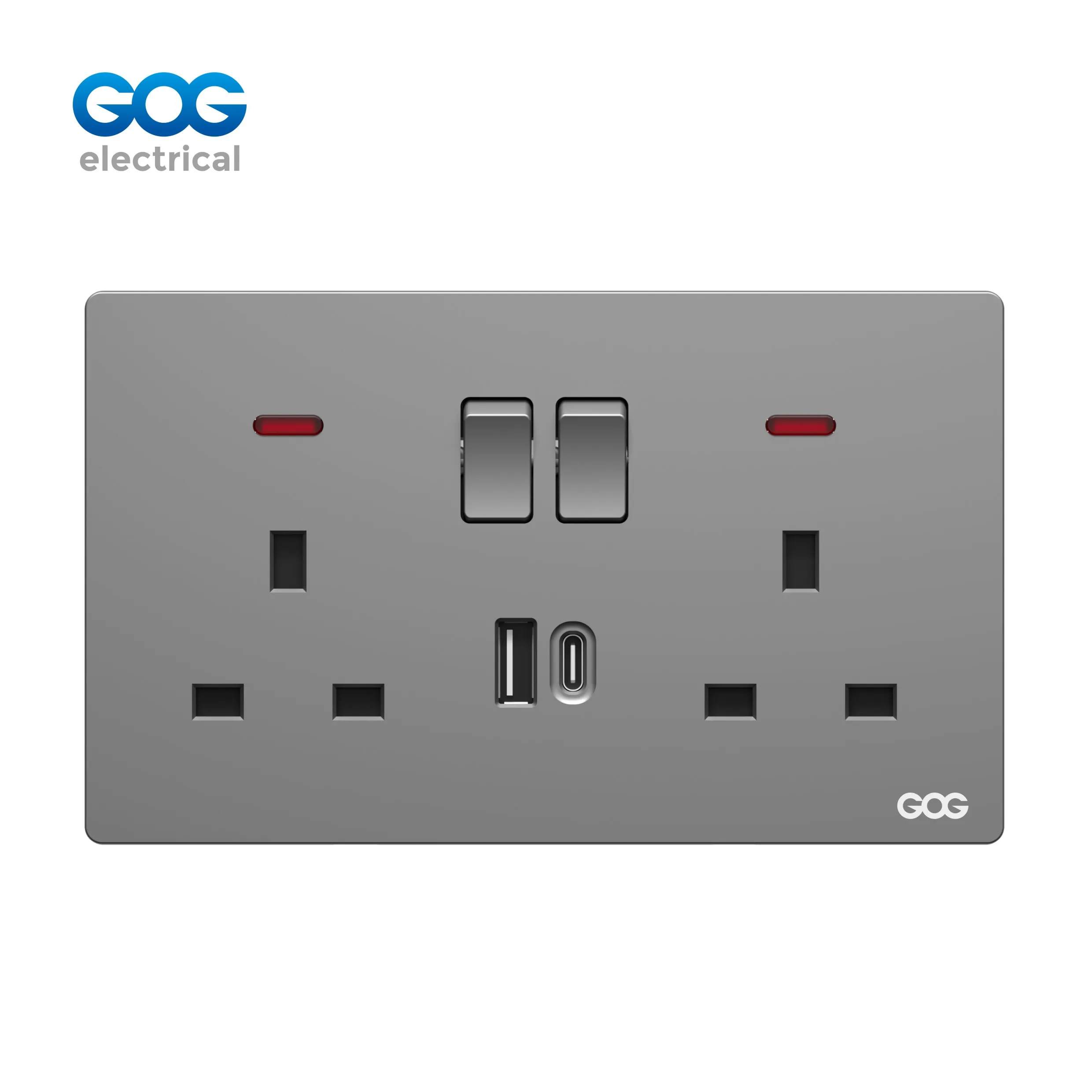

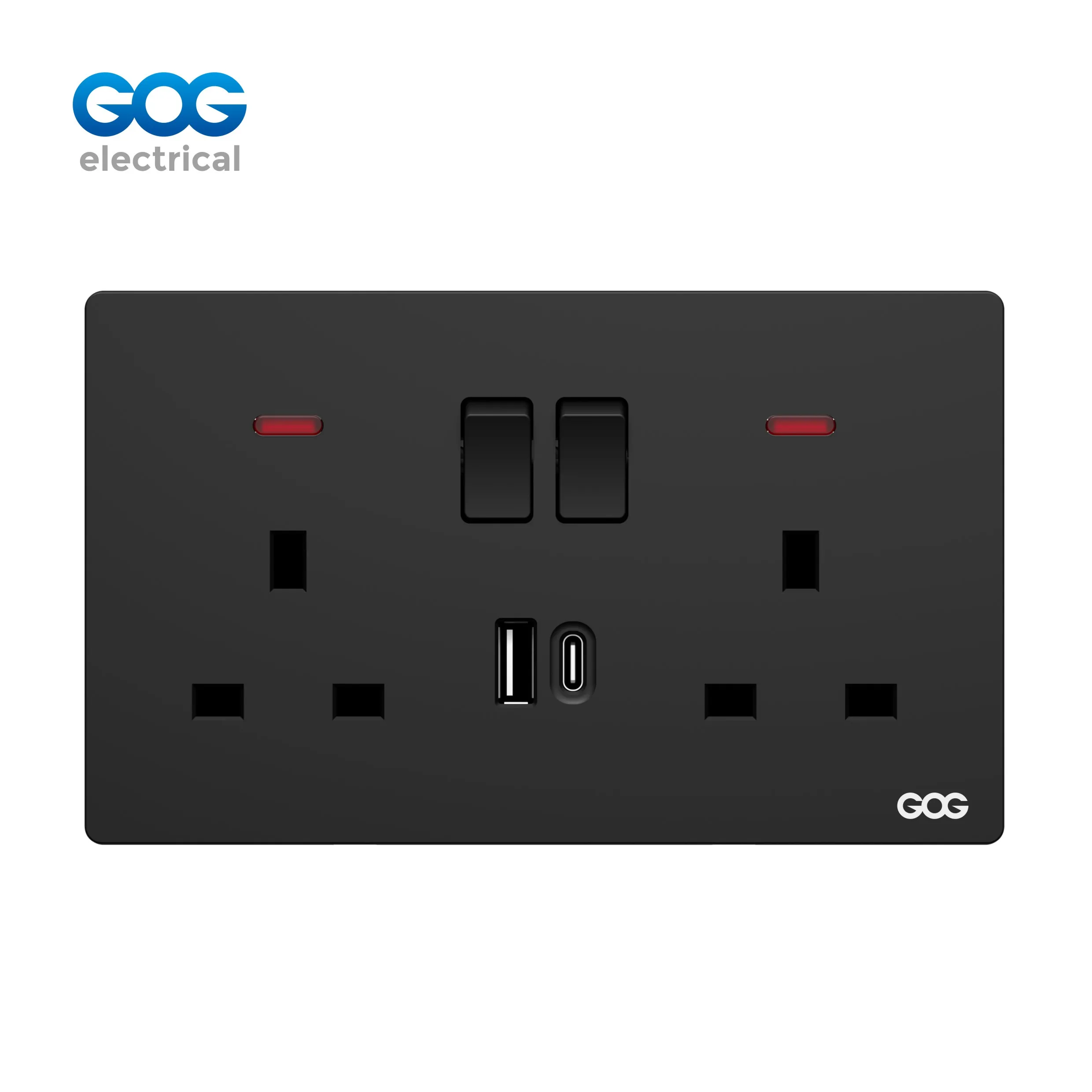

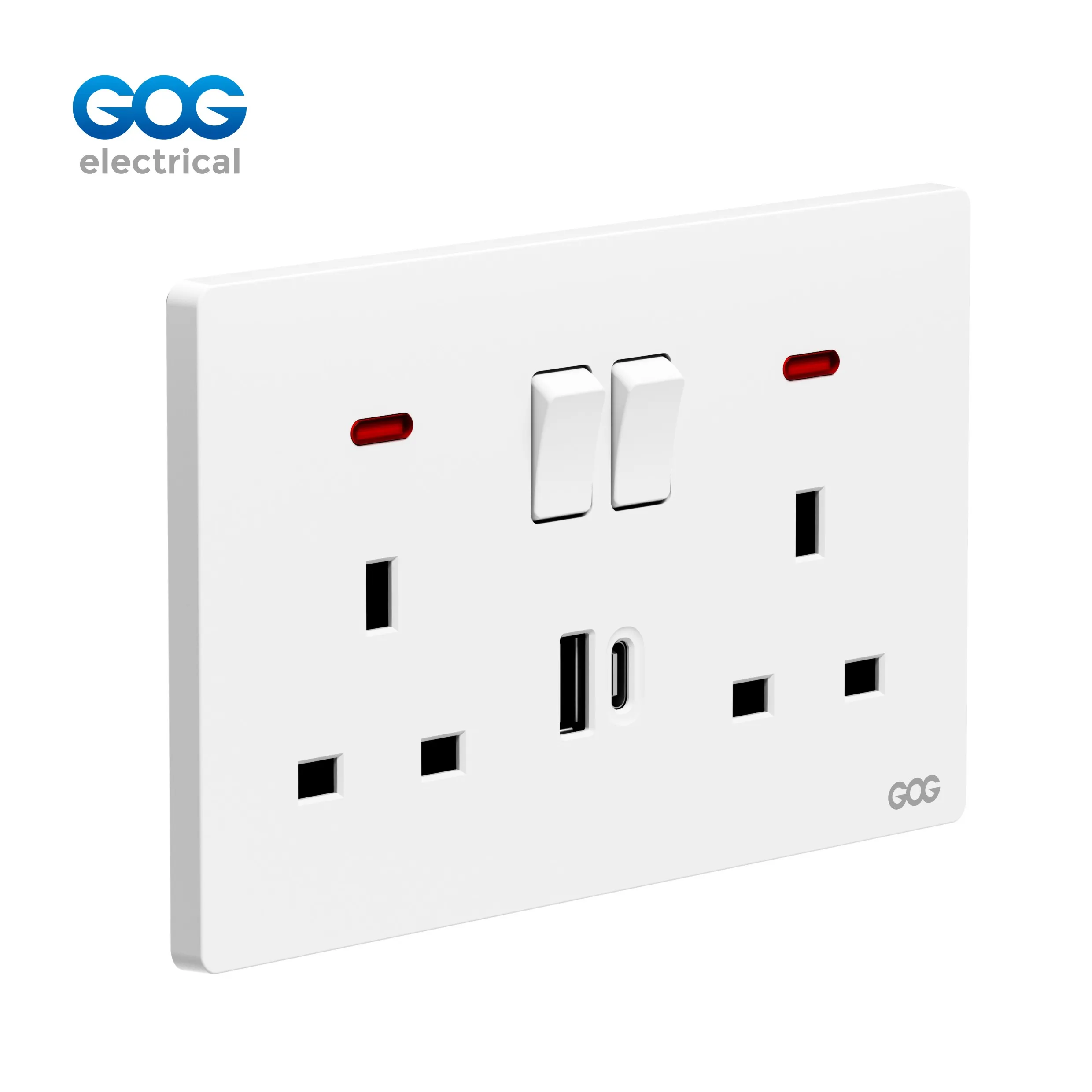

| Available Colors | White / Gold / Gray / Black |
| Dimensions | H 88mm × W 146mm (double gang British Standard back box) |
| MOQ | 20GP container |
| Packaging | 1 pc per plastic bag | 5 pcs per inner box | 50 pcs per outer carton |
DN70492C vs DN70588C vs DN70408M — Three DN70 Double Sockets for Different Markets and Needs
| Feature | DN70492C (Double DP + USB) | DN70588C (Double MF + USB) | DN70408M (Double MF, No USB) |
|---|---|---|---|
| Switch Type | DP (Double Pole) per socket | SP (Single Pole) per socket | SP (Single Pole) per socket |
| USB Charging | USB‑A + Type‑C, fast charging | USB‑A + Type‑C, fast charging | No USB ports |
| Safety Level | Enhanced — DP isolates both live & neutral | Standard — SP isolates live only | Standard — SP isolates live only |
| Target Markets | Kuwait, GCC, Saudi Arabia, Malaysia | British standard countries | Nigeria, Africa, Congo |
| Best For | GCC kitchens & hotels — DP safety + fast USB | General high‑use + USB charging | African volume projects — dual power only |
Built for Kuwait, GCC, Saudi Arabia & Malaysia — British Standard Where It’s the National Code
| Market | Socket Standard | Why DN70492C Fits |
|---|---|---|
| Kuwait | BS 1363 — British 3 pin | Official national standard — direct compatibility, no adapters |
| Saudi Arabia | BS 1363 — British 3 pin | Used nationwide in residential and commercial installations |
| GCC (UAE, Qatar, Bahrain, Oman) | BS 1363 — British standard | Standard across all Gulf Cooperation Council member states |
| Malaysia | BS 1363 — British 3 pin | National standard for all residential and commercial wiring |
DN70 Series Panel Materials — PC, Tempered Glass, or Brushed Aluminum
| Material | Finish | Best For |
|---|---|---|
| PC | High‑transparency, high‑strength | Cost‑effective volume builds — residential projects across GCC and Malaysia |
| Tempered Glass | Glossy, fingerprint‑resistant | Premium hotels in Dubai, Riyadh, Kuala Lumpur — luxury residential across the Gulf |
| Brushed Aluminum | Metallic industrial aesthetic | Modern commercial interiors, contemporary offices across GCC and Malaysia |
DN70 Series Double DP Switched Socket integrated with USB-C Fast Charging for Kuwait, GCC, Saudi Arabia & Malaysia, three exquisite smart finish options
The DN70492C is a British standard low-profile double DP switched socket that is specially developed for international markets where BS 1363 remains the electrical standard – namely Kuwait, Saudi Arabia and the rest of the GCC countries and Malaysia. The socket combines 2 separate 13A power outlets in a layout of 88 mm x 146 mm with already integrated USB-A and USB-C fast charging. The DP switches disconnect both poles of power supply, which is extremely important for areas such as kitchens and bathrooms where water can cause problems with electrical appliances. One of the major advantages of this model is its capability to fast charge devices separately from the socket switches – USB ports work perfectly even when the switches are off.
We are a manufacturer of GCC sockets selling directly from the factory, where we provide competitive wholesale prices, OEM branding on any panel material, and a warranty of 12 years on the entire range of DN70 series.
DP Safety × 2 + USB Fast Charging — The Premium Choice for GCC and Malaysian Installations
These two sockets in Saudi Arabia and Malaysia guarantee a high degree of safety that normal SP switched sockets cannot provide. They each have DP (Double Pole) rocker switches. When the switches are turned off, they completely disconnect both live and neutral. If sockets are placed close to water sources in a GCC kitchen, or in the Malaysian bathroom where electrical regulations are strict, the DP isolation will meet the necessary level of protection and comply with the relevant electrical codes. The sockets also have a built-in USB-A and Type-C charging device, which can charge many devices quickly and conveniently, without interfering with the power outlet.
Matching the DN70 Series — GCC and Malaysia Market Socket in the Same Slim Aesthetic
The DN70 series includes this double DP USB socket, which is also available in the same slim 88×146mm size and the same three superior finishes on its panel as such DN70 devices as the DN70 switches, single socket, TV sockets, satellite sockets, and communication sockets. This means that in a hotel in Kuwait, in a house in Saudi Arabia, or in an office in Malaysia you will have the DN70492C next to the DN70 switches and whatever DN70 accessories, as all of them are the same slim devices made from the same materials and in the same colors. Available in four colors — white, gold, gray, and black.
Stock This Slim Double DP USB Fast Charging Socket for Kuwait, GCC, Saudi & Malaysia at Factory Pricing
PC, tempered glass, or brushed aluminum panel. Two independent 13A DP outlets with neons + USB-A & Type-C fast charging. British standard 3 pin for GCC and Malaysian markets. OEM logo, custom packaging, 12‑year warranty included. Contact this GCC socket manufacturer for a wholesale quotation.
IEC Standard • British 3 Pin for GCC & Malaysia • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for Kuwait, GCC, Saudi Arabia & Malaysia British Standard Double DP USB Sockets
We are a specialist manufacturer of GCC sockets and have the ability to make the DN70492C on our own machines. This allows us to supply you with some of the best double DP USB sockets in the internals markets of Kuwait, Saudi Arabia, the GCC countries, and Malaysia. Three premium panel materials — PC, tempered glass, and brushed metal allows you to cover all segments in the projects from residential ones to hotels on the South-East Asian market. 13A power outputs separated from each other with switches and lamps. Two USB types available. 88 x 146 mm of the size. Have DN70 single sockets, MF sockets and communication sockets as well to create your full potential range from one manufacturer. OEM possibilities available for all panel materials -custom design of package -20 GP from container. Full IEC files are ready for distributors in Kuwait, Saudi Arabia, the GCC, and Malaysia.
Why British Standard DP Sockets Are Specified Across Kuwait, the GCC, Saudi Arabia & Malaysia
A practical guide for importers and distributors serving Middle Eastern and Southeast Asian markets with British standard DP switched sockets.
British Standard Countries in the Middle East & Southeast Asia
The British BS 1363 3-pin socket is the officially established national standard for electrical wiring in most of the Gulf countries and Southeast Asia. In fact, countries such as Kuwait, Saudi Arabia, the United Arab Emirates, Qatar, Bahrain, Oman, and Malaysia use the British type socket in their own national electrical standards. In fact, the DN70492C GCC switched socket and the Malaysia DP socket are built to the same specification (therefore, no adapters or pin modifications are required). In fact, the DP switch configuration adds even more safety features making it quite popular and requested in the Gulf region and Southeast Asia.
DP vs SP — Why Double Pole Matters in GCC and Malaysian Kitchens
Double Pole (DP) switches interrupt both the live and neutral wires at the same time, providing total isolation from the rest of the electrical supply. In contrast, Single Pole (SP) switches only disconnect the live wire. The DP switches are needed especially in households in the GCC and Malaysia where kitchen areas usually contain high-load appliances. The electrical appliances in these kitchen areas may be close to water, which means that electrical safety is essential in these cases, as stated in the modern regulations. In such cases, DP technology is applied, and the DN70492C Kuwait DP USB socket is one example of such technology used both in the sockets and in the fast USB charger that has become a standard in hotels and residential projects in the Gulf states and Malaysia.
Panel Material Selection for GCC and Malaysian Markets
PC: The volume selection for housing development – reliable, inexpensive. Temeprated Glass: The best option for premium hotels and high-end residences that meets the standards of luxury in Dubai, Riyadh, and Kuala Lumpur. The brushed aluminum choice is the modern alternative in office and commercial buildings throughout the region.
Frequently Asked Questions
Which countries use British standard 13A sockets?
BS 1363 British sockets are used as the national standard in Kuwait, Saudi Arabia, Qatar, UAE, Bahrain, Oman, Malaysia, Singapore, and many Gulf and Commonwealth countries. The DN70492C is a British standard double DP switched socket built for these type of environments since it directly accepts standard 3-pin UK fused plug, making it the correct specification for install electricity across GCC and Malaysia.
What is the difference between DP and SP on this switched socket?
The DP (Double Pole) disconnects both the current-carrying wire and the neutral wire when switched off, thus providing excellent safety through isolation. SP (Single Pole) disconnect only the live wire. DN70492C has 2 DP sockets on it, so it can be used in kitchens, bathrooms, or in any location where it is required or preferred to have complete electrical isolation. This is more and more becoming the norm in many high-end residential and hospitality projects in GCC & Malaysia.
Does the USB still charge when both socket switches are off?
The USBA and the Type C ports both operate independently of the changes occurring in the DP sockets. This USB module receives power directly from the mains and keeps fast charging devices even when the two 13A power sockets are turned off. The two neon indicators show the status of the sockets only and do not indicate the availability of USB power, which is always on when the circuit in the consumer unit is live.
What colors is this British standard double DP USB socket available in?
The DN70 series double DP USB switched socket can be purchased in four hues and three different panel finishes, namely: white, gold, grey, and black. The PC panel is basic; tempered glass is used in upscale hotel and luxurious homes while brushed aluminum works well in recent commercial settings due to its elegance. The dimensions of the three materials, measuring 88×146 mm, are exactly the same, while both of them come with a 12-year guarantee.
