SPECIFICATIONS
| Series | DN70 series |
| Item Code | DN70587C |
| Description | Single 13A MF 3 Pin Socket with Switch, Neon + USB Type-C |
| Socket Rating | 13A / 250V~ |
| Socket Configuration | Single — one MF 3‑pin outlet |
| Switch Type | SP (Single Pole) with neon indicator |
| USB Port | 1 × Type-C, fast charging |
| Front Panel Options | PC / Tempered Glass / Brushed Aluminum |
| Base | PC |
| Middle Plate Options | Steel / Plastic‑wrapped steel |
| Switch Internal | Red copper, Φ3.0×25mm silver alloy touch point |
| Socket Contact | 0.6mm phosphor copper with fix circle ring |
| Standard | IEC Standard (British standard countries) |
| Warranty | 12 Years |
| Available Colors | White / Gold / Gray / Black |
| Dimensions | H 88mm × W 86mm (single gang British Standard back box) |
| MOQ | 20GP container |
| Packaging | 1 pc per plastic bag | 8 pcs per inner box | 80 pcs per outer carton |
DN70587C — 13A Electrical Socket with Switch and USB Type-C for British Standard Projects
The DN70587C is a single gang 13A socket outlet with a switch, neon indicator and integrated USB Type-C charging port, belonging to the DN70 series. It has been designed according to MF 3-pin configuration, which means it is compatible with BS 1363 plugs and can be used in all applications, including residential, commercial, and hospitality projects throughout BRITISH standard countries. The neon indicator shows the state of the switch while the integral USB Type-C charging port allows you to charge new phones and tablets rapidly as well as leave the mains socket free for connecting other appliances. With the perfect combination of the MF 3-pin technology of the device and USB Type-C port, this product is suitable for use in hotels, offices and homes.
MF 3‑Pin Configuration — Standard BS 1363 Compatibility
| Feature | DN70587C Specification | Benefit for Buyers |
|---|---|---|
| Socket Type | MF 3‑pin (BS 1363 compatible) | Standard UK 3‑pin compatibility — ideal for British standard countries including Iraq |
| USB Type‑C | Fast charging (USB‑C) | Charges modern devices directly — no adapter needed, saves outlet space |
| Switch + Neon | SP switch with neon indicator | On/off control with visual status confirmation — enhances safety |
| Contact Material | 0.6mm phosphor copper with fix circle ring | Reliable conductivity and long‑term durability |
Three Front Panel Finishes — PC, Tempered Glass, or Brushed Aluminum
The DN70587C offers three distinct front panel materials, allowing you to match any interior design scheme — from cost‑effective residential projects to premium hospitality developments.
| Material | Finish | Ideal Applications |
|---|---|---|
| PC | High‑transparency, high‑strength | Volume residential projects, affordable housing, general commercial use |
| Tempered Glass | Glossy, scratch‑resistant, premium feel | Luxury hotels, executive offices, high‑end apartments in GCC and Malaysia |
| Brushed Aluminum | Metallic, industrial modern aesthetic | Contemporary commercial interiors, showrooms, design‑led projects |
Built for British Standard Countries — Including Iraq and the GCC
This 13A electrical socket with USB Type‑C conforms to IEC standards and is fully compatible with BS 1363 wiring systems. It is the correct specification for:
- GCC states — Kuwait, Saudi Arabia, UAE, Qatar, Bahrain, Oman
- Iraq — where British standard electrical systems are widely used in commercial and residential developments
- Southeast Asia — Malaysia, Singapore, Hong Kong
- Other British standard countries — including Pakistan, Sri Lanka, and former Commonwealth nations
Whether your projects are in Baghdad, Dubai, or Kuala Lumpur, the DN70587C meets local electrical codes, reducing compliance risks for distributors and contractors. The standard 3‑pin configuration is particularly well‑suited for Iraq, where BS 1363 remains the predominant standard for new construction and infrastructure projects.

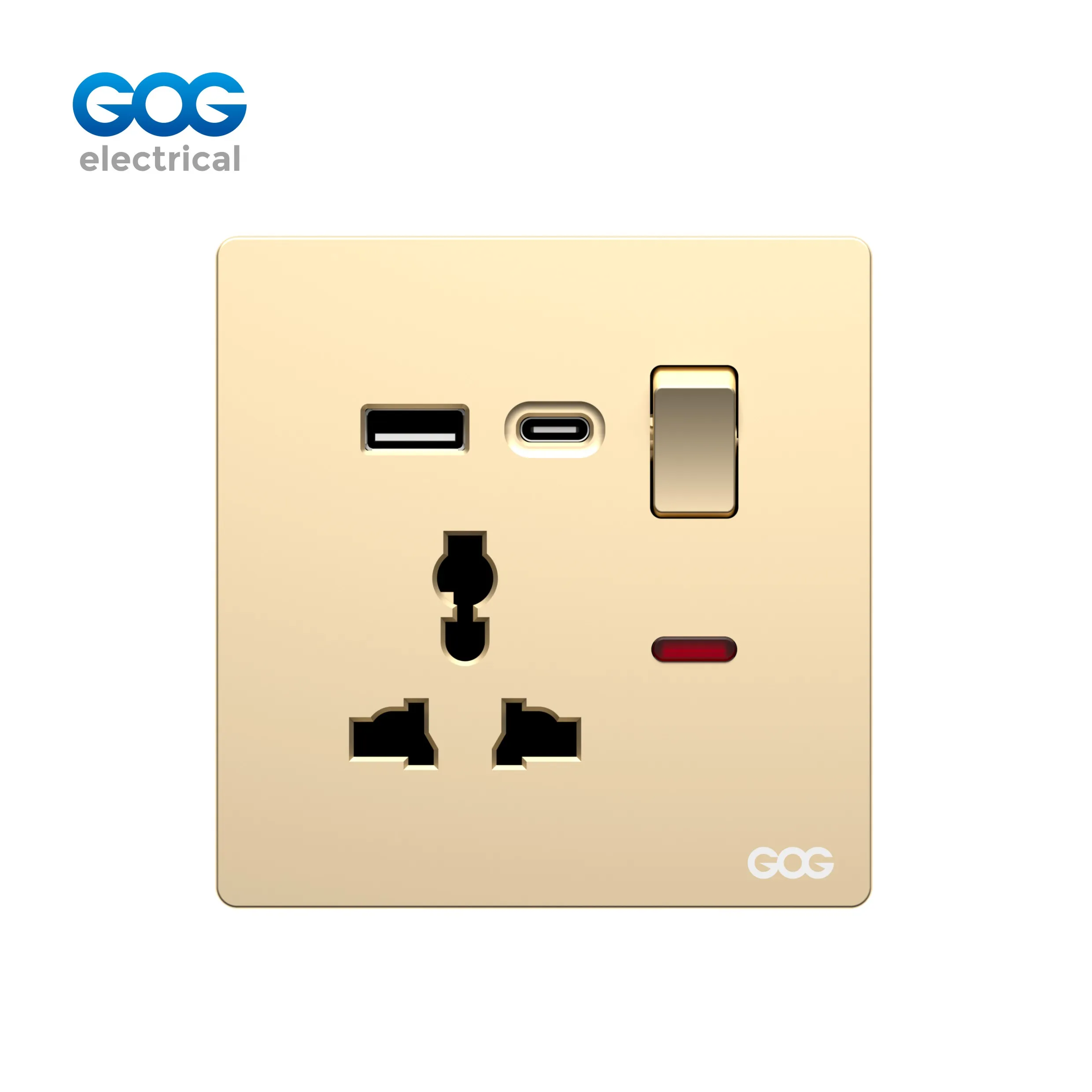

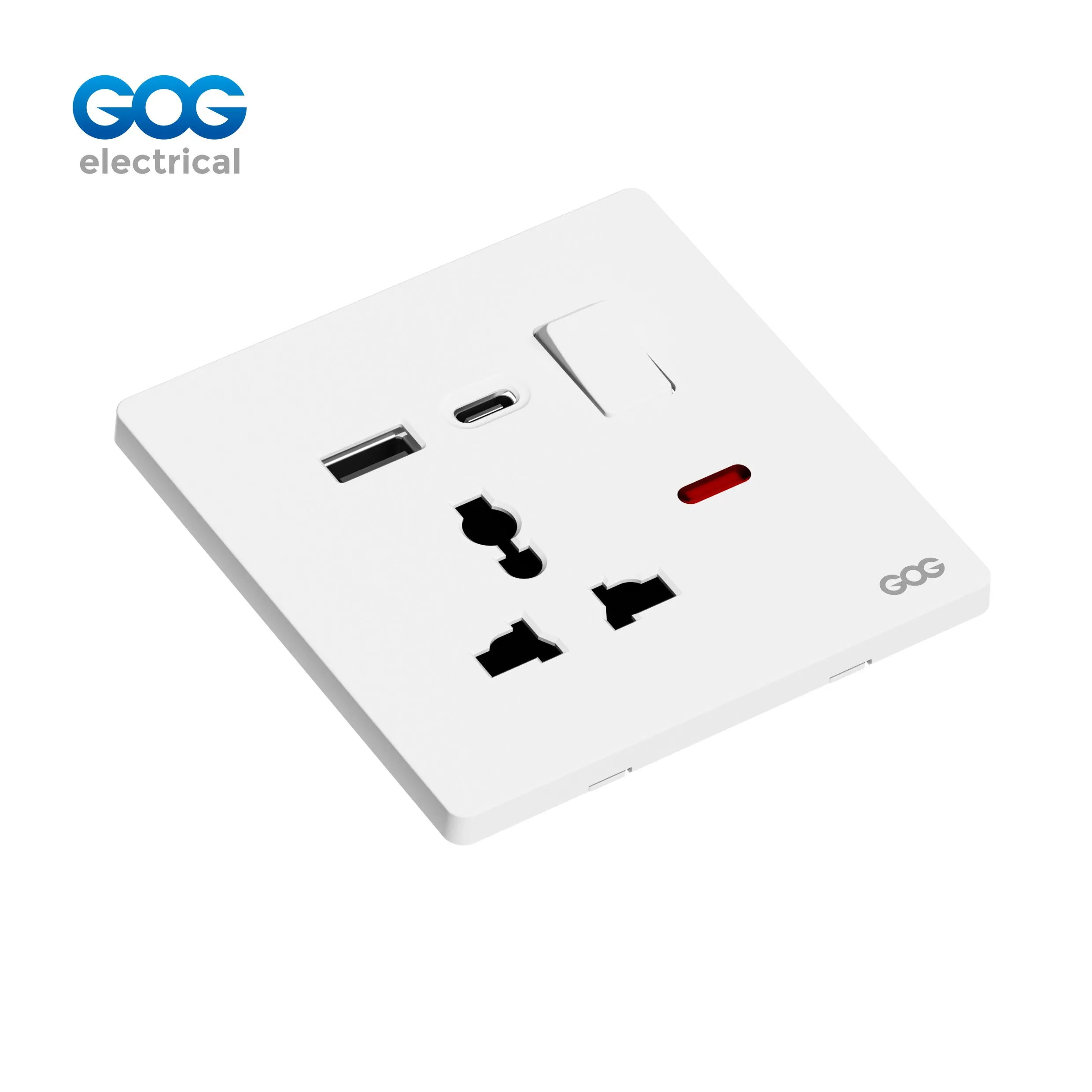

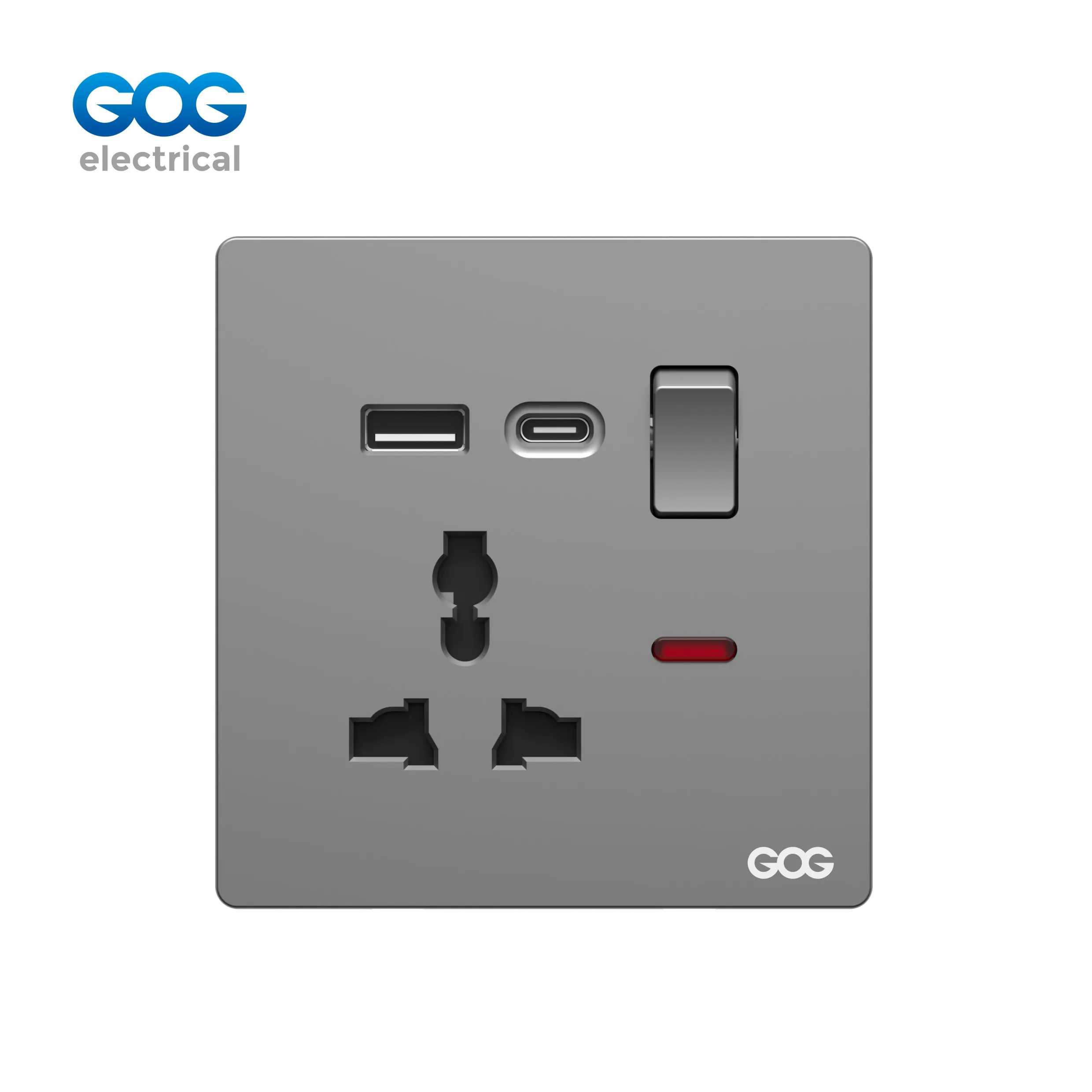

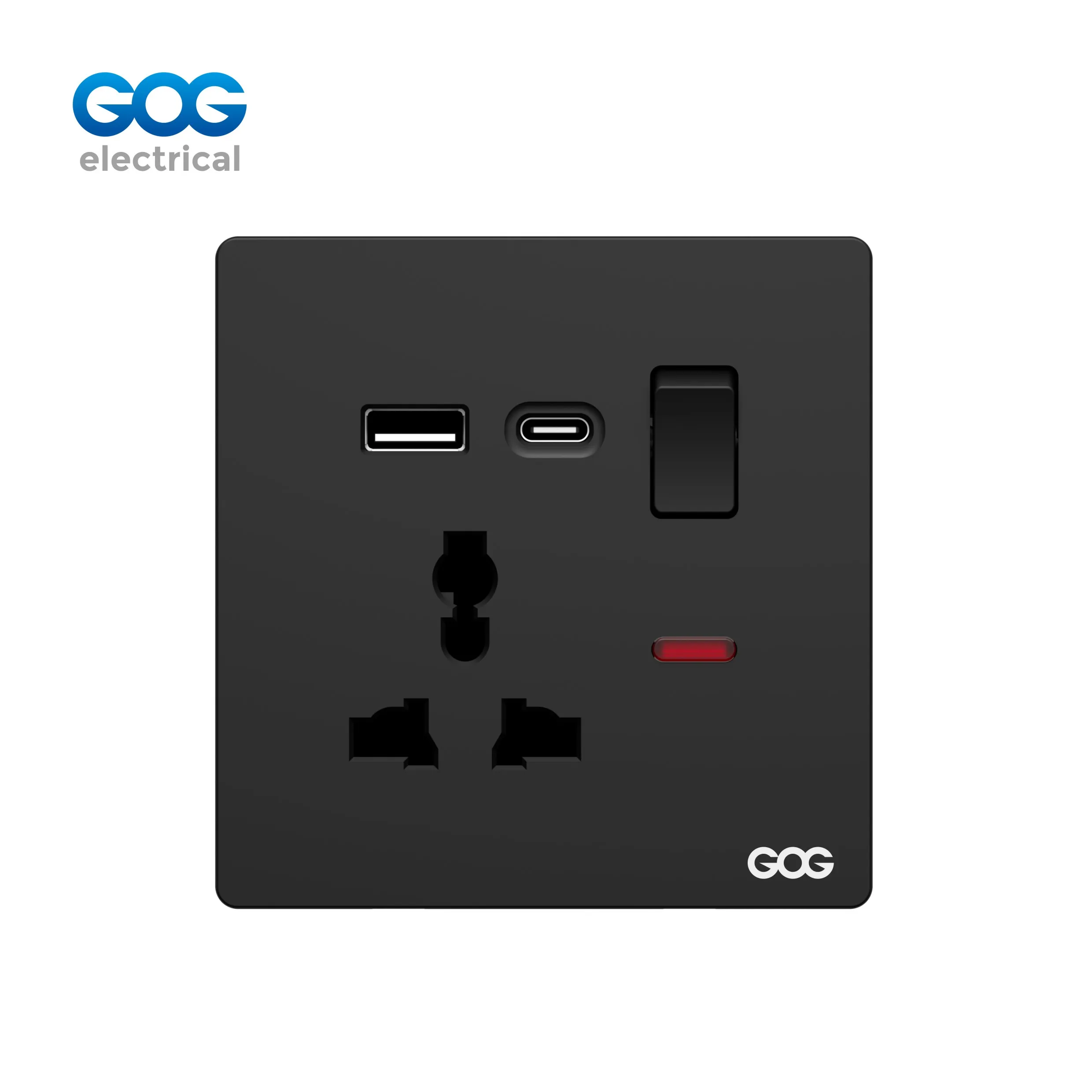

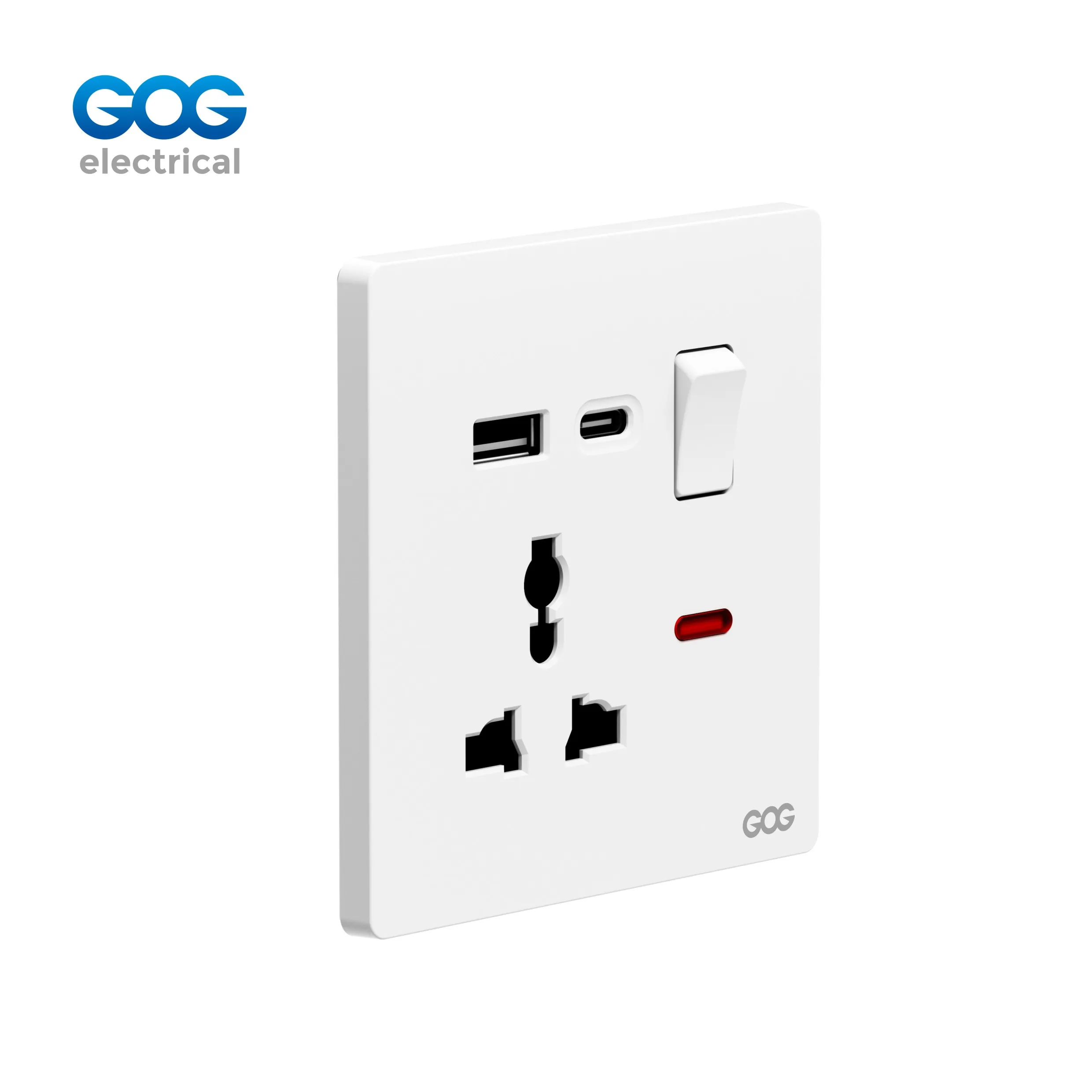

DN70 Series — Consistent Slim Design Across All Configurations
The same thin profile (88×86mm) and high-quality materials options are also found in DN70587C as in other DN70 series devices, which include single and double sockets, USB connections and communication modules. This ensures all installations are homogeneous, regardless of whether you are fitting out a hotel room or a residential high-rise. All DN70 devices come in four color options (white, gold, grey, black) and are backed by the same 12-year warranty.
We are the direct producer of all our products. Thanks to 3 automated factories located in Wenzhou (switches & sockets), Zhongshan (lighting) and Jiaxing (bathroom heaters), we can provide full OEM/ODM service including branding on the panel, special packaging and flexible MOQ (20GP container). Our engineers are also able to adjust design elements based on the specifications of certain markets. Please get in touch with us for a wholesale quote.
USB Type‑C Integration — Modern Convenience for Everyday Use
The integrated USB Type-C makes it easy to charge mobile phones, tablets and any other USB-C devices directly. This is a very convenient feature for hotel guest rooms, office desks and modern kitchens, where numerous devices have to be charged at the same time. The USB port functions independently of the main switch, meaning charging is still possible with the extreme economy option turned off. Therefore, the feature is very practical for both bedside and office purposes.
Durable Construction — 0.6mm Phosphor Copper Contacts
The DN70587C is using contacts made from phosphor copper and a permanent circular ring. This type of conductive material has excellent spring properties and high corrosion resistance, which leads to constant gripping with low heating at a long load. Because of the presence of a silver alloy contact point, the electrical socket has an electrical longevity of more than 10,000 operations.
Stock the DN70587C 13A Electrical Socket with USB Type‑C — Factory Direct Pricing
Single gang, 13A rating, MF 3‑pin standard configuration, neon indicator, USB Type‑C fast charging. PC, tempered glass, or brushed aluminum panel. White, gold, gray, or black. British standard, IEC certified, 12‑year warranty. OEM logo, custom packaging available. Contact our sales team for a bulk quotation.
IEC Standard • British 3‑Pin • Global Shipping • MOQ 20GP
Factory‑Direct Supply for Wholesale & OEM Partners
Your Source for British Standard Electrical Sockets with USB Type‑C

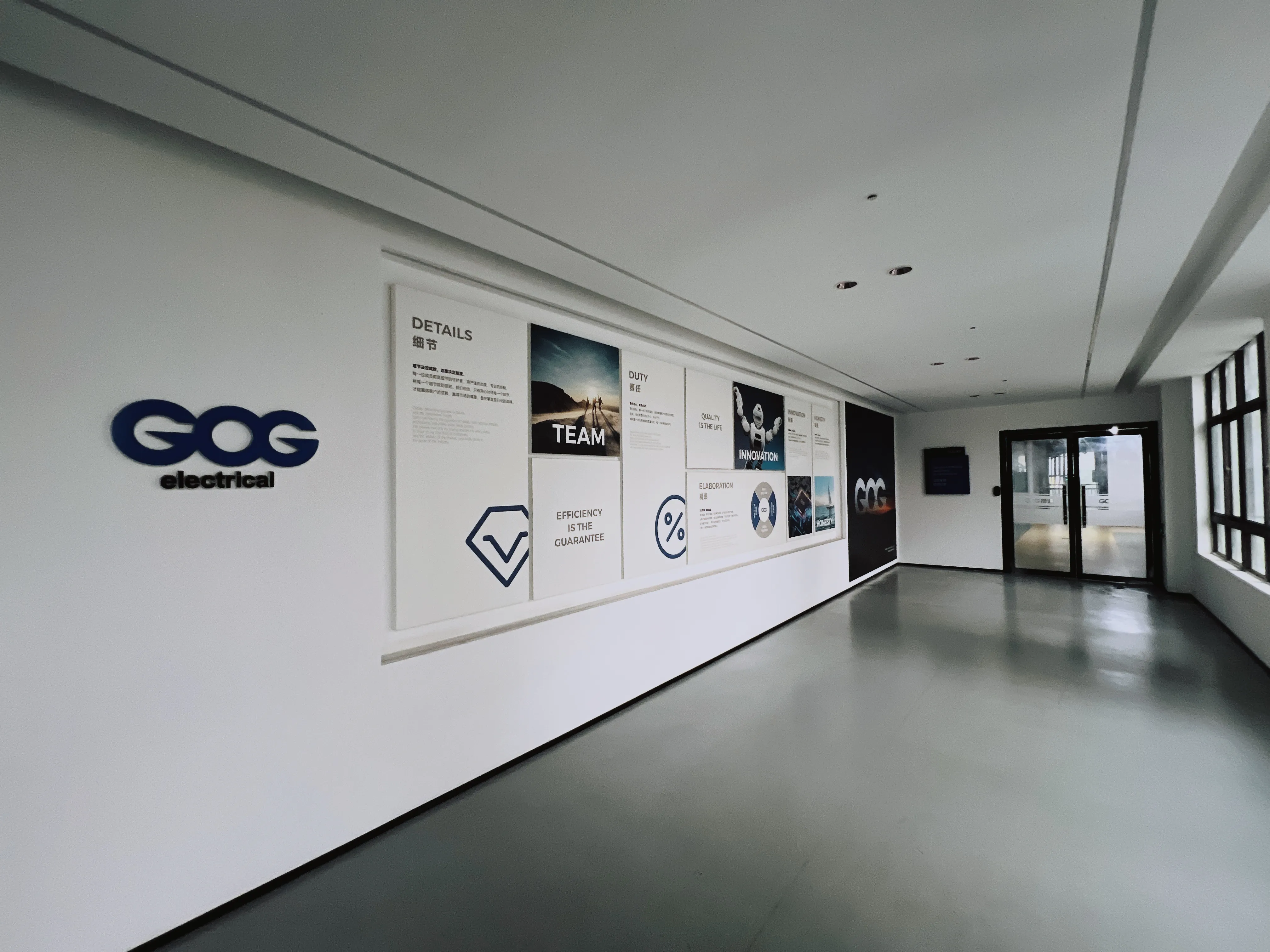

At our Wenzhou facility of 120,000 m2, we produce DN70587C through our own production lines comprising 120 injection molding machines and over 100 different production lines. The laboratory certified by CNAS, along with our R&D center plays a special role as they ensure every socket meets strict quality requirements. We also have our own bakeries producing metals and plastics, which helps us control the quality of the raw materials used in production. Due to our vertical integration, we provide our partners in the UK market with favorable prices and swift terms of delivery. Our standard socket series is especially popular in Iraq and GCC countries due to the evident compatibility of our plugs with their electrical systems.
Why Choose a 3 Pin Electrical Socket with USB Type‑C for British Standard Projects?
A practical overview for importers and distributors supplying residential and commercial developments in British standard countries, with a focus on the Iraq and GCC markets.
Standard 3‑Pin Configuration — Direct BS 1363 Compatibility
While the regular 5-pin sockets can take a range of plug types, the MF 3-pin design used by the DN70587C is suitable for BS 1363 plugs only. This standard, which applies to the UK, Iraq, GCC countries, Malaysia, and many others, makes this socket type the best option for sites with strict regulations such as hospital buildings, government offices, and big housing projects. Thus, wholesale distributors in Iraq and the GCC will find standard 3-pin sockets to be helpful in procurement as they do not face any compatibility issues with plugs and appliances available in the store.
Switch + USB Type‑C — Practical Control with Modern Charging
The dual functionality of the switched socket and built-in USB Type-C port makes it highly versatile. Users can switch on off power to appliances, while charging their USB devices at the same time. This is handy for hospitality sector projects in Iraq and Gulf markets, as guests will not have to bring their bulky chargers and look for other sockets to charge their devices. The neon indicator on the socket helps the guests to easily verify whether the socket is switched on or off.
GOG’s Manufacturing Backbone — Quality You Can Trust
With three automated production facilities, 120 injection molding machines, and more than 100 production lines, GOG has the capabilities and production capacity to assure consistency. Our CNAS-certified laboratory and our research and development department guarantee that the product is in compliance with international requirements. In addition, we provide you with full technical documentation (IEC test reports, declarations of conformity, etc.) to facilitate your local approval process. Being a vertically integrated manufacturer of alloys and plastics, we can control the quality of products at each stage of the process, starting from raw materials.
Frequently Asked Questions
What is the difference between MF 3‑pin and MF 5‑pin sockets?
The MF (multi-function) 3-pin sockets which is designed to used with BS 1363 standard 3-pin plugs. This standard is recognized in the UK, Iraq, GCC countries, Malaysia and several other countries. The MF 5-pin sockets are versatile as they have additional pin arrangements to cater for various types of plugs used globally. Equipped with three-pin arrangement, the DN70587C is used for projects that call for strict adherence to BS 1363.
Does the USB Type‑C port work when the switch is off?
Yes, The integrated USB Type-C port is excellent for fast charging, which is independent of the main switch. The USB module works as long as there is power in the circuit, allowing for continuous device charging when the main board is off, enabling bedside use or office applications.
Can I order the DN70587C with my own logo on the panel?
Definitely! Our firm provides comprehensive OEM branding services, either through laser engraving or silk-screening of logos on any of the three panel options offered (i.e. the three plastics, glass or metal). In addition, we also offer special packaging solutions that incorporate your logo. There is a minimum quantity for this service (MOQ). Contact us for more information.
What colors are available for the DN70587C?
There are four standard colors of the electrical socket; including White, Gold, Gray, and Black Color variants are available in all three types of panel materials, which makes it easy to keep your design consistent throughout your project.
Is the DN70587C certified for use in Iraq, Kuwait, and Malaysia?
Indeed, the DN70587C is compliant with IEC 60884-1 and can function with BS 1363 wiring systems that are the national standards of countries like Iraq, Kuwait, Saudi Arabia, UAE, Qatar, Oman, Bahrain, Malaysia, and other British Standard countries. We can provide test reports and declaration of conformity on request.
