DN71 Series Glass 5 Pin Universal Socket USB-C

SPECIFICATIONS

5 Pin Switched Socket with USB-C vs 5 Pin Without USB — Charging Built Into the Wall

Three Premium Panel Finishes — Including a Stunning Glass Wall 5 Pin Socket

British Standard MF 5 Pin Switched Socket with USB-C — Glass Wall 5 Pin Socket for Pakistan & GCC

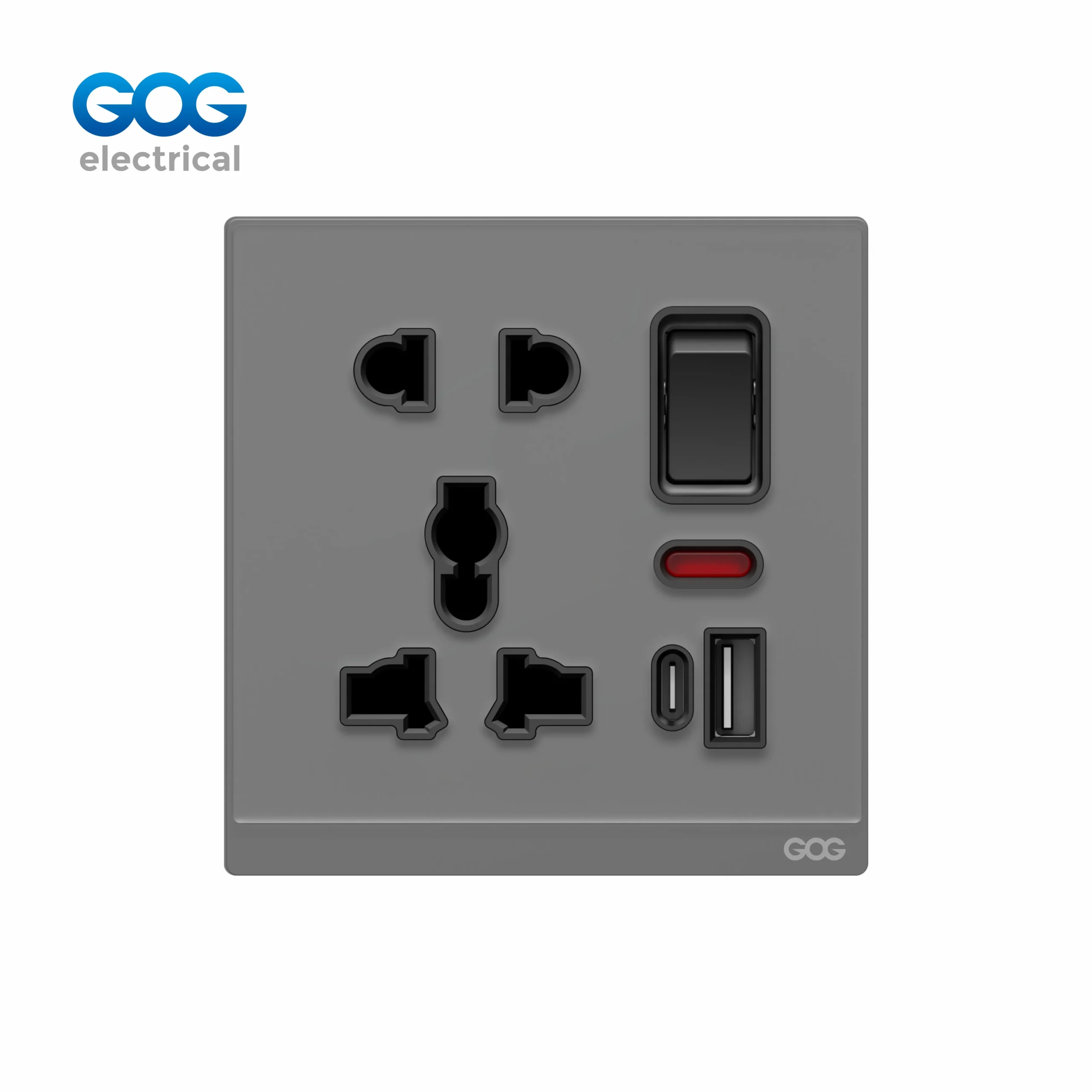

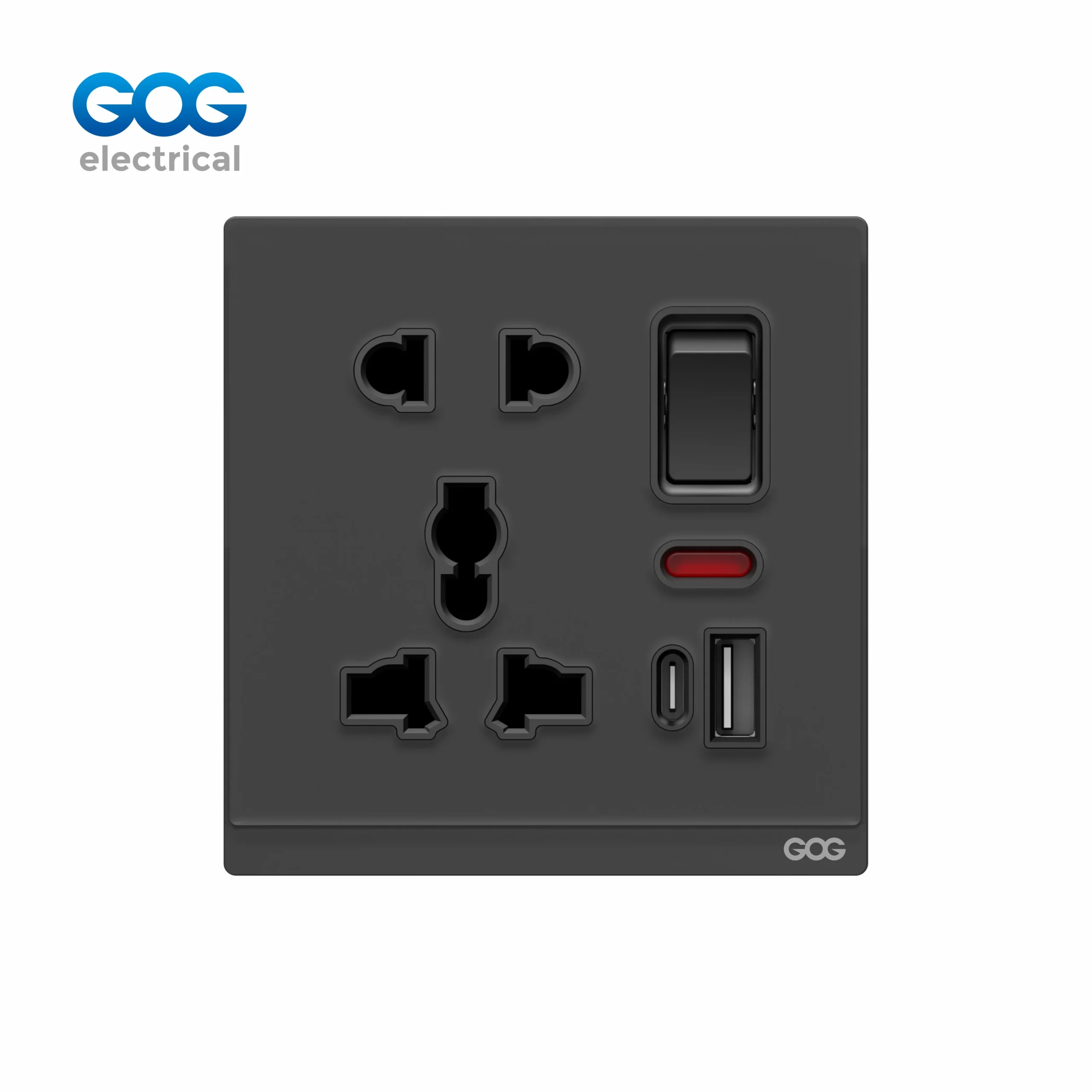

The DN71497C is a UK standard MF 5 pin switched socket featuring USB-C, designed to meet the demands of markets that require both maximum universality and a built-in USB charger. This wall socket with 5 pins has been specially engineered for Pakistan, Dubai, Kuwait, Saudi Arabia and the rest of the GCC, where UK 3-pin wiring is the standard but appliances with different plug types are used. The 5 pin design means that the DN71 series has the highest level of compatibility among its plug types, while the Type-C USB port increases convenience and allows users to charge devices without taking up the socket space. The MF (Multi-Function) socket is compatible with UK 3-pin, European 2-pin, and other plug types, while the switch with neon indicator allows the user to isolate power. Comes in three different finishes – Tempered glass for luxurious surfaces that are resistant to fingerprints; Brushed Aluminium for industrial look; Polycarbonate for budget productive solutions. The slim panel dimension of 88×86mm houses copper switches with Φ3.0×25mm silver alloy contacts and phosphor copper socket contact. It comes with two options of middle plate and is IEC certified with a warranty of 12 years.

We manufacture products and distribute them through wholesale channels, providing good price such as factory-direct manufacturer and OEM branding.

Designed for Pakistan & GCC — Where British Wiring Meets Global Appliance Diversity

This socket and wall 5 pin socket is designed explicitly for the Middle East and South Asian regions where the 3-pin UK standard is the norm. The electrical systems in Pakistan use the British wiring standard. Still, the appliances in homes are mixed with those that utilize different types of plugs, including the European type, Chinese type, UK type, etc. The device’s 5 pin universal design effectively caters to this diversity while being compatible with the British wiring standard behind the wall. The glass panel version is popular regarding the local luxurious residences and hotels since they aim for good quality finishing. The elegant panel of the wall socket 5 pin socket has a slim design of 88×86 mm. The device is IEC approved and comes with a 12-year guarantee.

MF 5 Pin + Type-C USB — Maximum Plug Compatibility with Modern Charging

This socket with 5 pins is made of glass and includes MF five pin power outlet, neon light-equipped rocker switch, and a Type-C USB charging port with size of 88×86mm. This 5 pins configuration guarantees compatibility with many plug forms starting with UK 3 pin socket and ending with EU 2 pin socket and other variations. The charging port can be used with modern phones and tablets plugged directly into the wall without the need of a special adapter and using free outlet for other devices, making it very convenient. The USB module is independent from the switch. Neutral copper internal in the switch are made of Φ3.0×25mm silver, while contact points are made of phosphor copper of 0.6mm thickness.

Matching the DN71 Series — Glass 5 Pin USB Socket in the Same Slim Profile

The DN71 series includes this 5 pin socket in white. The wall socket is of the same size of 88×86 mm as the DN71 switches, sockets and USB chargers. The wall socket has three distinct finishes available. One can select the given wall socket with tempered glass for luxury homes in Pakistan and the Gulf, aluminium for commercial buildings, or with PC for economy constructions. DN71497C 5 pin wall socket can be used with the other wiring accessories in order to create uniformity in terms of the provided wall socket.

Factory-Direct Supply for Wholesale & OEM Partners

Buyer’s Guide

Choosing the Right Wall 5 Pin Socket for Pakistan & GCC: With USB-C vs Without, Glass vs PC

A practical guide to specifying 5 pin universal sockets with USB‑C for South Asian and Middle Eastern residential and commercial projects.

Why Wall 5 Pin Sockets for Pakistan & GCC?

In Pakistan and the Gulf states, electrical installations are based on the British standard for 3-pin plugs, whereas the appliance market is completely globalized. The DN71497C wall socket has 5 pinholes for accommodating UK 3 pin plugs, Europe 2 pin plugs, and other plug types. Moreover, the built-in USB-C port ensures charging convenience.

DN71497C (With USB-C) vs DN71477 (Without USB) — Which One Do You Need?

The DN71497C five-pin switched socket with USB-C allows for Type-C charging to be built-in to the wall plate making the unit ideal for use in bedrooms, living rooms, hotels, and all locations where power would also be needed with USB charging capabilities. The DN71477 also comes with the modified five-pin switched socket with no USB-C port making it the perfect choice for places where there is no need for the added USB ports. Both items allow for the consistent usage of dimensions of 88×86 and the same three available panel materials as well.

Glass vs Aluminum vs PC — Which Panel Material for Your Pakistan Project?

Tempered glass: The top option when it comes to luxury residential developments and boutique hotels in Pakistan is the attractive, fingerprint-resistant option. The brushed aluminum option is an option that is used in both commercial and residential buildings. It features an industrial metallic finish that can stand heavy use. The pvc option is a cost-effective material that can be used in big residential complexes, offering the same electrical options as in other premium materials. All three materials, however, have the same warranty that is included for 12 years.

Frequently Asked Questions

What is a wall 5 pin switched socket with USB-C?

A USB-C wall socket with 5 pins consists of a universal 5-pin socket, a neon lighted rocker switch, and a Type-C USB charging port in one socket plate. DN71497C is the British standard MF 5 pin USB-C switched socket; it makes use of 5 pins to enable all UK plugs and many other types of plugs to fit into one wall socket. This device is manufactured for the Pakistan, Dubai, and GCC market where universal sockets are the norm.

Is this glass socket suitable for Pakistan installations?

Indeed, the DN71497C is tailor-made for Pakistan, which has British wiring as its electrical standard but where universal sockets are predominant. The MF 5 pin universal socket is suitable for the various plugs used in domestic applications across Pakistan, and the option of a glass panel allows for a premium finish suitable for the luxury residential sector and hotels in Pakistan. The panel, which has a thickness of 88mm by 86mm, is designed to fit the standard British back boxes prevalent across the country.

Does the USB-C port work when the socket switch is off?

Yes, the Type-C USB port present in DN71497C is not wired in series with the switch of the socket. The USB module works directly from the mains and will be able to provide charging to devices even when the 13A socket is not powered. The neon indicator only indicates the state of the socket and not the power to the USB, which is always available when the circuit is live from the distribution board.

What panel materials are available for this Pakistan socket?

The DN71497C wall 5 pin socket can be purchased with three different front panel options including the tempered glass (the top choice for high-end projects in Pakistan because it is glossy and fingerprint resistant) brushed aluminum (with an industrial metallic look in commercial projects) and polycarbonate (which is cost-effective and very strong for mass residential projects). All three models of the wall socket use the same MF 5 pin universal socket, Type-C USB port, and come with a warranty of 12 years.
