SPECIFICATIONS
| Series | R12 series |
| Item Code | R12327 |
| Description | 45A Double Pole Switch with Neon Indicator |
| Switch Type | Double Pole (DP) — switches both live & neutral |
| Current / Voltage | 45A / 250V~ |
| Mechanical Life | 10,000 cycles (rated under full 45A load) |
| Indicator | Neon — illuminates when circuit is live |
| Front Panel | Imported high‑transparent, high‑strength PC |
| Base | Imported high‑transparent, high‑strength PC |
| Middle Plate Options | Full plastic / Steel‑plastic combination |
| Switch Internal | Red copper bush, red copper stamping part, red copper bus bar, Φ5.5mm silver touch point |
| Standard | IEC 60669 |
| Warranty | 12 Years |
| Available Colors | White / Gold / Gray / Black |
| Dimensions | H 86mm × W 86mm (British Standard back box) |
| MOQ | 2,000 pcs per item |
| Packaging | 1 pc per plastic bag | 10 pcs per inner box | 100 pcs per outer carton |
45A DP vs 20A DP Switch — When You Need the Extra Current Capacity
| Feature | R12327 (45A DP) | R12324 (20A DP) |
|---|---|---|
| Current Rating | 45A — up to ~11kW at 240V | 20A — up to ~4.8kW at 240V |
| Silver Contact Size | Φ5.5mm — heavy‑duty arc management | Φ3.5mm — standard 20A rating |
| Typical Use | Electric cookers, showers, industrial heaters | Water heaters, AC units, kitchen appliances |
| Cable Requirement | Typically 10mm² for cookers, 6‑10mm² for showers | Typically 2.5mm² for short runs |
PC Panel & Dual Middle Plate Options — Heavy Current DP Isolator Built to R12 Standards
| Panel Color | Description |
|---|---|

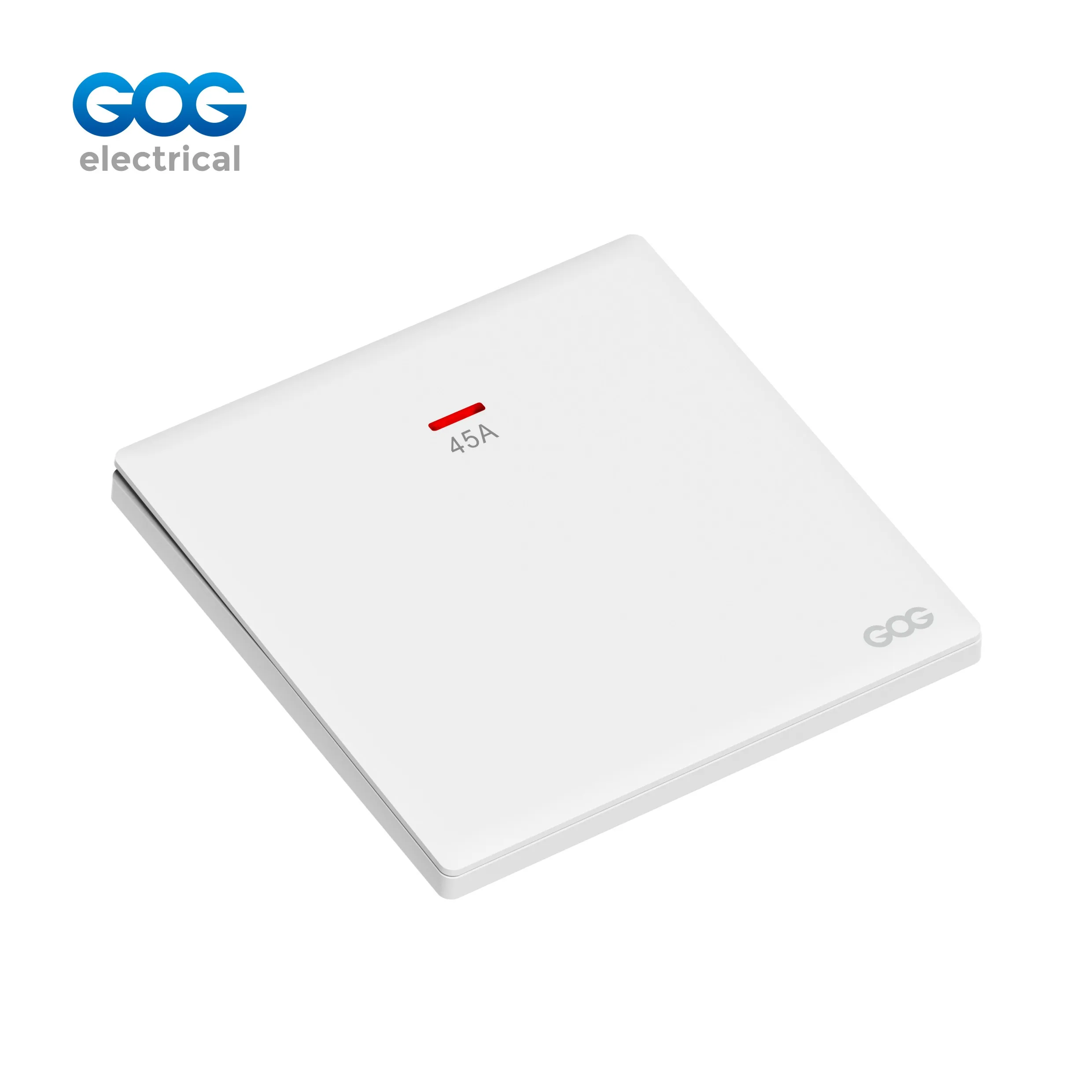

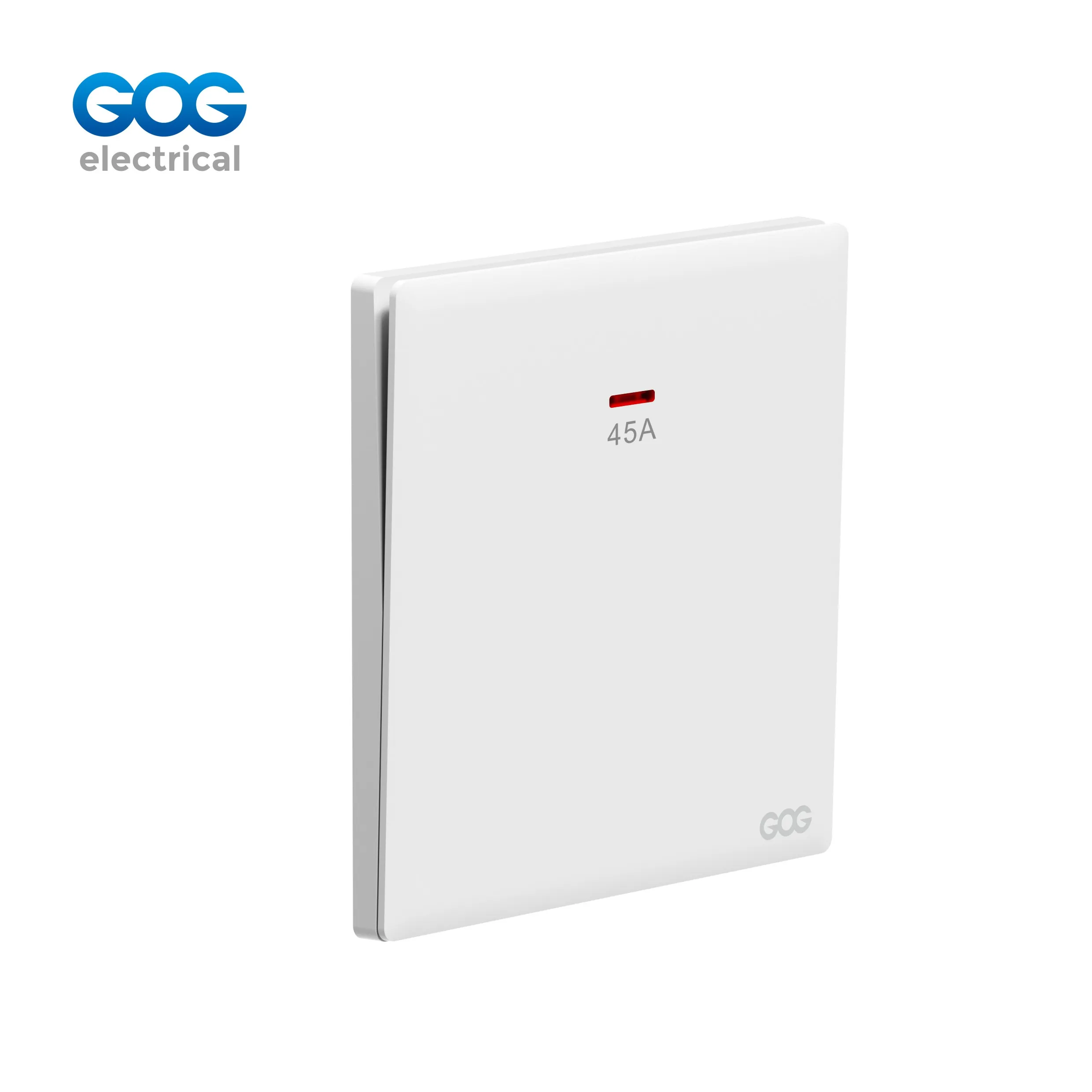

| White | Classic residential kitchens — clean PC finish matching white R12 interior switches. |

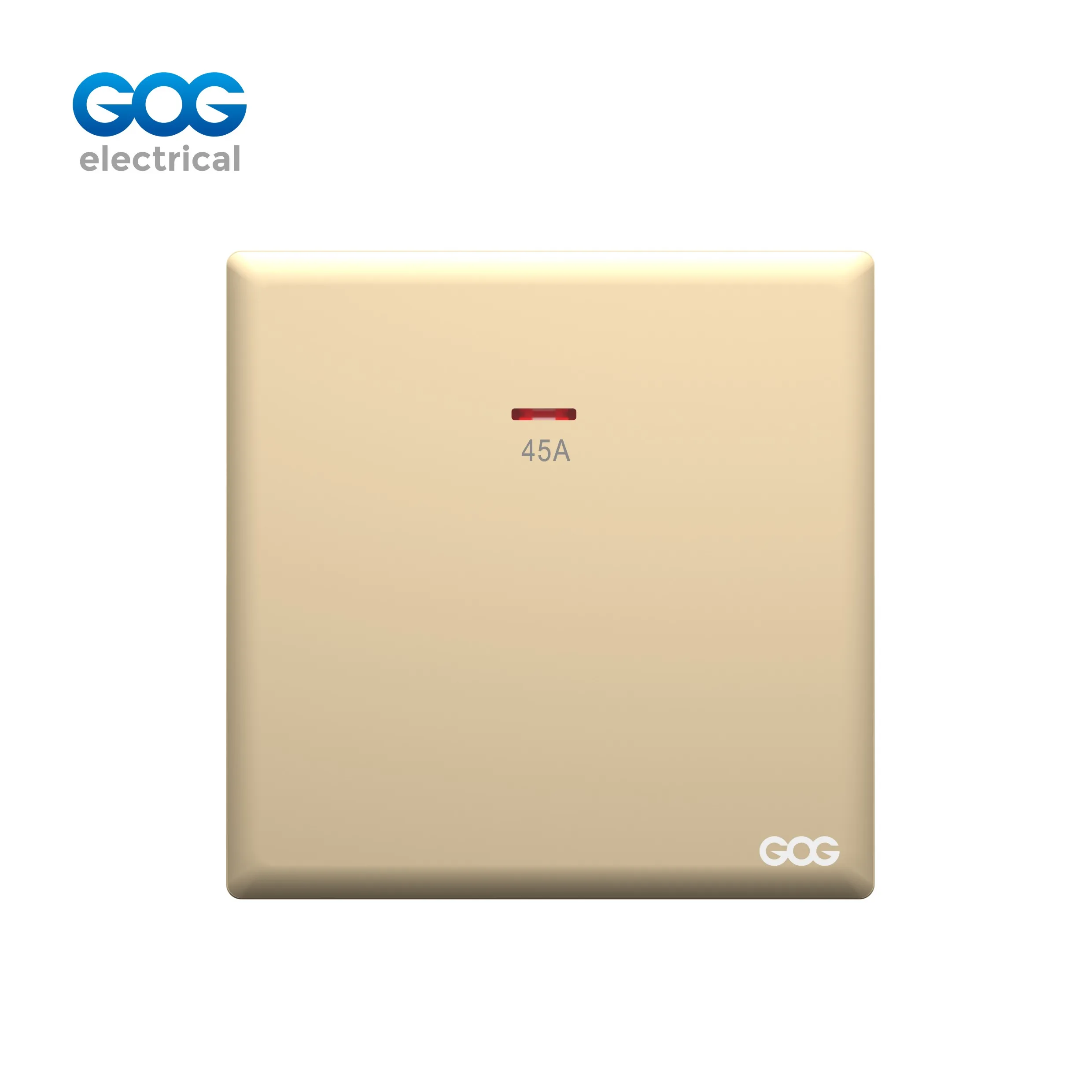

| Gold | Warm premium — distinctive metallic tone for high‑end residential and hotel installations. |

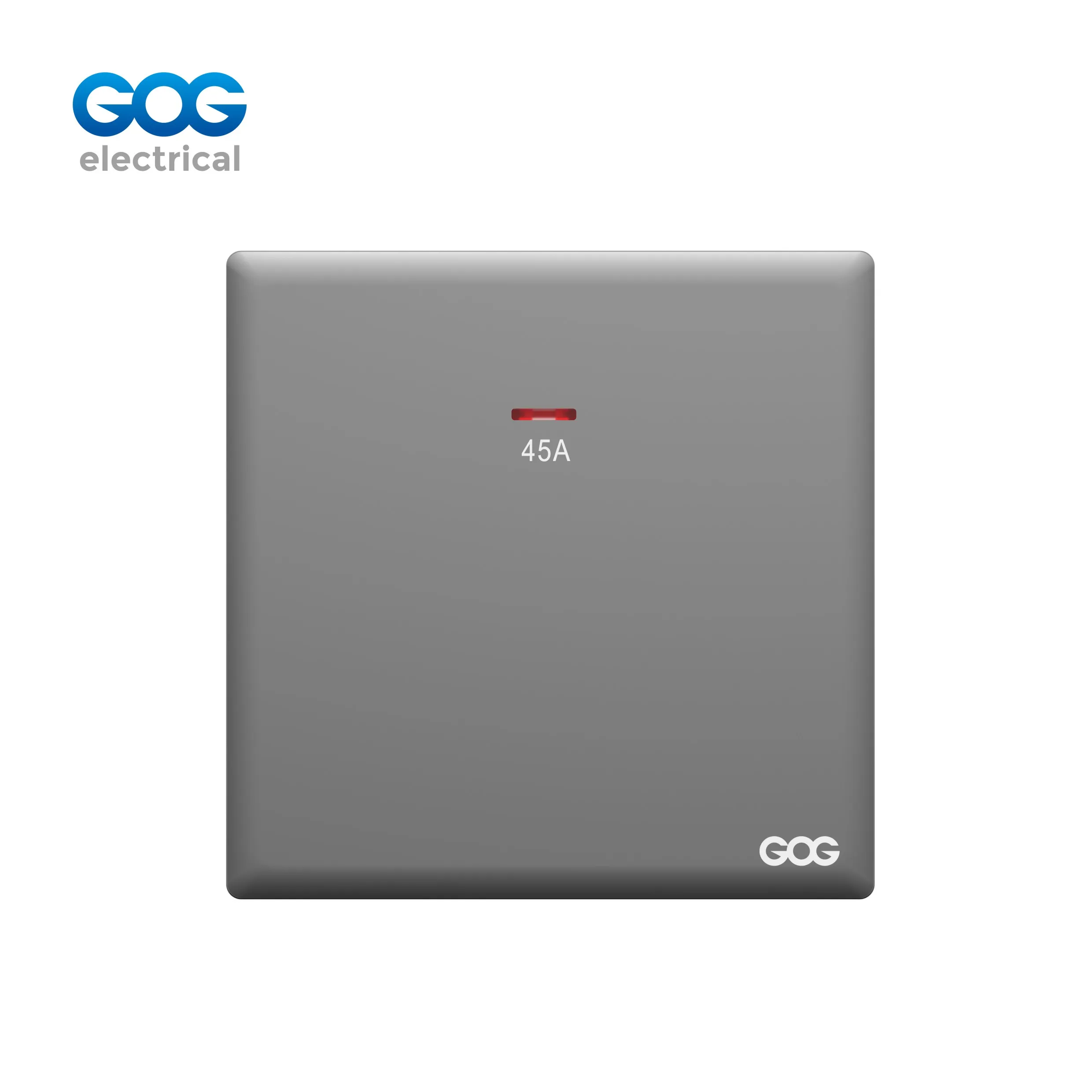

| Gray | Understated contemporary — neutral finish for modern apartments and commercial kitchens. |

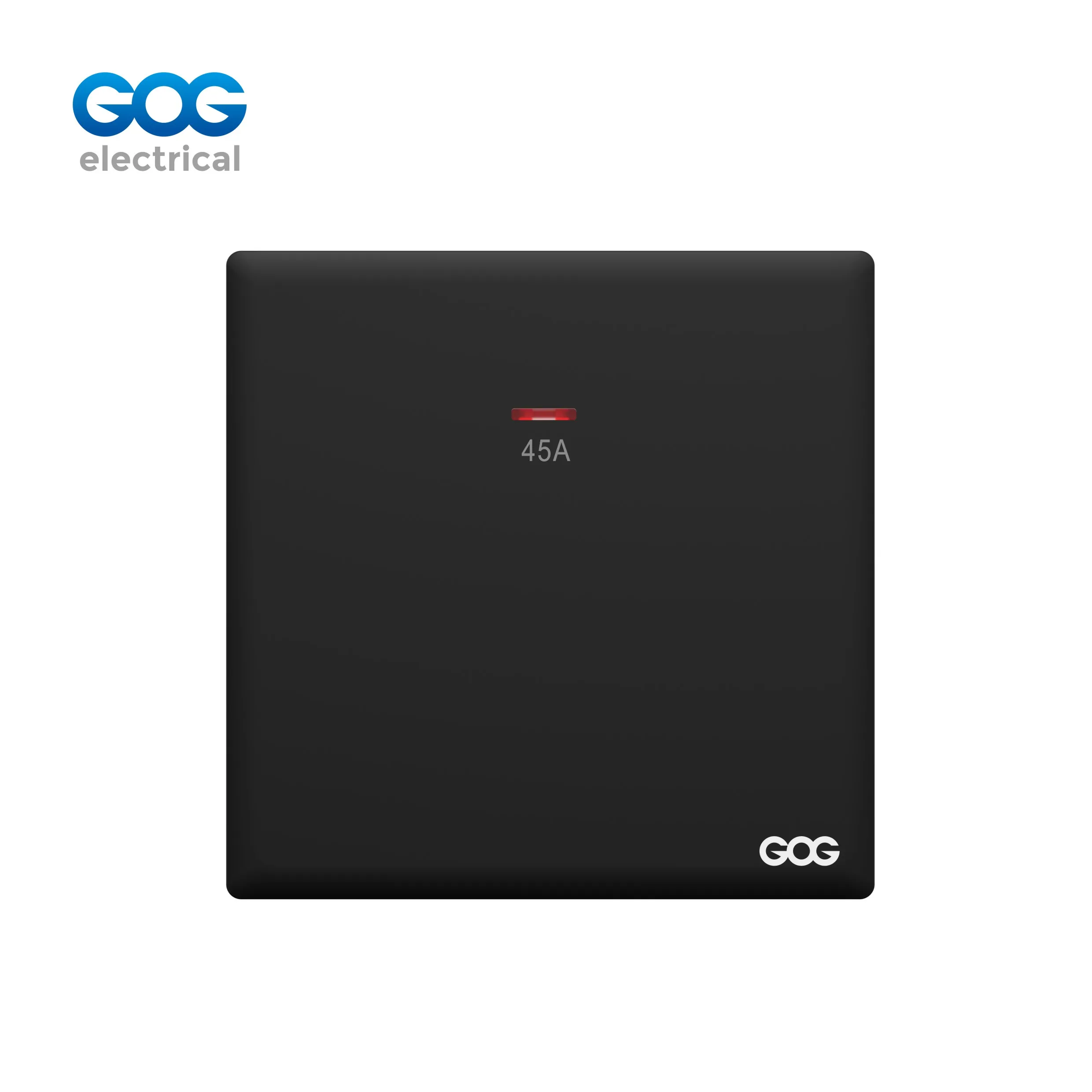

| Black | Bold statement — dramatic dark finish for premium commercial and industrial installations. |
British Standard 45A Double Pole Switch with Neon — DP Isolator for Cookers & Showers with PC Panel
British Standard 45A double pole switch, the R12327 ensures efficient operation of the most powerful fixed appliance circuits in homes and businesses. As a cooker switch and shower switch for 45A systems, this double pole isolator cuts off both the live and neutral wires at the same time, which is a code-mandated safety feature for electric cooking appliances, instantaneous showers, and industrial heaters. The built-in neon indicator shows if the circuit is live or not, glowing when the currents are flowing through and turning dark when both poles are open after switching off. Apart from having upgraded Φ5.5mm silver alloy touch points that are around 2 and a half times greater than Φ3.5mm contacts in the 20A version, this switch can also withstand a major electric arc created when switching on/off the 45A load. It can withstand 10,000 cycles at full load. The imported high-transparency PC front cover comes in White and Gray, as well as Gold and Black. Two types of center plates are available —one made of plastic only and another made of steel and plastic combination. IEC 60669 compliant with 12-year warranty.
As a direct factory producer of the product, we provide competitive wholesale pricing and OEM branding on the PC panel along with the 12-year warranty on the entire R12 series.
Φ5.5mm Silver Contacts — Engineered for the Arc Energy of 45A Switching
The key distinction between a 45A double pole switch and a 20A switch lies in how the contacts are configured. In the case of the R12327 switch, it has Φ5.5mm silver alloy contacts that occupy contact area approximately 2.5 times bigger than R12324 20A contacts occupying Φ3.5mm. That feature enables the device to handle very high energy produced by arcing phase during operation of the device under 45A. For example, a cooker operating at 10 kW with a voltage of 240 V will require a 45A switch to be fully compliant with the regulation pertaining to the provided with means of disconnection. In summary, using a 20A switch on a circuit serving a 45A cooker would be unsafe, and violating UK regulations. The red copper components of the device are also upgraded proportionally to receive 45A current. Uses of neon indicator are crucially important in a way that it serves a warning light for the circuit indicating its state.
Matching the R12 Series — 45A DP Switch in the Same High‑Current PC Finish
This white double pole switch called PC 45A belongs to the R12 range that has the same dimensions of 86×86mm, the imported high-transparent PC panel material and the same four colors with the R12 1-4 gang light switches, door bell switches and 20A DP switches. The R12327 cooker and shower isolator can be fitted with R12 and R12324 20A DP switches in the kitchen and utility room because all have the same profile. You can choose white, gold, gray or black color of the switch.
Stock This 45A British Standard DP Cooker & Shower Switch in Four Colors at Factory Pricing
White, Gold, Gray, Black PC panel. 45A double pole isolator with neon for cookers, showers, and high-power appliances. Full plastic or steel-plastic middle plate. OEM logo, custom packaging, 12‑year warranty included. Contact us for a wholesale quotation.
IEC 60669 Certified • Rated at Full 45A Load • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for British Standard 45A DP Cooker & Shower Isolator Switches
R12327 45A double pole switch takes advantage of the top performance features of R12 range to be used in the highest power set of appliance circuits. Available White for high volumes in residential and commercial applications, Gold and Grey for premium interior applications, and Black in modern commercial fit outs — manufactured in one plant with the same dimensions of 86х86 mm. Enhanced Φ5.5 mm silver contacts will provide compliance with cooker and shower circuit regulations. R12327 45A should be kept in stock with R12324 (20A DP) to provide full range of double pole isolators available in any current rating. OEM branding on the PC panel, customized packaging and full IEC 60669 documentation are included for wholesale distribution worldwide.
When to Specify a 45A DP Switch: Cookers, Showers & High‑Power Appliances
A practical guide to identifying 45A DP isolator applications, comparing 45A vs 20A, and selecting the correct wiring and middle plate for heavy‑current installations.
Where Is a 45A DP Switch Required?
According to the wiring regulations in the UK, it is required to use a 45 amp double pole isolator in circuits that are responsible for the most power tools and devices in use, as applied in homes and in commercial premises. In the case of electric cookers and range ovens which consume power of up to 11 kilowatts of power, a 45 amp switch is required to be installed and made available for use. In terms of instantaneous showers, it is necessary to apply full double pole isolation. In addition to other commercial kitchen equipment used in a restaurant, that includes such items as fryers, steamers, griddles, all of them require 45 amps for safe use.
Φ5.5mm vs Φ3.5mm Contacts — Why Contact Size Matters
The Φ5.5mm silver alloy contacts of the R12327 provide about 2.5 times as much contact surface than the standard Φ3.5mm contact. This isn’t just a minor enhancement but rather a principal engineering prerequisite for the 45A switching. When the current reaches 45A during each make-and-break cycle, the arc energy becomes so great that smaller contacts would not be able to endure such an operation. In this device, the bigger contact configuration, thicker bus bars, and stronger spring design are working together for achieving effective arc suppression and maintaining contact pressure.
Wiring & Installation
There are four significant terminals available in R12327: that of incoming live, outgoing live, incoming neutral, and outgoing neutral along with the earth continuity terminal. Since it has a rating of 45A, the supply cable must be sufficiently sized and in most cases, 10mm² is used for cooker circuits and 6mm² to 10mm² for shower circuits varying on the length and type of installation. All connections must be tightly torqued to be able to support the full current of 45A without any possibility of heat generation. The installation can be done using the regular British back box of the dimension 86mm by 86mm; however, deep box of 47mm is strongly advised to be used with 45A circuits.
Frequently Asked Questions
What is a 45A double pole switch used for?
A 45A Double pole switch is designed for the most powerful fixed appliance circuits, needing total isolation of both live and neutral like electric cookers, range ovens, instant showers, commercial equipment, and industrial heating appliances. A British standard 45A Double pole switch R12327 has a neon indicator and improved Φ5.5mm contacts in accordance with UK wiring codes for circuits requiring up to 45A (approximately 11kW at 240V).
What is the difference between a 45A DP switch and a 20A DP switch?
The main distinctions are the contact rating and the internal construction. The R12327 (45A) model is equipped with contacts of Φ 5.5 mm made of silver alloy, which is around 2.5 times bigger than Φ 3.5 contact used in the 20A version, which allows it to manage the increased arc loads required for 45A circuit switching. A 45A cooker switch can operate up to 11kW circuits, while the 20A model can only operate up to 4.8kW. Using a 20A switch in a 45A circuit is unsafe, and against any electrical code regulations.
What size cable should I use with this 45A DP switch?
10mm² wire should be used for electric cooker circuits. In the case of instantaneous shower circuits, either 6mm² or 10mm² can be used, depending on the power of the shower and length of the installation. The terminals of the R12327 can accommodate wires of these thicknesses. A deep back box (47mm) is also recommended to allow the use of thicker wires.
What middle plate options are available for this 45A DP switch?
The R12327 comes with two kinds of middle plates: one made of full plastic for standard residential usage and one made of steel-plastic combination for increased durability in cases of heavy commercial and industrial use. For 45A applications with a switch that is likely to be used on a regular basis, it is advisable to go for a steel-plastic combination middle plate for durability and structure support. Both of the options have a 10,000-cycle rating even under 45A in full use and a 12-year warranty.
