British Standard 13A 2 Gang DP Switched Socket with USB-C & USB-A — Two Power Outlets + Dual USB Charging, White PC Panel
The R16492C is a UK Standard 13A 2 Gang Double Pole switched socket with 2 independent BS1363 power outlets and an integrated USB-A and USB-C Charger, all presented on one 86mm × 146mm single wall plate. The R16492C is the ultimate power and charging device within the R16 range of sockets — it comprises of 2 x 13A sockets, both with individual DP switch and neon indicator, plus a 2.1A USB module, hence charging for mobile devices will not affect the need for either power outlet. Each socket on the R16492C is fitted with DP (Double Pole) switches that will isolate both live and neutral on each of the sockets, thus providing maximum level of safety while using the R16492C sockets.
The USB module on the R16492C operates separately from either 13A outlet, thus charging continues when both 13A outlets are switched off. The R16492C has been manufactured by a specialist manufacturer of 2 Gang USB Sockets, with a socket contact of 0.7mm High Purity 62 Brass that provides a strong pin retention over 15,000 insertions per socket; in addition the DP switch mechanism is made of Red Copper with Φ3.5mm×0.35mm Silver Alloy Touch Point for reliable switching action on both gangs. The R16492C is available in 4 different imported High Impact Transparent Plastic (PC) Panel Colours — White, Gold, Grey and Black; and has a choice of 2 Middle Plates; also the R16492C is Triple Certified IEC 60884, BS1363 and IEC 62680; and has a 12 Year Warranty.
We are a factory-direct double USB switched socket manufacturer offering competitive wholesale pricing, OEM branding on any color PC panel, and a 12‑year warranty across the R16 series range.
Two DP Sockets + USB Charging — The Complete Single-Panel Power Solution
| Feature | R16492C 2 Gang DP USB Socket | R16408 2 Gang SP Socket | R16491C 1 Gang DP USB Socket |
|---|---|---|---|
| Number of Sockets | Two 13A BS1363 outlets | Two 13A BS1363 outlets | One 13A BS1363 outlet |
| Switch Type | DP (Double Pole) per socket | SP (Single Pole) per socket | DP (Double Pole) |
| USB Charging | USB‑A + Type‑C, 2.1A | No USB ports | USB‑A + Type‑C, 2.1A |
| Neon Indicator | Yes — per socket | Yes — per socket | Yes (or No‑neon version available) |
| Best For | Kitchen counters, office desks — max power + USB | General dual‑appliance locations | Bedside, single‑appliance + USB |
The R16492C dual USB-C receptacle from the R16 series is the flagship in this range of electrical outlet sockets. The R16492C integrates the function of three separate outlets that would typically be installed individually (ie a combination of 2 x 13amp power circuits, a USB-C charging circuit, and DP electrical isolation), into one wall-plate. The R16492C provides a convenient solution for powering appliances such as kettles or toasters, while simultaneously providing USB-c chargers for phones and tablets on kitchen countertop surfaces using only one wall-plate. There are no adapters required, and there are no extension leads or power cords cluttering up your countertop surfaces. You can independently control each of the 2 outlets with 2 separate on/off rocker switches that are equipped with a neon indicator, allowing you to isolate one appliance from the other, while continuing to supply power to both devices. The USB circuit is designed to comply with IEC 62680 and is DCP certified and operates independently of the on/off switch position of the 13Amp receptacles.
DP Safety × 2 + USB Charging — Why Double Pole Matters on Both Sockets
Each of the two USB wall sockets has DP (Double Pole) switches instead of SP (Single Pole) switches like on standard R16408 – this is an intended upgrade. A kitchen is often partially subject to both electrical and water hazards, as in both the top and bottom sockets may be used to power appliances close to water (think kettles, toasters, etc.), so the DP isolation provides additional protection by breaking both the live and neutral connections at the same time. In a work environment, the lower socket will usually support the computer while the top supports the printer; independent DP switching allows for full isolation of either device without affecting the other.
The brass contacts for the sockets are 0.7mm 62 brass, with a copper core and provide consistent conductivity across both connections over a lifespan of 15,000 insertion cycles/sockets.
The USB module provides a total output of 2.1A over both USB-A and USB-C ports with built-in protection for over-current, over-voltage, and short-circuit conditions.
The socket is triple certified to IEC 60884, BS1363, and IEC 62680.
Matching the R16 Series — 2 Gang DP USB Socket Within the Same Aesthetic
The R16 Series White PC Double USB Socket is made from an extensive range. The singleton parts of the products consist of 4 finishes and an imported high ‑ transparent PC plate. This product can fit into an 86x146mm size, to sit uniformly among other 2- gang R16 products. Each of the available options include White, Gold, Grey, or Black. There are 2 options for the middle plate; full-plastic to provide for the standard installation, or a combination of plastic/metal to provide additional strength. This product is triple certified with a 12-Year Warranty from the manufacturer R16492C.
SPECIFICATIONS
| Series | R16 series |
| Item Code | R16492C |
| Description | 13A 2 Gang DP Switched Socket with USB-A + Type-C, Neon, 2.1A |
| Socket Rating | 13A / 250V~ per socket |
| Socket Configuration | 2 gang — two independent BS1363 outlets |
| Switch Type | DP (Double Pole) with neon indicator per socket |
| USB Ports | 1 × USB‑A + 1 × Type‑C, 2.1A total output |
| Product Lifetime | 15,000 cycles per socket (socket insertion) |
| Socket Standard | UK 3‑pin BS1363 |
| Front Panel | Imported high‑transparent, high‑strength PC |
| Base | Imported high‑transparent, high‑strength PC |
| Middle Plate Options | Full plastic / Steel‑plastic combination |
| Switch Internal | Red copper bush, red copper stamping part, red copper bus bar, Φ3.5mm×0.35mm silver touch point (per gang) |
| Socket Contact | 0.7mm high purity 62 brass, integrated structure copper |
| USB Protection | Over‑current, over‑voltage, short‑circuit protection built in |
| Standards | IEC 60884 / BS1363 / IEC 62680 |
| Warranty | 12 Years |
| Available Colors | White / Gold / Gray / Black |
| Dimensions | H 86mm × W 146mm (double gang British Standard back box) |
| MOQ | 2,000 pcs per item |
| Packaging | 1 pc per plastic bag | 5 pcs per inner box | 50 pcs per outer carton |
Stock This 13A British Standard 2 Gang DP USB Switched Socket in Four Colors at Factory Pricing
White, Gold, Gray, Black PC panel. Two independent 13A outlets with DP switches and neons. USB-A + Type-C, 2.1A. 62 brass socket contacts. Full plastic or steel-plastic middle plate. OEM logo, custom packaging, 12‑year warranty included. Contact this 2 gang USB socket manufacturer for a wholesale quotation.
IEC 60884, BS1363 & IEC 62680 Certified • Two DP Sockets + USB • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for British Standard 13A 2 Gang DP USB Double Switched Sockets — Factory Direct
As a specialist 2 gang USB switched socket manufacturer, we produce the R16492C on our own production lines — giving your wholesale business the most complete power and charging solution in the R16 range. Stock White for volume residential and hotel projects, Gold and Gray for premium interiors, and Black for modern commercial fit‑outs — all with the same dual 62 brass socket contacts, red copper DP switch mechanisms, independent neon indicators per socket, and 2.1A USB module. Stock alongside the R16408 (2 gang SP without USB), R16491C (1 gang DP with USB), and R16407 (1 gang SP standard) to offer a complete tiered socket range from one British standard double USB socket factory. OEM branding on any color PC panel, custom packaging, and full IEC 60884, BS1363, and IEC 62680 documentation included for wholesale distributors worldwide.
R16492C vs R16408 vs R16491C: Choosing the Right Socket — 2 Gang DP USB, 2 Gang SP, or 1 Gang DP USB?
A practical guide to selecting the optimal 2 gang double switched socket with USB for kitchens, offices, and multi‑appliance locations.
R16492C (2 Gang DP + USB) vs R16408 (2 Gang SP, No USB) — Which for Your Kitchen?
If you’re looking for a dual USB wall outlet (double socket) for your kitchen countertop, office desk, or hotel room that has two power outlets along with two USB charging ports from one wall plate, the R16492C is the perfect option. Double pole (DP) switch functionality provides greater safety and isolation between kitchen appliances (e.g., toasters) than standard (SP) switches do. Having both USB ports built into the double outlet eliminations the need for a plug‑in USB adapter to be plugged into one of the 13A power outlets (so you will have all 4 power outlets available). The R16408 is designed to be a cost‑effective option for all general‑purpose dual appliance applications where USB charging is not needed or required separately.
R16492C (2 Gang DP + USB) vs R16491C (1 Gang DP + USB) — Two Sockets or One?
If you want a wall socket with two 13A outlets and USB ports in the same spot, choose the R16492C 2-gang USB switched socket for your kitchen counter, TV point, or office desk. If you only want one 13A outlet and USB ports, choose the R16491C for your bedside table, or a location to power just one appliance, like a hotel desk lamp. Both sockets provide isolating switches and provide the same level of 2.1 A output to each USB socket (both A & C). The main difference between these products is that the R16492C is twice as many 13A outlets as the R16491C and has a larger overall footprint of 146mm x 146 mm.

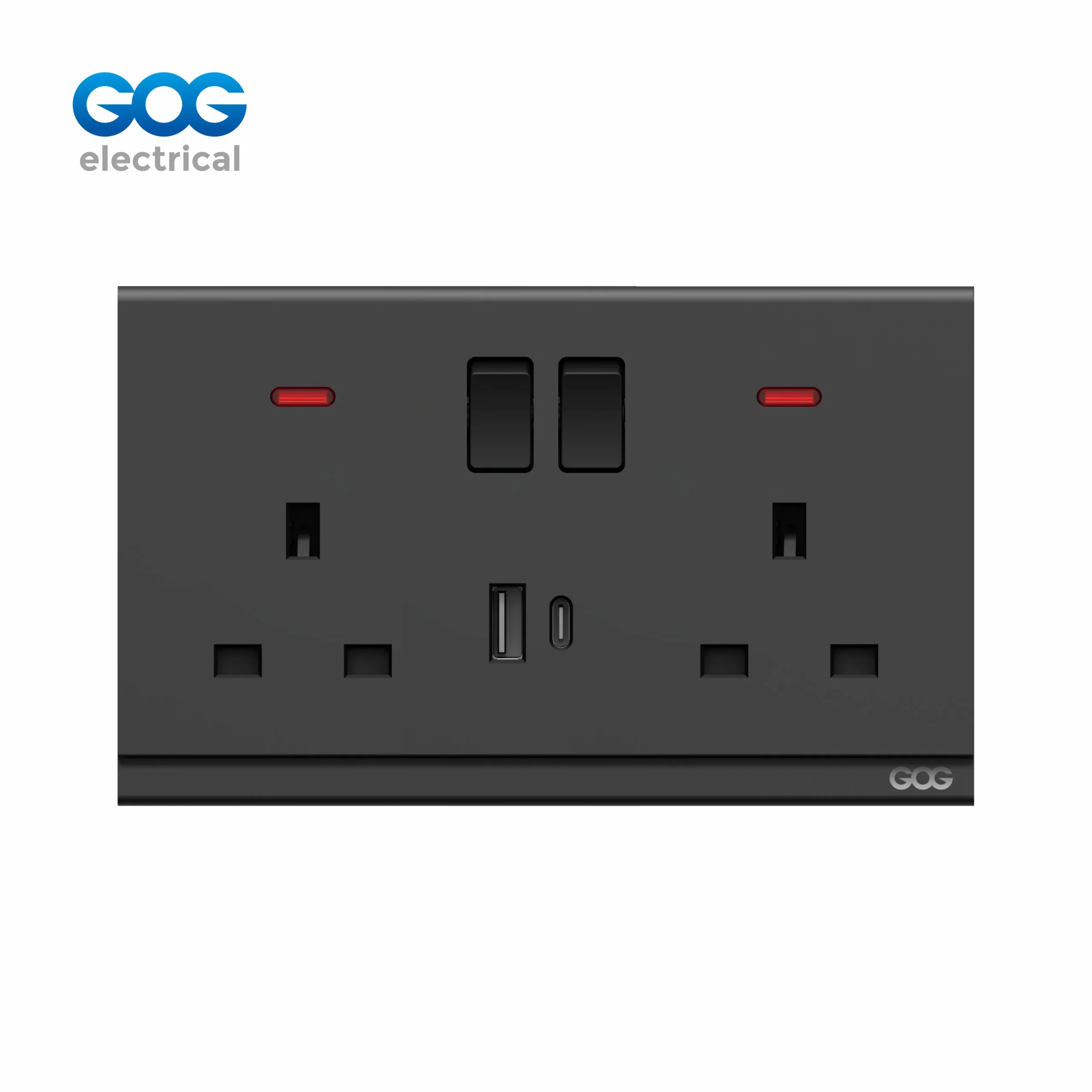

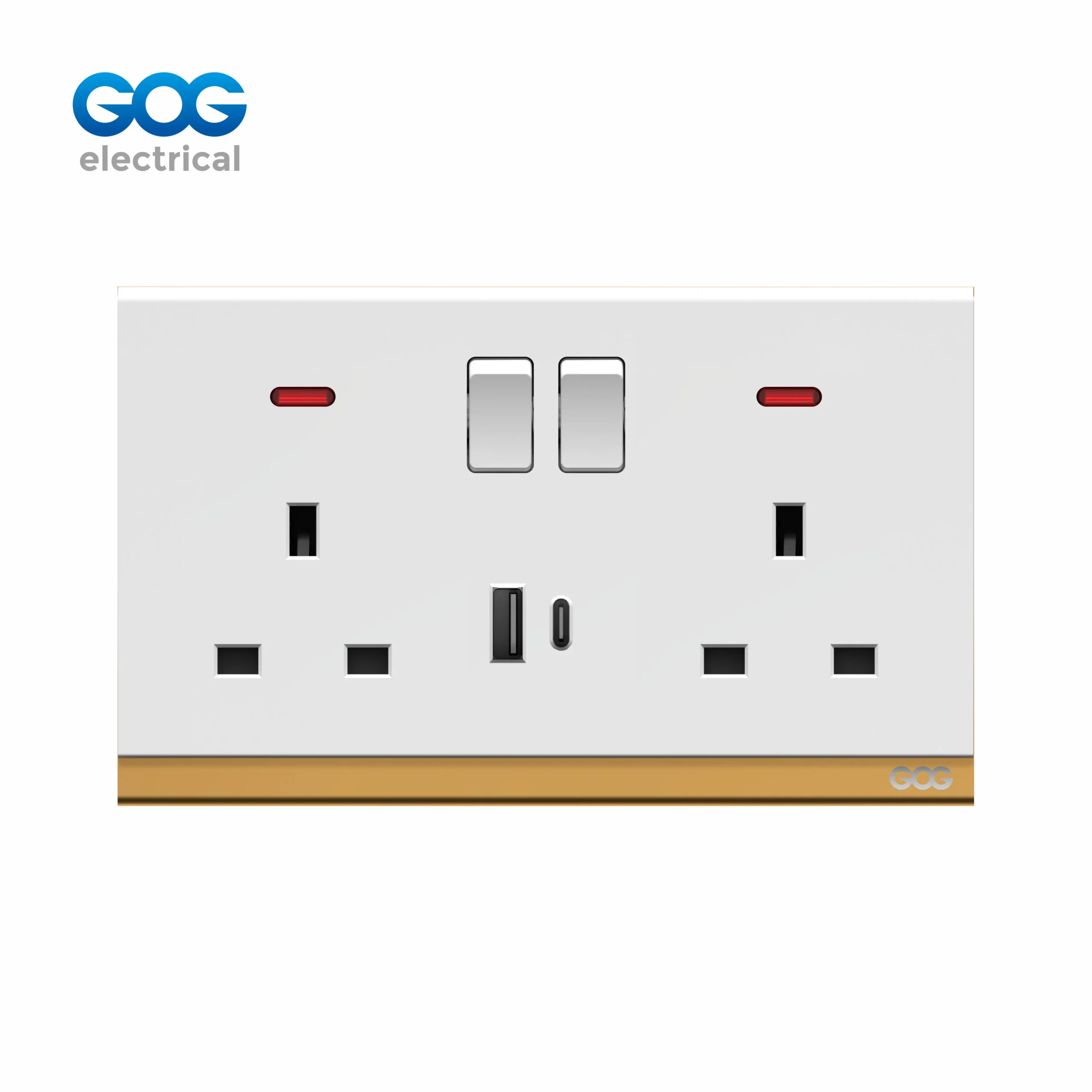

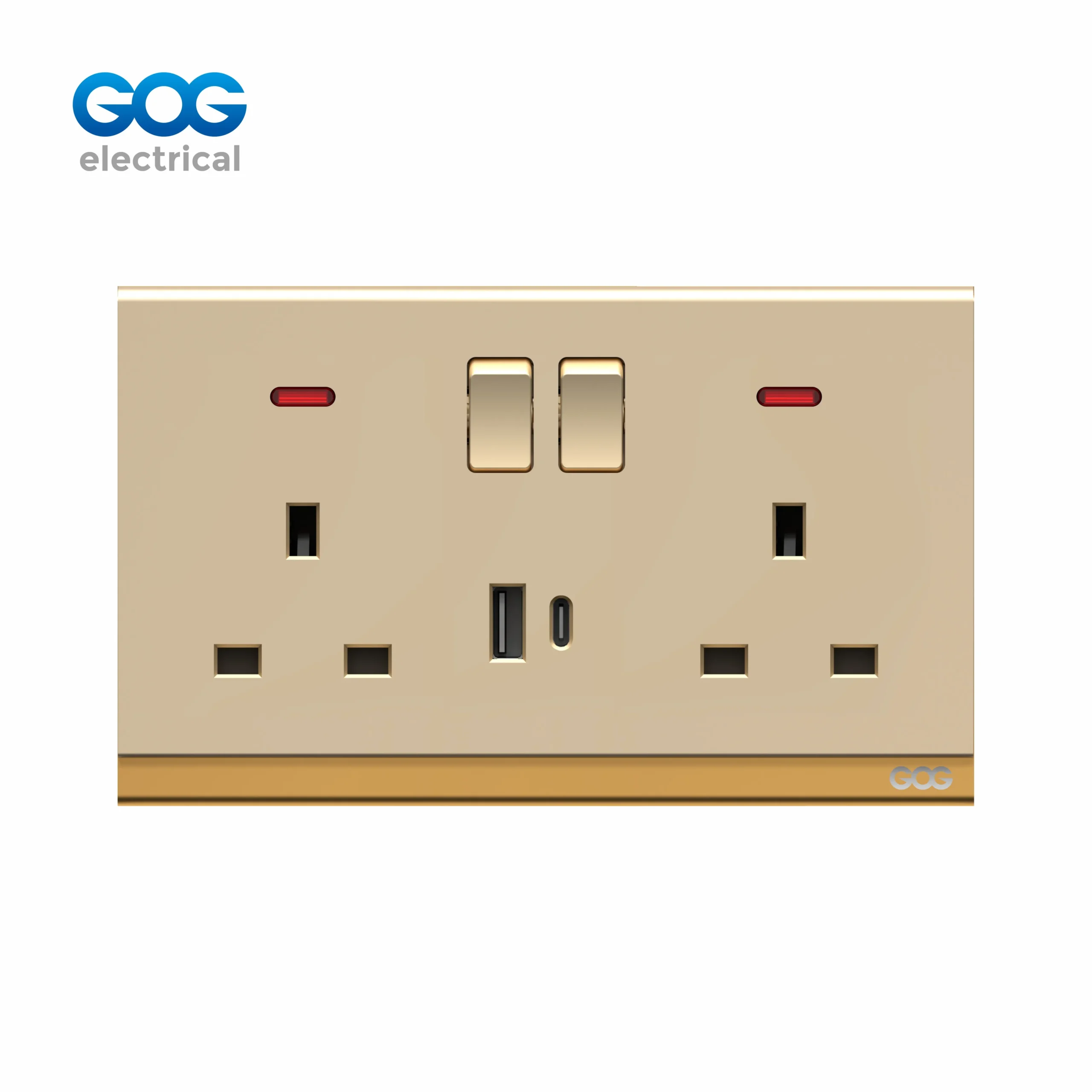

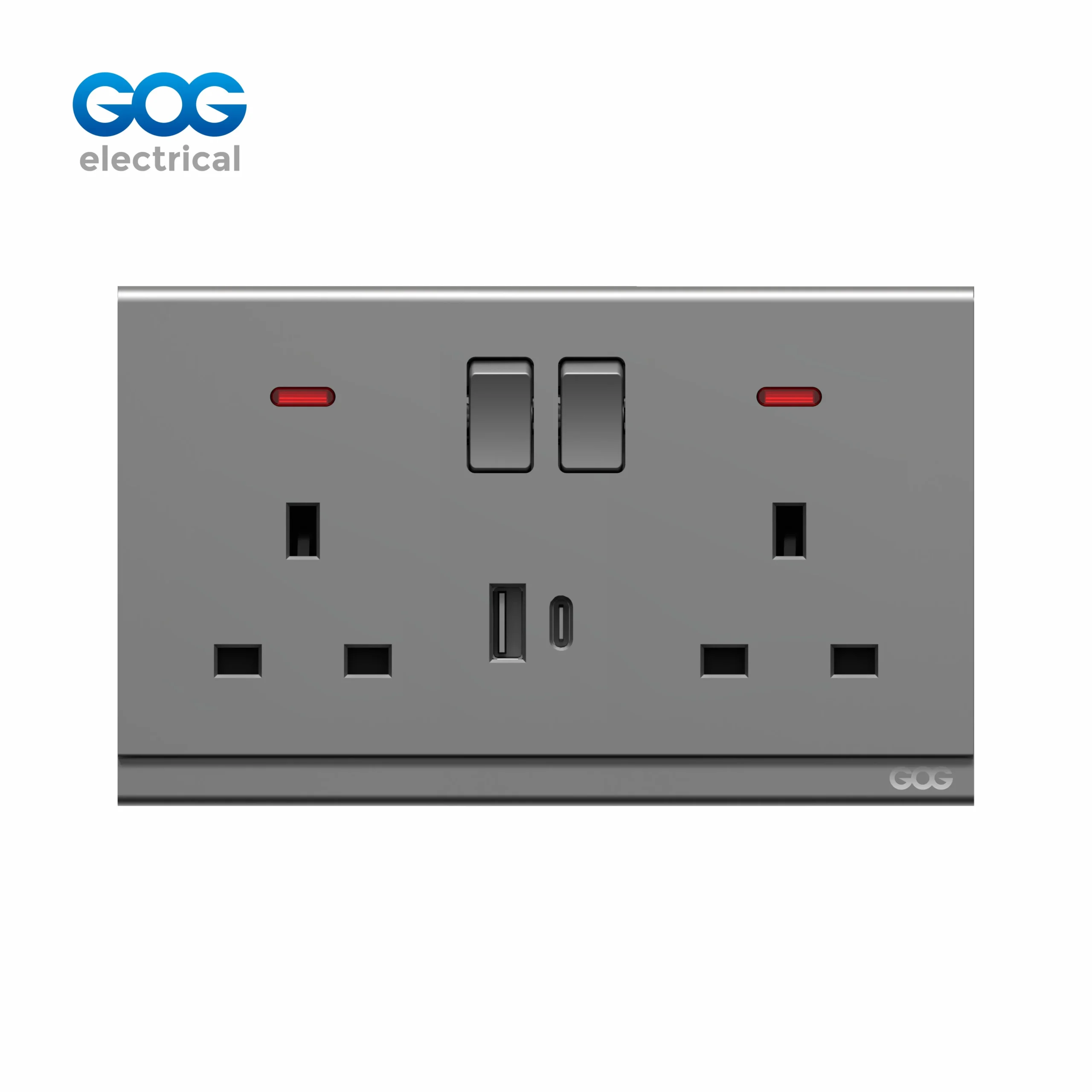

Color Selection — White, Gold, Gray, or Black?
White PC panel: Stylish in your kitchen, living room, or office. Gold plastic panel has the Warm, Gold tone used in premium hotel rooms or luxury residential items. Grey plastic panel has a soft neutral colour which works with contemporary, urban design themes suitable for both modern residential apartments and commercial businesses. Black plastic panel creates a striking contrast against white walls and is predominantly found in commercial spaces and high-end interiors. All four colour options are manufactured from the same high-grade translucent plastic material, with the added benefit of a twelve-year warranty provided through the manufacturer.
Frequently Asked Questions
What is a 2 gang USB switched socket?
The R16492C double USB wall socket features two separately switched 13A power sockets along with USB charging ports all installed in one faceplate. This British 2 gang DP switched socket has both USB-C and USB-A ports available on the integrated charging module, allowing you to charge a phone or tablet at 2.1A without taking up either of the mains electricity sockets. Each of the two BS1363 outlets has its own individual DP switch and neon light.
Does the USB still charge when both socket switches are off?
Not only do the USB-A and USB Type-C ports on the R16492C operate separately from both DP socket switches but also the USB module is powered directly from the mains. This means that devices can still be charged when both 13A sockets are turned off.
The two neon indicators are used to show the status of the socket and do not provide any indication as to whether USB power is available. USB power will always be available when there is power at the consumer unit.
What is the difference between DP and SP on this 2 gang socket?
The DP (Double Pole) switch on the R16492C cuts off both live and neutral conductors for complete electrical isolation and to improve safety on each outlet. The SP (Single Pole) switch on the R16408 only disconnects the live conductor. Therefore, the DP switch is the recommended device for use in kitchens and bathrooms, or any place where an appliance may get wet or when complete electrical isolation is preferred for safety or during maintenance.
What colors is this British standard 2 gang USB double socket available in?
The R16 2 Gang DP USB switched socket is available in 4 different PC panel colour options. The available colours are: White – the classic colour for use in almost every kitchen/living area/office environment; Gold – an attractive, warm and premium finish suitable for hotel suites and high end residential interiors; Grey – a neutral, contemporary colour which will work perfectly in modern apartment buildings and throughout commercial builds; Black – an attention grabbing contrasting finish suitable for both high end residential and commercial environments. All 4 colours are manufactured from the same imported material (highly transparent polycarbonate) with the same 12 year manufacturer’s warranty.
