British Standard 13A 2 Gang MF Switched Socket with USB-C & USB-A — Phosphor Copper Double USB Wall Socket, White PC Panel
The R16588C is a 2-way (2 gang) dual output (115V & 230V) MFM (Male/Female) connector (cable) with two (2) Male 115V outlets (each rated at 13 amps) and two (2) Female 115V Inlets (each rated at 13 amps). The R16588C has independent switching capability for each (2) Male outlet and has two individual Neo’s for power indication; however, the two (2) USB modes are also located on the back side of the unit and each have their own separate switching mechanism. This connector will allow the same level of flexibility for use across a wide variety of electrical outlets (i.e. residential and commercial). The dual output capabilities of this connector (combined with the 3.5mm diameter silver alloy cross section of the 4x4mm electric contact points) have resulted in the highest level (premium) quality materials being used in its construction. Each of the (3) largest electrical contacts on the unit have its own (4-5) independent fuses for over current or short circuit protection. The R16588C is tested to IEC61439 by an international testing laboratory and has been independently certified and listed under IEC60884 and IEC62680. Additionally, the R16588C comes with a full compliment of imported high quality (low-translucent) wall plate options (i.e., White, Gold, Gray and Black) and two (2) Middle Plate options. Warranty Period: 12 Years from date of original invoice.
We are a factory-direct double MF USB switched socket manufacturer offering competitive wholesale pricing, OEM branding on any color PC panel, and a 12‑year warranty across the R16 series range.
Phosphor Copper Sockets + USB Charging — The Ultimate 2 Gang Combination
| Feature | R16588C 2 Gang MF USB Socket | R16492C 2 Gang DP USB Socket | R16408M 2 Gang MF Socket |
|---|---|---|---|
| Socket Contact Material | 0.7mm phosphor copper | 0.7mm 62 brass | 0.7mm phosphor copper |
| Switch Type | SP (Single Pole) per socket | DP (Double Pole) per socket | SP (Single Pole) per socket |
| USB Charging | USB‑A + Type‑C, 2.1A | USB‑A + Type‑C, 2.1A | No USB ports |
| Key Advantage | Phosphor copper elasticity + USB convenience | DP safety isolation + USB | Phosphor copper durability — no USB |
In the R16 twin socket range of R16588C MF — the R16588C MF has its own unique place. It uses the same phosphor copper contact material (much like the SP switches) and all the energy contact materials meet the most demanding standards of endurance for heavy-use applications (high use), but that’s as far as any of these options go when it comes to the types of switch designs used. Both switch types are ideal for hotel rooms, workstations in an office environment, or kitchens in a residential setting, where people will likely be inserting or removing plugs from both the top and bottom, as well as being able to charge their devices via USB from their laptop charger or when charging via a standard electrical outlet. The R16492C has been designed with a greater priority on electrical safety by having dual pole switches (DP) than the R16588C MF twin socket switches that have a greater priority placed on contact durability than having a USB; therefore, both R16588C MF and DP provide a combination of the above features.
Phosphor Copper + Dual USB — Built for High‑Use, High‑Convenience Locations
The double USB wall socket has two sockets, both made of high phosphor copper. The high phosphor copper wire is the ideal choice due to its superior elastic properties and its ability to maintain pin retention after repeated insertions. Phosphor copper remains tensioned for much longer than brass, making it suitable for a hotel where guests use chargers all the time or kitchens with kettles and toasters that require multiple insertions and removals of the appliance. The USB module has a total maximum output capability of 2.1A through both USB-A and USB-C ports and provides built-in protection against over-current, over-voltage and short-circuit and will operate independently of the socket switch, thus continuing to charge devices even when both 13A mains power sockets are switched off. The two Neon indicators will only indicate whether each of the associated sockets are live. The USB is compliant with IEC 62680 and the sockets comply with IEC 60884.
Matching the R16 Series — 2 Gang MF Phosphor Copper USB Socket Within the Same Aesthetic

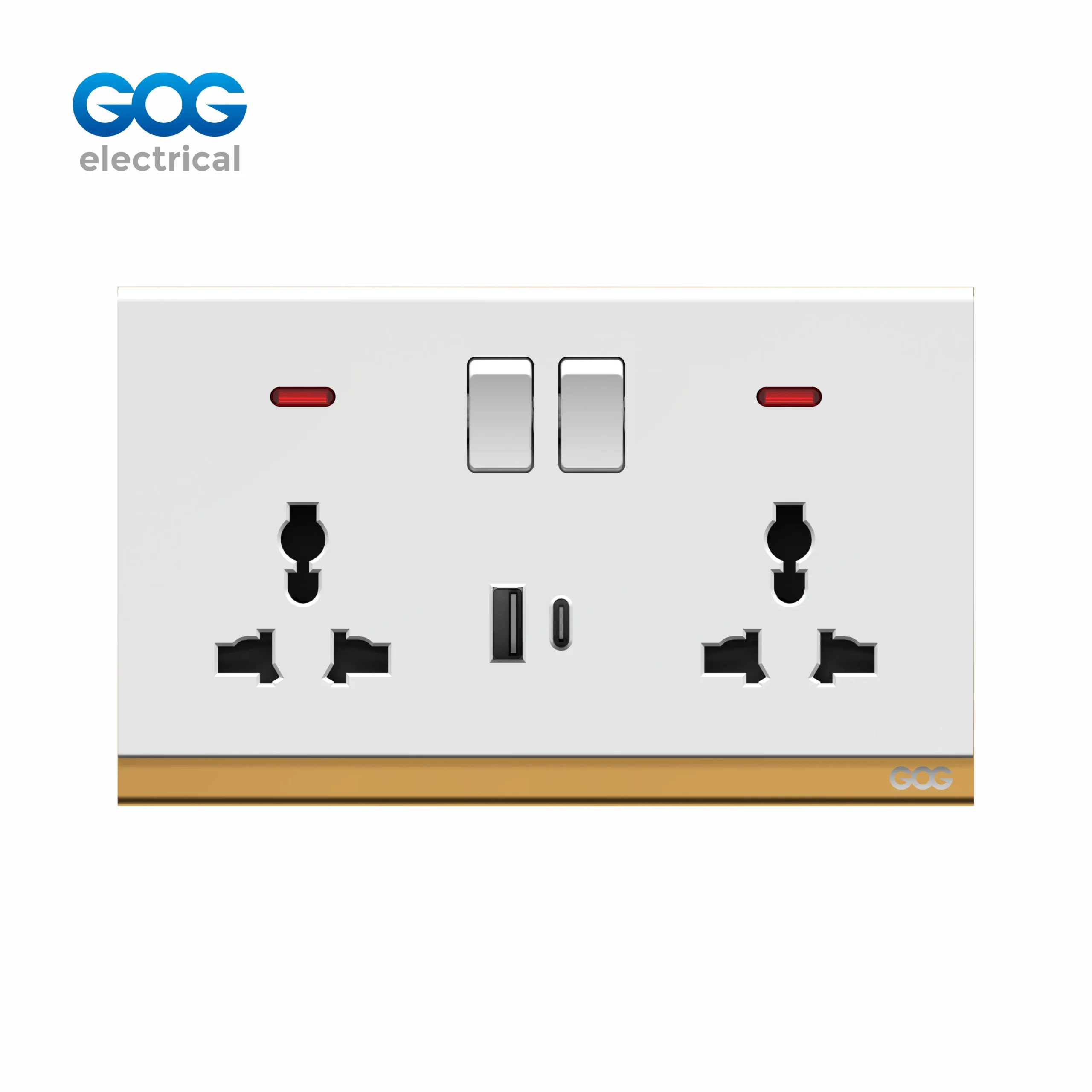

The white double MF USB Socket (PC – 86mmx146mm) is a member of the R16 series and uses the same importedR16 wiring accessory high-transparent PC panel material and offered in 4 different colour finishes. It has an 86mm x 146mm (panel size) that matches all other R16 2 gang products. The available colour finishes are White, Gold, Grey and Black. It has 2 choice middle plate options: Full either plastic (standard installation) or combination steel and plastic (enhanced rigidity). It also has a dual certification from the R16588C phosphor copper USB socket manufacturer with a 12 year warranty.
SPECIFICATIONS
| Series | R16 series |
| Item Code | R16588C |
| Description | 13A 2 Gang MF Switched Socket with USB-A + Type-C, Neon, 2.1A (Phosphor Copper Contacts) |
| Socket Rating | 13A / 250V~ per socket |
| Socket Configuration | 2 gang MF — two independent BS1363 outlets |
| Switch Type | SP (Single Pole) with neon indicator per socket |
| USB Ports | 1 × USB‑A + 1 × Type‑C, 2.1A total output |
| Product Lifetime | 15,000 cycles per socket (socket insertion) |
| Socket Standard | UK 3‑pin (BS1363 compatible) |
| Front Panel | Imported high‑transparent, high‑strength PC |
| Base | Imported high‑transparent, high‑strength PC |
| Middle Plate Options | Full plastic / Steel‑plastic combination |
| Switch Internal | Red copper bush, red copper stamping part, red copper bus bar, Φ3.5mm×0.35mm silver touch point (per gang) |
| Socket Contact | 0.7mm high phosphor copper, integrated structure copper |
| USB Protection | Over‑current, over‑voltage, short‑circuit protection built in |
| Standards | IEC 60884 / IEC 62680 |
| Warranty | 12 Years |
| Available Colors | White / Gold / Gray / Black |
| Dimensions | H 86mm × W 146mm (double gang British Standard back box) |
| MOQ | 2,000 pcs per item |
| Packaging | 1 pc per plastic bag | 5 pcs per inner box | 50 pcs per outer carton |
Stock This 13A British Standard 2 Gang MF Phosphor Copper USB Switched Socket in Four Colors at Factory Pricing
White, Gold, Gray, Black PC panel. Two independent 13A outlets with neons. 0.7mm phosphor copper contacts. USB-A + Type-C, 2.1A. Full plastic or steel-plastic middle plate. OEM logo, custom packaging, 12‑year warranty included. Contact this phosphor copper USB socket manufacturer for a wholesale quotation.
IEC 60884 & IEC 62680 Certified • Phosphor Copper + USB • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for British Standard 13A 2 Gang MF Phosphor Copper USB Double Switched Sockets — Factory Direct
As a specialist phosphor copper USB switched socket manufacturer, we produce the R16588C on our own production lines — giving your wholesale business the ultimate 2‑gang combination of material durability and charging convenience. Stock White for volume residential and hotel projects, Gold and Gray for premium interiors, and Black for modern commercial fit‑outs — all with the same dual 0.7mm phosphor copper socket contacts, red copper switch mechanisms, independent neon indicators per socket, and 2.1A USB module. Stock alongside the R16408M (2 gang MF phosphor copper, no USB), R16492C (2 gang DP brass with USB), and R16408 (2 gang SP brass standard) to offer a complete tiered 2‑gang range covering every material, switch type, and charging combination from one British standard double MF USB socket factory. OEM branding on any color PC panel, custom packaging, and full IEC 60884 and IEC 62680 documentation included for wholesale distributors worldwide.
R16588C vs R16492C vs R16408M: Choosing the Right 2 Gang Switched Socket — Phosphor Copper + USB, DP + USB, or MF No USB?
A practical guide to selecting the optimal 2 gang socket configuration for different use environments and priorities.
R16588C (Phosphor Copper + USB) vs R16492C (DP Brass + USB) — Durability or Safety?
The R16588C Phospher Copper Double USB Socket is made to withstand aggressiveness of plug inserting and removing, such as at hotel rooms or office desks, as well as in busy kitchens where the usb convenience is the standard; whereas the R16492C DP Double USB Socket has a double-pole switch electrically safe (2-pole 2-wire) and should be used in kitchen areas close to water therefore, in bathrooms or any application where the full live-and-neutral isolation is required for safety. Both products provide the same 2.1A USB-A + Type C CHARGING (CHARGING ONLY) and two (2) independent 13A outlets.
R16588C (Phosphor Copper + USB) vs R16408M (Phosphor Copper, No USB) — USB or No USB?
The contacts on both sockets are made from 0.7mm phosphor copper so they are durable enough to last a long time. The R16588C twin MF socket with USB-C connection will allow for the convenience of integrated USB charging in locations where a phone or tablet needs to be charged while also being able to operate an appliance. The R16408M will be the best option for those installations where only power is needed or if USB charging is already being provided via a different means. The phosphor copper contact upgrade can be provided with, or without USB charging convenience — simply make your selection based on your need for charging convenience at that specific wall outlet.

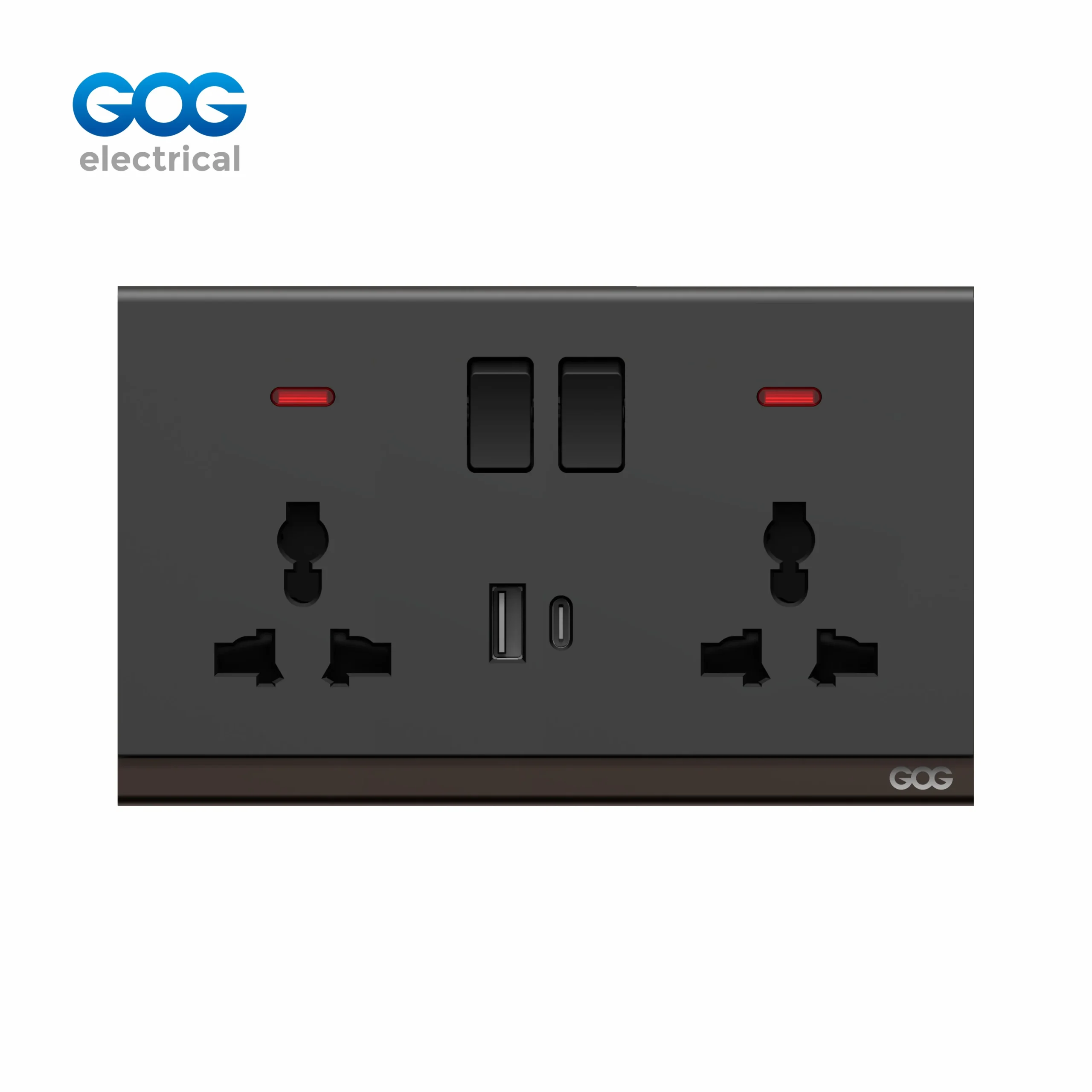

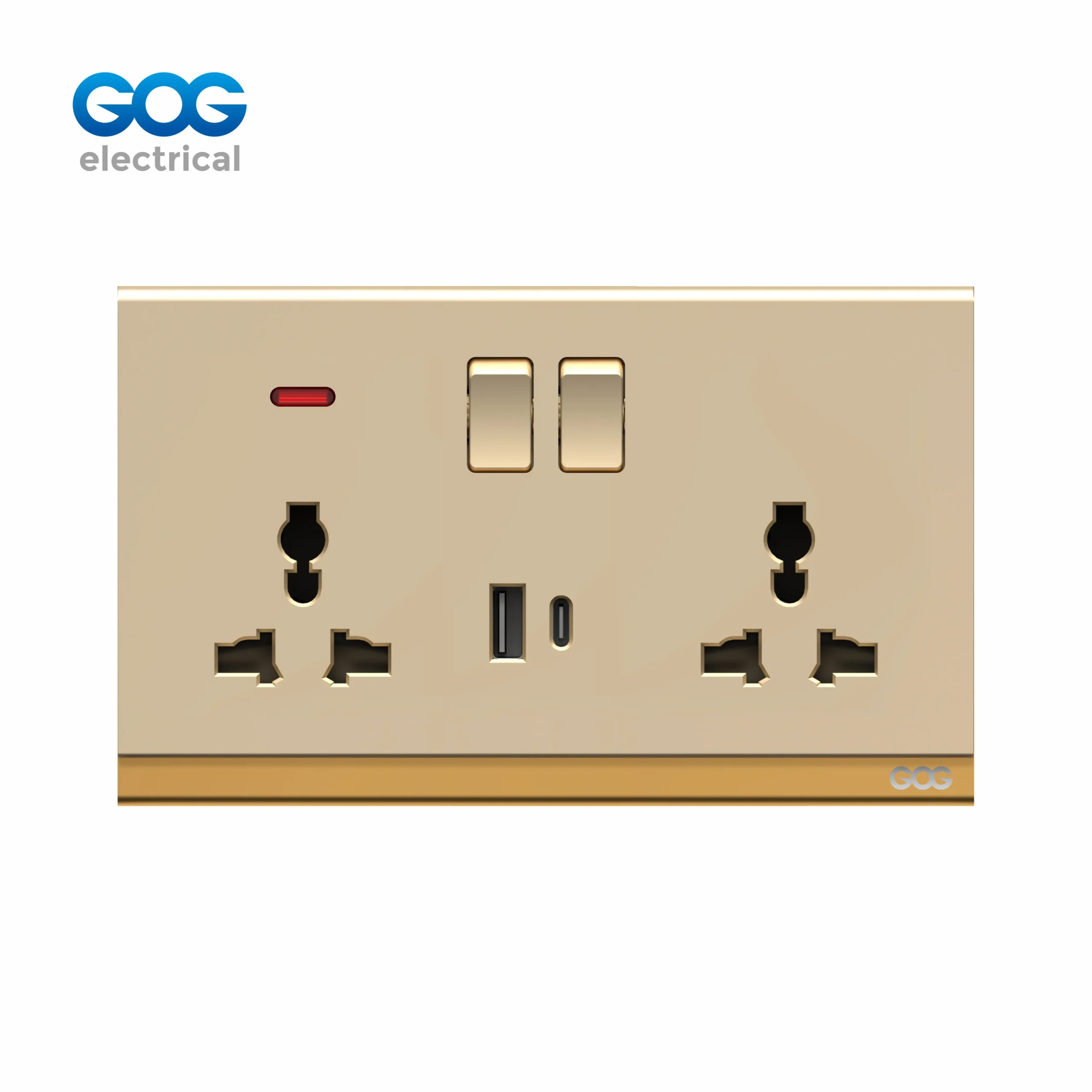

Color Selection — White, Gold, Gray, or Black?
White PC panel: A classic choice in kitchens, living rooms, or offices. Warm gold PC panels offer a warm metallic finish typically used in premium hotel suites or for high-end residential applications. Gray PC panels provide a neutral contemporary look ideal for use in modern styled apartments or in commercial spaces. Finally, black PC panels add an exciting contrast when designing high quality interiors or constructing commercial fit-outs. All four colors are made using the same imported high transparency construction material (Polycarbonate) and are covered under a 12-year warranty.
Frequently Asked Questions
What is a 2 gang MF USB switched socket?
A 2 gang MF USB switched socket, which has two separate 13A electrical connections and built-in USB charger as a pair of electrical outlets and two USB ports in just one wall plate. MF (Multi Function)). The R16588C is a two gang British Standard MF socket with a rocker switch and neon light indicator for the two separate electeical outlets and electricalconnections, there are two USB connections, one each USB-C / USB-A, that can charge at 2.1 amps each, and do not occupy either of the other two electrical recepticles or their associated USB recepticles. The contacts are made from 0.7mm Phosphor Copper material and will provide over 1,000 cycles before any functional failure will occur.
What is the difference between phosphor copper and brass socket contacts?
Compared to 62 brass, phosphor copper is more elastic because it keeps its tension of being a spring as well as gripping a pin over a greater number of installation cycles than brass; brass contacts have a tendency to slowly lose their rigidity. The specifications for each connector also differ greatly from one another. The R16588C contains a phosphor copper using 0.7mm thick conductors that are connected to the two socket outlets — these requirements make it suitable for frequent usage locations such as hotels, office desks and busy kitchens. The R16492C provides DP-switched 62 brass connections, which is not the specification needed for cut-off connections, but rather a combination providing various priorities.
Does the USB still charge when both socket switches are off?
Yes, the USB-A and Type-C ports on the R16588C are completely separate from both SP socket switches. The USB module is supplied with mains power directly, so mobile devices can charge regardless of whether both 13A outlets are switched OFF. The two neon indicators provide a visual representation of the socket status only; there is no indication from these of USB power presence since this will always be available as long as the circuit is live at the consumer unit.
What colors is this British standard 2 gang MF phosphor copper USB socket available in?
The R16 Series 2 Gang MF Switched Socket with Phosphor Copper Contacts and USB has a standard finish in 4 Colors: White -Classic for Residential and Commercial Settings; Gold -Warm Premium Finish for Hotel Suites and High End Interiors; Grey -Neutral Contemporary; and Black -A Bold Contrast for High-End Interiors and Commercial Fit-Outs. Each of these finishes is manufactured from the same imported high transparency high strength PC materials and offer the same 12 year warranty.
