SPECIFICATIONS
| Series | R30 series |
| Item Code | R30431 |
| Description | 15A Switched Socket with Neon (BS 546 3-Pin Round) |
| Socket Rating | 15A / 250V~ |
| Socket Standard | BS 546 (3-pin round) |
| Switch Type | SP (Single Pole) with neon indicator |
| Product Lifetime | 30,000 cycles (socket insertion) |
| Front Panel | Imported high‑transparent, high‑strength PC |
| Base | Imported high‑transparent, high‑strength PC |
| Middle Plate | Iron middle plate |
| Switch Internal | Red copper bush, red copper stamping part, red copper bus bar, Φ3.5mm×0.35mm silver touch point |
| Socket Contact | 0.7mm high phosphor copper, integrated structure copper |
| Standard | BS 546 |
| Warranty | 12 Years |
| Available Colors | White / Gold / Gray / Black |
| Dimensions | H 86mm × W 86mm (British Standard back box) |
| MOQ | 2,000 pcs per item |
| Packaging | 1 pc per plastic bag | 10 pcs per inner box | 100 pcs per outer carton |
BS 546 Round Pin vs BS1363 Square Pin — Two British Standards for Different Applications
| Feature | R30431 BS 546 Round Pin Socket | R30407 BS1363 Square Pin Socket |
|---|---|---|
| Standard | BS 546 — round pin | BS1363 — rectangular pin |
| Pin Shape | Three round pins (large diameter) | Three rectangular pins |
| Current Rating | 15A dedicated circuit | 13A ring main |
| Primary Markets | South Africa, India, legacy Commonwealth | UK, Ireland, Middle East, Malaysia, GCC |

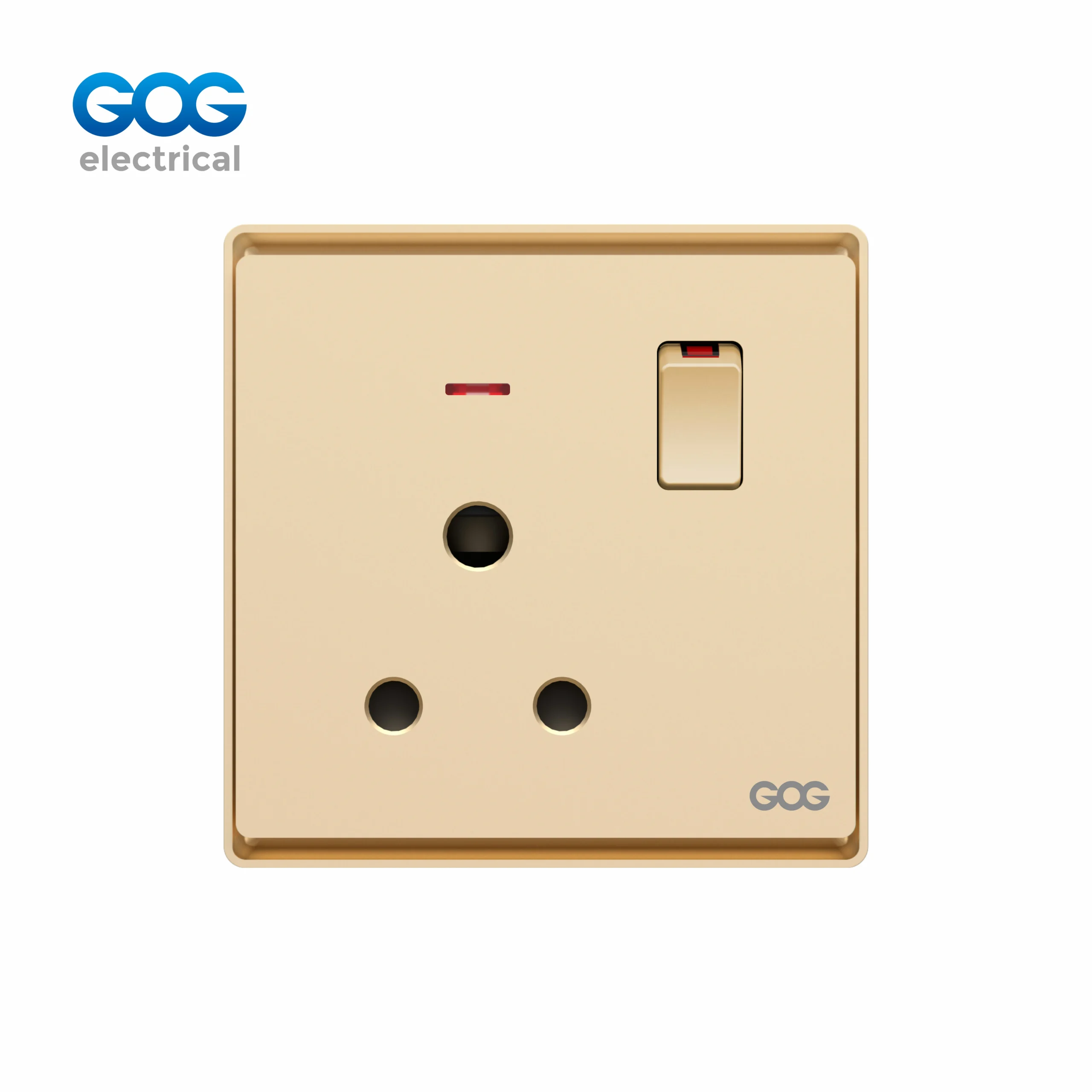

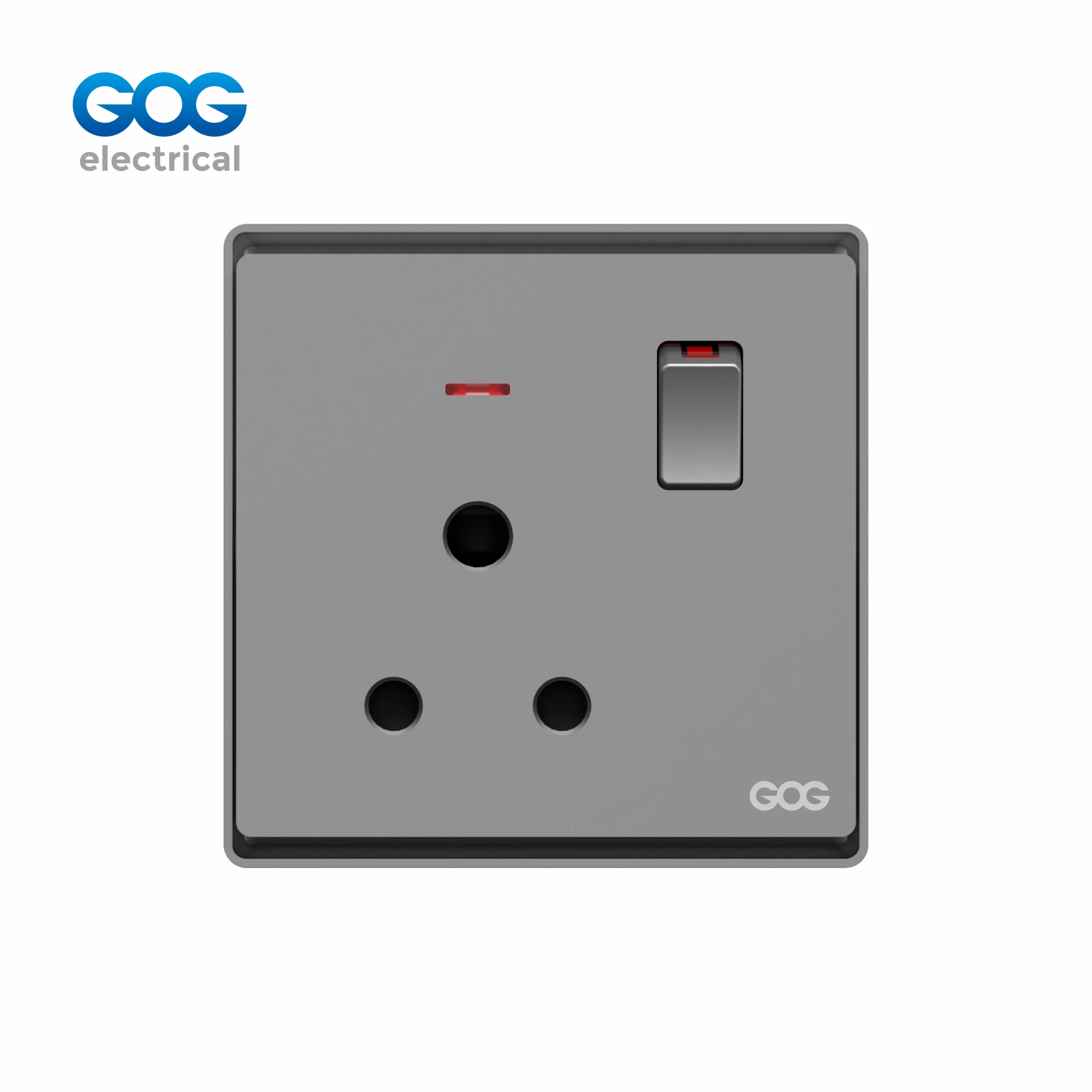

R30 Series Rounded Pin Switch Socket — BS 546 Wall Socket, 30,000-Cycle Phospor Bronze Contact
The R30431 is a 15A round pin switched socket that complies with BS 546, the British standard for round pin plugs that is commonly employed in countries like South Africa, India, and other Commonwealth nations. This particular 15A round pin socket comes with specially made large round holes and phosphor copper contacts that are well-suited for the use of BS 546 plugs. In contrast to modern BS1363 square pin sockets, the BS 546 sockets use a 15A circuit that enables the devices to operate — such as water heaters, air conditioners, and the like. The socket contacts have around 0.7mm of phosphor copper, thus ensuring solid conductivity and effective retention of the pins, and have a lifespan that is double the standard when compared to other sockets. The SP rocker switch and a neon indicator are included in the socket, making it easy to disconnect electricity in case of emergency and also come in four different colors.
We manufacture our products directly, allowing us to offer OEM branding and competitive wholesale pricing on any color of the PC panel, along with a 12-year warranty on all products in the R30 series.
Phosphor Copper Contacts + 30,000 Cycles — Built for 15A Dedicated Circuits
This 15 amp switched socket is made using 0.7 mm of high-grade phosphor copper for the contacts, chosen for its excellent elasticity and conductance when used with a sustained load of 15A. A dedicated appliance circuit along this socket may supply power to a water heater or an air conditioner, both requiring near-rated electrical current for longer durations. Phosphor copper keeps the contact pressure consistent and the contact resistance low during operation, while standard brass contacts tend to relax from their pressure over time, causing an increase in resistance. With an expected lifespan of 30,000 cycles, the lifetime of the socket is twice the industry standard — you won’t need to worry about replacing it in hard-to-reach locations like a ceiling-mounted air conditioning isolator. This better lifetime is due to the integrated structure design copper which boosts its conductivity. Also, the Φ3.5mm x 0.35mm red copper switch with silver alloy contact makes it easier to switch the socket on or off through visual indication from the neon light. It comes with BS 546 certification and a 12-year warranty by the manufacturer of R30431 15A round pin socket.
Matching the R30 Series — BS 546 Round Pin Socket Within the Same Classic Aesthetic
The R30 range includes this white electrical socket which has the same dimension of 86mm x 86mm and is made of high quality polycarbonate. It is similar to all other R30 accessories with regard to colors. Product R30431 round pin socket can be fitted together with R30407 square pin socket and R30 switches – different socket standards but the same decent panel design. Available colors are White, Gray and Gold. BS 546 certified. The warranty period is 12 years.
Stock This 15A British Standard BS 546 Round Pin Switched Socket in Four Colors at Factory Pricing
White, Gold, Gray, Black PC panel. BS 546 round pin socket with neon. 0.7mm phosphor copper contacts. 30,000-cycle lifespan. OEM logo, custom packaging, 12‑year warranty included. Contact this 15A socket manufacturer for a wholesale quotation.
BS 546 Certified • 15A Round Pin • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for R30 Series BS 546 15A Round Pin Switched Sockets
As a company that manufactures 15A round pin switched sockets, we produce the R30431 through our own production facility — thus providing you with a reliable BS 546 socket for South Africa, India, and Commonwealth areas, which fits into the classic R30 series design. We have standard models in White color for large-scaled projects, Gold and Gray colors for premium interiors, and Black color for contemporary commercial designs — with common features of the BS 546 15A round-pin configuration and 0.7mm phosphor copper contacts, red copper switch, and 30,000 operations cycle. You can order the full range of R30 products (including R30407 and the BS1363 13A square pin sockets and R30477 with the 5-pin multi-standard configuration) from one manufacturer without changing the size of 86×86mm. Moreover, we are ready to do the OEM branding of product cases or packaging and provide the relevant documentation according to BS 546.
BS 546 Round Pin vs BS1363 Square Pin: Understanding British Standard Sockets for International Markets
A practical guide to specifying the correct British standard socket for South Africa, India, and Commonwealth dedicated appliance circuits.
Where Is BS 546 Still Used?
South Africa: BS 546 15A round pin sockets are regarded as the national standard for dedicated appliance circuits, which include the use of water heaters, stoves, air conditioners, and industrial equipment. The round pins ensure that a high current is adequately supplied. In India, BS 546 is still acceptable and has been implemented along with a newer IS 1293 standard, especially in relation to 15A appliance circuits. In legacy Commonwealth markets, several countries in Africa and Asia continue using British wiring standards to indicate the need for BS 546 sockets in specific cases.
15A Round Pin vs 13A Square Pin — Which Socket for Which Market?
While the R30431 15A round pin socket (BS 546) is correct for South Africa, India, and former Commonwealth countries, the R30407 13A switched socket (BS1363) is correct for the UK, Ireland, the Middle East, GCC, and Malaysia. However, they are not interchangeable: you cannot fit a BS1363 plug into a BS 546 socket and vice versa. You will need to stock both types to provide a full range of British-based wiring systems.
Finish Selection — Which Color for Your Installation?
White: Suitable for both residential and commercial applications. Gold: The warm finish adds a touch of luxury to enhance interior designs. Grey: A contemporary neutral for modern apartments and office spaces. Black: A classy color for high-end industrial and commercial applications.
Frequently Asked Questions
What is a BS 546 round pin socket used for?
In nations where the round-pin standard is still followed, like India, South Africa, and some Commonwealth nations, the BS 546 round pin socket serves 15A dedicated appliance circuits. R30431 is one of the British standards that provide 15A round pin switched-socket type with a neon indicator. The device is used for plethora of applications including water heating, cooling devices, stoves, and any other equipment requiring secure high current connection.
What is the difference between BS 546 and BS1363 sockets?
BS 546 employs round pin technology whereas BS1363 employs flat pin technology although the round pin plug is rated at 15A while BS1363 is rated at 13A. Plugs from either standard cannot fit into a socket of the other standard type. BS 546 is the national standard in South Africa, India, and some countries in Africa while BS 1363 is the standard that is recognized in UK, Ireland, Middle East, GCC, and Malaysia.
Can I use a BS 546 socket in the UK?
While BS 546 sockets are not standard in most UK homes today, where predominantly BS 1363 square sockets are used at home, some older properties might still have these sockets in use on their dedicated circuits. However, BS 546 sockets are still a valid requirement for export purposes in countries like South Africa, India, or other Commonwealth countries.
What colors is this British standard 15A round pin socket available in?
The R30 series 15A round pin switched socket comes in four colors of polycarbonate panel: white, which is used in residential and commercial premises; gold, which gives an additional warm feel; grey, which esteemed for neutrals; and black, which provides a contrast against commercial and industrial premises. All colors are manufactured with imported, strong and transparent, polycarbonate, and the factory gives 12-year warranty on each color.
