SPECIFICATIONS
| Series | R30 series |
| Item Code | R30497C |
| Description | 13A 5 Pin MF Switched Socket with USB-A + Type-C, Neon, 2.1A (Phosphor Copper Contacts) |
| Socket Rating | 13A / 250V~ |
| Socket Type | MF (Multi-Function) 5 pin with switch, neon & USB |
| Pin Configuration | 5 pin — compatible with UK 3-pin & European 2-pin plugs |
| Switch Type | SP (Single Pole) with neon indicator |
| USB Ports | 1 × USB‑A + 1 × Type‑C, 2.1A total output |
| Product Lifetime | 30,000 cycles (socket insertion) |
| Front Panel | Imported high‑transparent, high‑strength PC |
| Base | Imported high‑transparent, high‑strength PC |
| Middle Plate | Iron middle plate |
| Switch Internal | Red copper bush, red copper stamping part, red copper bus bar, Φ3.5mm×0.35mm silver touch point |
| Socket Contact | 0.7mm high phosphor copper, integrated structure copper |
| USB Protection | Over‑current, over‑voltage, short‑circuit protection built in |
| Standards | IEC 60884 / IEC 62680 |
| Warranty | 12 Years |
| Available Colors | White / Gold / Gray / Black |
| Dimensions | H 86mm × W 86mm (British Standard back box) |
| MOQ | 2,000 pcs per item |
| Packaging | 1 pc per plastic bag | 10 pcs per inner box | 100 pcs per outer carton |
R30497C vs R30477 vs R30491C — Three R30 Sockets for International Environments
| Feature | R30497C (5 Pin MF + USB 2.1A) | R30477 (5 Pin MF, No USB) | R30491C (3 Pin DP + USB 2.1A) |
|---|---|---|---|
| Pin Configuration | 5 pin — UK 3-pin + European 2-pin | 5 pin — UK 3-pin + European 2-pin | 3 pin — BS1363 UK only |
| USB Charging | USB‑A + Type‑C, 2.1A | No USB ports | USB‑A + Type‑C, 2.1A |
| Socket Contact | 0.7mm phosphor copper | 0.7mm phosphor copper | 0.7mm 62 brass |
| Switch Type | SP (Single Pole) | SP (Single Pole) | DP (Double Pole) |
| Product Lifetime | 30,000 cycles | 30,000 cycles | 30,000 cycles |
| Best For | International hotels — multi-standard + USB charging | International hotels — multi-standard power only | UK kitchens & bathrooms — DP safety + USB |

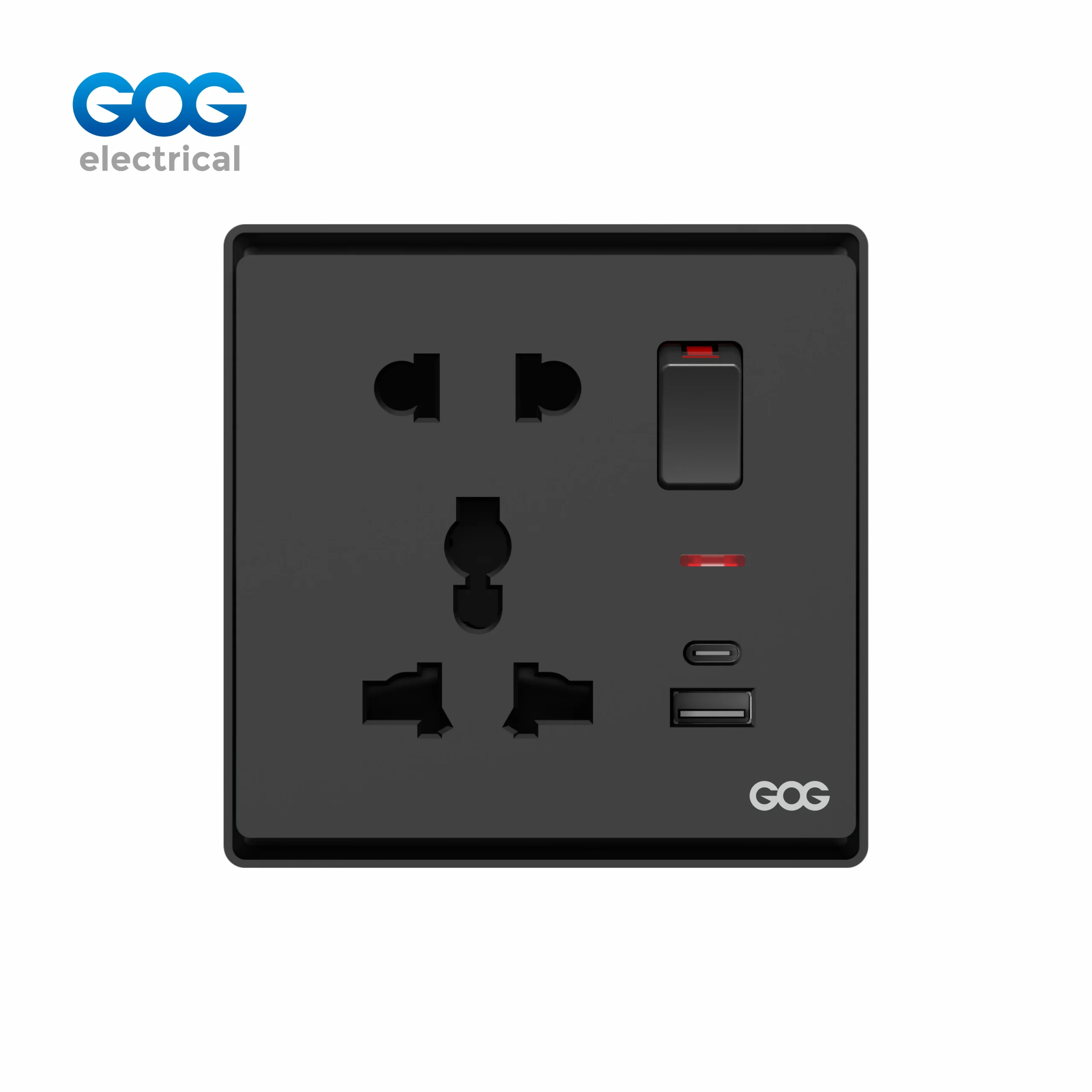

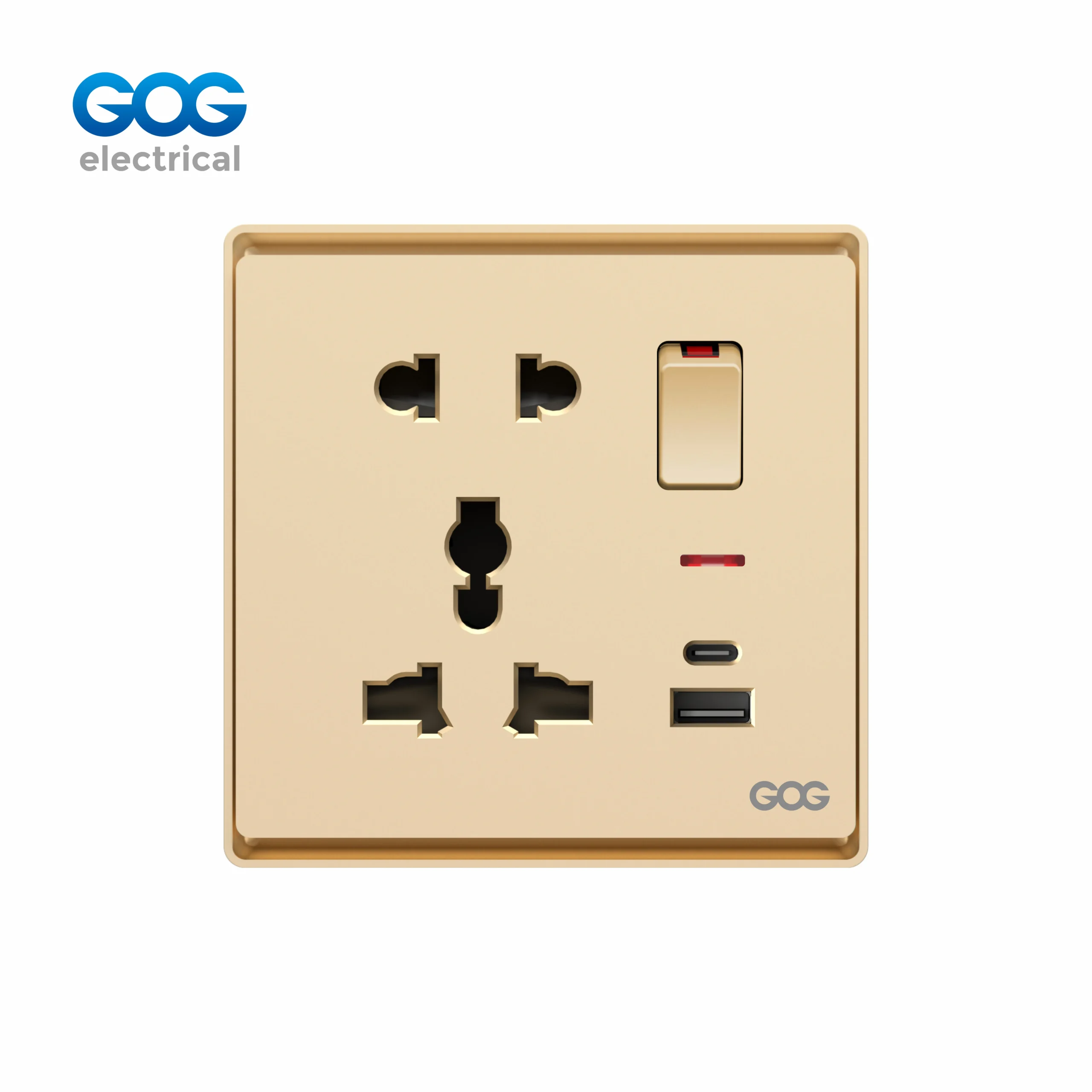

13A 5 Pin MF Switched Socket featuring USB-C and USB-A connectivity – Multi-Standard USB Socket, Model R30, with plugs made from Phosphor Copper and capable of supporting up to 30,000 connections.
The R30497C is a British standard 13A 5 pin MF switched socket that combines multi-standard plug compatibility with integrated USB-A and USB-C charging in one 86x86mm wall plate of R30 series. The multi-standard USB socket is the most complete international socket in R30 series that has 5-pin configuration to accept UK BS1363 3-pin plugs and European 2-pin plugs and has a 2.1A of USB module to charge phones and tablets without occupying power. The MF (Multi-function) design combines the socket with SP rocker switch, neon indicator and dual USB ports in one piece. Its 0.7mm phosphor copper socket contacts provide consistent force of grip for all types of plugs with a lifespan of 30000 cycles. The red copper switch mechanism is composed of Φ3.5mm x 0.35mm alloy silver touchpoint and iron middle plate. It is available in four classic colors of R30 series PCs: White, Gold, Gray and Black. It is dual-certified to IEC 60884 & IEC 62680 and comes with a warranty of 12 years.
As a manufacturer that operates directly from the factories, we provide competitive prices for wholesale quantities, offer OEM branding on any colored PC panel, and provide a full 12 years of warranty on the R30 series line of products.
5 Pin Multi-Standard + USB Charging — The Complete International Guest Room Solution
Distinctively placed within the R30 socket offering is this 5 pin MF USB switched socket — it is the sole product of its kind which integrates 5‑pin multi‑standard power connectivity along with built-in USB charging capabilities. It is designed to meet all the electrical requirements of hotel guests in a compact single 86×86 mm wall plate — British customers, who make use of 3‑pin plug, Continental clients, who depend on 2‑pin plug and basically anyone with a USB rechargeable gadget ready to work without any additional Accessories. While, the 2.1A USB module functions detached from the socket. The phosphor copper contacts enable effective connection over 30,000 insertion cycles.
Phosphor Copper Contacts + USB + 30,000 Cycles — Engineered for International Hospitality
A multi-standard socket is more dependent on contact spring than a single-standard socket is. The R30497C has a contact of 0.7mm which has been enhanced, and this same type of contact can be found in the premium R30 MF range of sockets. It has the capability to hold UK rectangular pins and European round pins firmly during its 30,000 cycle life. The USB section provides a total of 2.1A of output; using standard USB type ‘A’ interface for old devices and USB Type ‘C’ to charge modern phones. There is a built-in protection system against overcurrent, overvoltage, and short circuit. The red copper switch handle with a Φ3.5mm×0.35mm silver alloy contact carries out the operation. The R30497C socket is certified to both IEC60884 and IEC62680 and has a warranty of 12 years.
Matching the R30 Series — 5 Pin MF USB Socket Within the Same Classic Aesthetic
The R30 series consists of the white 5 pin USB socket that features identical 86×86mm square shapes, as well as transparent high-quality panel material that is unique as well as four colors that all types of R30 sockets come in. Place R30497C 5 pin USB sockets beside the beds in the hotel rooms for the comfort of the clients without any hassle as this socket provides multiple means of electricity supply and USB sockets thanks to the R30 switch during the night at the same time. The R30 series is completed in white, gold, silver, and black color options. The manufacturer guarantees its quality for 12 years.
Stock This 13A British Standard 5 Pin MF USB Switched Socket in Four Colors at Factory Pricing
White, Gold, Gray, Black PC panel. 5 pin MF socket with neon. USB-A + Type-C, 2.1A. 0.7mm phosphor copper contacts. 30,000-cycle lifespan. OEM logo, custom packaging, 12‑year warranty included. Contact this 5 pin USB socket manufacturer for a wholesale quotation.
IEC 60884 & IEC 62680 Certified • 5 Pin Multi-Standard + USB • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for R30 Series 5 Pin MF Multi-Standard USB Switched Sockets
As a renowned manufacturer of 5-pin switched USB sockets, R30497C is manufactured on our efficient production lines giving your wholesale operations the ideal option for an internationally popular socket. You can order it in the traditional R30 design in three attractive colors — all including 0.7 mm phosphor copper contacts, red copper switch and USB module which can handle up to 2.1 A. You can also find our R30477 (5-pin without USB), R30491C (3-pin DP with USB) and R30407 (3-pin SP) models which are compatible with R30 series.
R30497C vs R30477 vs R30491C: Choosing the Right R30 Socket for International Hospitality
A practical guide to selecting the optimal multi-standard USB wall socket for hotels, serviced apartments, and mixed-standard residential projects.
R30497C (5 Pin + USB) vs R30477 (5 Pin, No USB) — Which for Your Hotel Guest Room?
The R30497C multi-standard USB wall socket can be termed as the ultimate solution for hotel guest rooms across the globe. Because it accommodates British plugs, European plugs and USB charging through one single device using an 86×86mm wall plate, it makes it the most space efficient solution for the bedside and desk sockets as well. The R30477 is the version that offers the same widespread compatibility of 5 pins, with the exception of USB charging features. This means that the installation of this device makes sense in places where the presence of power points is compulsory, while there is no need for USB charging features. If we talk about essential electrical installations in hotel rooms, one should definitely opt for the installation of R30497C at bedsides, while R30477 should be chosen for desk places where power sockets alone are provided.
R30497C (5 Pin + USB) vs R30491C (3 Pin DP + USB) — Multi-Standard or DP Safety?
There is a choice to be made between the two available USB sockets depending on the user demographic. The R30497C 5 pin MF socket with USB-C is applicable in worldwide locations where guests are likely to bring different kinds of plugs such as for hotels, serviced apartments, and conference centers. Alternatively, the R30491C DP switched socket with USB-C is most appropriate for UK domestic installations where electrical safety is of prime importance such as domestic kitchens, bathrooms, and any applications where isolation of both live and neutral via the DP switch is required. Both sockets offer USB-A + Type-C provision and are rated for 30,000 cycles.
Finish Selection — Which Color for Your Installation?
White: Timeless for hotels and residential projects. Gold gives a regal touch to luxury hotel interiors and furnished apartments. Gray is neutral contemporary and used in modern global facilities. Black is an audacious contrast in luxury commercial and lounge applications.
Frequently Asked Questions
What is a 5 pin USB switched socket?
The 5-pin USB switched sockets provide compatibility with many different types of plugs. The R30497C model is according to the British standards 13A 5-pin MF switched socket and contains USB-C plus USB-A. It can take both BS1363 UK 3-pin plug and European 2-pin plug, and the incorporated 2.1A USB module charges a cell phone or a tablet without making use of the outlet in question. The presence of phosphor copper contacts and the 30,000-cycle service life makes it the best choice for hotels and other places of accommodation.
Does the USB still charge when the socket switch is off?
Indeed, on the R30497C, the USB-A ports and Type-C ports work separate from the SP socket switch. The USB module gets its power directly from the main supply, allowing devices to continue getting charged when the 13A outlet is switched off. The neon signal indicates the status of the socket only and does not signify the availability of USB which is always available as long as the circuit is live at the consumer unit.
Can this 5 pin socket accept both UK and European plugs?
Indeed, the R30497C 5 pin MF switched socket has its universal 5 pin design to accept both overlapping types of plugs conventional UK BS1363 3 pin fused plugs and the 2 pin round plugs that are used most commonly throughout Europe. The socket contacts are made from phosphor copper of 0.7mm thickness to ensure that there is a consistent holding force on plugs regardless of size for the entire lifetime of the socket which is rated at up to 30,000 cycles during which the proper specifications apply in terms of use at global locations where varieties of plugs are presented by customers.
What colors is this British standard 5 pin USB switched socket available in?
The R30 series of 5-pin MF switched sockets with USB comes in a total of four PC panel colors, namely White (the traditional hotel and domestic color), Gold (luxurious warm surface for lavish interiors), Gray (neutral modern color for new apartments and international facilities), and Black (áesthetically contrasting color for high-status businesses and recreation places). All four colors are made of the same import ultra-transparent durable PC material and have 12-year warranty by the factory.
