SPECIFICATIONS
| Series | R30 series |
| Item Code | R30411B |
| Description | 13A Switched Socket with Neon, SP, Big Button |
| Socket Rating | 13A / 250V~ |
| Switch Type | SP (Single Pole) with neon indicator, big button |
| Product Lifetime | 15,000 cycles (socket insertion) |
| Socket Standard | UK 3‑pin BS1363 |
| Front Panel | Imported high‑transparent, high‑strength PC |
| Base | Imported high‑transparent, high‑strength PC |
| Middle Plate | Iron middle plate |
| Switch Internal | Red copper bush, red copper stamping part, red copper bus bar, Φ3.5mm×0.35mm silver touch point |
| Socket Contact | 0.7mm high purity 62 brass, integrated structure copper |
| Standards | IEC 60884 / BS1363 |
| Warranty | 12 Years |
| Available Colors | White / Gold / Gray / Black |
| Dimensions | H 86mm × W 86mm (British Standard back box) |
| MOQ | 2,000 pcs per item |
| Packaging | 1 pc per plastic bag | 10 pcs per inner box | 100 pcs per outer carton |
Big Button vs Standard Rocker — Easier to Press, Harder to Miss
| Feature | R30411B Big Button Socket | Standard Rocker Socket |
|---|---|---|
| Switch Size | Enlarged — wider and taller pressing surface | Standard — conventional rocker size |
| Pressing Effort | Reduced — larger surface distributes pressure | Standard — smaller contact area |
| Visual Target | Easier to locate — prominent on the wall plate | Standard — blends into the panel |
| Best For | Elderly users, accessibility, quick power isolation | General‑purpose residential and commercial |
The Big Button Advantage — Designed for Ease of Use
The larger interface of the switched socket uses an oversized rocker switch that is both wider and taller than its standard switch version. The bigger surface means that the switch can be operated by applying less exact precision which has been done intentionally to benefit the elderly and people whose hand mobility is impaired as well as to speed up operations in cases when the switched socket needs to be located and pressed soon. The presence of a neon light indicator signals that the socket is on. The large rocker switch is included in the same 86×86mm dimension format of the R30 series panel thus ensuring that the socket keeps the same look in the wall as the rest of the R30 series equipment.

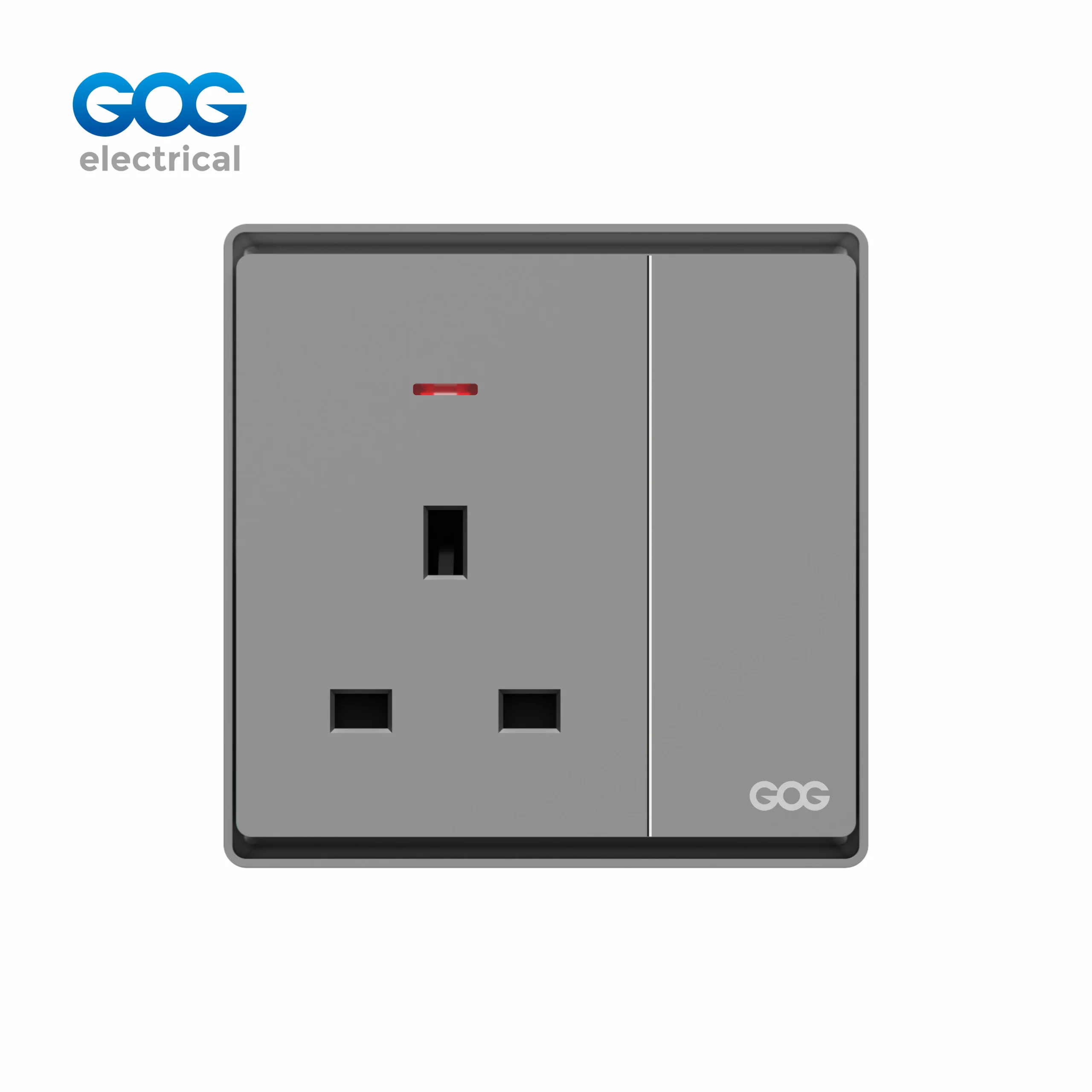

13A SP Switched Socket with Big Button — R30 Series Large Rocker Switch Socket, 86×86mm PC Panel
The R30411B is a British standard 13A SP switched socket that has the enlarged big button rocker switch and neon indicator. The device is designed within the familiar 86×86 mm R30 series wall plate. This rocker switch socket is a medium improvement over normal sockets as the increased size of the switch makes it easier to see, easier to push, and less time-consuming to use, which is very helpful for an elderly person, busy kitchen, and so on. The SP switch is responsible for breaking off the power line. The contacts of the socket are made of 0.7 mm high-purity brass, with an integrated copper design providing strong retention experience. The mechanism of the switch has copper and silver as its main materials.
As a factory-direct manufacturer, we provide wholesale pricing that is both affordable and competitive, while the R30 series features a 12-year product warranty.
SP Switch + 62 Brass Socket — Standard Safety, Enhanced Accessibility
This socket with neon indicator utilizes the tried-and-true internal architecture of the R30 series. The SP (single pole) rocker switch has the function of interrupting the live wire conforming to the UK standard for common household sockets. Thanks to the use of high-purity 62 brass contacts and copper conductors in the socket, the retaining force and conductivity of the pins in more than 15000 cycles are achieved. The red copper mechanism with silver alloy contact manages the arcs produced while switching the socket on and off. The neon indicator signal is wired in the load circuit of the socket and turns on every time the socket is energized, thus giving a visible confirmation of its state. The cast iron middle face plate strengthens the structure of the whole assembly, making it secure if the switch is pressed or when a plug is inserted. Conforms to IEC 60884 and BS1363 standards.
Matching the R30 Series — Big Button Socket in the Same Classic Aesthetic

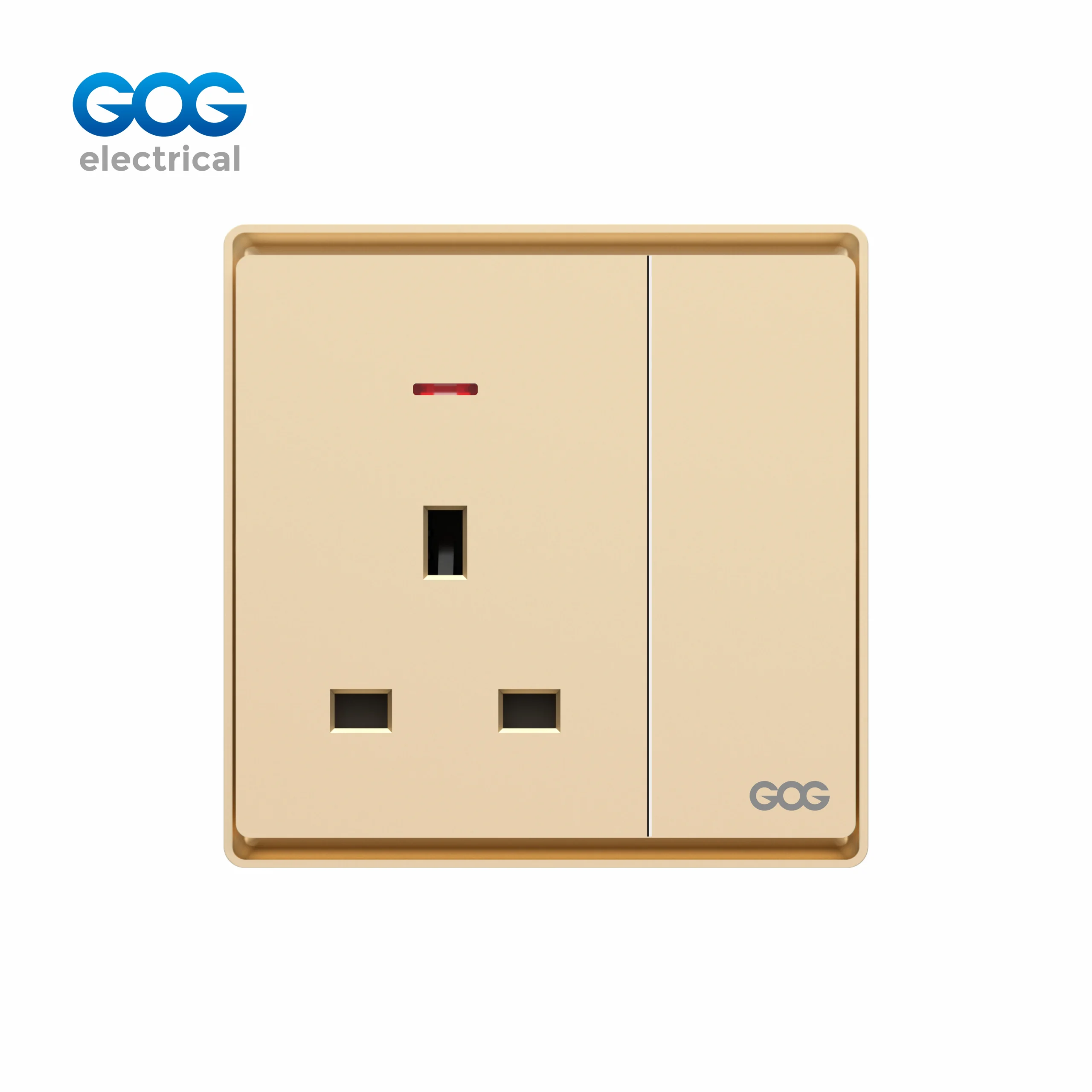

This big button socket from R30 series is made of white PC material, but it has been designed keeping the standard dimensions of the R30 range, which uses the same high quality imported material of the panel and the four color variants. Although the switch has been increased in size, it uses the same design letters of R30 family in its own unique way. There are 4 options of colors available with the big button socket.
Stock This 13A British Standard Big Button Switched Socket in Four Colors at Factory Pricing
White, Gold, Gray, Black PC panel. SP switch with neon, enlarged big button design. 62 brass socket contacts. OEM logo, custom packaging, 12‑year warranty included. Contact this big button socket manufacturer for a wholesale quotation.
IEC 60884 & BS1363 Certified • Big Button Design • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for R30 Series Big Button Switched Sockets — Accessibility Meets Classic Design
As a manufacturer of large button switches, we make the R30411B ourselves, thus providing your wholesale company with a truly competitive product in the format of the R30 series. Certain colors for residential properties – pearl white for big production capacity projects, golden, grey, black colors for luxury interior design, all with the big button switch, brass contact, and red copper switch. The broad surface of the switch makes such a switch suitable for social housing, care homes, retirement homes, and other living spaces where ease of use is essential. OEM branding on any color PC panel, customized packing, and full IEC 60884 and BS1363 code specifications.
Big Button vs Standard Socket: Choosing the Right Switched Socket for Accessibility and Everyday Use
A practical guide to specifying big button switched sockets for residential, accessibility, and commercial installations.
When Does a Big Button Socket Make a Difference?
The socket R30411B is the appropriate type for installations which require ease of use. Social housing and care facilities: the elderly are more comfortable when using bigger switches. Retirement homes: the big button improves accessibility without any clear appearance of institutions. Family houses: children and guests can use the switch more conveniently. Commercial kitchens and laundries: larger switch makes it possible to see and operate it quickly, especially when hands are busy or wet. The enlarged rockers fit the standard 86×86mm R30 panel, therefore the sockets can look the same as other items on the wall while being more user-friendly.
Big Button R30411B vs DP USB R30491C — Which R30 Socket Do You Need?
The R30411B has an emphasis on physical accessibility thanks to its oversized switch, which makes it suitable for homes, offices and other venues where use of a switch is paramount. The R30491C has a focus on electrical safety and compatibility while charging devices as it features a DP switch and USB‑A and Type‑C ports — this product is suitable for kitchens, bathrooms, and bedside tables where the device charging is essential and safety is paramount. Both outlets are of the same size (86 × 86 mm) and color options. Carry both versions to meet all accessibility, safety, and recharging requirements associated with using a socket of R30 type.
Finish Selection — Which Color for Your Installation?
White: Traditional for housing projects and accessibility initiatives. Gold: Warm luxury finish for high-quality nursing homes and assisted living communities. Gray: Neutral modern design for state-of-the-art apartments. Black: Strong contrast for top-notch commercial developments.
Frequently Asked Questions
What is a big button switched socket?
An oversized button operated socket features a large rocker switch that is bigger in all ways than a regular socket switch so that it is easier to see and press. The R30411B is a British standard 13A single pole switched socket that comes with a large button design and a neon indicator in addition to the larger switch operating surface which makes it easy to use for people with reduced hand mobility or for that installation or user where making a quick disconnection of power is very important.
Is the big button socket suitable for elderly users?
Indeed, the R30411B was designed with accessibility in mind. The enlarged rocker switch offers a bigger visual target and larger pressing surface, which are helpful for users experiencing low dexterity, arthritis, or vision impairments. The neon indicator indicates whether the product is on. The socket itself fits into a standard 86×86mm back box and is designed similarly to the R30 series, allowing it to be installed in residential and care home settings without looking unattractive.
What is the difference between this big button socket and a standard socket?
There is only one distinction, which is the size of the switch. The R30411B large button switched socket employs an enlarged rocker switch that is wider and larger than a conventional socket switch. As for the internal parts, they are made up of 62 brass socket contacts, red copper SP switch mechanism, and iron middle plate like in the normal R30 series SP switched socket giving the same electrical performance and durability.
What colors is this British standard big button socket available in?
The big button switched socket from R30 range can be bought in four different PC panel colors: white (for standard residence and accessibility applications), gold (for warm exquisite finish), gray (for neutral modern furniture), black (for authoritative contrast in luxury commercial installations). All four colors are made from one and the same imported high-transparency high-strength PC material and have a common 12-year guarantee from our plant.
