SPECIFICATIONS
| Series | R30 series |
| Item Code | R30165 |
| Description | Satellite Wall Socket (F-type Connector) |
| Connector Type | F-type (threaded screw‑on) |
| Designed For | Satellite TV — Sky, Sky Q, Freesat, satellite distribution systems |
| Front Panel | Imported high‑transparent, high‑strength PC |
| Base | Imported high‑transparent, high‑strength PC |
| Middle Plate | Iron middle plate |
| Standard | IEC Standard |
| Warranty | 1 Year (electronic product warranty) |
| Available Colors | White / Gold / Gray / Black |
| Dimensions | H 86mm × W 86mm (British Standard back box) |
| MOQ | 2,000 pcs per item |
| Packaging | 1 pc per plastic bag | 10 pcs per inner box | 100 pcs per outer carton |
Satellite Socket vs TV Socket vs Data Socket — Three Different R30 Wall Plates for Three Different Signals
| Feature | R30165 Satellite Socket | R30432 TV Socket | R30442 Data Socket |
|---|---|---|---|
| Connector Type | F‑type (threaded screw‑on) | Belling‑Lee / IEC (push‑in coaxial) | RJ45 (Ethernet / data) |
| Designed For | Satellite TV — Sky, Freesat | Terrestrial TV — Freeview | Computer networking — Ethernet |
| Connection Security | Threaded — resists pull‑out and vibration | Friction‑fit — can loosen over time | Clip‑lock — secure click connection |
| Signal Shielding | Full 360‑degree shield contact | Partial shield contact | Twisted pair — digital noise rejection |
| Middle Plate | Iron — structural rigidity | Iron — structural rigidity | Iron — structural rigidity |
F-Type Connector — The Professional Standard for Satellite Signals
The F Connector Wall Plate is designed to provide the ultimate reliable connection needed for any satellite installation. The outer threaded connections provide a secure mating point that is resistant to vibration and is not loosened when changes to the cabling or furniture are made. Furthermore, the 360-degree shield contact guarantees that the signals are not interfered with by any electromagnetic interference, thus preserving the integrity of signals being transmitted — an especially important feature in transmitting satellite signals that work on higher frequencies than terrestrial TV signals. It is also compatible with the Sky, Sky Q, and Freesat satellite distribution setups as well as other satellite setups used in Europe. The entire connection plate is made of iron in the middle, ensuring its durability as well as reliability when plugging and unplugging cables — this is a significant advantage over plastic-only connectors. Certified to IEC standards.

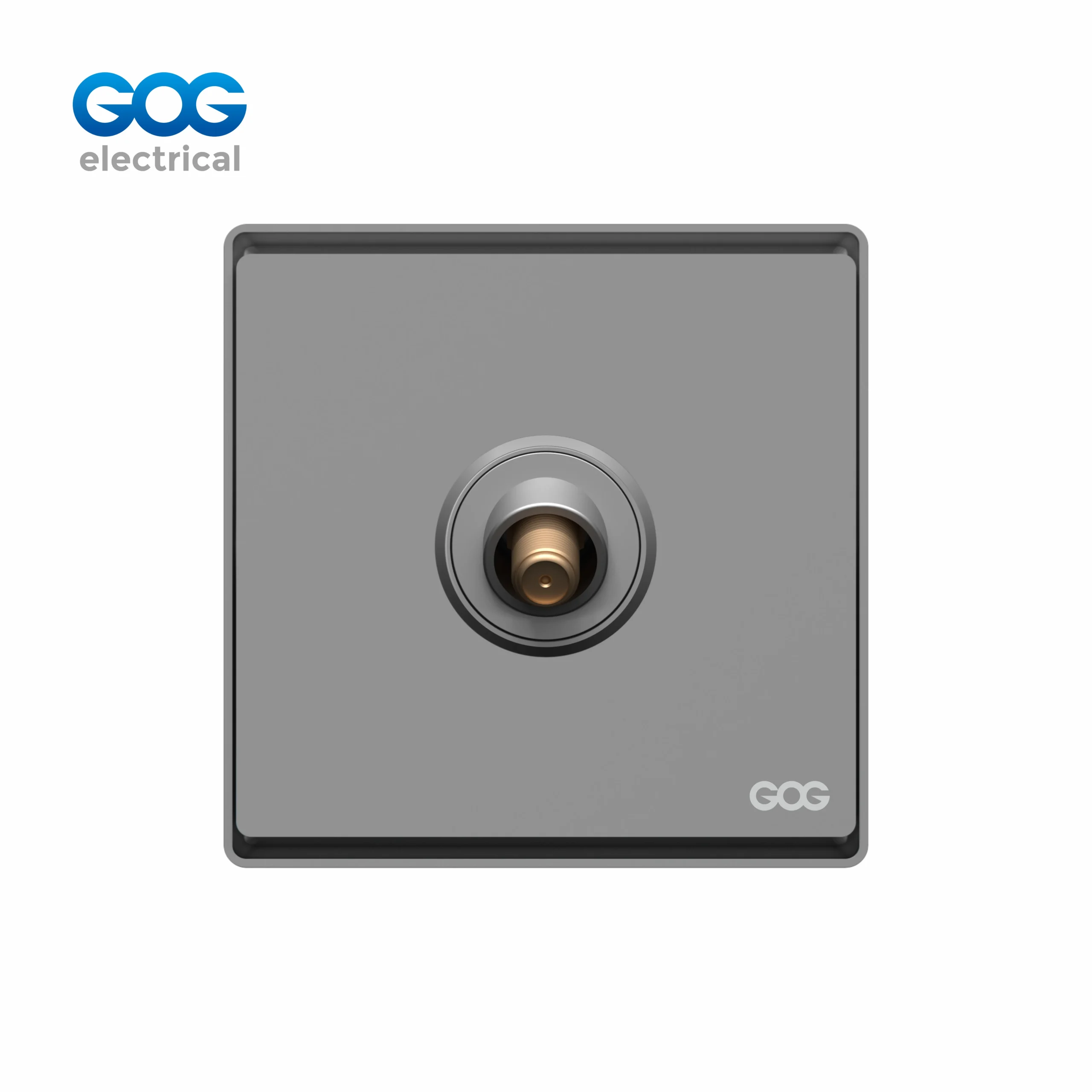

Satellite Socket — R30 Series F-Type Coaxial Wall Socket, Iron Middle Plate, 86×86mm PC Panel
The R30165 is a satellite wall socket that has been produced according to British standards and is designed to connect satellite signals into an 86×86 mm R30 wall socket. It is equipped with an F-type satellite connector, which is an industry-standard connector for satellite signal distribution. Unlike conventional plastic boxes, the wall socket is designed in such a way that it matches the design of other products belonging to the R30 series. The F-type connector is placed in such a way that it doesn’t stand out and stays even with the wall surface, which increases its safety. The socket has been made of metal that is stronger than plastic.
We are a manufacturer that sells directly from our factory, providing competitive wholesale rates, OEM branding on your choice of color PC panel, and a one-year warranty for the R30 series of electronic products.
Matching the R30 Series — Satellite Socket in the Same Classic Aesthetic
The white R30 series PC satellite socket matches the physical dimensions of 86×86mm and uses the same high-grade transparent PC plastic material as its switches and sockets. The iron middle plates used in the series provide equal structural sturdiness as seen in other switches and sockets of the R30 series. The use of the R30165 satellite socket beside the R30432 TV socket and R30 light switches in a TV room allows for a consistent overall panel and color design throughout the room giving the impression of a properly executed AV setup لinstead of randomly chosen products from various manufacturers without a design concept.
Stock This F-Type Satellite Wall Socket in Four Colors at Factory Pricing
White, Gold, Gray, Black PC panel. Threaded F-type connector for Sky, Freesat & satellite systems. Iron middle plate for structural rigidity. OEM logo, custom packaging, 1‑year warranty included. Contact us for a wholesale quotation.
IEC Standard • F-Type Connector • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for R30 Series F-Type Satellite Wall Sockets
The R30165 satellite socket offers the R30 series collection satellite connection options. With four standard colors available — White, Gold, Gray, and Black — the socket can match all types of decorations. The general design of the F-type connector ensures perfect compatibility with Sky, Sky Q, Freesat, and many other European satellite systems. The socket body, made of metal, adds strength to the construction. You can find the R30432 (TV socket) and R30442 (data socket) at the same place, which makes it easy to stay in one factory and have all some same measurements for the devices of the R30 series. OEM branding, individual packaging, and a full set of documents for all countries provided.
Satellite Socket vs TV Socket: Choosing the Right R30 Coaxial Wall Socket for Your Project
A practical guide to specifying the correct satellite or TV wall socket for residential and commercial AV installations.
Satellite Socket vs TV Aerial Socket — Which One Do You Need?
The R30165 Satellite Outlet served the purpose of connecting with satellite-based TV sets — Sky, Sky Q and Freesat. This outlet has an F-type screw-on connection with full 360-degree shield. The R30432 outlet, on the other hand, is meant for terrestrial TV set connections — Freeview. This outlet has a Belling-Lee/IEC connection. An F-type connection provides better shield than the other type of connection as satellite signals operate at high frequencies. It is best to have both the sockets set up next to each other to save on wall space
Why Choose the R30 Series Satellite Socket?
The R30 series socket is made from top-quality imported PC material that is highly transparent. The iron body is designed to make the overall structure more robust when compared to the alternative structures made of plastic. The product is available in four different colors that are White, Gold, Gray, and Black.
Installation
The R30165 can be accommodated within the 86×86mm back box which complies with the British standards. The model requires RG6 or CT100 coaxial cable (which should be terminated with an F-type compression or screw-on connector at the socket). Also, it is critical to comply with the minimum cable bend radius behind the socket – people should have a back box having a depth of at least 35mm in situations when the coaxial cable enters from the rear.
Frequently Asked Questions
What is an F-type satellite socket used for?
An F-type satellite socket is used as an efficient wall outlet for satellite cables. The unit R30165 falls under the British standard satellite wall socket category and has an F-type connector. It operates with all sorts of satellite receivers, including Sky, Sky Q, Freesat, etc. It converts the coax cable from a satellite dish into an R30 series wall plate that is 86 mm by 86 mm.
What is the difference between a satellite socket and a TV aerial socket?
A satellite outlet (R30165) utilizes an F-type screw connector that has been bordered with full 360-degree insulation which is suitable for high-frequency satellite signals. A television aerial outlet (R30432) utilizes a Belling-Lee/IEC plug for terrestrial signals. Satellite signals necessitate the use of advanced shielding, thus it is impossible to replace one type of plug with another.
Does this satellite socket require an electrical connection?
The R30165 acts as a passive signal passthrough socket that does not need any mains electrical power. It merely provides you with a professional wall-mounted termination socket for your coaxial cable from the satellite dish or distribution system. The dimensions of the panel are 86 × 86 mm, making it compatible with the British standard back box with other R30 series entities.
What colors is this British standard satellite socket available in?
The R30 series socket is offered in four colors of PC panel: White (traditional residential), Gold (warm luxury finish for luxurious interiors), Gray (neutral and modern for fashionable flats and media rooms), and Black (sharp contrast for home theaters and prestigious installations). All four color variations use the same imported transparent and highly durable PC material.
