SPECIFICATIONS
| Series | DN70 series |
| Item Codes | DN70408 (SP) | DN70412 (DP) |
| Description | Double 13A Switched Socket with Neon |
| Socket Rating | 13A / 250V~ per socket |
| Socket Configuration | Double — two independent BS 1363 outlets |
| Switch Type | SP (DN70408) or DP (DN70412) with neon indicator per socket |
| Socket Standard | UK BS 1363 — British 3-pin |
| Front Panel Options | PC / Tempered Glass / Brushed Aluminum |
| Base | PC |
| Middle Plate Options | Steel / Plastic‑wrapped steel |
| Switch Internal | Red copper, Φ3.0×25mm silver alloy touch point |
| Socket Contact | 0.6mm phosphor copper with fix circle ring |
| Standard | IEC Standard (British standard countries) |
| Warranty | 12 Years |
| Available Colors | White / Gold / Gray / Black |
| Dimensions | H 88mm × W 146mm (double gang British Standard back box) |
| MOQ | 20GP container |
| Packaging | 1 pc per plastic bag | 5 pcs per inner box | 50 pcs per outer carton |
DN70408 (SP) vs DN70412 (DP) — Choose Your Safety Level
| Feature | DN70408 (SP) | DN70412 (DP) |
|---|---|---|
| Switch Type | SP (Single Pole) — breaks live only | DP (Double Pole) — breaks both live & neutral |
| Safety Level | Standard — correct for most residential rooms | Enhanced — recommended for kitchens, bathrooms, utility rooms |
| Neon Indicator | Glows when socket is live | Glows when socket is live — dark when fully isolated |
| Typical Application | Living rooms, bedrooms, hallways — general purpose | Kitchens, bathrooms, utility rooms — near water sources |
Double Socket vs Two Single Sockets — Cleaner Wall, Faster Installation
| Feature | DN70408/DN70412 Double Socket | Two Single Sockets |
|---|---|---|
| Wall Space | One 146mm panel — cleaner aesthetic | Two separate 86mm panels — more wall clutter |
| Back Boxes | One double gang back box | Two single gang back boxes |
| Installation Time | One panel to fit — significantly faster | Two panels to align — takes longer |
| Per Socket Control | Independent switch + neon per socket | Independent switch + neon per socket |
DN70 Series Panel Materials — PC, Tempered Glass, or Brushed Aluminum
| Material | Finish | Best For |
|---|---|---|
| PC | High‑transparency, high‑strength | Cost‑effective volume builds — residential and commercial across UK and Commonwealth |
| Tempered Glass | Glossy, fingerprint‑resistant | Premium hotels, luxury residential, high‑end interiors |
| Brushed Aluminum | Metallic industrial aesthetic | Modern commercial interiors, contemporary kitchens |
Double Switched Socket — DN70 Series UK BS 1363 Plug Socket, Three Premium Panel Finishes

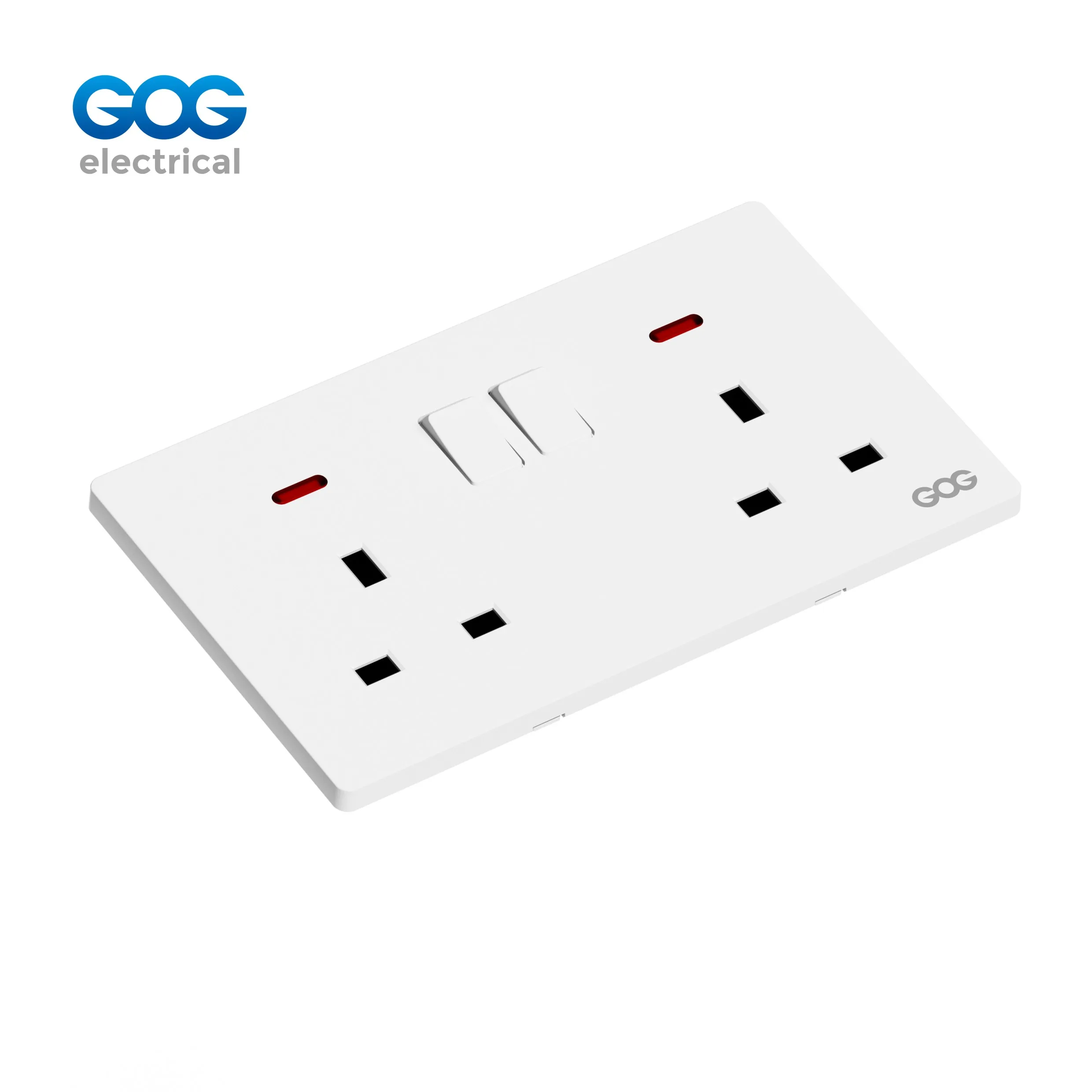

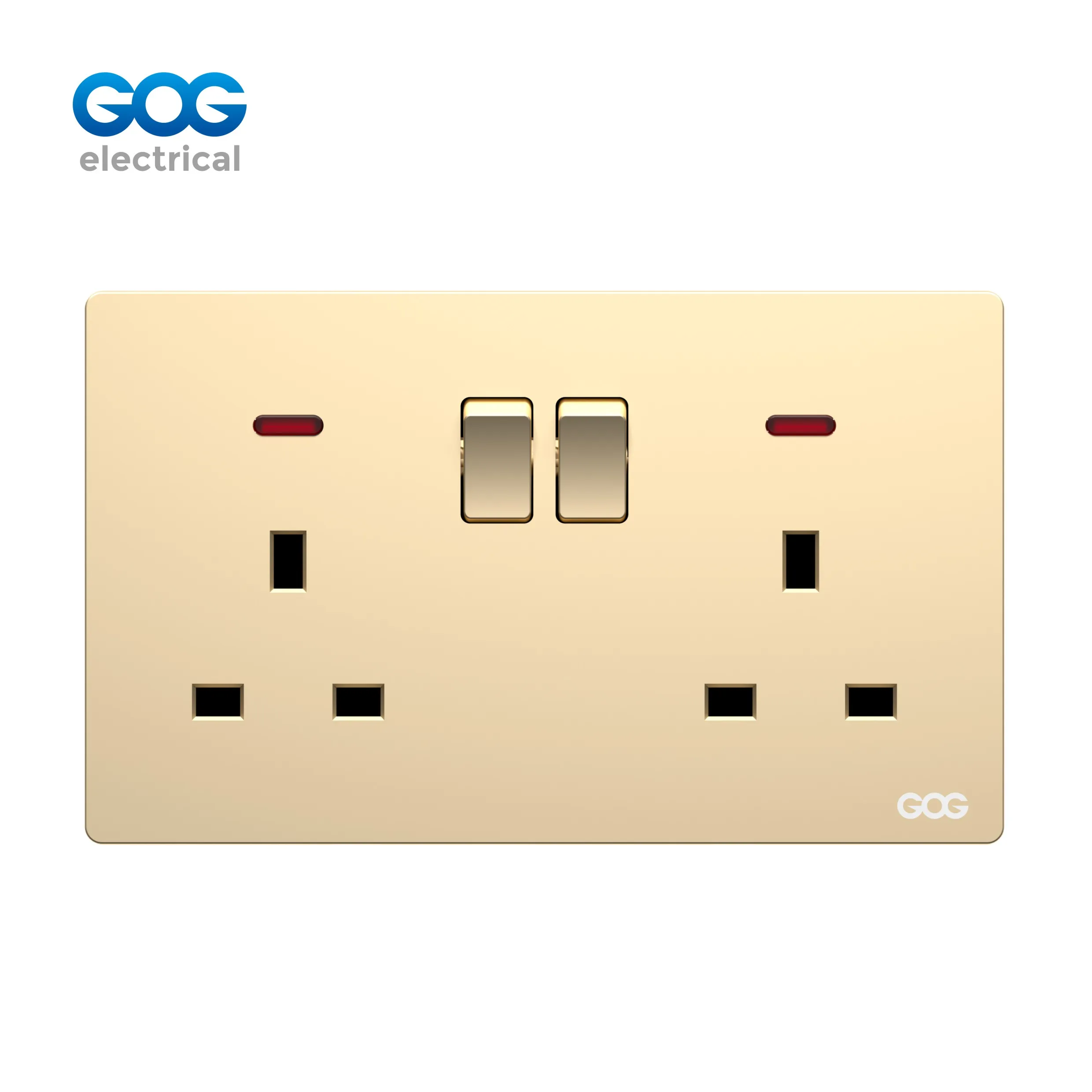

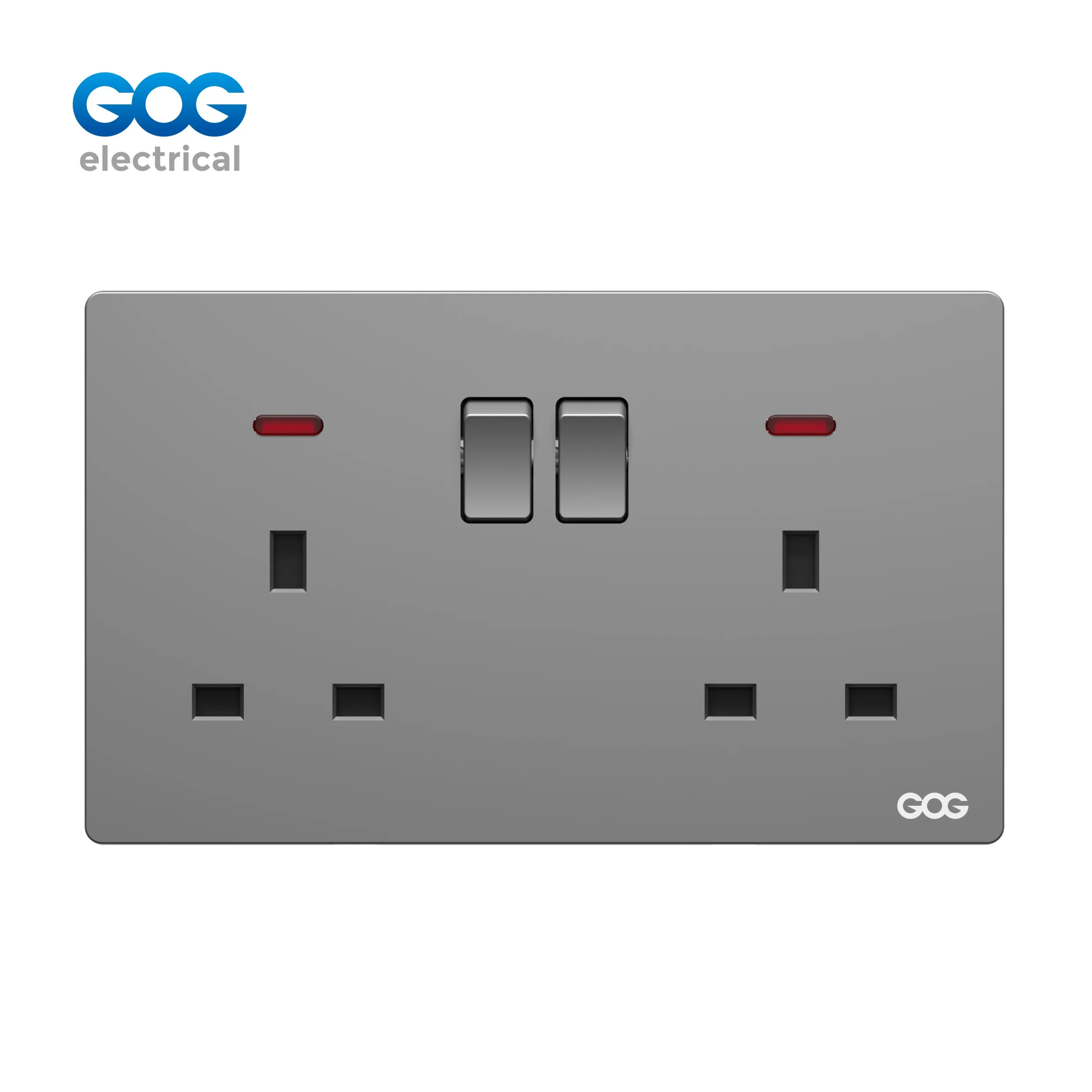

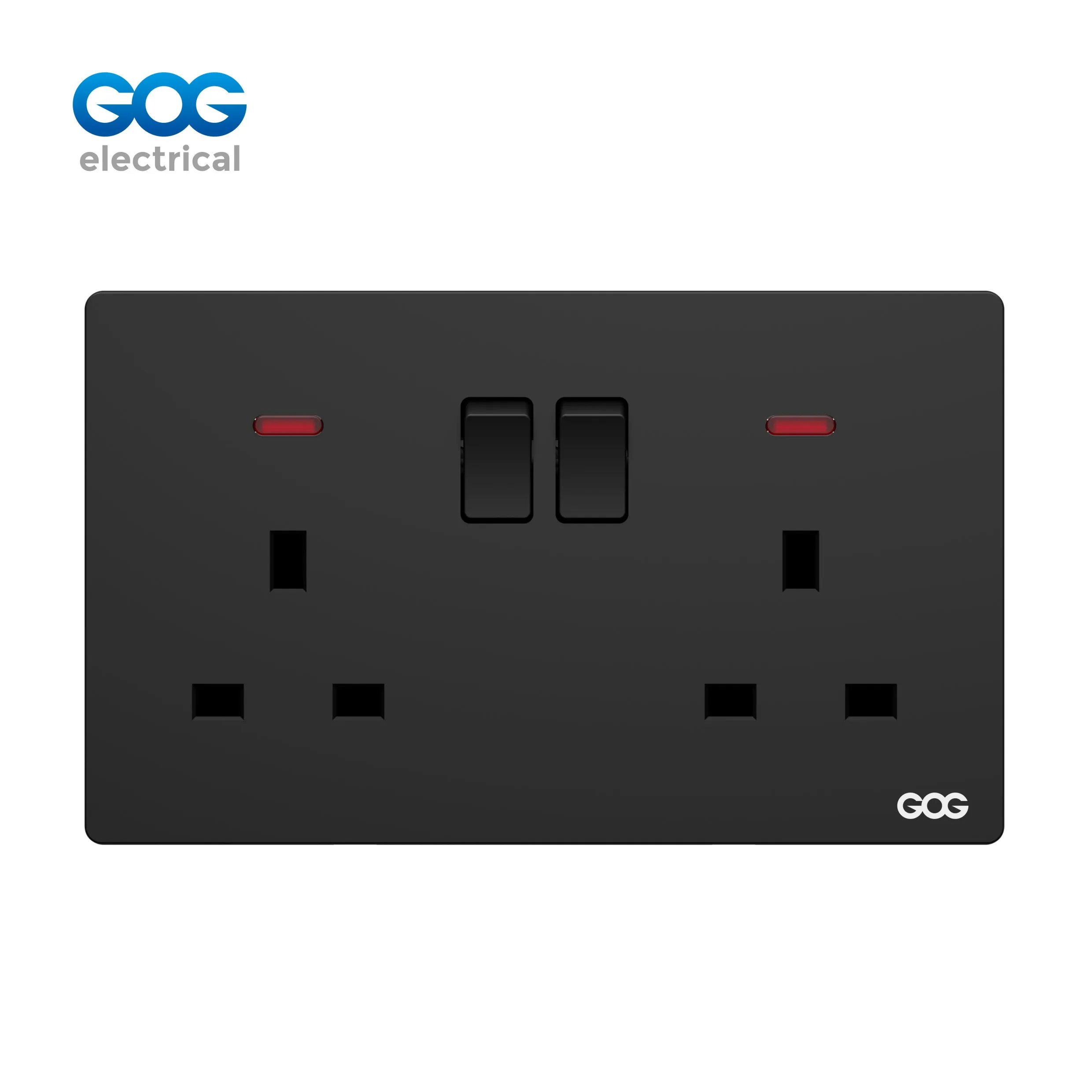

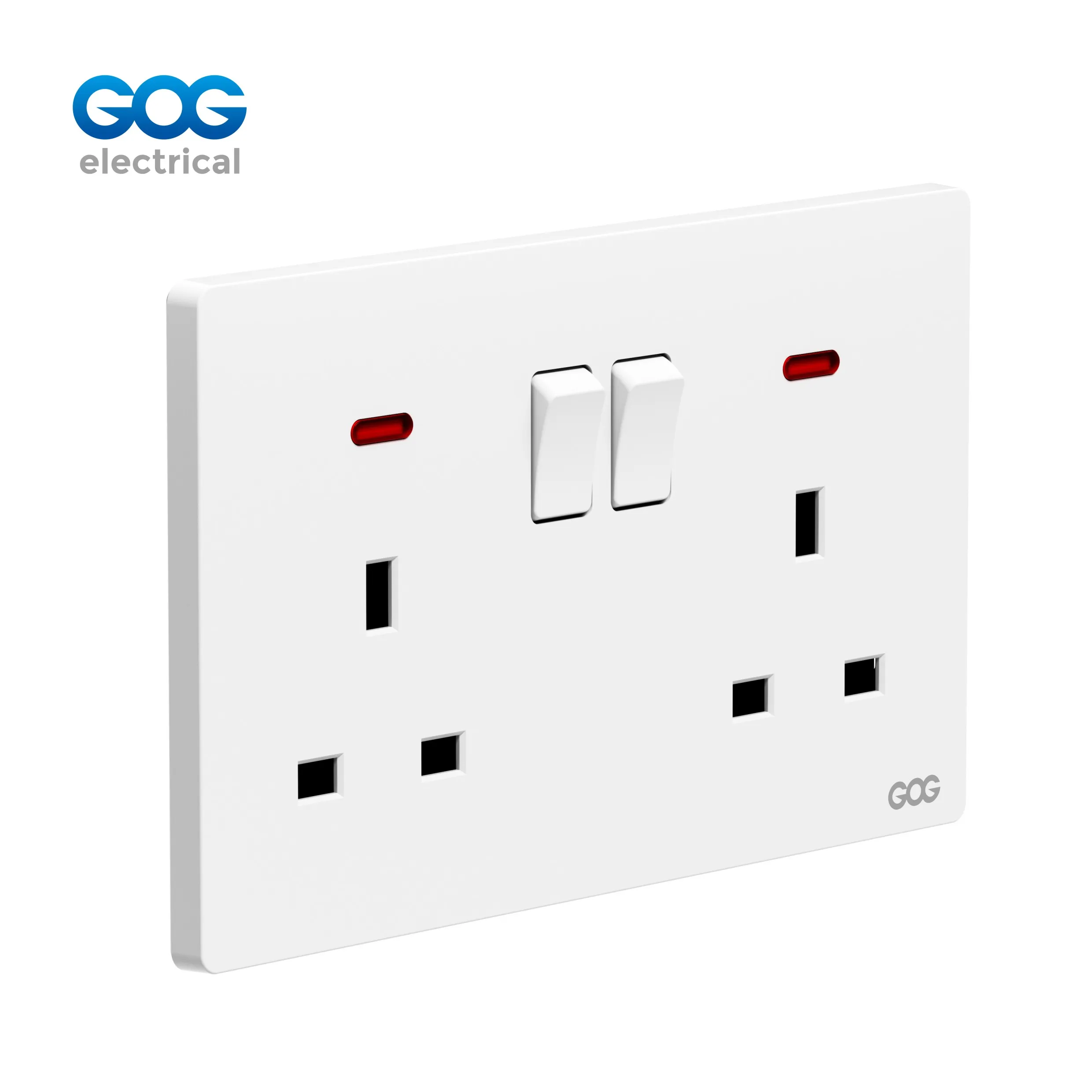

The DN70408/DN70412 is a British standard slim double switched socket and the ideal type of UK plug socket for virtually any wall location where two devices require power control. This BS 1363 socket has two independent 13A sockets built into a single 88×146mm wall plate, each socket supplied with its own switching rockers and neon light. The DN70408 (SP) is recommended for ordinary single-pole socket isolation and for use in living rooms, bedrooms, and in cases of regular use of plugs within the British wiring framework. For increased double-pole isolation which disconnects both live and neutral, the DN70412 (DP) is used. There are two options offered in terms of socket making used in the design of both types, both featuring 0.6mm phosphor copper contacts and circular fixing rings ensuring secure fit, and red copper switches for both sides of the plug with Φ3.0×25mm silver alloy contact point per side. Three options for the type of the outer case are available: polycarbonate, tempered glass, or brushed aluminum options are offered. The products are certified by IEC for the British standard countries and are guaranteed for twelve years.
We are a UK socket manufacturer, providing factory direct wholesale prices, customized OEM branding on any of the panel materials and a comprehensive 12‑year warranty throughout our DN70 series range.
UK BS 1363 — The Standard British Plug Socket, in a Slim Double Format
The British 3-pin standard that has long been used as the main electrical installation in the UK is the basis of this plug socket. The plug socket is made with three rectangular pins, has a maximum capacity of 13A plus an internal safety lock protecting both live and neutral contacts. A common rocker switch with a neon indicator completes the picture. The double plug for household use combines two independent sockets in a single 146mm long frame, making the solution better in terms of installation time and aesthetics of walls. The outlet has durable contacts made from phosphor-bronze and provided with circular connections to guarantee a good grip in both outlets during repeated use. The middle plate is made from metal or steel covered with plastic. The exact width of the center plate is 146mm.
Matching the DN70 Series — UK Double Socket in the Same Slim Aesthetic
The DN70 series includes the PC double switched socket along with its smart 88×146mm design as well as three high-quality panel finishes similar to other DN70 products such as light switches, sockets, USB ports, and communication hubs. The DN70408/DN70412 model enables one to install double sockets next to different DN70 light switches to get a stylish home, office, or hotel with a uniform look. Available colors include White, Gold, Grey, and Black. The DN70408 socket comes with a 12-year warranty from its supplier.
Stock This Slim UK BS Double Switched Socket in Three Panel Finishes at Factory Pricing
PC, tempered glass, or brushed aluminum panel. Two independent 13A outlets with neons. SP or DP switch options. OEM logo, custom packaging, 12‑year warranty included. Contact this UK socket manufacturer for a wholesale quotation.
IEC Standard • UK BS 1363 Double Socket • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for DN70 Series UK BS 1363 Double Switched Sockets
As a UK plug socket manufacturer, we produce the DN70408/DN70412 on our own production lines, supplying the traditional British double socket in a slim form factor. With three panel finishes (PC, tempered glass and brushed aluminum) we cover the products from economy level to luxury. Both switch types, single pole (DN70408) and double pole (DN70412) types, are available. In combination with DN70 single sockets, USB sockets and communication sockets, we can offer a full BS 1363 wiring accessory range from one factory with the same slim size. There are OEM branding options available on every panel type material, special packaging is also available for those who desire.
SP vs DP Double Switched Socket: Choosing the Right UK BS Plug Socket for Every Room
A practical guide to selecting between SP and DP switch configurations for British standard double power outlet installations.
DN70408 (SP) vs DN70412 (DP) — Which Switch Type for Which Room?
The DN70408 (SP) refers to a typical double switched socket in the UK where only the live conductor is interrupted by the switch. This specification pertains to living rooms, bedrooms, passageways, and general-purpose sockets in homes with British wiring. The DN70412 (DP), on the other hand, features added safety in that both the live wire and neutral are interrupted. This specification applies in kitchens, bathrooms, utility rooms, and anywhere that electrical isolation is crucial for maintenance or if the device might be used in an area where water is present. The formats of both constructions are the same and measure 88 by 146 mm plus the same three front finishes.
Double Socket vs Two Single Sockets — When to Consolidate
A double socket is appropriate when there are two devices that need electricity simultaneously at the same wall outlet – kitchen work surfaces, living room TV connections and office desks. A single socket is appropriate for the unique spots with only one appliance. A double socket is more efficient because it eliminates the need for two back boxes and preserves the wall.
Panel Material Selection
PC: Affordable and long-lasting for high-volume residential and commercial projects. Tempered Glass: Luxurious gloss quality with resistance to fingerprints for upscale residences and hotel buildings. Brushed Aluminum: Metallic industrial look for modern commercial interiors and kitchens.
Frequently Asked Questions
What is a UK BS 1363 plug socket?
The British BS 1363 plug socket is a conventional power outlet based on 3 pins, which are usually rectangular. This BS 1363 plug socket socket type has a fuse, which makes it safe to use, owing to the presence of the in-built safety shutters. A product that matches these specifications is the DN70408/DN70412. The DN70408/DN70412 is an example of BS1363 specification. The product is used in almost all homes in the UK. It is also a national electrical standard for manyother countries, including Ireland, Kuwait, Saudi Arabia, Malaysia, Singapore, and many other countries belonging to the Commonwealth.
What is the difference between SP and DP on this double socket?
The DN70408 socket features single pole or SP safety measures and disconnects the live conductor only when the switched is turned off, making it compliant with the traditional British socket configuration used in living spaces and bedrooms. Meanwhile, the DN70412 socket is compliant with double pole or DP socket specifications that disconnect both live and neutral wires at the same time, providing total isolation for increased safety.
Can each socket be switched independently?
Indeed, there are two outlets of 13A type in the DN70408/DN70412 configuration, and both these outlets have the neon indicator and rocker switch. You may turn off the power supply to the kettle socket without cutting off the power supply to the toaster socket, as both the circuits work independently and have red copper switches as well as phosphor copper contacts.
Is this double socket compatible with standard UK back boxes?
Indeed, the 88×146mm panel is specifically made for standard double gang back boxes that are widely used in Britain. It can be directly installed in an available double gang box or designed for installation during construction where double gang back boxes are used. The DN70’s slim profile design is more aligned to the wall than a typical socket.
