British Standard 13A 2 Gang Switched Socket — Two Independent Outlets, One Double Wall Socket, White PC Panel

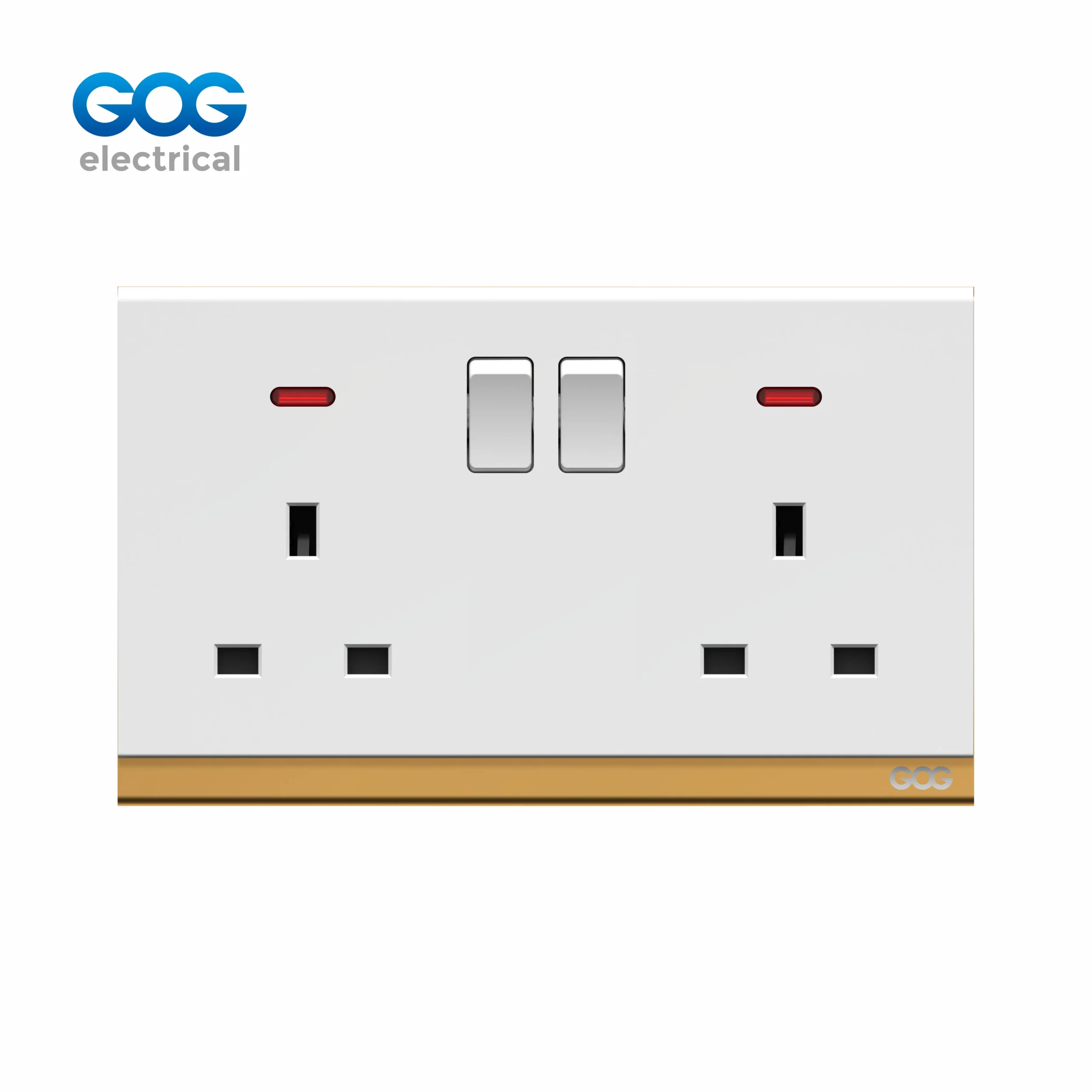

The R16408 is a double gang switched socket rated at 13A to British Standard 1363 which contains 2 independent BS1363 power points mounted on to 86mm x 146mm mounting plate. By having this double wall socket rather than the use of 2 single wall sockets located side by side, you will create a much neater and more professional finish but will save back box space and reduce the number of holes needed to fit electrical equipment into the wall. Each socket has a separate SP rocker switch with a neon indicator so each socket can be controlled independently and its visual functioning can be confirmed. Also, the high-purity 62 brass contacts in each socket are 0.7mm thick providing 15,000 insert cycles for reliable pin retention on the sockets, while the Φ3.5mm × 0.35mm silver alloy touch point found on both sides, provides switching action for both gangs independently. The R16408 is available in 4 colours: White, Gold, Grey and Black, and come with 2 middle plate options to suit either IEC 60884 or BS1363 standards. The R16408 is guaranteed for 12 years.
We are a factory-direct double switched socket manufacturer offering competitive wholesale pricing, OEM branding on any color PC panel, and a 12‑year warranty across the R16 series range.
Two Independent Sockets, One Panel — Why 2 Gang Beats Two Single Sockets
| Feature | R16408 2 Gang Switched Socket | Two Single 1 Gang Sockets |
|---|---|---|
| Wall Space | One 146mm plate — cleaner aesthetic | Two separate 86mm plates — more wall clutter |
| Back Boxes | One double gang back box | Two single gang back boxes |
| Installation | One panel to fit — faster | Two panels to align — takes longer |
| Per Socket Control | Independent switch + neon per socket | Independent switch + neon per socket |
The UK standard double socket configuration is used in all instances where there is a requirement for two appliances to be supplied with power from the same wall location, such as kitchen benchtops for kettles and toasters; lounge room TV outlets providing power to both TVs & soundbars; working desks providing power to both computers & monitors. Each 13A outlet is completely independent, having its own rocker switch (to turn on & off) & neon indicator (to show if voltage is present to the socket here). For example, you can switch off the power to a kettle, but keep the power on to the toaster — the two are controlled independently of each other. The integrated copper design of the 0.7mm 62 brass contacts allows for the maximum amount of current to flow through each of the sockets, thus maintaining the same amount of current flow through each socket as is possible (due to their being used in conjunction with one another). Furthermore, the expected life of each socket is approximately 15,000 cycles, which should be sufficient to meet the demands of an average household over 20 years of service.
Matching the R16 Series — 2 Gang Double Socket Within the Same Aesthetic
This white double wall socket from the R16 range features a back box dimension of 86mm x 146mm and is compatible with other R16 products to provide a seamless look and feel regardless of whether you install a single or double wall socket. All R16 Wiring Accessories feature the same back box size and complementary colour options. In addition to the standard back box, you also have a choice of two mid plate materials, either full-plastic or a combination of steel and plastic, which will give you added strength over time. The R16408 Double Wall Socket is certified to meet the requirements of IEC 60884 and BS1363 standards and has a 12 Year warranty from the manufacturer of the socket.
SPECIFICATIONS
| Series | R16 series |
| Item Code | R16408 |
| Description | 13A 2 Gang Switched Socket with Neon |
| Socket Rating | 13A / 250V~ per socket |
| Socket Configuration | 2 gang — two independent BS1363 outlets |
| Switch Type | SP (Single Pole) with neon indicator per socket |
| Product Lifetime | 15,000 cycles per socket (socket insertion) |
| Socket Standard | UK 3‑pin BS1363 |
| Front Panel | Imported high‑transparent, high‑strength PC |
| Base | Imported high‑transparent, high‑strength PC |
| Middle Plate Options | Full plastic / Steel‑plastic combination |
| Switch Internal | Red copper bush, red copper stamping part, red copper bus bar, Φ3.5mm×0.35mm silver touch point (per gang) |
| Socket Contact | 0.7mm high purity 62 brass, integrated structure copper |
| Standards | IEC 60884 / BS1363 |
| Warranty | 12 Years |
| Available Colors | White / Gold / Gray / Black |
| Dimensions | H 86mm × W 146mm (double gang British Standard back box) |
| MOQ | 2,000 pcs per item |
| Packaging | 1 pc per plastic bag | 5 pcs per inner box | 50 pcs per outer carton |
Stock This 13A British Standard 2 Gang Double Switched Socket in Four Colors at Factory Pricing
White, Gold, Gray, Black PC panel. Two independent 13A outlets with neon indicators. 62 brass socket contacts. Full plastic or steel-plastic middle plate. OEM logo, custom packaging, 12‑year warranty included. Contact this 2 gang socket manufacturer for a wholesale quotation.
IEC 60884 & BS1363 Certified • 15,000 Cycle Lifespan • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for British Standard 13A 2 Gang Double Switched Sockets — Factory Direct
As a specialist 2 gang switched socket manufacturer, we produce the R16408 on our own production lines — giving your wholesale business a double socket option that consolidates two BS1363 outlets into one 86×146mm panel. Stock White for volume residential projects, Gold and Gray for premium interiors, and Black for modern commercial fit‑outs — all with the same 62 brass socket contacts, red copper switch mechanisms, and independent neon indicators per socket. Stock alongside the R16407 (1 gang single) to offer complete single and double socket coverage from one British standard double socket factory. OEM branding on any color PC panel, custom packaging, and full IEC 60884 and BS1363 documentation included for wholesale distributors worldwide.
1 Gang vs 2 Gang Switched Sockets: Choosing the Right Socket Configuration for Every Room
A practical guide to specifying single and double gang wall sockets for residential, hotel, and commercial power outlet installations.
2 Gang vs 1 Gang — When Do You Need a Double Socket?
R16408 2 gang switched socket is suitable when you need to provide a supply to two devices at the same time. For example: On a kitchen worktop, there will be a kettle and a toaster together, so one double socket would provide the electricity required for both items, eliminating the need for extension leads. For instance; In a living room with TV points where a television and sound bar or streaming box require power from one source (wall plate). In an Office with a desk with a Computer and a Monitor, you can switch off your computer whilst leaving the monitor on as each has its own independent switching. On a bedside table, you could have a lamp and a phone charger, and these would be independently switched. R16407 1 gang switched socket would be the correct specification for providing a single supply to an appliance or complying with building regulations as they state a minimum number of individual socket points are required.
Installation — Double Gang Back Box Required
The R16408 is designed to work with 86 x 146 mm Double Gang backboxes, not two Single Gang side by side. The Wide Panel is also designed for use with Double Gang backboxes to align perfectly with the wall. Each Socket has its own Switch and Neon Indicator, which are wired separately from each other. Both Outlets have a total of 62 Brass Contacts to ensure that both Outlets maintain their Pin Retention as a result of being inserted into and removed from the respective Outlets for a total of 15,000 Cycles of Use. In order to create a multi-socket installation, where there are more than two sockets at one location, you can install R16408 Double Socket and R16407 Single Socket in a multi-gang backbox configuration.
Color Selection — White, Gold, Gray, or Black?

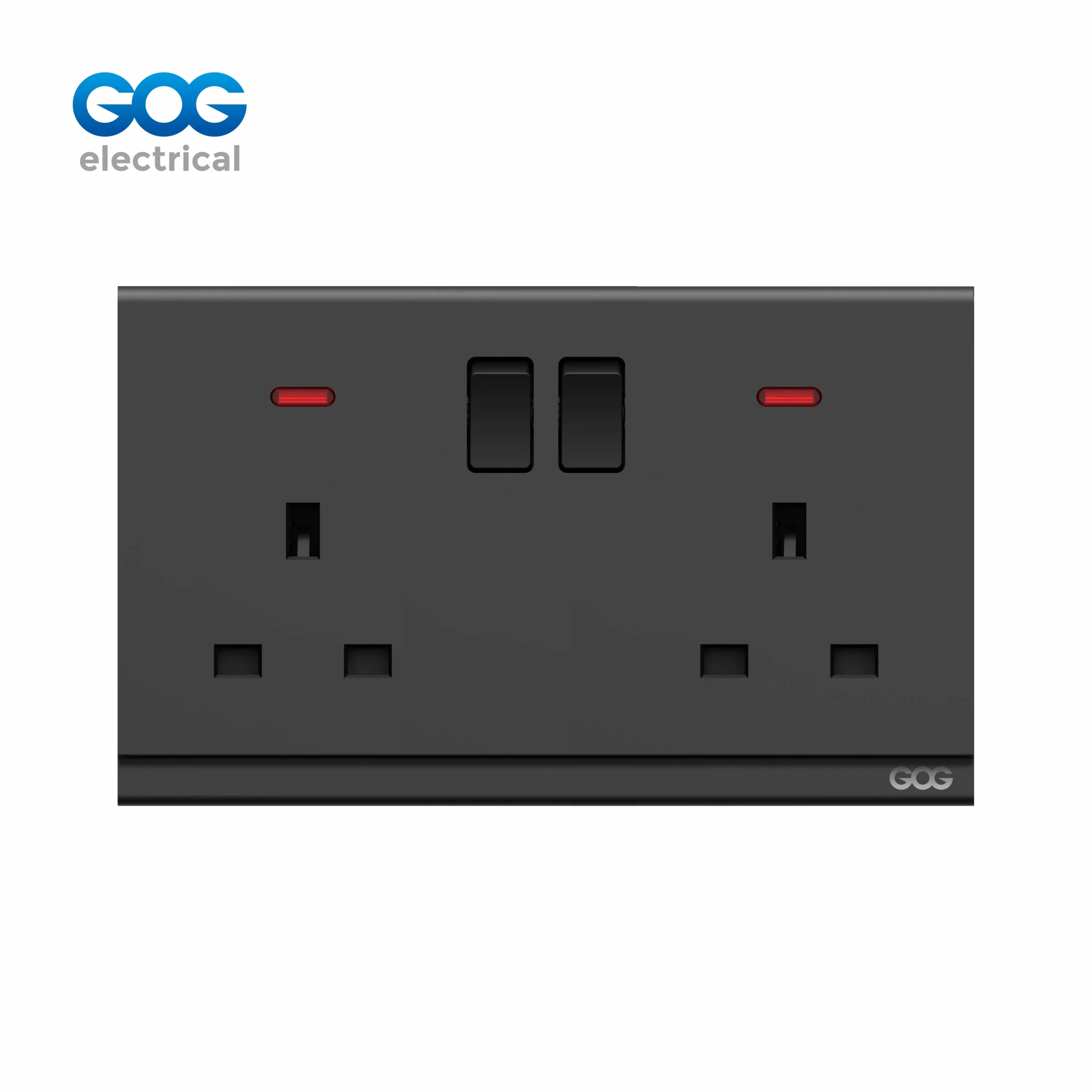

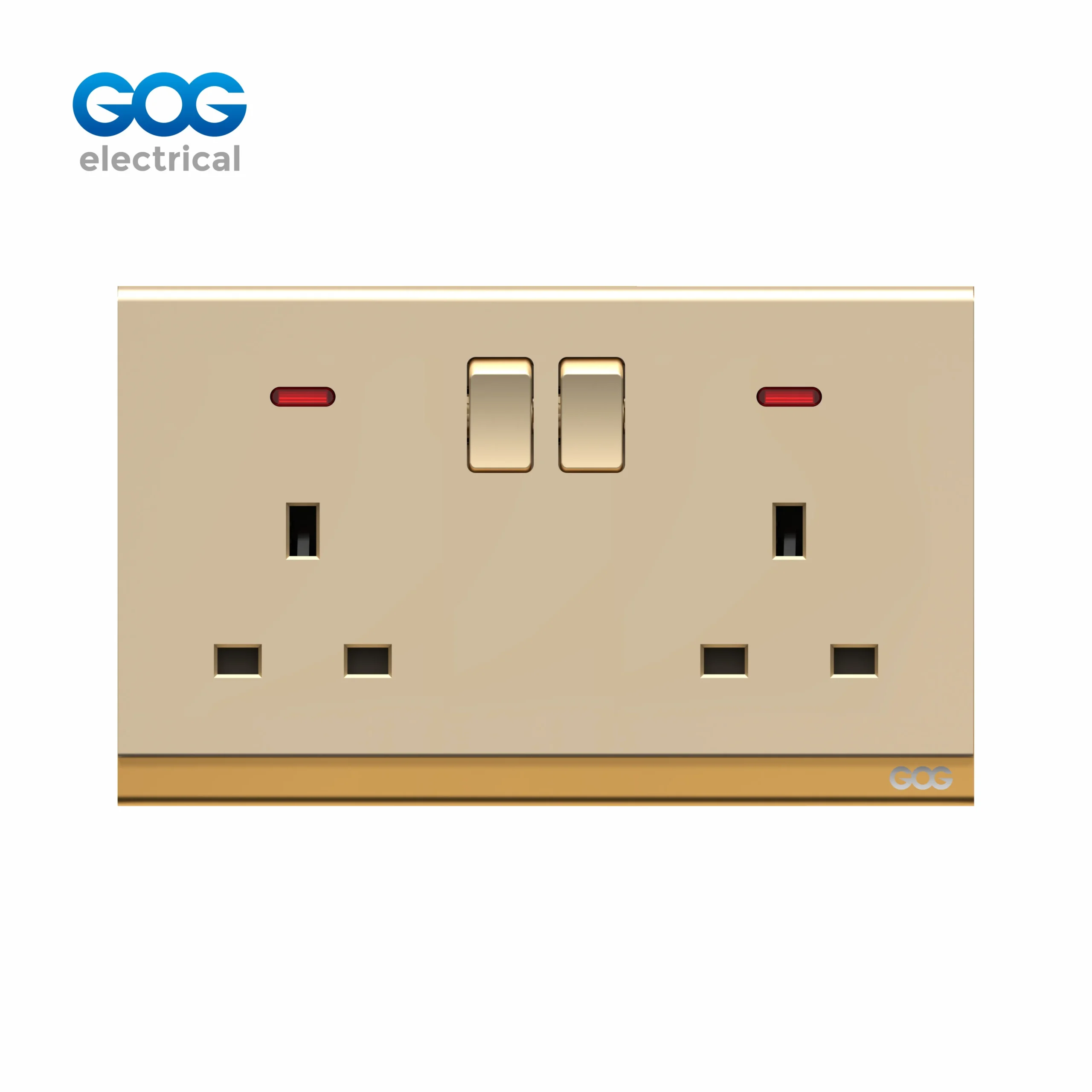

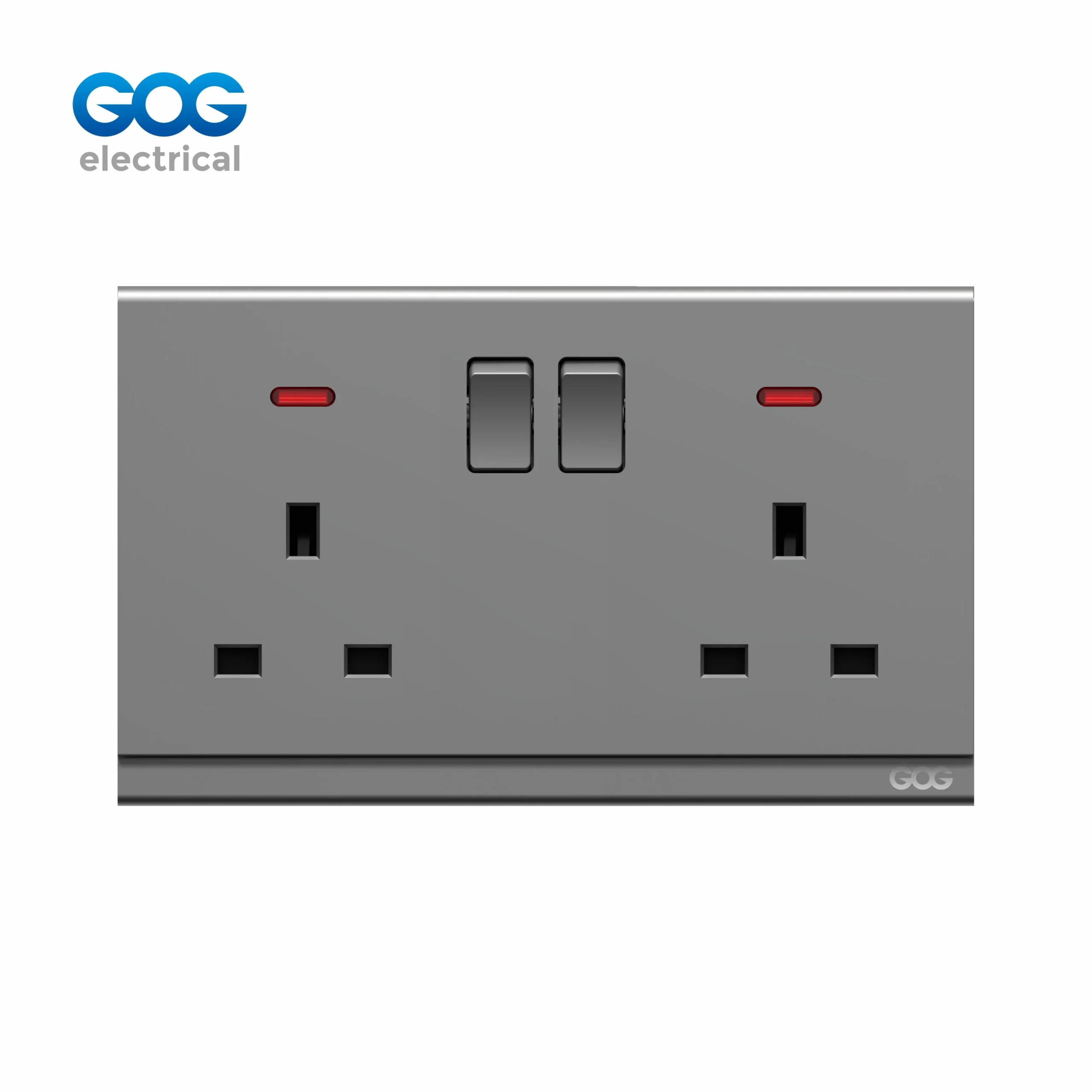

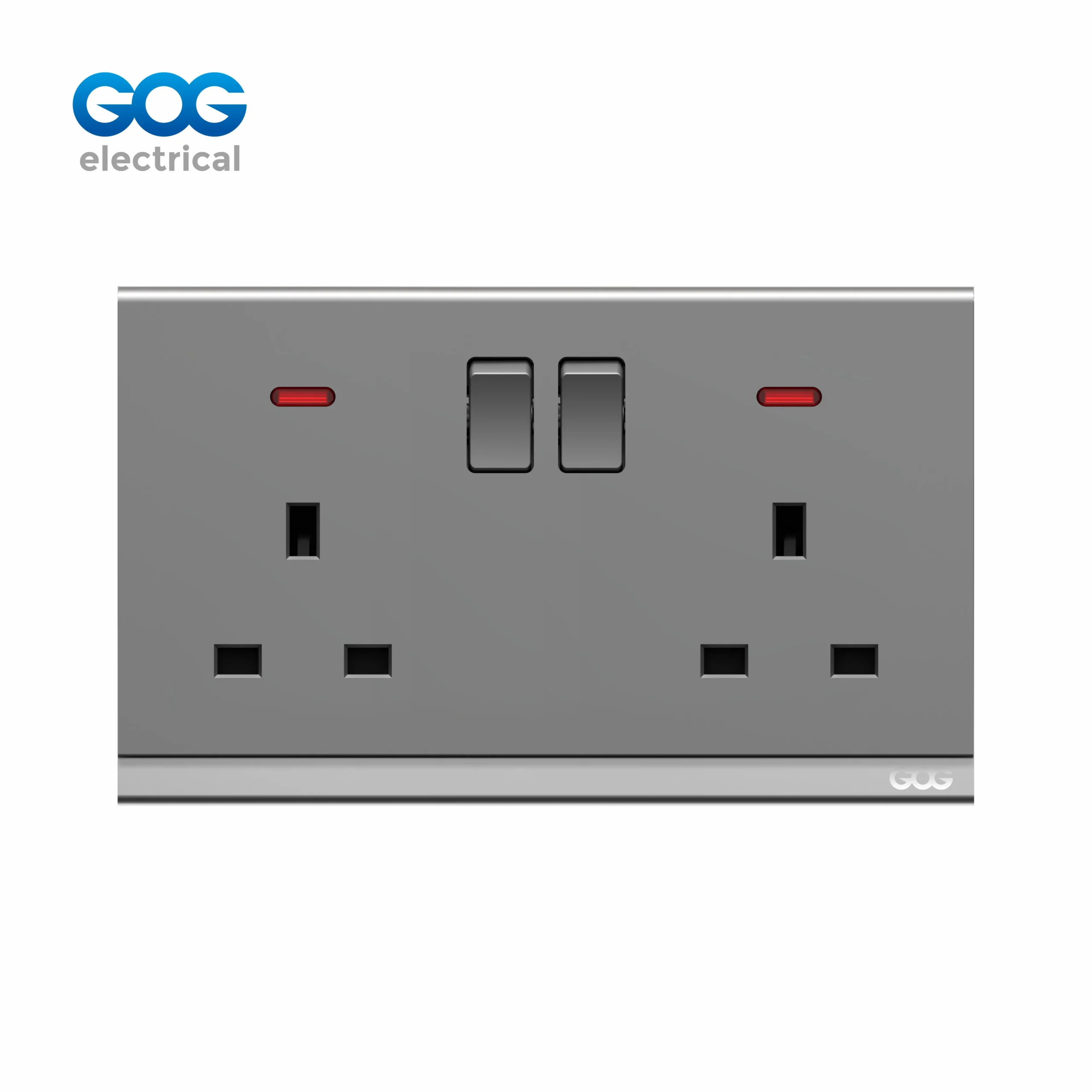

White PC panel: Kitchen, living room, and office standard. A golden PC accessory is a warm gold for premium hotel suites and elite residences. Gray is a neutral and sleek accessory for both contemporary apartments as well as commercial buildings. A black accessory is a strong contrast for use in luxury interior design and commercial fitouts. All four colours are made out of the same imported, high-clarity PC material and have a warranty of 12 years.
Frequently Asked Questions
What is a 2 gang switched socket?
A double switched socket output has two independent 13A electrical outlets housed in one wall plate.
An electrical outlet compliant with the British Standard (R16408) comprises 2 switches that operate independently from each other; thus, it allows users to operate 2 electrical devices independently from one standard wall plate (86mm x 146mm). These types of electrical outlets are also referred to as 2 gang sockets or twin switched sockets.
Can each socket be switched independently?
Absolutely. There are two independent switched SP rockers sockets with their own neon indicators for the 2 gang 13A outlets on the R16408. So that one can be turned off (kettle socket) with the other (toaster socket) remaining powered, each gang operates independently to one another. There are also two separate wiring paths feeding the two switches and two neon indicators in the same 146mm wide panel.
What size back box do I need for a 2 gang socket?
The standard British double gang back box needed for the R16408 dimensions 86mm in height x 146mm in width. You cannot use two single gang boxes next to each other because the panel is a continuous box measuring 146mm across which fits into a standard British double gang box. If you’re putting in a new installation, specify that you want a double gang box at the first fix stage. If you are retrofitting an existing double socket, then the R16408 will simply go into the existing double gang back box without alteration.
What colors is this British standard 2 gang double socket available in?
Four PC panel colors are available for the R16 Series 2 Gang Switched Socket: White (traditional/standard residential and commercial), Gold (premium finish for premium interiors), Grey (neutral contemporary for modern apartments and offices), and Black (strong contrast for premium interiors and commercial fit-outs). Each color is made using the same imported high-transparency, high-strength PC material, and all four colors will have a warranty of 12 years from the factory that created and manufactured them.
