SPECIFICATIONS
| Series | T-C series |
| Item Codes | TC11M65 (1 Way) | TC12M65 (2 Way) |
| Description | 1 Gang Switch with Duplex 3P Socket / Twin Switched Socket Combo |
| Socket Rating | 15A / 250V~ |
| Socket Type | Duplex 3P — two independent outlets, one rocker switch |
| Switch Type | 1 Way (TC11M65) or 2 Way (TC12M65) |
| Switch Lifespan | 100,000 cycles |
| Socket Lifespan | 15,000 cycles per socket (socket insertion) |
| Front Panel | Imported high‑transparent, high‑strength PC |
| Base | Imported high‑transparent, high‑strength PC |
| Middle Plate | Steel middle plate |
| Switch Contact | High quality copper, silver touch point |
| Socket Contact | High quality phosphor copper (both outlets) |
| Standards | IEC 60884 / BS1363 |
| Warranty | 12 Years |
| Available Finishes | White + Chroming Silver / Black + Chroming Gold / Gray + Chroming Gun / Golden / White / Black / Gray |
| Dimensions | H 81.5mm × W 120mm |
| MOQ | Contact sales team |
| Packaging | 1 pc per plastic bag | 10 pcs per inner box | 100 pcs per outer carton |
Duplex vs Single 3P Socket — Two Outlets, One Switch
| Feature | TC11M65/TC12M65 (Duplex) | TC11M35/TC12M35 (Single) |
|---|---|---|
| Socket Configuration | Duplex — two 3P outlets, one panel | Single — one 3P outlet, one panel |
| Switch Control | One rocker controls both outlets simultaneously | One rocker controls one outlet |
| Best For | TV points, office desks — two appliances, one switch | Single appliance with local isolation |
Seven Chroming Finishes — A Twin Socket That Matches Your Interior
| Finish | Description |
|---|---|
| White + Chroming Silver | Pure white panel framed with a cool silver metallic border. |
| Black + Chroming Gold | Deep black panel with a warm gold metallic accent. |
| Gray + Chroming Gun | Neutral gray panel with a dark gunmetal metallic border. |
| Golden | Warm gold panel — a standalone metallic statement finish. |
Chroming 15A Switch Socket along with the Duplex 3P Socket — T-C Series Twin Outlet Combo featuring 7 different Metallic Finishes

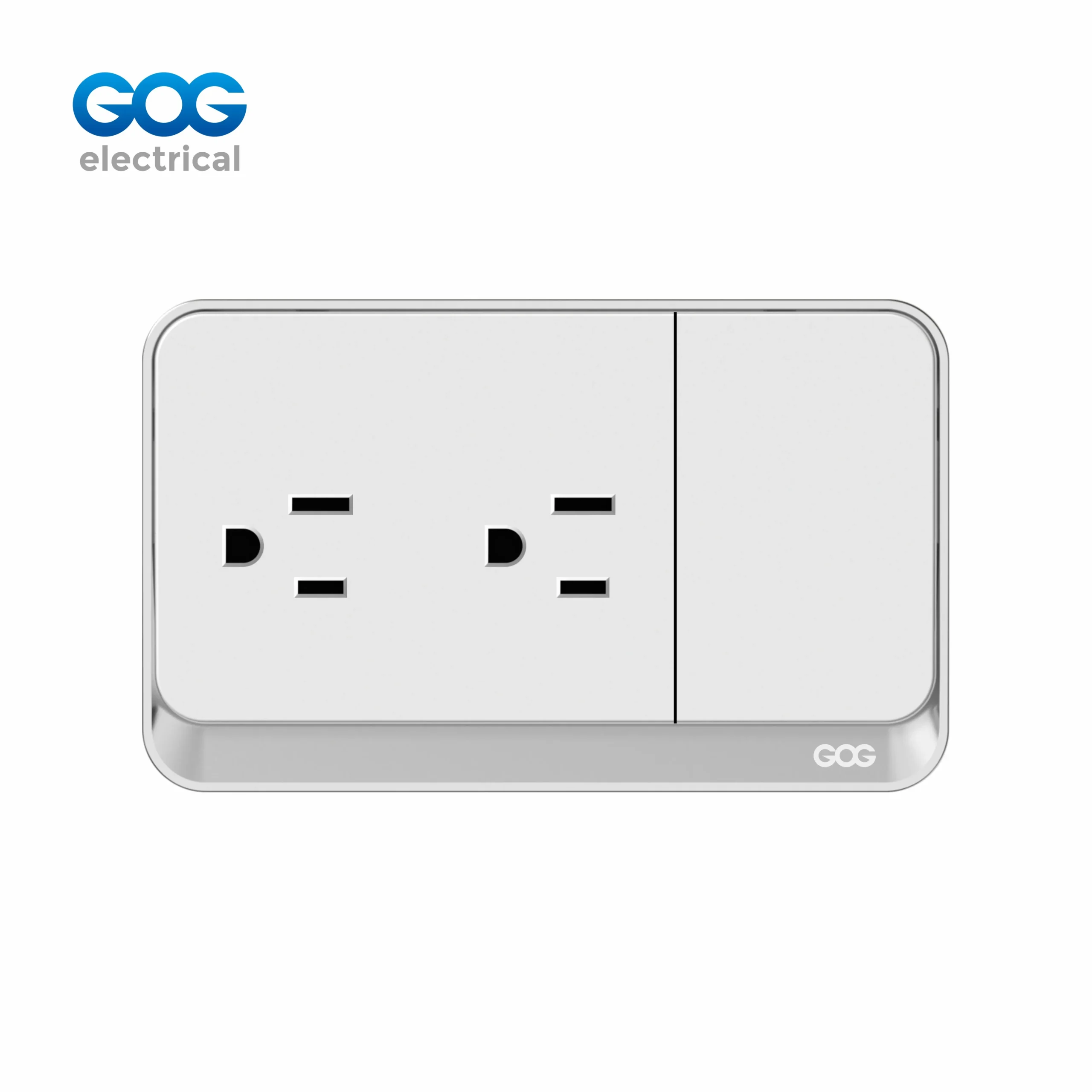

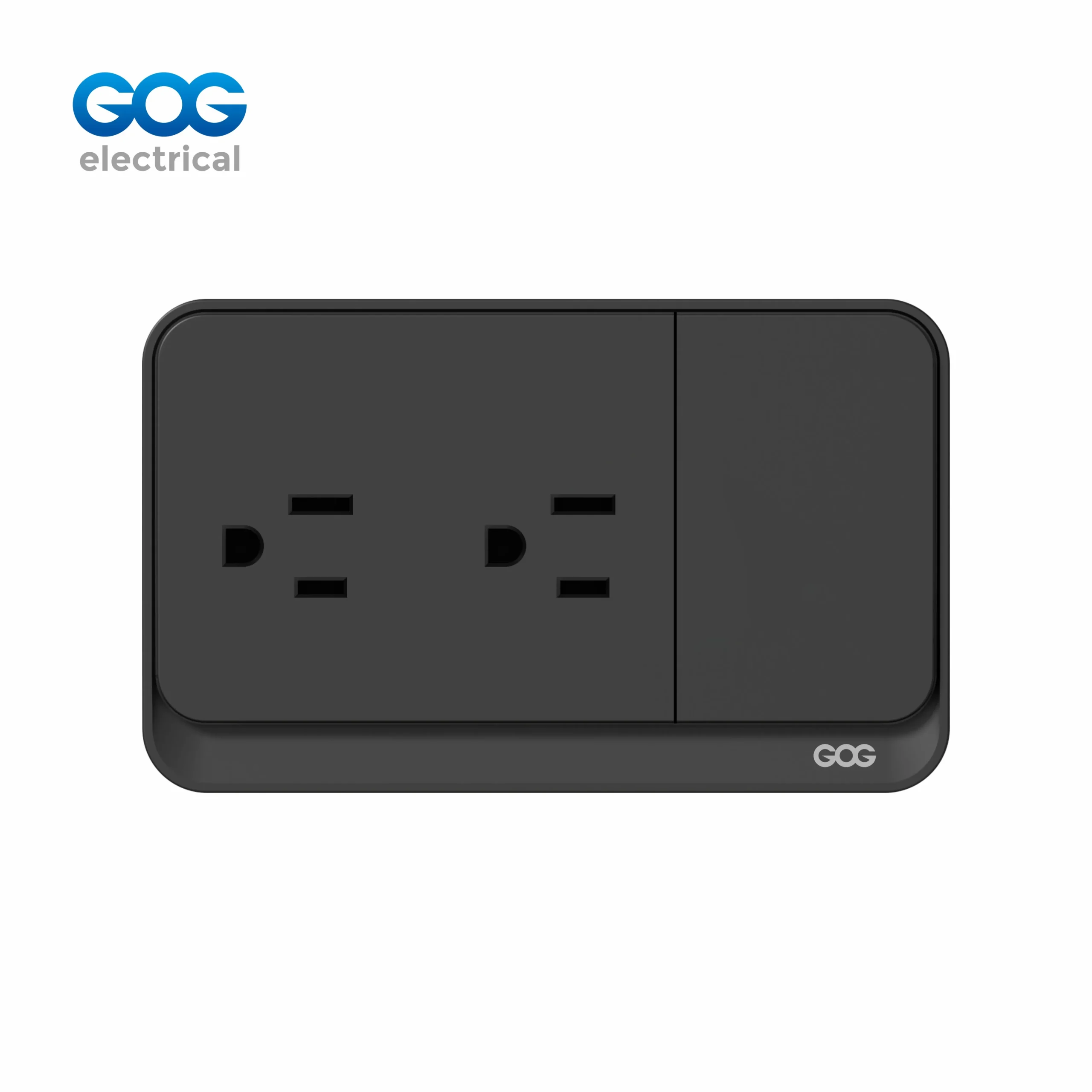

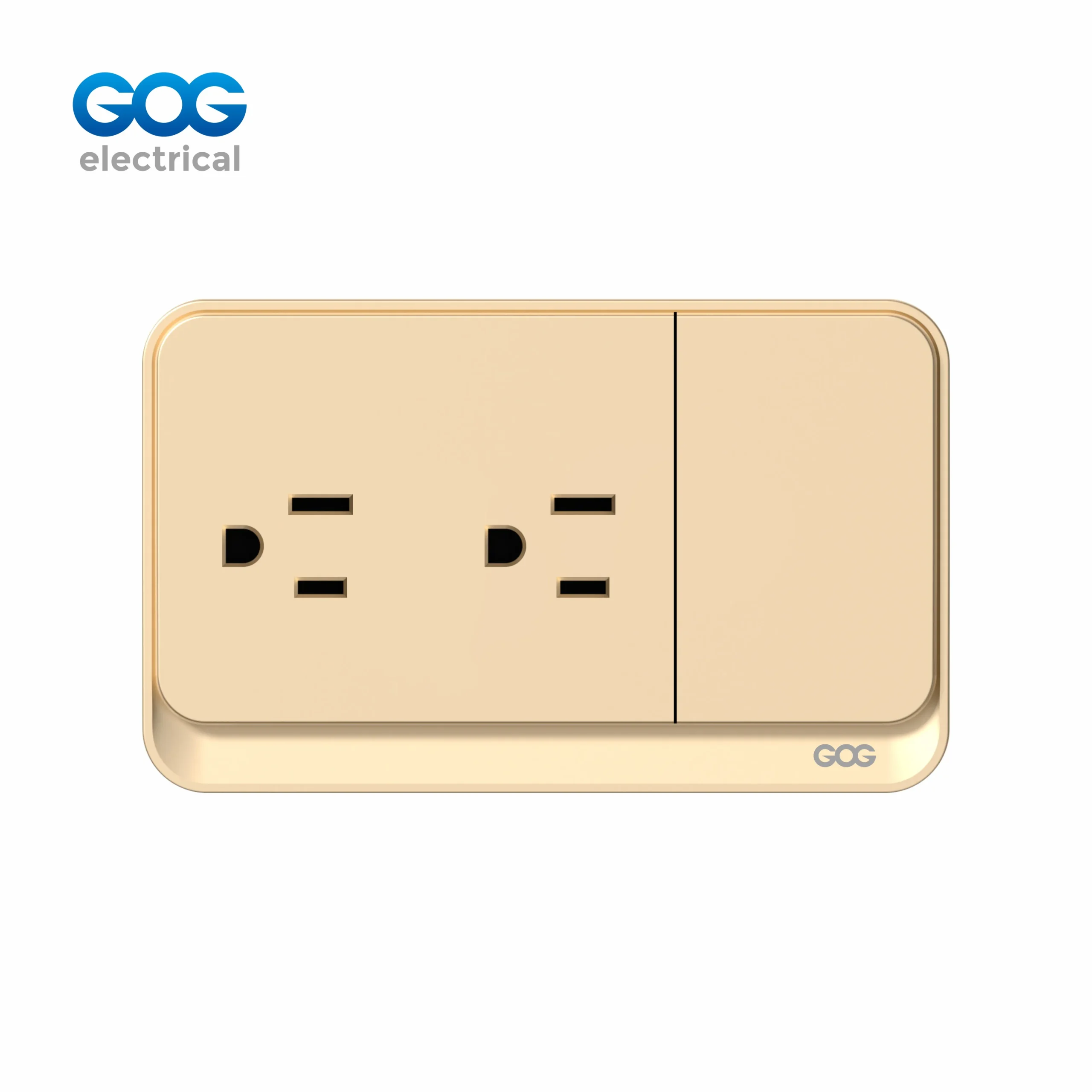

The TC11M65/TC12M65 is a chroming 15A switched socket with duplex 3P socket that provides two independent power outlets controlled by a single rocker switch in one 81.5×120mm wall plate, finished in the T-C series’s signature color palette. This twin socket combo is the correct specification for locations where two appliances need power at the same wall position — TV and soundbar, computer and monitor, lamp and phone charger — with the convenience of one switch controlling both outlets simultaneously. Available in 1 way for single‑location control or 2 way for two‑location switching. The switch mechanism uses high‑quality copper and silver touch points rated for 100,000 operation cycles, while both phosphor copper socket contacts are independently rated for 15,000 insertion cycles. Available in seven chroming metallic‑accent finishes matching the T‑C series aesthetic. Steel middle plate for structural rigidity. IEC 60884 and BS1363 certified with a 12‑year warranty.
We are a factory-direct manufacturer offering competitive wholesale pricing, OEM branding on any color PC panel, and a 12‑year warranty across the T-C series range.
Duplex Design — Two Ports, One Switch, One Simple Panel
The chroming double 3P switch socket provides a solution to a common issue: where to connect two devices to the same wall outlet if two separate sockets aren’t preferred. The duplex design contains two 3P sockets on a single 81.5×120mm panel — the same footprint as a single socket. The rocker switch controls both sockets simultaneously and ensures convenient master isolation. The phosphor copper contacts of both sockets can endure independent of 15,000 insertion cycles and the metal middle plate supports the panel during the operation, including when pushing the switch or inserting the plug. The high-quality front panel is made of high-transparency, high-strength imported PC and boasts the chrome finish identical to the other models in the T-C series. The product meets IEC 60884 and BS1363 requirements.
Pairing the T-C Series — Duplex Switch Socket in the Chrome Finish
This white PC twin socket with chrome details is a member of the T-C series. It has the same dimensions of 81.5×120mm, the high-quality imported PC panel, and seven coating colors as the switches and single sockets in T-C series. The duplex socket can be installed next to T-C series switches and sockets — all being identical in the profiles and chrome details. Besides, the T-D series TD11M65/TD12M65 can be offered to customers who want a different chrome combination.
Stock This Chroming 15A Duplex Switched Socket in Seven Finishes at Factory Pricing
Seven chroming metallic-accent finishes including silver & gold. 1 way & 2 way switch with duplex 3P socket. Phosphor copper contacts on both outlets. OEM logo, custom packaging, 12‑year warranty included. Contact us for a wholesale quotation.
IEC 60884 & BS1363 Certified • Duplex 3P + Switch • Global Shipping
Factory-Direct Supply for Wholesale & OEM Partners
Your Source for T-C Series Chroming Duplex Switch Socket Combos with 3P Socket
The TC11M65/TC12M65 twin switched socket has been introduced to the T-C series with a cool touch of chrome finish available in three signature colors Silver, Gold, Gun metallic finish. It is available in one-way switch and two-way switch configurations. To have a complete T-C collection, stock it along with TC11M35 / TC12M35, single configurations, so that complete single as well as twin powered sockets are provided. Also stock T-D series TD11M65/TD12M65 for customers looking for different color combinations. The two series share the same dimensions of 81.5x120mm along with the internal mechanism but differ in chroming colors. OEM branding can be done on any color plastic panel along with custom packaging.
Duplex vs Single Switched Socket: Choosing the Right T-C Series Configuration for Every Room
A practical guide to specifying duplex or single switch socket combos for residential and commercial power outlet installations.
Duplex (TC11M65/TC12M65) versus Single (TC11M35/TC12M35): Which one suits which type of room?
The duplex switched socket features a double 3P socket equipped with one rock switch. It is suitable for those places which need double power supply like TV points, office desks and bedside tables. The single switched socket is applicable where only one socket is needed. Both options have the same size of 81.5×120mm panel footprint, seven kinds of T-C series chroming finishes and possible configurations of 1-way and 2-way switch.
T-C series versus T-D series: Which chroming palette suits duplex switched socket?
The T-C Series (TC11M65/TC12M65) switches cool Silver with White, warm Gold with Black, and dark Gun with Gray, besides there is a stand-alone finish of Golden color. The T-D series uses warm Gold with White, dark Gun with Black, and cool Silver with Gray. Try to have both options in your stock to provide a full range of metallic accent combinations for duplex socket positions.
Finish Choice: What chroming color will suit your interior?
White + Silver chroming: fresh cool contrast. Black + Gold chroming: powerful warmth. Gray + Gun chroming: subtle depth. Golden: completely metallic statement. You may also choose from pure White, Black, and Gray colors for minimalist interiors.
Frequently Asked Questions
What is a duplex switched socket with a 3P socket?
The double switched socket contains two separate power outlets which can be controlled by a single rocker switch on this wall plate. The TC11M65/TC12M65 is from the T-C series chroming 15A duplex switched socket with two 3P outlets, which means that you can attach two electrical devices at the same location and control them both with one switch. It eliminates the necessity of having two conventional single sockets at the same location, and saves back box space, producing a better appearance of the wall and using the company’s characteristic chroming finish.
Does one switch control both duplex outlets?
That’s right; the single rocker switch located on the TC11M65/TC12M65 is capable of operating two 3P outlets at the same time. Once the switch is turned off, both sockets are completely separated from the electricity supply, and no power reaches the respective socket. If the switch is moved to the ON position, both sockets will work normally. This is intended to give the complete system its duplex operation, allowing appliances to be turned off together.
What is the difference between T-C and T-D series duplex switched sockets?
With the T‑C series (TC11M65/TC12M65), cool Silver is paired with White, warm Gold with Black, and dark Gun with Gray plus a Gold-only option. The T‑D series (TD11M65/TD12M65) brings warm Gold with White, dark Gun and Black, and cool Silver with Gray as well as Gold + Chroming Gold. What is common for both lines is that they have the dimensions of 81.5×120mm, 100,000 cycle switch design and phosphor copper contacts in both outlets; what differs is the color chroming combination. Carry both series to provide your clients with a full metallic accent range.
What chroming finishes is this T-C series duplex switch socket available in?
No matter which finish is chosen, the TC11M65/TC12M65 is guaranteed to match any T-C series colours that may suit your interior design colour scheme. There are characteristic Chromed colors versions, which are available in Silver, Gold, and Gun. The matching colors of switch plates complete the overall color palette.
